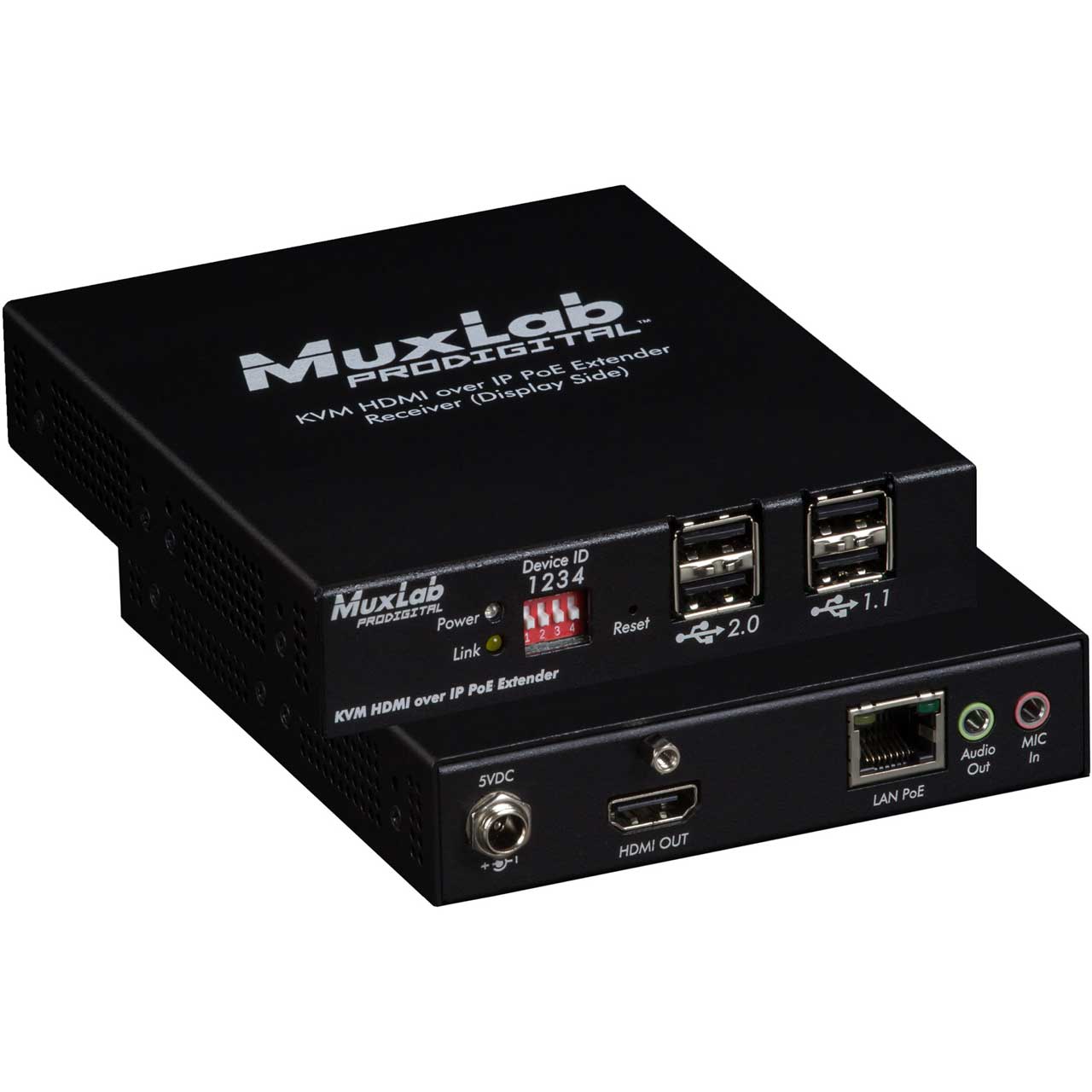

MuxLab 500772 UHD-4K KVM HDMI over IP PoE Extender - Receiver

500772-RX - Overview

• Features:

  • One operator can manage multiple servers/workstations
  • Supports HDMI up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0)
  • Receiver side includes a 4-port USB hub, for KVM applications
  • Up to 330ft (100m) over Cat5e/6
  • Supports 100's of Transmitters & Receivers depending on network bandwidth
  • Supports multiple point-to-point, and point-to-multipoint applications
  • Supports HDR
  • PoE powered
  • Supports audio insert & audio output (TX), and audio extract & mic-in (RX)


• Specifications:

  • Environment: HDMI 1.4
  • Devices: Computers and servers with HDMI monitor ports.
  • Transmission: Transparent to the user
  • Bandwidth (HDMI): 300MHz
  • Signals: HDMI 1.4 protocol, HDCP 1.4, HDCP 2.2

    Connectors - Note: Cables not included.
  • One (1) HDMI receptacle.
  • One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
  • Two (2) 3.5mm jacks for audio-in and audio-out (on TX)/audio-out and Mic-In (on RX).
  • One (1) 2.1mm locking barrel jack for power
  • One (1) or Four (4) USB Connector(s) for Host (on TX)/Client (on RX)
  • Four (4) DIP Switches for device ID addressing.

    Maximum Distance - Based on a maximum length of 6.6ft (2m) of HDMI cable per end.
  • Cat5e/6: 330ft (100m) up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0)
    Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used.


  • Latency: Typical one (1) Frame (16ms), maximum 2 frames (33ms)
  • Compression: JPEG 2000
  • Bandwidth: Up to 500Mbps
  • Network Requirement: 1000BaseT with PoE
  • Cable: One (1) Cat 5e/6 or better twisted pair cables required
  • Power Source: This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may be purchased separately.
  • PoE Standard: IEEE 802.3af
  • Power Consumption: Transmitter: 6Watt Receiver: 6Watt
  • Temperature: Operating: 0° to 40°C Storage: -20° to 85°C, Humidity: Up to 95% non-condensing
  • Dimensions: 4.40" x 5.08" x 1.00" (112mm x 129mm x 25mm)
  • Weight: 1.5lbs (0.68kg)
  • Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0


• Item Includes:

  • 1x Muxlab 500772 UHD-4K KVM HDMI over IP PoE Extender - Receiver


• Warranty:

  • 3 years


• GTIN:

  0627699807729
