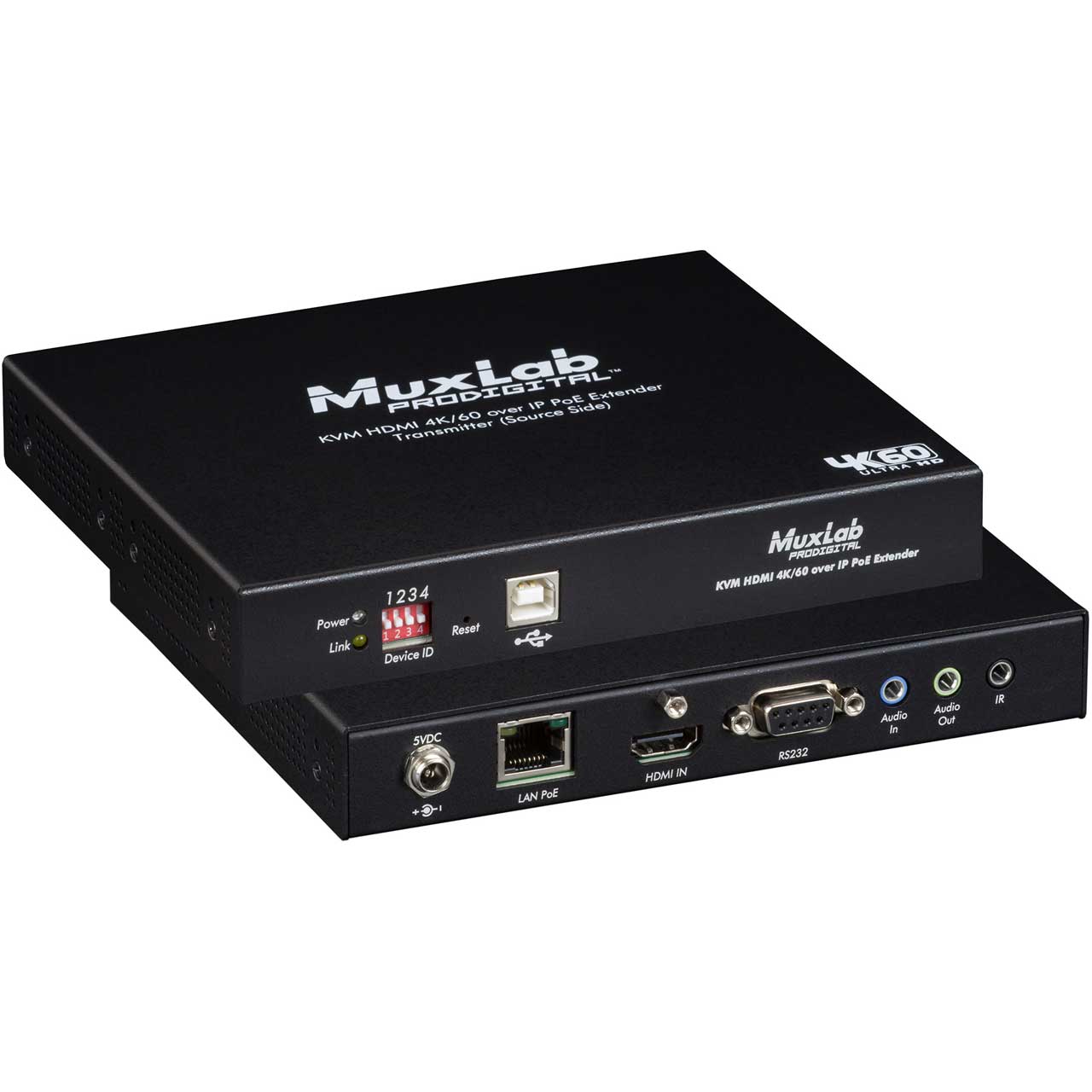

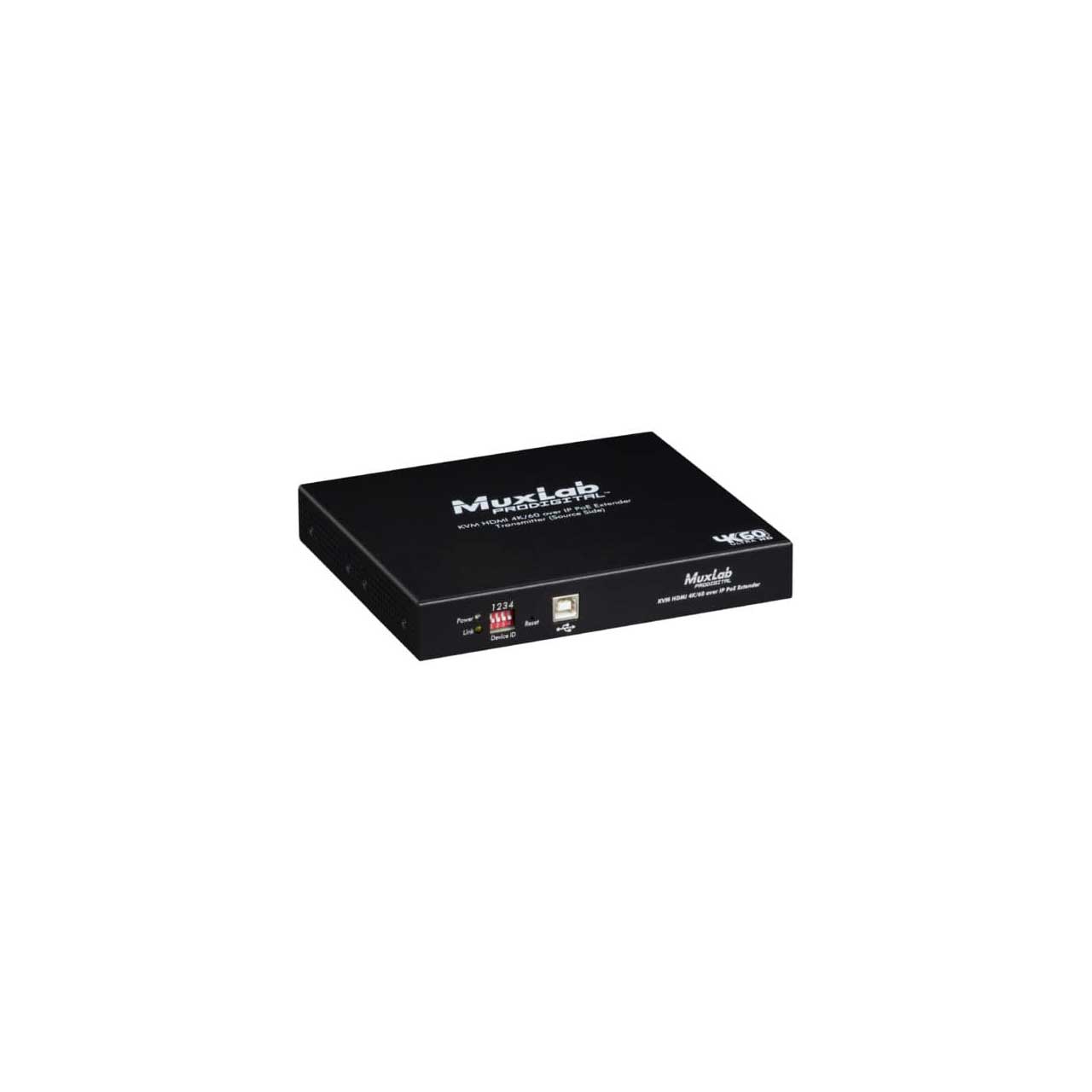

MuxLab 500800-TX 4K/60 KVM HDMI over IP PoE Transmitter

500800-TX - Overview

• Features:

  • One operator can manage multiple servers/workstations
  • Supports HDMI up to 4K @ 60Hz (4:4:4)
  • Receiver side includes a 4-port USB hub, for KVM applications
  • Up to 330ft (100m) over Cat5e/6
  • Supports 100's of Transmitters & Receivers depending on network bandwidth

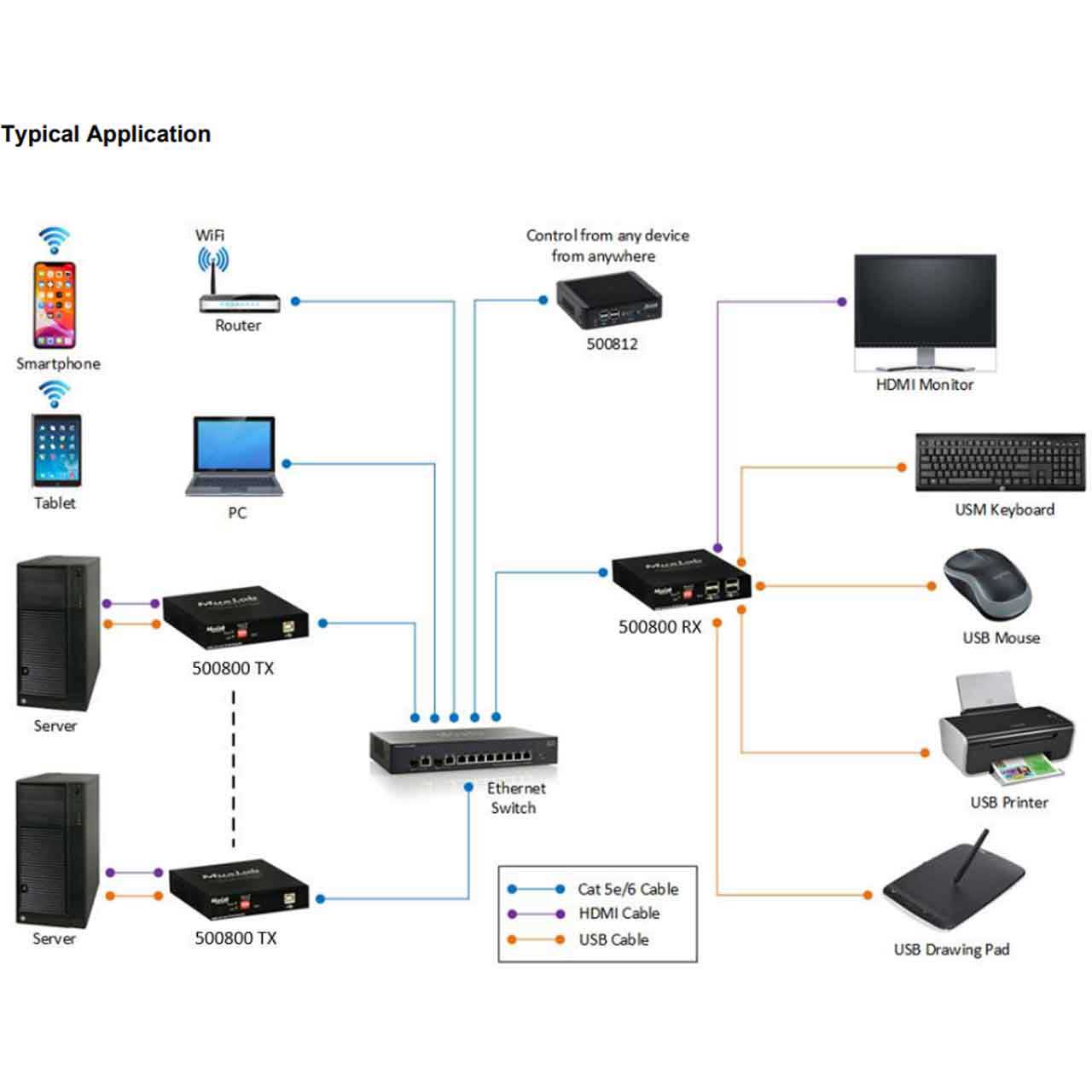

  • Supports multiple point-to-point, and point-to-multipoint applications
  • Supports HDR
  • PoE powered
  • Supports audio insert & audio output (TX), and audio extract & mic-in (RX)


• Specifications:

  • Environment: HDMI 2.0
  • Devices: Computers and servers withHDMI monitor ports.
  • Transmission: Transparent to the user
  • Bandwidth (HDMI): 597MHz
  • Signals: HDMI 2.0 protocol, HDCP 1.4, HDCP 2.2
  • HDR: Color HDR10 & Dolby Vision
  • Connectors: Note: Cables not included.
    One (1) HDMI receptacle.
    One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.

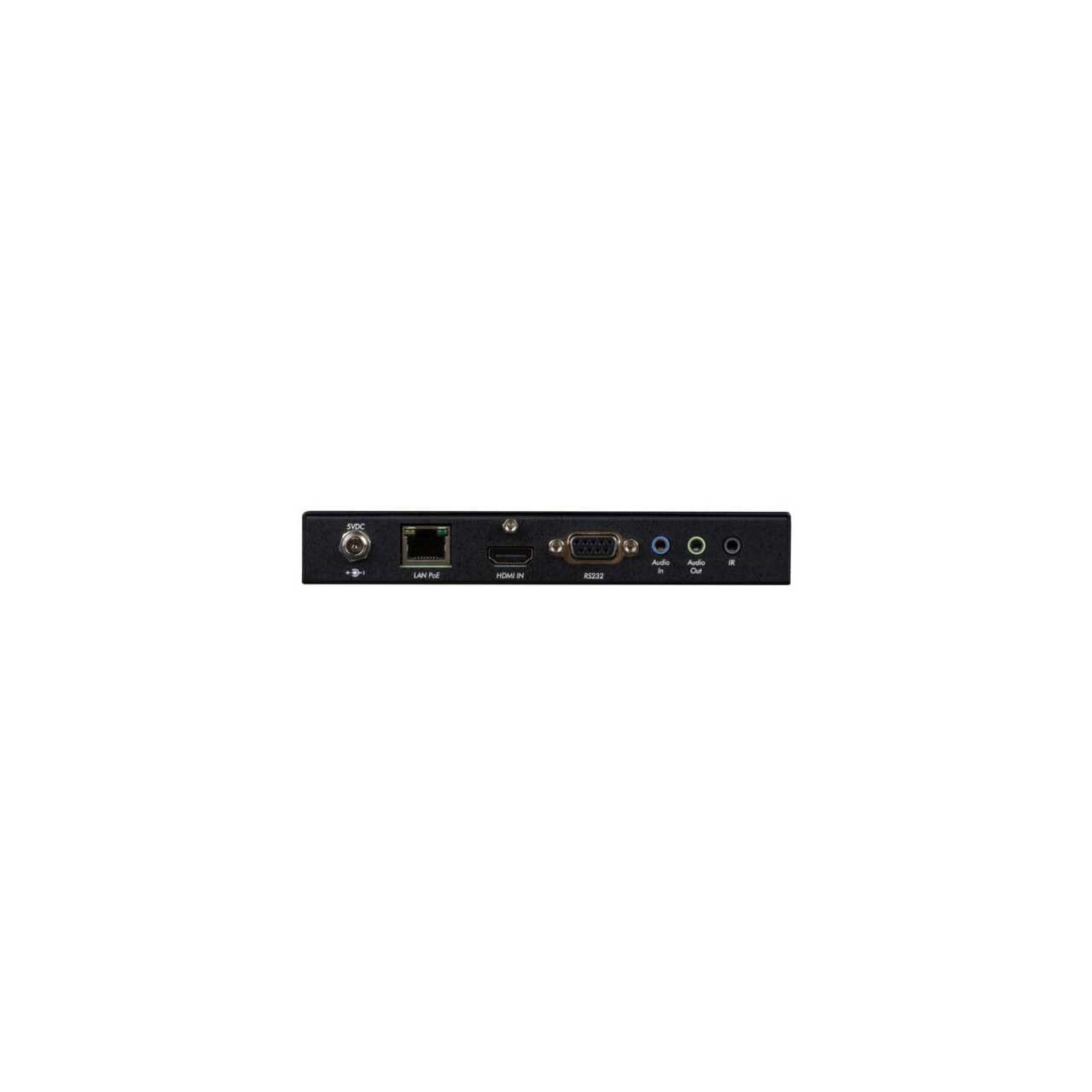

    Two (2) 3.5mm jacks for audio-in and audio-out (on TX)/audio-out and Mic-In (on RX).
    One (1) 3.5mm jack for directional Infrared port.
    One (1) DB9 for RS232
    One (1) 2.1mm locking barrel jack for power
    One (1) or Four (4) USB Connector(s)for Host (on TX)/Client (on RX)
    Four (4) DIP Switches for device ID addressing.
  • Maximum Distance Based on a maximum length of 6.6ft (2m) of HDMI cable per end: Cat5e/6: 330ft(100m) up to 4K @ 60Hz (4:4:4) Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used.
  • Latency: Typical one (1) Frame (16ms), maximum 2 frames (33ms)
  • Compression: JPEG 2000
  • Bandwidth: Up to 850 Mbps
  • Network Requirement: 1000BaseT with PoE
  • RJ45 Pin Configuration - Reverse Polarity Sensitive. Use EIA/TIA 568A or 586B straight through wiring.
  • RJ45 Link:
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)
  • Cable: One (1) Cat 5e/6 or better twisted pair cables required
  • Power Source: This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may be purchased separately.
  • PoE: Standard IEEE 802.3af
  • Power Consumption:
    Transmitter: 6 Watt
    Receiver: 8 Watt
  • Operating Temperature: 32° to 104°F (0°to 40°C)
  • Storage Temperature: -4° to 185°F (-20°to 85°C)
  • Humidity: Up to 95% non-condensing
  • Dimensions: 6.38 x 5.51 x 1" (162 x 140 x 25mm)
  • Weight: 1.5Lbs (0.68kg)
  • Compliance: Regulatory: FCC, CE, RoHS Flammability: 94V0


• Item Includes:

  • 1x 500800-TX Transmitter


• Warranty:

  • 3 Year


• GTIN:

  0627699908006
