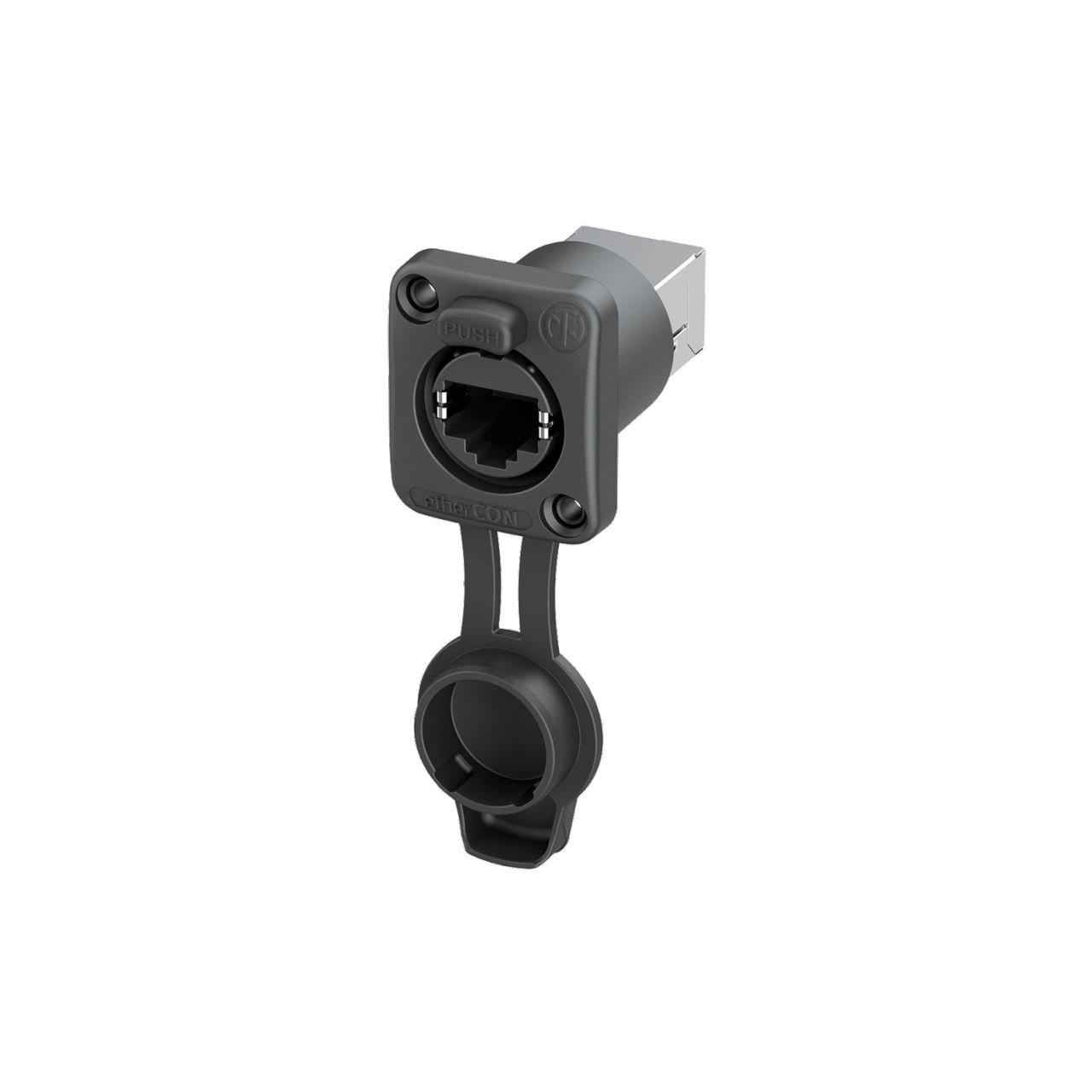

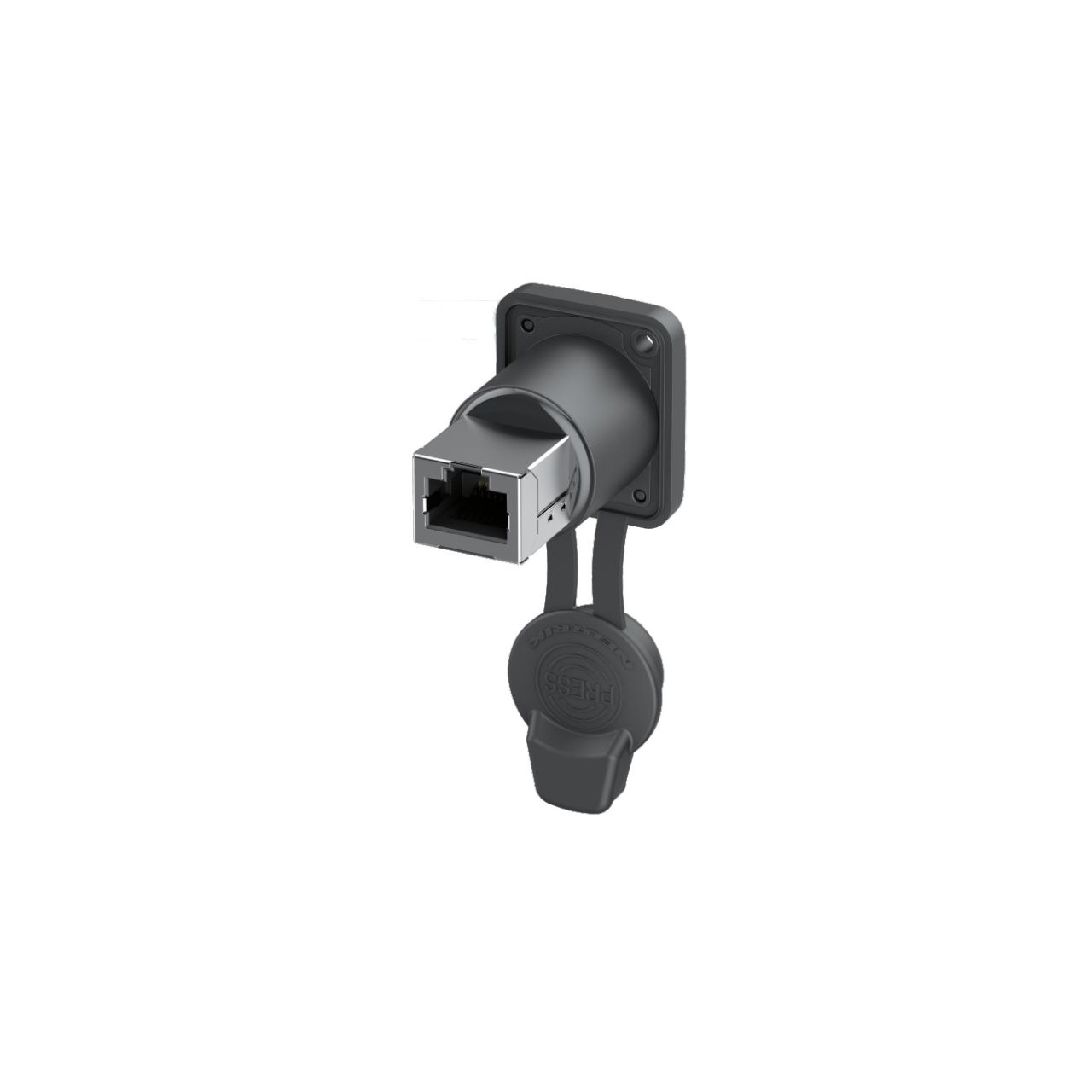

Neutrik NE8FDPS-TOP etherCON Airtight Feedthru D-Series Chassis Adapter w/ RJ45 - IP65 & 67 rated/UV-Resistant - 100W

ITEM #: NE8FDPS-TOP MFG #: NE8FDPS-TOP

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$11.58

Our Price:

$9.93

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


NE8FDPS-TOP - Overview

The etherCON TOP airtight chassis connector is the perfect solution for demanding outdoor applications and the harshest conditions. This innovative product is part of the etherCON product group and belongs to our premium data line. With an impressive array of features and a particular focus on protection and performance, the "etherCON TOP airtight" is the choice for professionals who require absolute reliability.

With the etherCON TOP airtight, you can count on a secure connection, even in the most extreme outdoor conditions. Rely on its protective features and high performance to ensure data connections that meet the most stringent requirements. Trust in TRUE OUTDOOR PROTECTION with this outstanding chassis connector from NEUTRIK - your link to the future.

  • Features:

    • IP65 & IP67 rating to protect from water and dust ingress (even in unmated and open sealing cap condition)
    • Corrosion resistance
    • UV protection
    • Airtightness for production line tests to ensure TRUE OUTDOOR PROTECTION on devices
    • 100 W power delivery according to IEEE 802.3bt Type 4 Class 8
    • Seamless design language of etherCON TOP & upcoming xlrCON TOP
    • Easy maintenance due to front-mount design
    • ESD protection up to 2 kV

  • Specifications:

    • Product family: etherCON
    • Connection type: Chassis connector
    • Gender: Female
    • Contact resistance: < 10 mΩ
    • Dielectric strength: 1 kV DC
    • Insulation resistance: > 0.5 GΩ
    • Rated current per contact: 1.5 A
    • Rated voltage: ≤ 57 V
    • Transmission performance: CAT5e acc. to TIA/EIA 568C channel specifications; CLASS D acc. to ISO/IEC 11801 channel specifications
    • Frequency range: 1-100 MHz
    • Power over Ethernet: PoE type 4 class 8 acc. IEEE 802.3bt
    • Insertion force: < 30 N
    • Withdrawal force: < 30 N
    • Lifetime: min. 1000 mating cycles
    • Locking device: Latch lock
    • Wiring: RJ45 Feedthrough (Wiring scheme enclosed)
    • Chassis shape: D
    • Mounting direction: Front mounting
    • Contact plating: Gold plating
    • Contacts: Brass
    • Flange: PA66 (hard component) + EPTR (soft component)
    • Housing: PA66
    • Flammability: V-0 acc. to UL94
    • Ingress protection class: IP65, IP67
    • Temperature range: -30 °C to +70 °C
