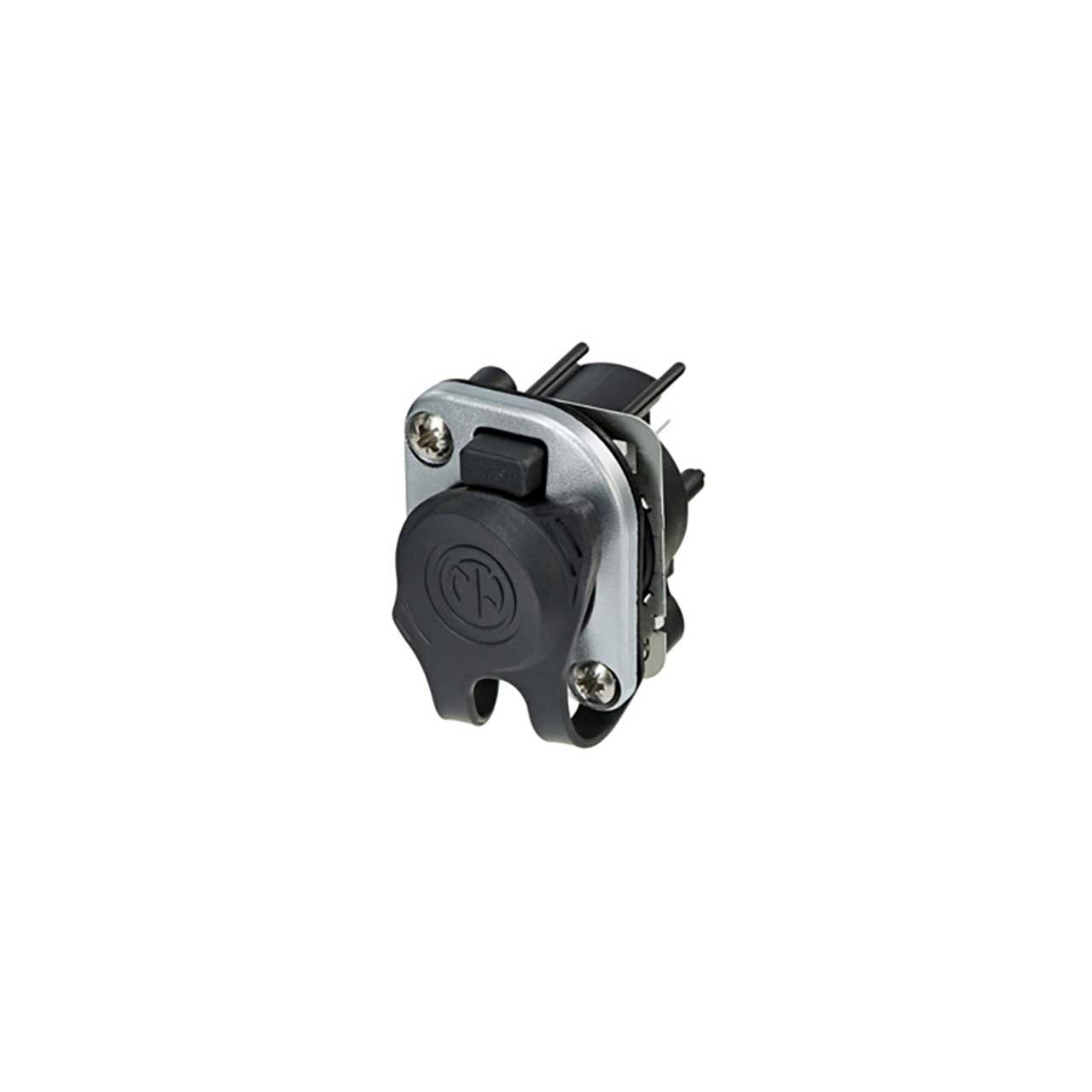

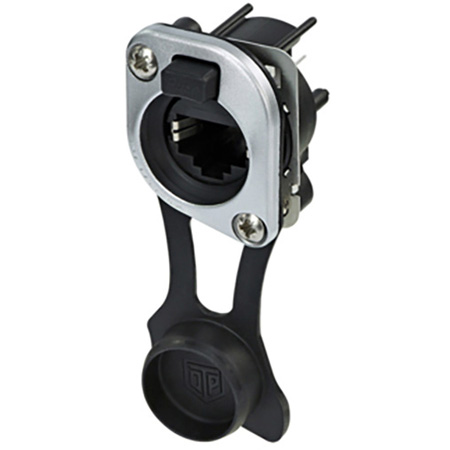

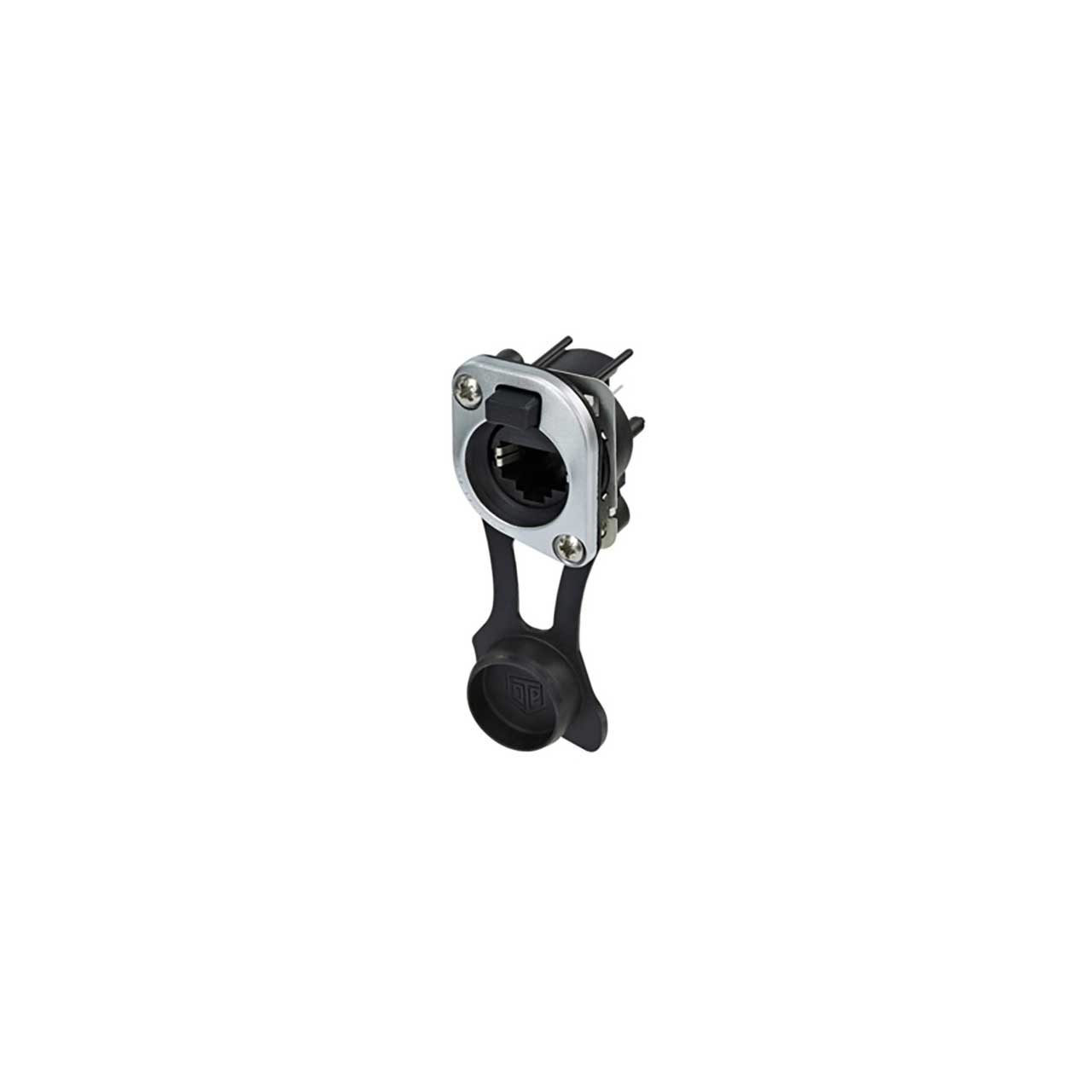

Neutrik NE8FDV-TOP Receptacle etherCON CAT5 D Series - PCBV - Nickel - True Outdoor Protection (TOP) - IP 65/UV Rated

NE8FDV-TOP - Overview

• Features:

  • Heavy-duty sealed RJ45 system for harsh environment
  • Rugged cable connector carrier accepting most common RJ45 plugs
  • D-sized receptacles for PCB mount and IDC termination or as feedthrough adapter
  • Outdoor protection acc. IP65 and UL50E
  • Uses high impact UV resistant materials per UL
  • Sealing when disconnected by attached cover
  • Class D or CAT5e acc. ISO/IEC 11801 and TIA/EIA 568B


• Specifications:

  • Product
  • Title: NE8FDV-TOP
  • Gender: female

    Electrical
  • Contact resistance: < 10 mΩ
  • Dielectric strength: 1 kVdc
  • Frequency range: 1 - 100 MHz
  • Insulation resistance: > 0.5 GΩ
  • Rated current per contact: 1.5 A
  • Rated voltage: < 50 V
  • Transmission performance: Class D
  • Standard compliance: TIA/EIA 586B, IEC11801

    Mechanical
  • Insertion force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Panel thickness: 2 mm - 4 mm , 0.08" - 0.16"
  • Wiring: vertical PCB mount
  • Locking device: Latch lock

    Material
  • Contact plating: 0.2 μm Au over Ni plating
  • Contacts: Bronze (CuSn8)
  • Insert: PBTP 15 % GR
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Chromium

    Environmental
  • Flammability: UL 94 V-0
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30°C to +80 °C
  • Protection class: IP65, UL50E (mated or sealing cap closed)
