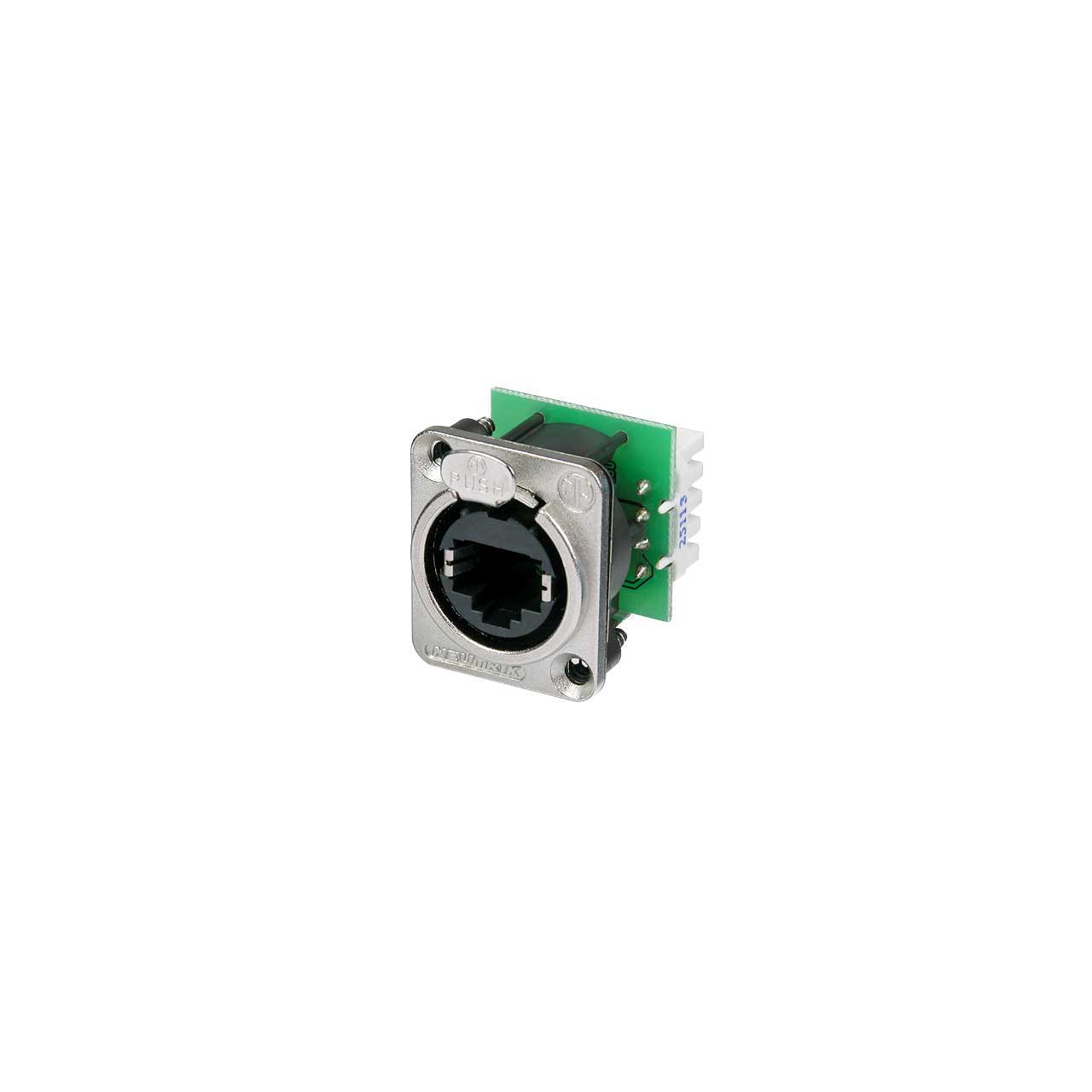

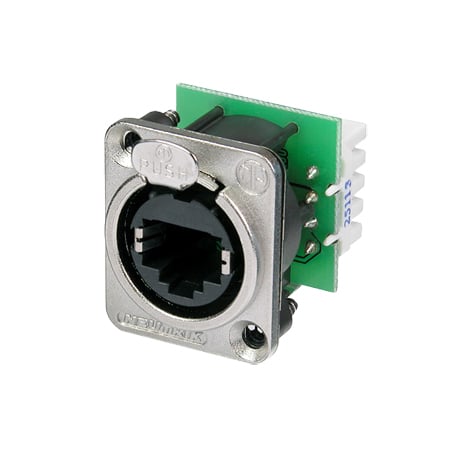

Panel mount receptacle with IDC punch down terminals, D-sized metal flange with latch lock, max. panel thickness 4 mm. Mounting screws included.
A new generation of ruggedized RJ45 connectors. EtherCon Series is available shielded or unshielded and is compatible for use with 10 Base-T systems. The EtherCon series is especially developed for, but not limited to, audio and stage applications including DMX systems. Nevertheless the operational area of EtherCon is not limited to the entertainment industry. The EtherCon male cable connector carrier is a robust diecast shell with a unique metal chuck-type strain relief for optimal cable and plug protection. The female chassis connector is based on the proven Neutrik A/B and D series connectors with the secure latching system.
-
- Accommodates NE8MC* or any standard RJ45 plug
- Approved latch lock system
- Mountable from the front or rear of the panel
- Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard
- Selectable ground - panel connection
- Easy and quick mounting using Krone punch down terminals
-
