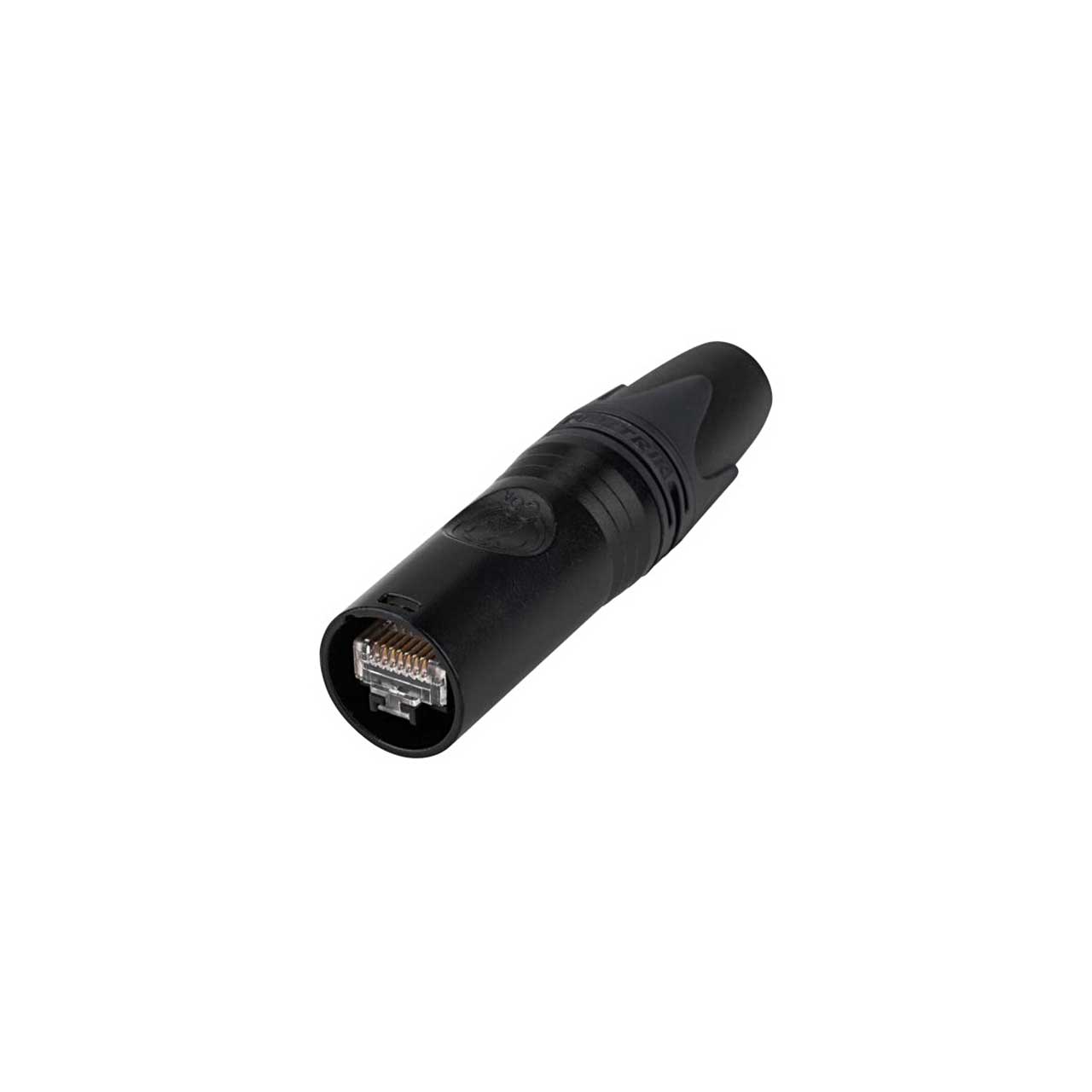

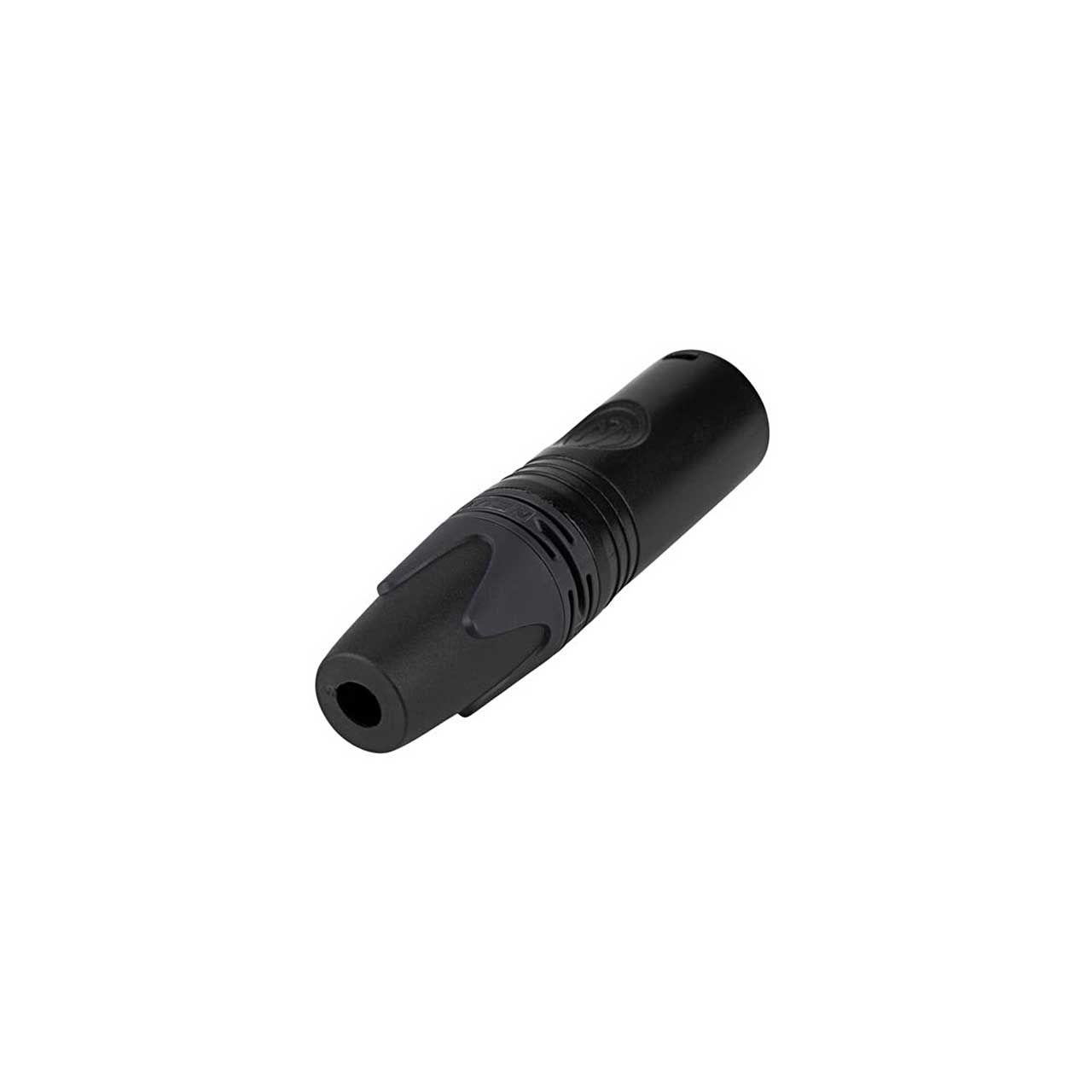

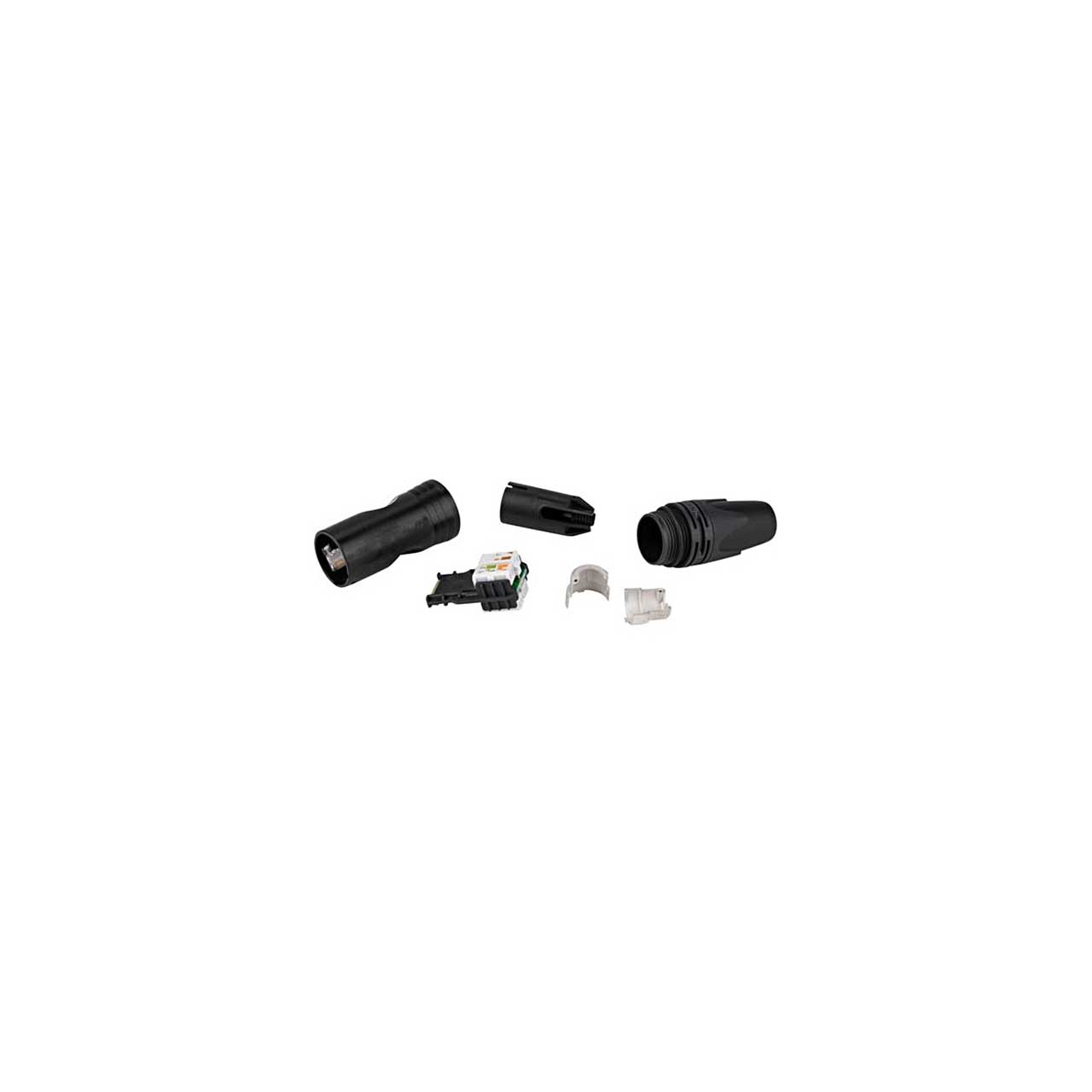

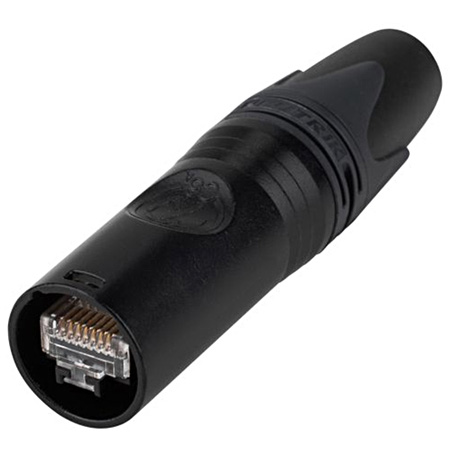

Neutrik NE8MX6-B-T Cable Carrier etherCON CAT6A - Solid wire AWG 26-24 - Black

NE8MX6-B-T - Overview

• Features:

  • Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
  • PoE+ compliant according to 802.3at Type2
  • IP65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
  • Rugged latch lock system million fold proven
  • Intermateable with the existing etherCON CAT5 range
  • Unique Neutrik chuck-type strain relief


• Specifications:

  • Title: NE8MX6-B-T
  • Connection Type: etherCON
  • Gender: male
    Electrical
  • Dielectric strength:1 kVdc
  • Insulation resistance: > 0.5 Gω
  • Rated current per contac: t1.5 A
  • Transmission performance: CAT6A, acc. TIA/EIA rating; CAT6A, acc. IEC/ISO/EN rating
  • Power over Ethernet: PoE+ acc. IEEE 802.3at
    Mechanical
  • Cable O.D.: 7.0 mm - 9.5 mm
  • Lifetime: > 1000 mating cycles
  • Locking device: Latch lock
  • Insulation diameter: > 0.85 - 1.10 mm
    Material
  • Bushing: PA / PU
  • Contact platingAu
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Black
  • Strain relief: POM
    Environmental
  • Protection class: IP 65 (in combination with NE8FDX-*6-W)
  • Temperature range: -40 °C to +70 °C
