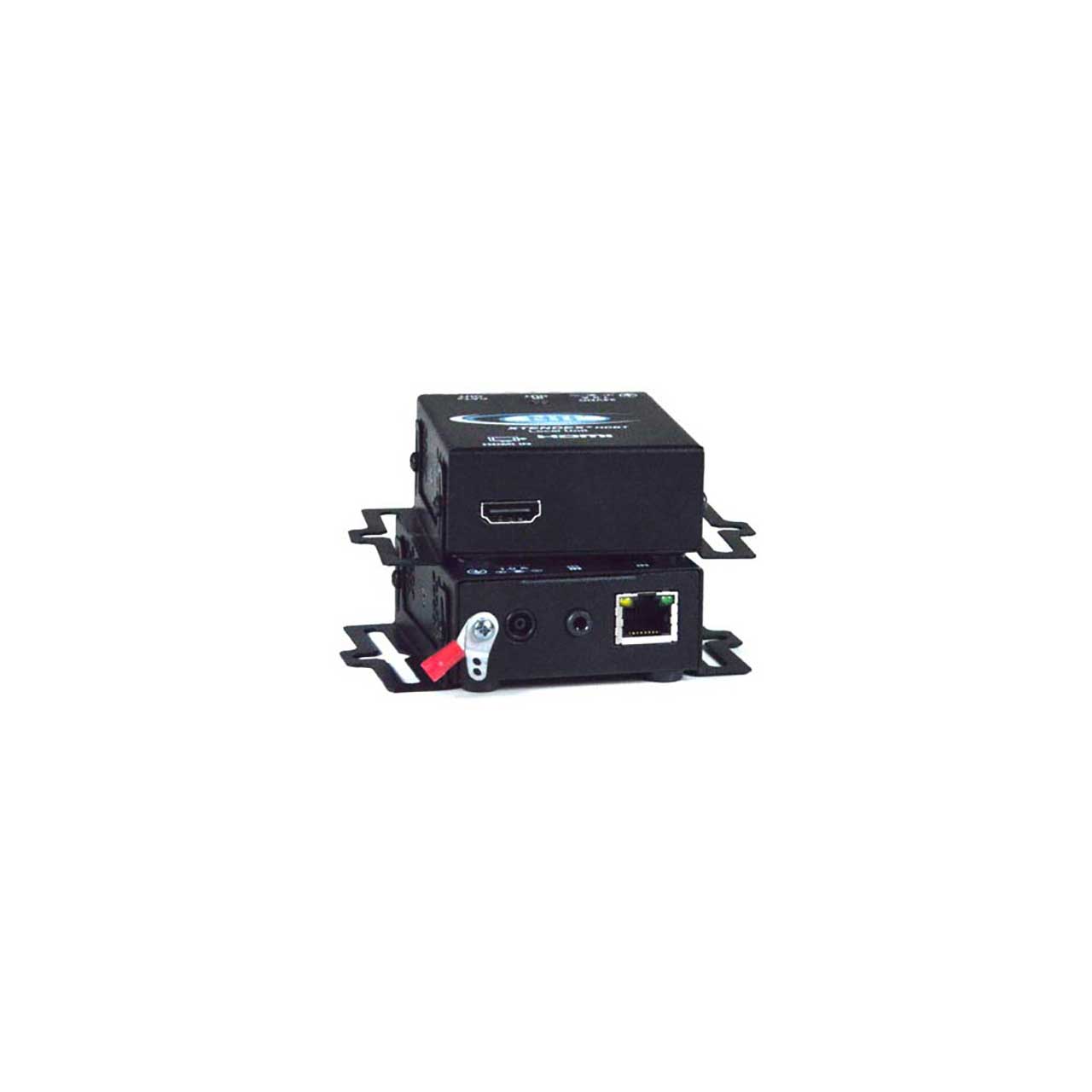

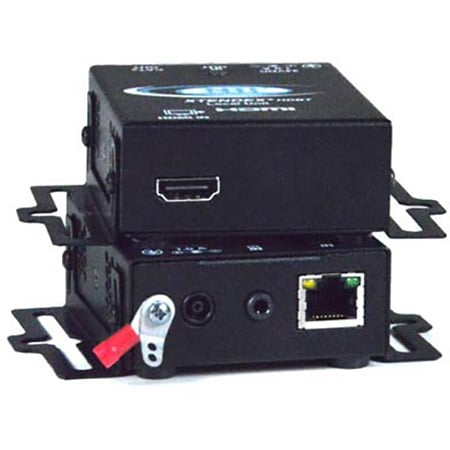

NTI ST-C64K-300 4K HDMI Extender via One CATx to 300 Feet

ST-C64K-300 - Overview

• Features:

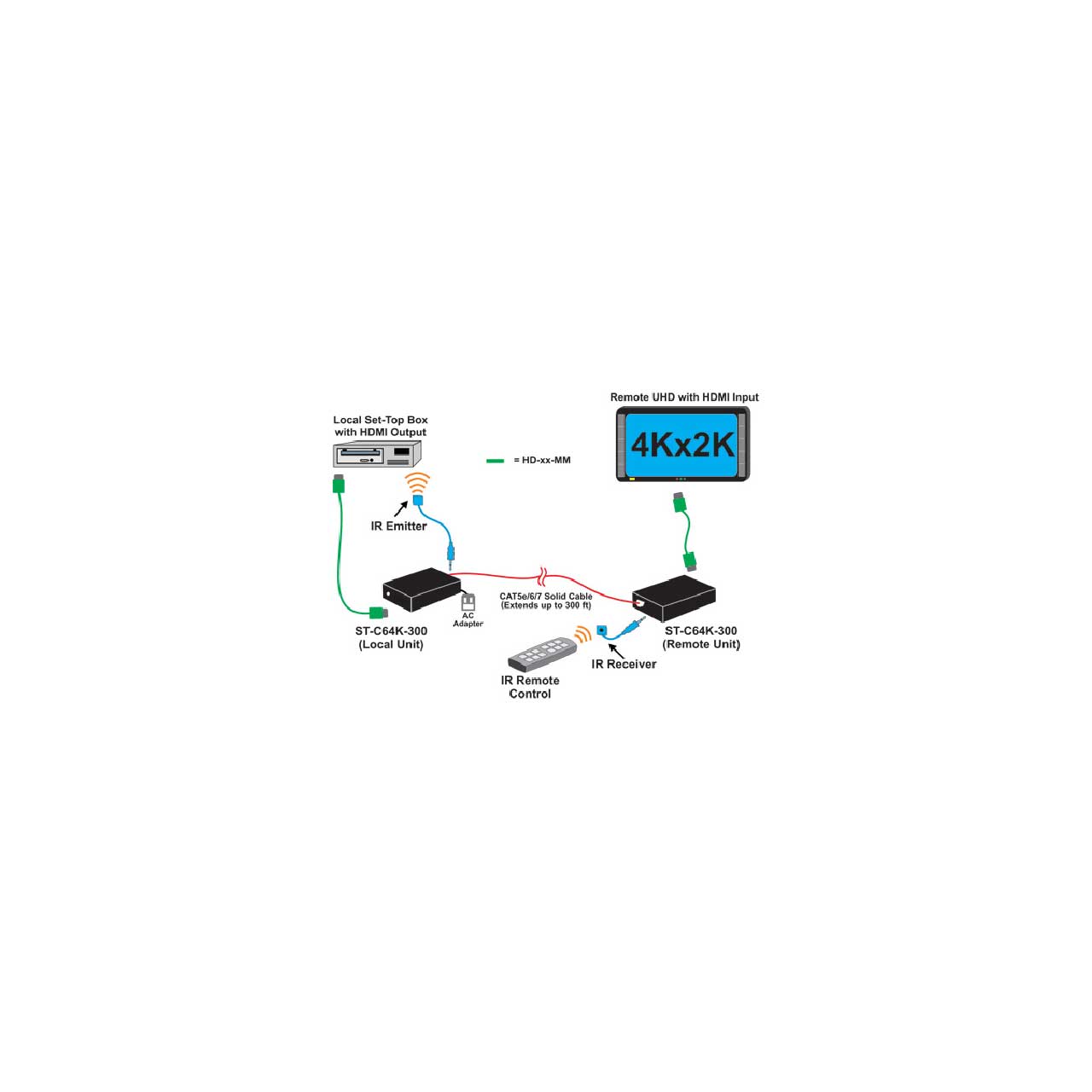

  • Transmits HDMI signal over one CAT5e/6/6a/7 solid cable
  • Extend up to 150 feet with solid unshielded CAT5e/6 cable
  • Extend up to 250 feet with solid shielded CAT5e/6 cable
  • Extend up to 300 feet with solid CAT6a/7 cable (23 AWG)
  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 (30Hz), 2K resolution 2048x1080, HDTV resolutions to 1080p, and computer resolutions to 1920x1200
  • Only one power supply is necessary to power both the local and remote units
  • HDMI features supported:
  • HDMI 1.4
  • x.v.Color, sYCC601 color, Adobe RGB Color and Adobe YCC601 color
  • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and DTS
  • Bandwidth up to 340 MHz (10.2 Gbps)
  • Support for CEC (consumer electronic control) compatible devices
  • Lip Sync
  • HDCP compliant
  • Supports the DDC2B protocol
  • Mounting brackets included for easy surface/wall mounting
  • High quality, rugged steel construction with durable powder coat finish


• Specifications:

  • Local Unit
  • Compatible with a computer or Ultra-HD video source with HDMI output
  • One female HDMI connector
  • One female 3.5mm port for IR emitter
  • One female RJ45 port for sending/receiving high definition video/audio signals, IR signal, CEC signal, and DDC signal

    Remote Unit
  • One female HDMI connector for display
  • One female 3.5mm port for IR receiver
  • IR frequency range: 33 to 40 kHz
  • Center Carrier Frequency: 36 kHz
  • One female RJ45 port for sending/receiving high definition video/audio signals, IR signal, CEC signal, and DDC signal
  • Supported video resolutions:
  • Ultra-HD 4Kx2K resolutions (3840x2160 @ 30Hz)
  • 2K Cinema (2048x1080 @ 60Hz)
  • HDTV resolutions to 1080p
  • Computer resolutions to 1920x1200
  • Supports embedded digital audio through HDMI compatible TVs or audio receivers
  • Auto equalization for different lengths of CAT5e/6/7 cable

    Dimensions
  • WxDxH (in): 2.54 x 3.08 x 1.08" (65 x 78 x 27mm)

    Power
  • Powered from a single power supply attached to either the local or remote unit
  • Local or remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included.)

    Environmental
  • Operating temperature: 32 to 122°F (0 to 50°C)
  • Storage temperature: -20 to 140°F (-30 to 60°C)
  • Operating/storage relative humidity: 17 to 90% non-condensing RH

    Regulatory Approvals
  • CE, RoHS
  • TAA compliant

    Max Distance
  • 150 feet (46 meters) over CAT5e/6 solid unshielded shielded cable
  • 250 feet (76 meters) over CAT5e/6 solid shielded cable
  • 300 feet (91 meters) over CAT6a/7 solid cable (23 AWG)

    Cables
  • Use HD-xx-MM cable to connect an HDMI source or display
  • Use DVI-HD-xx-MM cable to connect a DVI source or display
  • Use CAT5e/6/7 straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included)
  • CAT5e/6 solid unshielded: up to 150'
  • CAT5e/6 solid shielded: up to 250'
  • CAT6a/7 solid (23 AWG): up to 300'

    Warranty
  • Two years

    Compatible NTI Products
  • Combine NTI's extenders, switches, splitters and cables for complex applications
  • Low-Cost 4K HDMI Video Matrix Switch (SM-nXm-4K18GB-LC)
  • Each output on the switch must be set to 3840x2160 @ 30Hz
