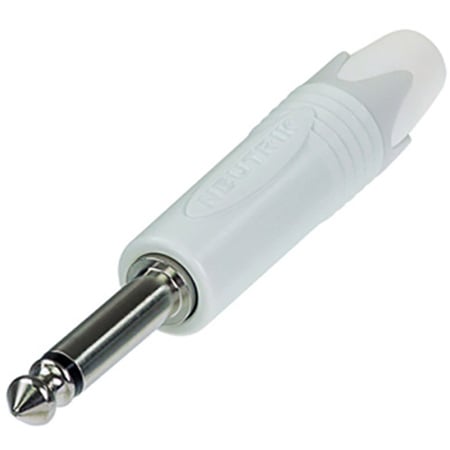

Neutrik NP2X-WT PX Series 2-Pole Mono 1/4 Inch Phone Plug - White/Silver

ITEM #: NP2X-WT MFG #: NP2X-WT

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$6.03

Our Price:

$5.17

Availability: In Stock
iAvailability Description Popup


NP2X-WT - Overview

1/4" professional phone plug, 2 pole, nickel contacts, white painted shell

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch).

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

  • Features:

    • Extra slim 1/4" plug for highest packing density
    • Robust diecast shell in stylish design
    • Proven chuck type strain relief for reliable cable retention
    • Sleek design for best handling convenience
    • Precision machined one-piece contacts - avoid hook up of tip contact

  • Specifications:

    • Connection Type: Plug
    • Gender: male

    • Electrical
    • Contact resistance: depends on mating connector mΩ
    • Dielectric strength: 1 kVdc
    • Insulation resistance: > 2 (initial) GO = 1 GO (after damp heat test)
    • Rated current per contact: depends on mating connector A
    • Rated voltage: < 50 V

    • Mechanical
    • Cable O.D.: 4 - 7 mm
    • Lifetime: > 1000 mating cycles
    • Wiresize: 1 mm²
    • Wiresize: 18 AWG
    • Wiring: Solder contacts

    • Material
    • Bushing: Polyacetal (POM) + PU
    • Contact plating: 2 µm Ni (Su)
    • Contacts: Brass (CuZn38Pb3)
    • Insert: Polyamdie (PA 6.6 30 % GR)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: White painted
    • Strain relief: Polyacetal (POM)

    • Environmental
    • Standard compliance: IEC 60603-11 / EIA RS-453
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -20 °C to +65 °C

  • GTIN:

    7613187007613
