Neutrik NBTC75BNN5 RearTWIST Tiny BNC Cable Connector

Name: Neutrik NBTC75BNN5 RearTWIST Tiny BNC Cable Connector
Brand: Neutrik Americas
SKU: NT-NBTC75BNN5
Price: 4.89 USD
Availability: InStock

ITEM #: NT-NBTC75BNN5 MFG #: NBTC75BNN5

Neutrik Americas

List Price:

$5.70

Our Price:

$4.89

Quantity Pricing

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

NBTC75BNN5 - Overview

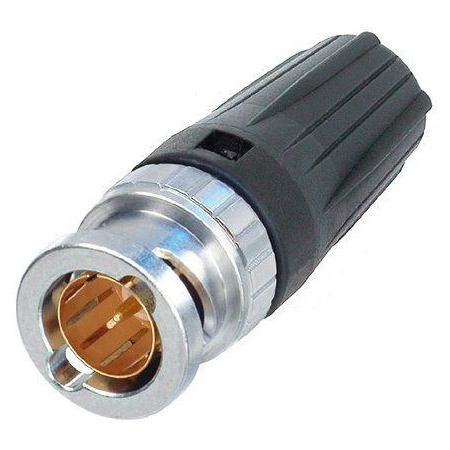

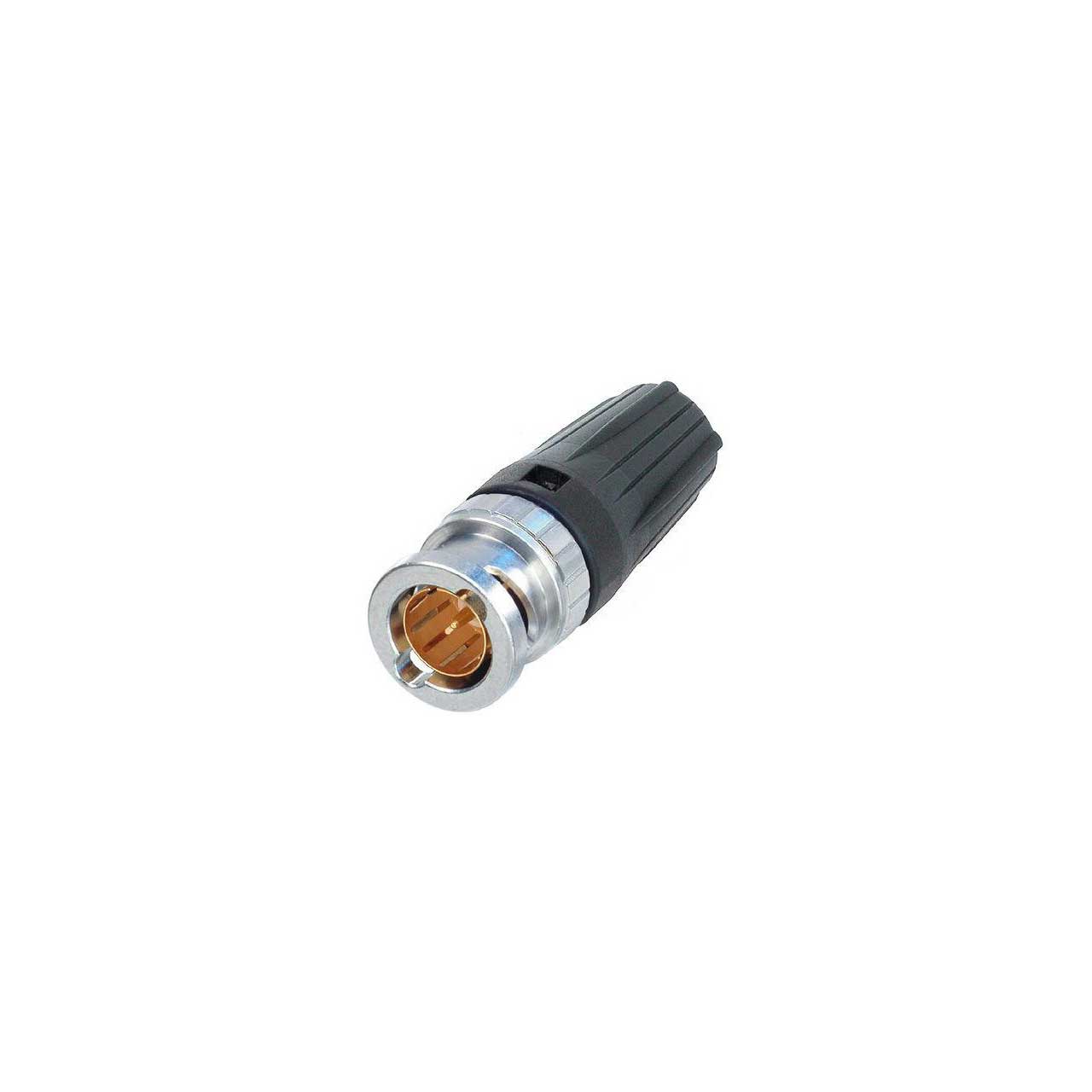

Neutrik NBTC75BNN5 RearTWIST Tiny BNC Cable Connector
The rearTWIST Tiny BNC cable connector is optimized for small cable diameters. The additional leading ferrule eases the critical assembly of multicore or tiny cables.

Like all Neutrik BNCs it offers a true 75 O design and is perfectly suitable for HD applications.The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.

Suitable cables:
Draka 0.41/1.9 AF, Draka 753-1104, Draka 755-1103, Extron BNC-5 HR(P) (Bulk), Extron BNC-5RC, Belden 1277R, Belden 1278R, Belden 1279R

Crimp size:
Pin: 1.6 mm (square)
Shield: 4.53 mm (hex)

Features:
- "rearTWIST Principle" locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
- Ideal for recessed bulkheads where access to the "head" of the connector might be an issue. These connectors turn from the back and not the front.
- Optimized assembly for mutlicore or tiny cables
- True 75 O design meets the stringent HDTV / DVD requirements
- Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
- Snug-fit center pin insert provides tactile feedback
- Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
- Excellent cable protection and retention
- Precise Swiss machined brass parts for outstanding durability
- Accessories include color coded boots in 10 standard colors, crimp tool and dies
GTIN:
7613187002885
