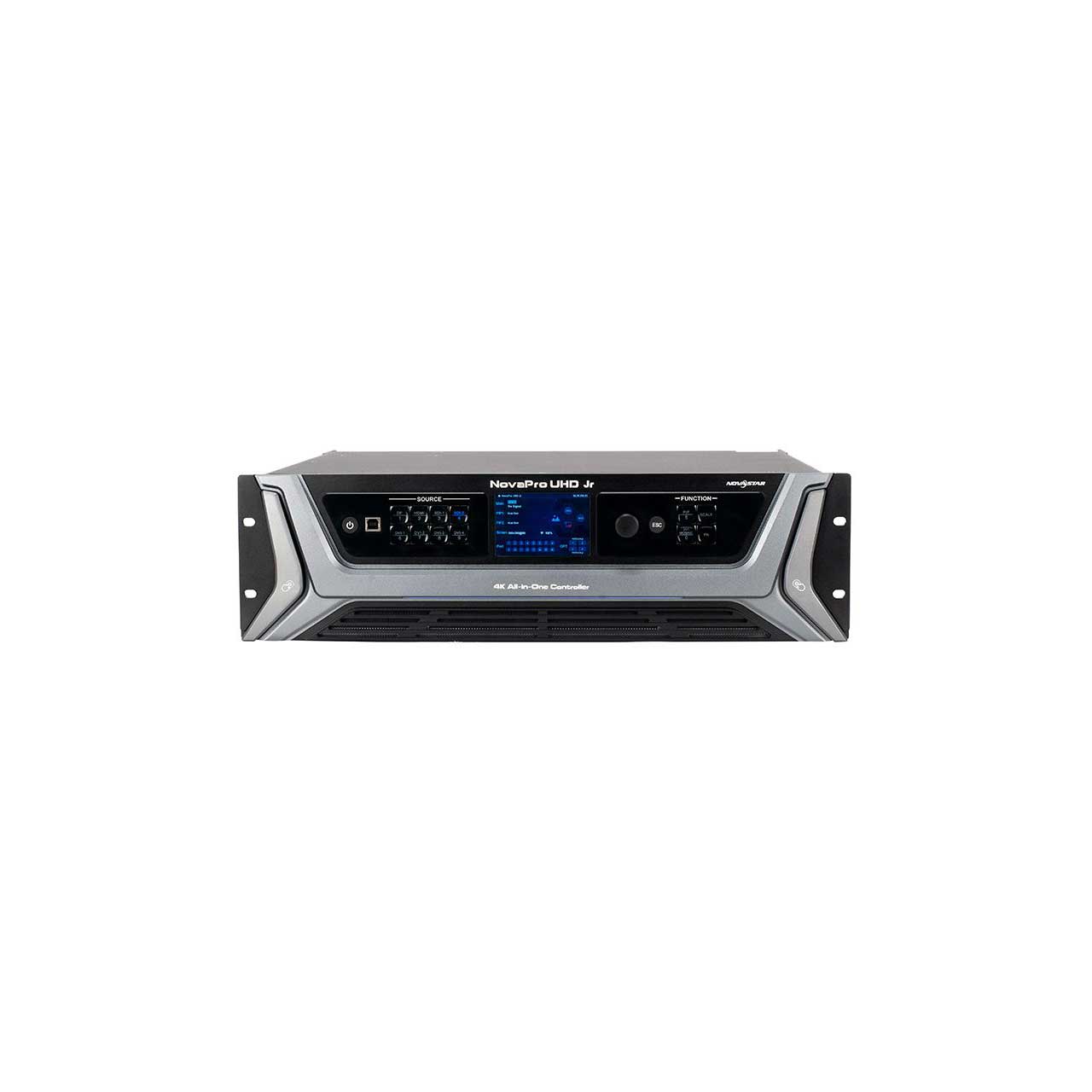

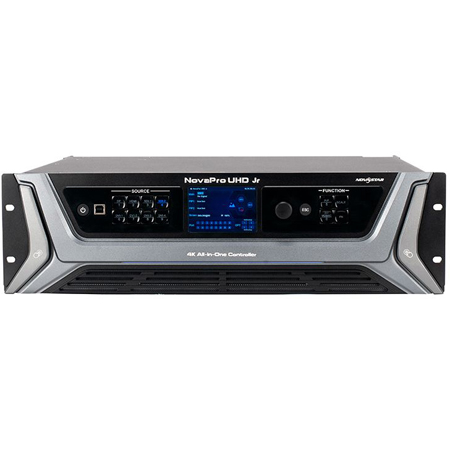

Novastar NOVAPRO UHD JR All-In-One Video Processing Controller - DP 1.2/DVI/HDMI 2.0/12G-SDI/Neutrik Ethernet/Fiber

NOVAPRO UHD JR - Overview

• Features:

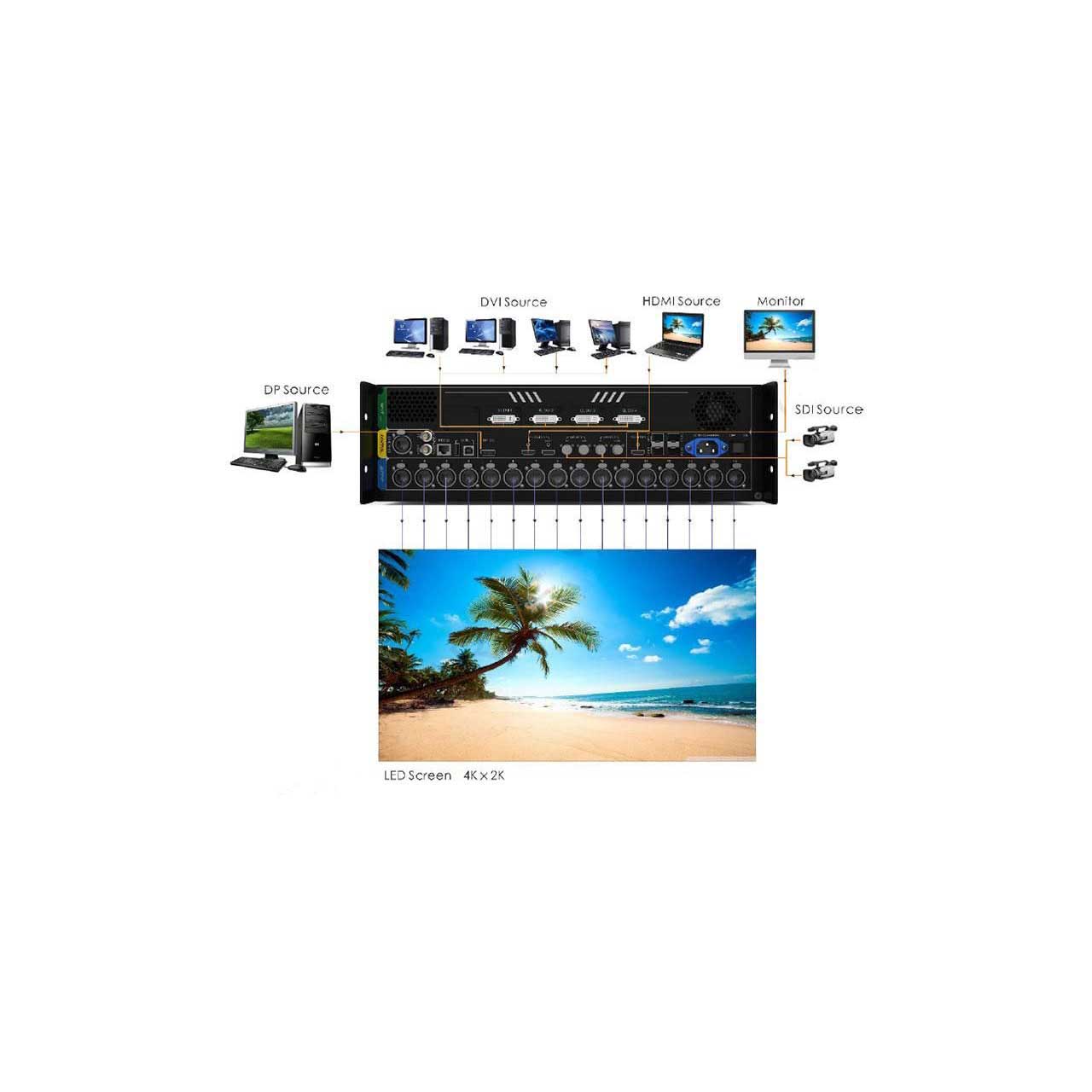

  • A variety of inputs and outputs - Provides 1 x DP 1.2, 4 x DVI, 1 x HDMI 2.0 with loop output and 2 x 12G-SDI with loop output.
  • More output connectors, larger loading capacity - Provides 16 x Neutrik Ethernet output and 4 x optical fiber output, with loading capacity up to 10,400,000 pixels. The maximum width is 16K and maximum height is 8K.
  • DVI mosaic - An input source can be made up of at most 4 DVI input sources.
  • HDR output - Greatly enhances display image quality, providing more clear and vivid image.
  • Decimal frame rates - The supported frame rates are 23.98, 29.97 and 59.94.
  • Low-latency output - Reduces the latency from sending card to receiving card by 2 frames when the device is used together with NovaStar Armor series receiving cards (A8/A8s/A9s/A10s Plus).
  • Customized BKG settings - Supports pure color and image BKGs.
  • Personalized image scaling - Supports 3 kinds of image scaling modes: full screen, pixel to pixel, custom.
  • Capture function - Captures input source image which can be used as a BKG image.
  • Image mosaic - Up to 4 NovaPro UHD Jr units can be connected to load a super-large screen when used with the video distributor. V-Can (smart control software from NovaStar) supported
  • 10 presets - At most 10 user presets can be created and saved as templates which can be used directly and conveniently.
  • EDID management supported - Supports custom EDID and standard EDID.


• Specifications:

  • Input
  • DVI x4: Four DVIs are all single-link DVI connectors by default. 4x DVI inputs. Each DVI: Input resolution up to 1920x1200@60Hz, downward compatible. 4 DVI input sources constitute 1 input source (DVI MOSAIC). Standard resolutions supported. In dual-link mode: DVI 1 and DVI 3 are dual-link DVI connectors while DVI 2 and DVI 4 are unavailable. DVI 1/DVI 3: Input resolution up to 3840x1080@60Hz, downward compatible. Standard resolutions supported.
  • 12G-SDI x2: Input resolution up to 4096x2160@60Hz, downward compatible. Standard resolutions unsupported.
  • DP 1.2 x1: Input resolution up to 3840x2160 @60Hz, downward compatible. HDCP 1.3 compliant. Standard resolutions supported.
  • HDMI 2.0 x1: Input resolution up to 3840x2160 @60Hz, downward compatible. HDCP 1.4 and HDCP 2.2. EDID management. Standard resolutions supported.

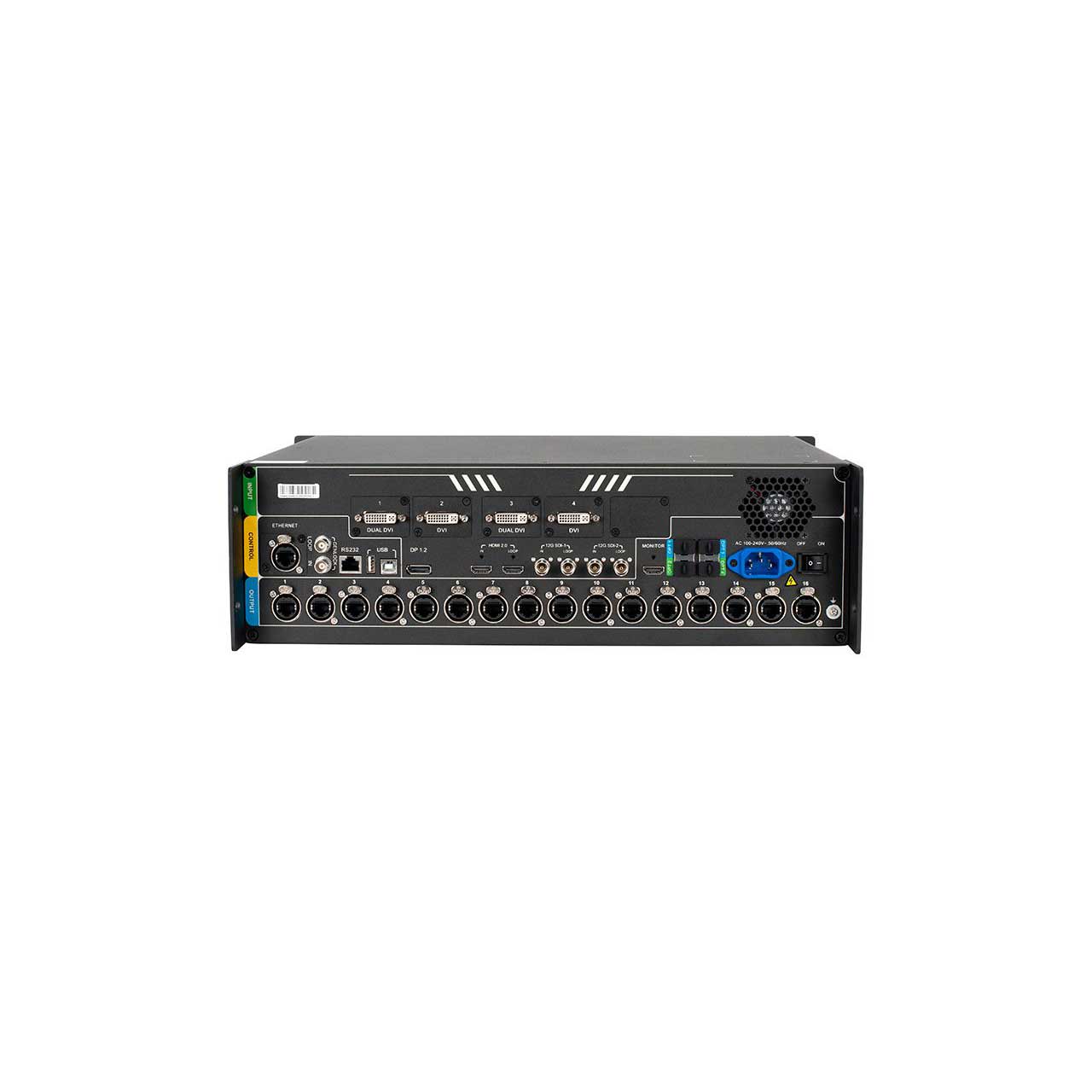

    Output
  • Ethernet port x16: 16x Neutrik Gigabit Ethernet output connectors, allowing for a loading capacity of up to 10,400,000 pixels. Maximum loading capacity: Max. width: 16K, max. height: 8K. Maximum loading capacity of a single Ethernet port: 8-bit input source: 650,000 pixels, 10-bit/12-bit input source: 320,000 pixels
  • OPT 1-4 x4: 10G optical connectors. OPT 1 transmits data of Ethernet ports 1-8. OPT 2 transmits data of Ethernet ports 9-16. OPT 3 serves as the hot backup or copy for OPT 1. OPT 4 serves as the hot backup or copy for OPT 2.
  • HDMI 2.0 LOOP x1: HDMI loop output connector Only 1 level of device cascading supported. HDCP 1.4. EDID management.
  • 12G-SDI LOOP x2: SDI loop output connectors
  • MONITOR x1: HDMI connector for output monitoring. Resolution up to 1920x1080@60Hz.

    Control
  • ETHERNET x1: Connect to the PC for communication, or connect to the Web for device control.
  • USB (Type-B) x1: Connect to the PC for device control. Used as the input connector to connect a NovaPro UHD Jr unit for image mosaic
  • USB (Type-A) x1: Used as the output connector to connect a NovaPro UHD Jr unit for image mosaic
  • GENLOCK IN- LOOP x1: Connect to a synchronization signal to synchronize all the connected NovaPro UHD Jr units.
  • RS232 x1: Connect to the control device.


• Item Includes:

  • 1x Novastar MNOVAPRO UHD JR All-In-One Controller - 1x DP 1.2/4x DVI/1x HDMI 2.0/2x 12G-SDI/16x Neutrik Ethernet/4x Fiber


• GTIN:

  0818651027655
