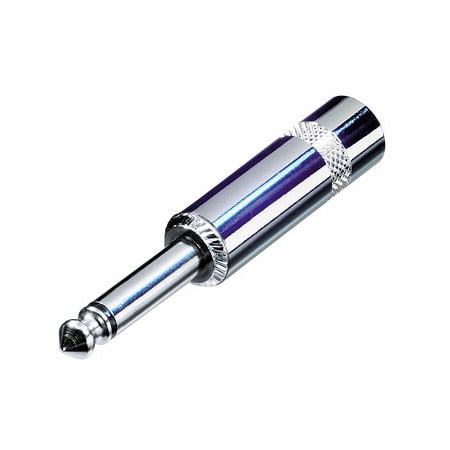

Rean NYS224 1/4 Inch Mono Phone Connector with Long Barrel - Nickel/Silver

ITEM #: NYS-224 MFG #: NYS224

Primary Image
Rean
Free Shipping with $49 Minimum Order

List Price:

$2.68

Our Price:

$1.60

Quantity Pricing

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NYS224 - Overview

The Rean NYS224 is a 1/4" Plug, 2-pole with a Long Turned Brass Handle and no rivet.

  • Specifications:

    • Electrical
    • Contact Resistance: ≤10mO
    • Insulation Resistance: ≥200 MO(Initial)
    • Dielectric Strength: 0.5 KVdc 50HZ

      Mechanical
    • Insertion and Withdrawal Force: ≤60N
    • Lifetime: ≥1,000 Mating Cycles

      Material
    • Tip: Brass
    • Inner: Steel
    • Bushing: PA66+30%GF
    • Insulation: PVC
    • Sleeve: Brass
    • Sleeve: Zinc
    • Insulation: PA66+30%GF
    • Soldering Contact: Brass
    • Cable Clamp: Steel
    • Housing: Zinc
    • Tip Nickel: Plating
    • Sleeve: Nickel Plating
    • Sleeve: Nickel Plating
    • Housing: Nickel Plating
    • Inner: Zinc Plating
    • Soldering Contact: Zinc Plating
    • Cable Clamp: Zinc Plating
