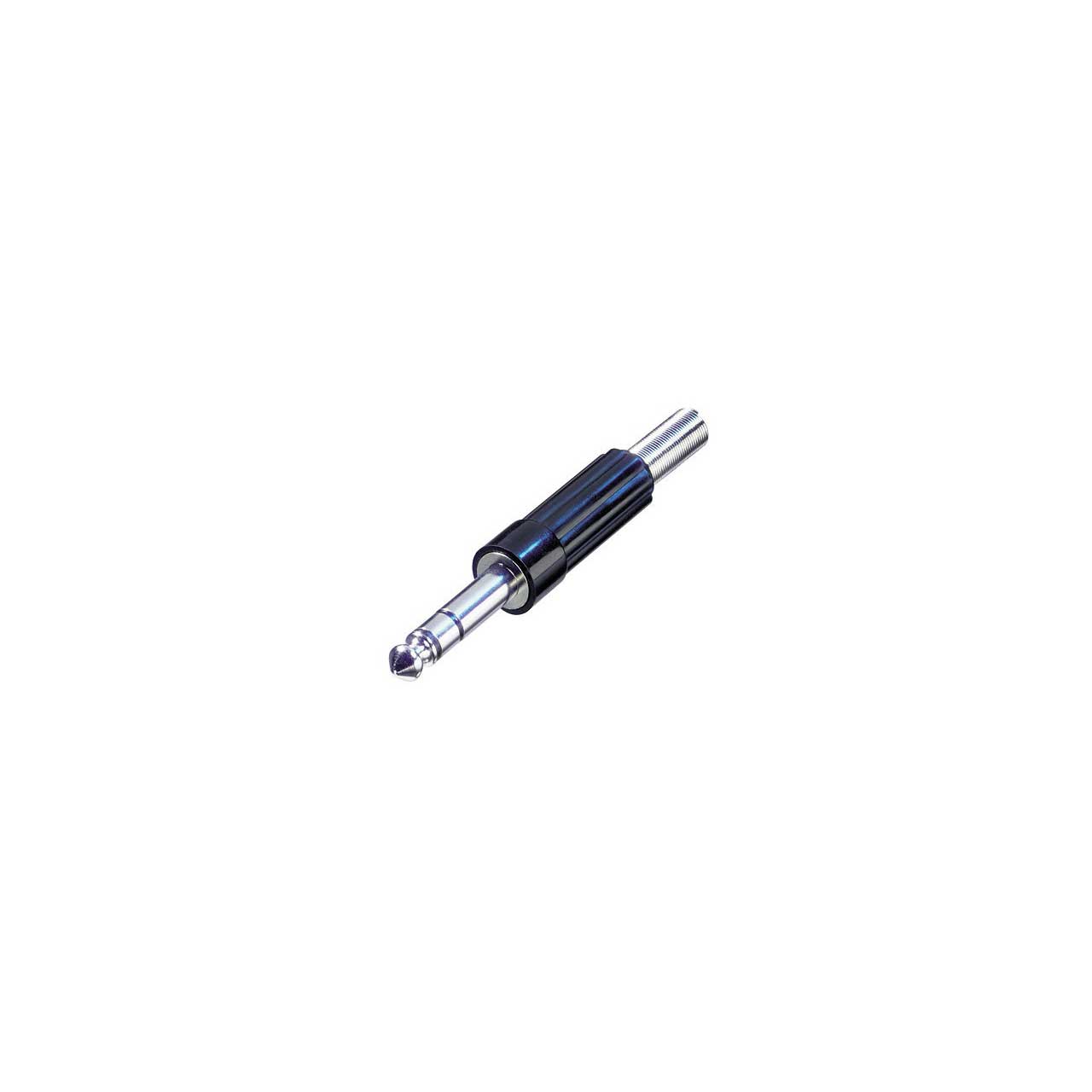

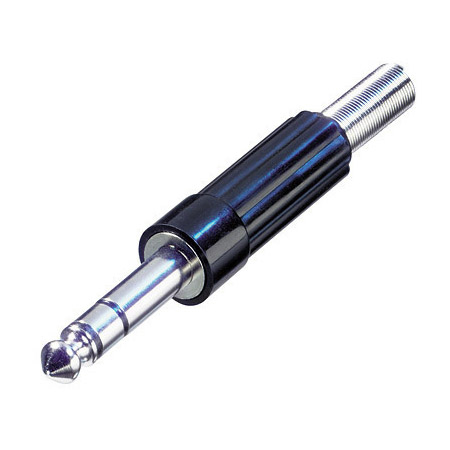

Rean NYS204 1/4in 3-Pole Plug with Plastic Handle and Flexible Strain Relief

ITEM #: NYS204 MFG #: NYS204

Primary Image
Rean
Free Shipping with $49 Minimum Order

List Price:

$2.28

Our Price:

$1.36

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NYS204 - Overview

The Rean NYS204 by Neutrik, is a low cost 1/4" 3-Pole Plug with a Plastic Handle and a Flexible Strain Relief.

  • Specifications:

    • Electrical
    • Contact Resistance: ≤10mΩ
    • Insulation Resistance: ≥200 MO(Initial)
    • Dielectric Strength: 0.5 KVdc 50HZ

      Mechanical
    • Insertion and Withdrawal Force: ≤60N
    • Lifetime: >1,000 Mating Cycles

      Material
    • Tip: Brass
    • Bushing: PA66+30%GF
    • Inner: Steel
    • Insulation: PVC
    • Inner: Brass
    • Bushing: PA66+30%GF
    • Sleeve: Brass
    • Sleeve: Brass
    • Insulator: PA66+30%GF
    • Soldering Contact: Brass
    • Housing: ABS
    • Cable Clamp: Steel
    • Spring: Steel
    • Tip: Nickel Plating
    • Inner: Nickel Plating
    • Sleeve: Nickel Plating
    • Sleeve: Nickel Plating
    • Spring: Nickel Plating
    • Inner: Zinc Plating
    • Soldering Contact: Tin and Cer
    • Cable Clamp: Tin and Cer


  • GTIN:

    7613187010293
