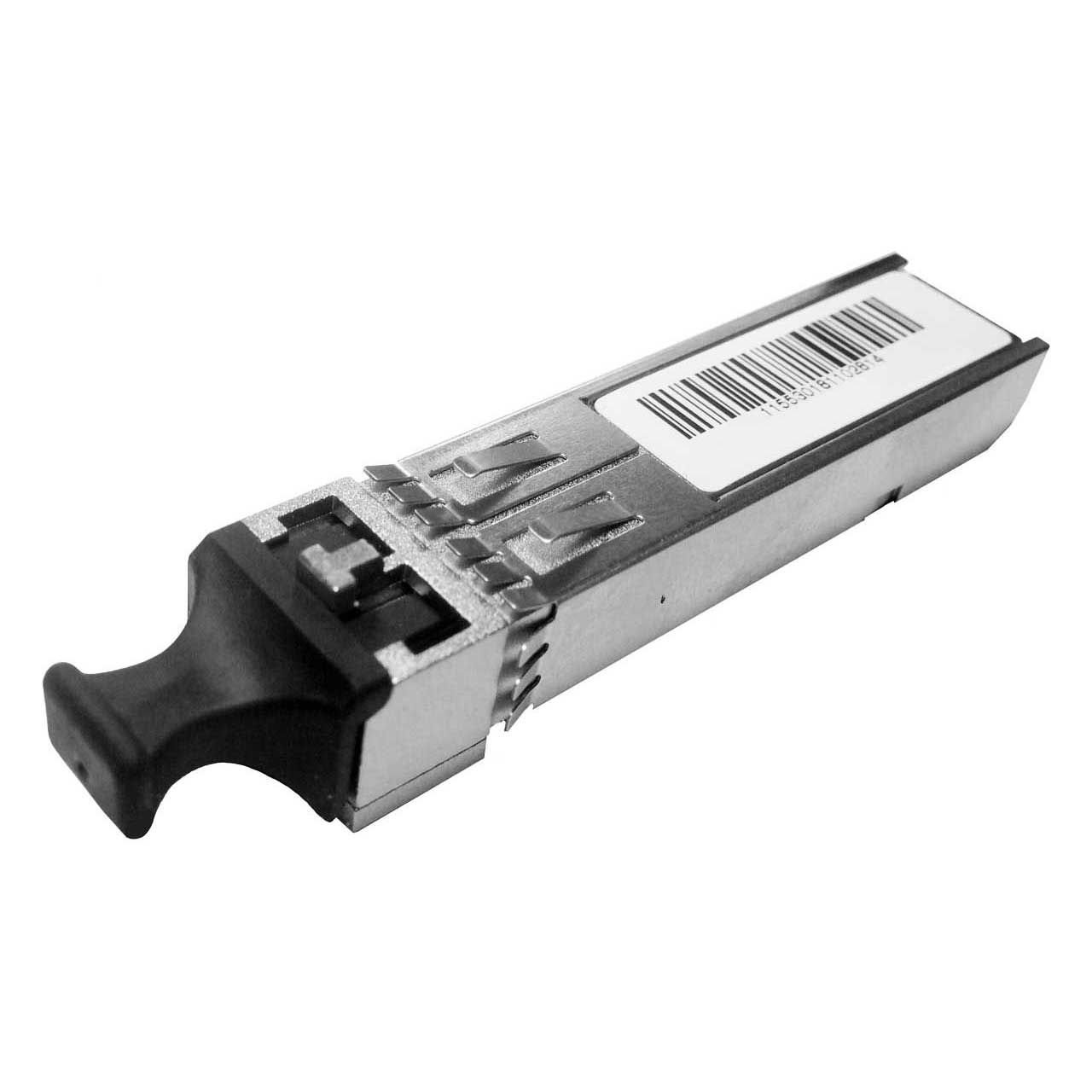

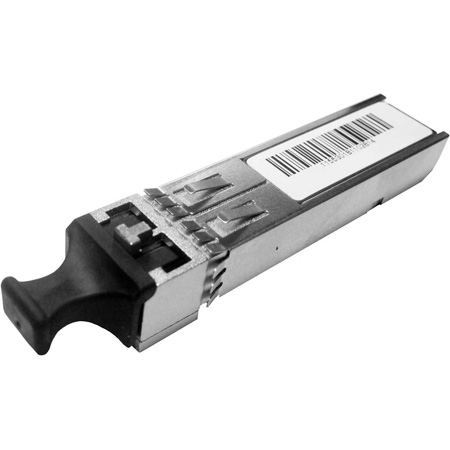

The Lynx Technik Inc OH-TT-12G-1310-1330-LC dual channel SDI optical transmitter is a CWDM fiber plug in option for selected LYNX Technik yellobrik, greenMachine, and Series 5000 products. This SFP module facilitates the conversion of two electrical SDI signals into optical signals for transmission over two fiber links. 18-wavelengths (9 pairs) selections are available for CWDM applications and support for distances of up to 10km** is provided. The module accomodates 11.88Gbit, 5.94Gbit, 2.97Gbit, and 1.485Gbit SDI signals conforming to SMPTE 2082, SMPTE 2081, SMPTE 424M, and SMPTE 292M.
A socket, or "cage" is provided for the SFP in the supporting LYNX product for easy installation or upgrade. The SFP is hot swappable.
Note: *Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of fiber cable and accumulated optical losses in the fiber link. Determine link losses and perform optical budget calculations to ensure correct operation.
