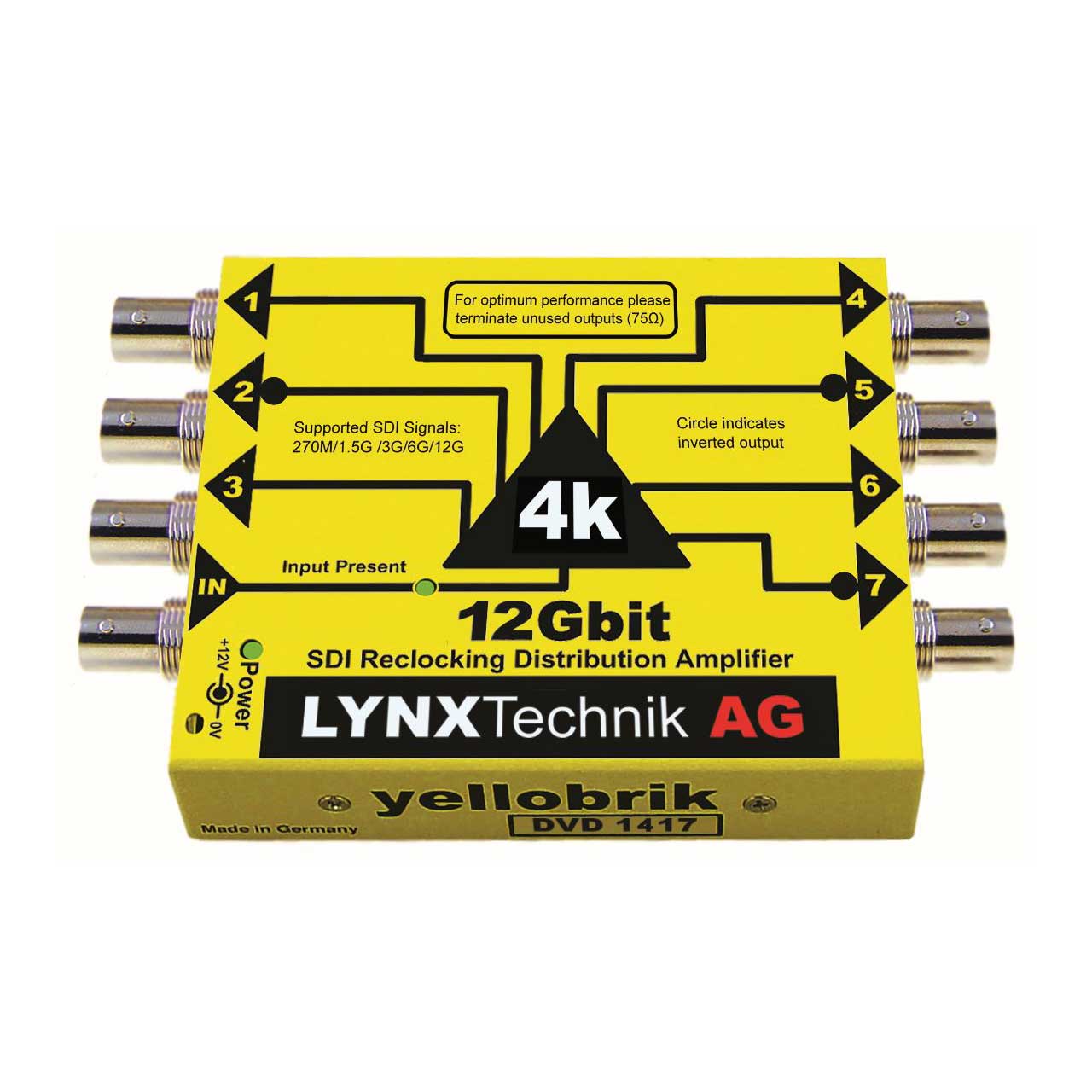

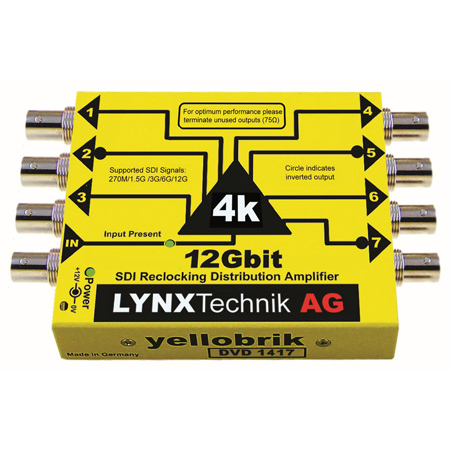

LYNX Technik Yellobrik DVD 1417 12G SDI 1 In/7 Out Video Distribution Amplifier - Supports Multi SMPTE SDI Signals

DVD-1417 - Overview

• Features:

  • 1 input and 7 outputs
  • Suitable for SDI video up to 12Gbit/s (4K/UHD)
  • Supports SD SDI, HD SDI, 3G SDI, 6G SDI and 12G SDI
  • Reclocking
  • Auto-detect input format
  • Input present LED indication


• Specifications:

  • Input
  • 1 x SDI; 75Ω BNC connector
  • SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 2081, SMPTE 2082
  • Multi-standard operation from 270Mbit/s to 12Gbit/s; reclocking
  • Input present LED indication
  • Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz,>7dB from 3GHz to 6GHz; >4dB from 6GHz to 12GHz
  • Automatic cable EQ: 400m @ 270Mbit/s, 200m @ 1.5Gbit/s, 150m @ 3Gbit/s; 80m @ 6Gbit/s;80m @ 12Gbit/s

    Outputs:
  • 7 x multi-rate reclocked SDI outputs ; 75Ω BNC connectors
  • SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 2081, SMPTE 2082
  • Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz, >7dB from 3GHz to 6GHz; >4dB from 6GHz to 12GHz
  • Alignment Jitter < 0.2 UI @ 270Mbit/s, < 0.2 UI @ 1.5Gbit/s, < 0.3 UI @ 3Gbit/s, 6Gbit/s, 12Gbit/s
  • Timing Jitter < 0.2 UI @ 270Mbit/s, < 1.0 UI @ 1.5Gbit/s, < 2.0 UI @ 3Gbit/s, 6Gbit/s, 12Gbit/s


  • Power: +12VDC @ 2.7W nominal - ( supports 7 - 16VDC input range )
  • Physical Size: 5.43" x 3.54" x 0.86", including connectors
  • Weight: 8.46oz NET (module only)
  • Ambient: 41° - 104°F, 90% Humidity (non condensing)


• Item Includes:

  • Module
  • AC power supply


• Warranty:

  • 3 year


• GTIN:

  4250479325210
