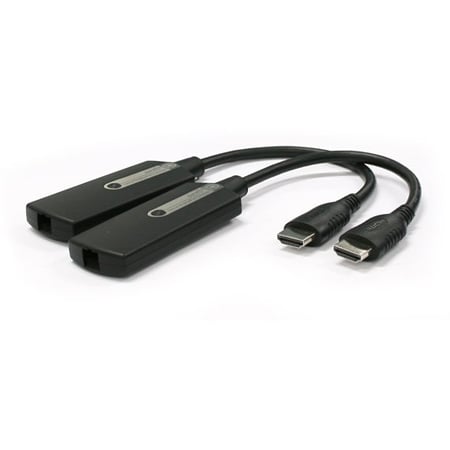

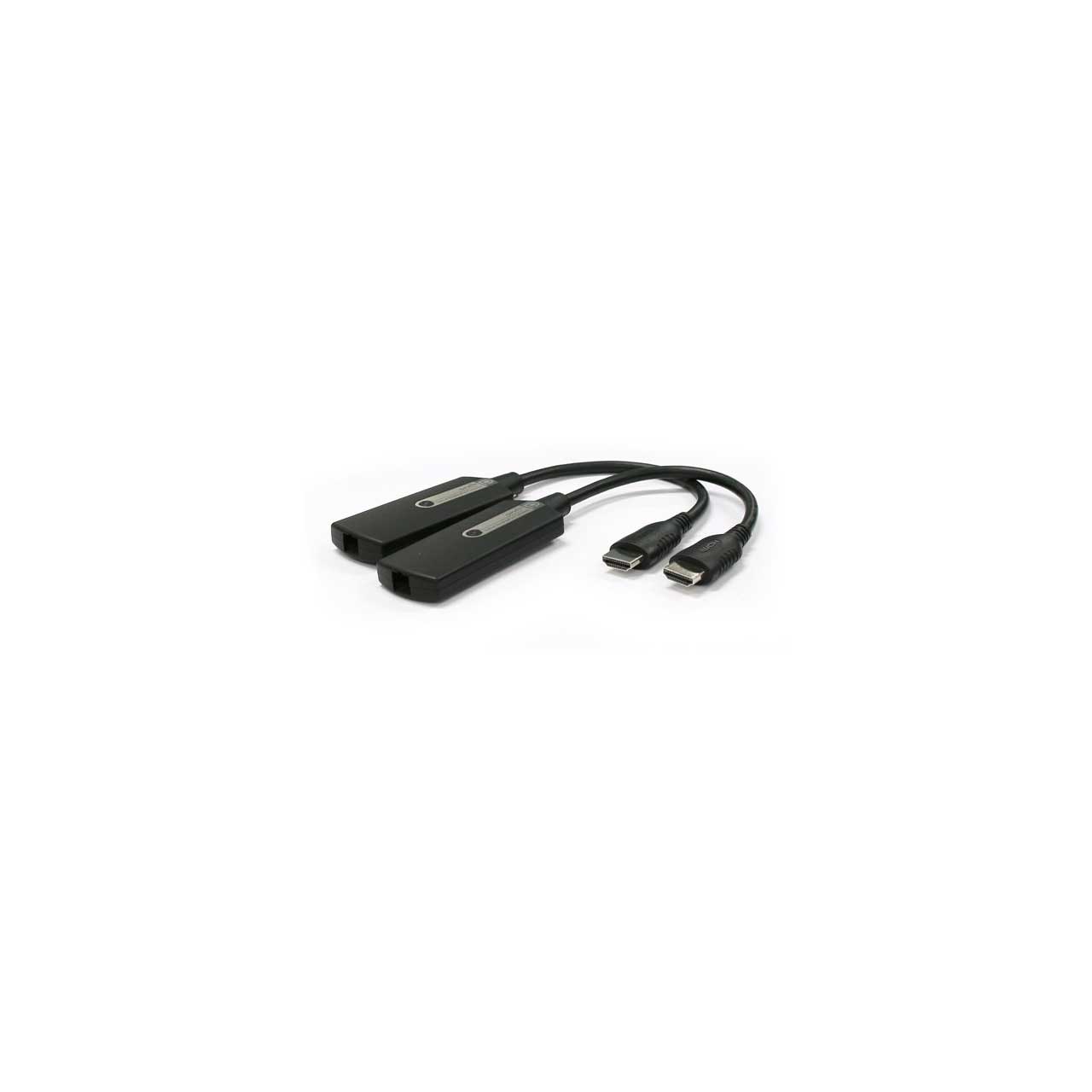

Ophit HSP-M HDMI Fiber Optic 1 Channel Pigtail Module Extender (Transmitter / Receiver and Power Adaptor)

HSP-M - Overview

• Features:

  • High speed and long distance transmission by 1 channel SC type multi-mode optical fiber
  • Supports resolution up to HDTV/1080P, PC/WUXGA (1920 x 1200)
  • TMDS video signal and EDID data is transmitted over optical fiber
  • HDCP 1.3a and HDCP Compliant
  • Supports 12 bit Deep color
  • Uses slim and light Aluminum case
  • EMC & Safety : CE, UL, FCC


• Specifications:

  • Connector (transmitter): HDMI A type (male), SC connector (female)
  • Connector (receiver): HDMI A type (male), SC connector (female)
  • Optic Fiber: 1ch / Multi-mode(50/125æm)
  • Pixel Clock: 225MHz (single link)
  • Supporting Resolution & Distance: WUXGA (1920 x 1200) @ 60Hz / 300M (1,000ft), 1080p (1920 x 1080) @ 60Hz / 300M (1,000ft)
  • Power Consumption (transmitter): 1.3W (max)
  • Power Consumption (receiver): 1.1W (max)
  • Power Supply (transmitter): Optional
  • Power Supply (receiver): 100~240V DC 5V, 2A
  • Dimensions (W x D x H): 11.81 x 1.29 x 0.47" (300 x 33 x 12 mm)
  • Operating Temperature Range: 0°C ~ 50°C
  • Storage Temperature Range: -20°C ~ 70°C


• Item Includes:

  • 1x Transmitter
  • 1x Receiver
  • 1x 1 Power Adapter (for receiver)
  • 1x User's manual
