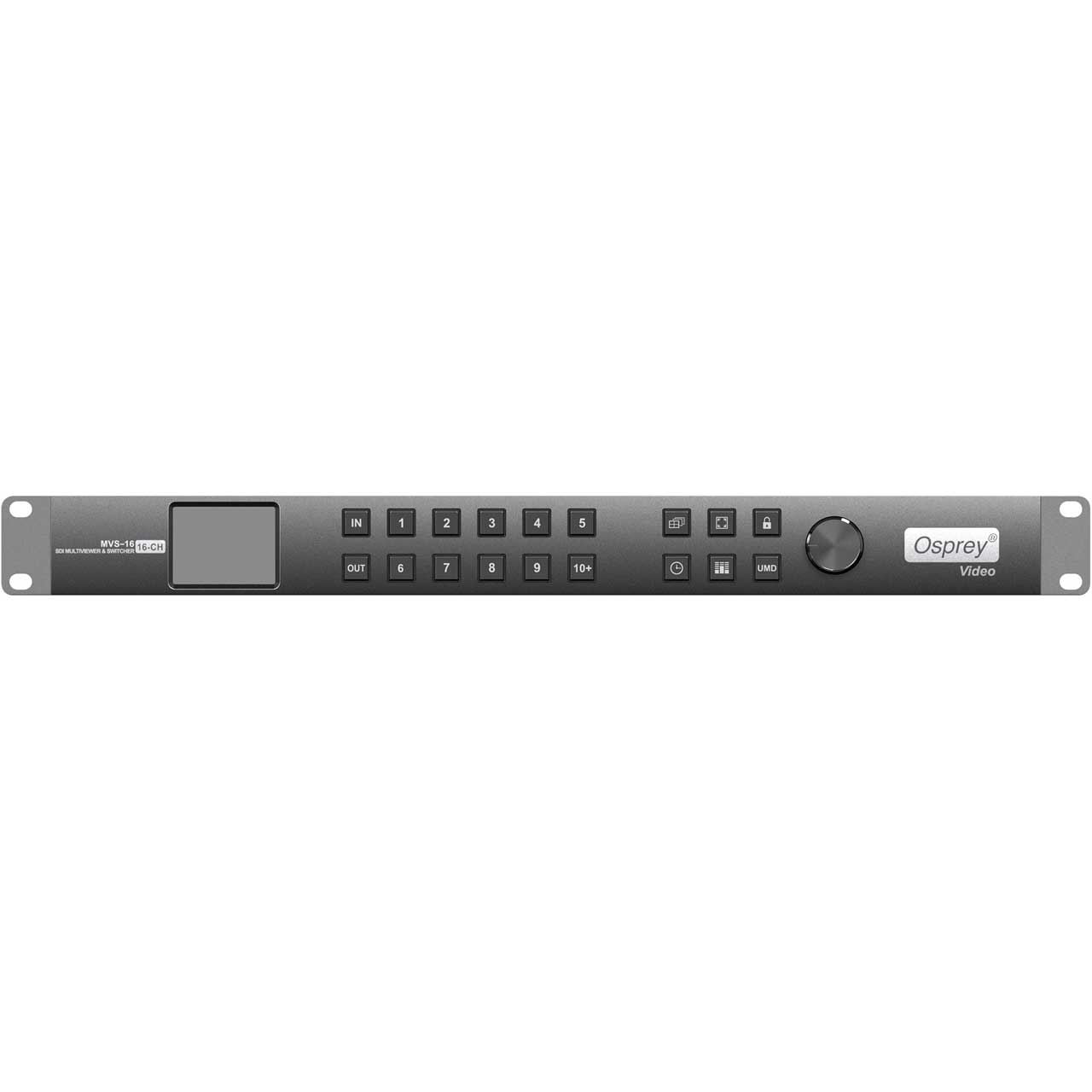

Osprey MVS-16 16 Channel 3G-SDI 1U Rackmount Multi Viewer / 16x16 Matrix Switcher

MVS-16 - Overview

• Features:

  • Input Channels can be monitored with 20 different MultiView layouts
  • Dual 3G-SDI Outputs as well as parallel HDMI
  • Integrated status display
  • Multiple control options and lockout functionality
  • Pass through of all embedded Audio and Ancillary Data
  • Audio can be embedded into the MultiView Output
  • The user can choose one Stereo Pair from any of the 16 SDI Inputs


• Specifications:

  • Video Connections
  • 34x Full SizeBNC
  • 1x Full Size HDMI

    SDI Video Rates
  • 3G/HD/SD - Level A

    Video Standards
  • 525i 59.94 NTSC, 625i 50 PAL
  • 720p 23.98,24,25,29.97,30,50,59.94,60
  • 1080p 23.98,24,25,29.97,30,50,59.94,60
  • 1080psf 23.98,24,25,29.97,30
  • 1080i 50,59.94,60

    SDI Compliance
  • SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 352M, SMPTE 424M

    Audio
  • Up to 16 Embedded Audio Channels passthrough

    SDI Color Precision
  • RGB 4:4:4, YUV 4:2:2/4:4:4

    Multiple Rate Support
  • Auto Detect: SD/HD/3G-SDI

    MultiViewer SDI and HDMI Outputs
  • 1080P 24,25,30,50,60
  • 720P 50,60
  • 1080i 50,60

    Power
  • Redundant 6-24VDC Power Inputs (Two Power Supplies Included)
  • Power Requirement 24W

    Controls
  • Front Panel
  • Ethernet
  • RS422


• Item Includes:

  • 1x Osprey MVS-16 16 Channel 3G-SDI 1U Rackmount Multi Viewer / 16x16 Matrix Switcher


• Warranty:

  • 2 years


• GTIN:

  0850189006931
