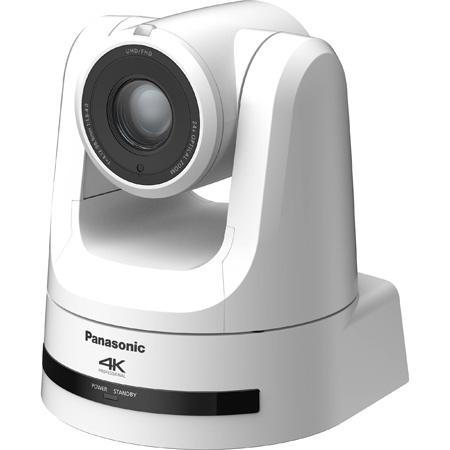

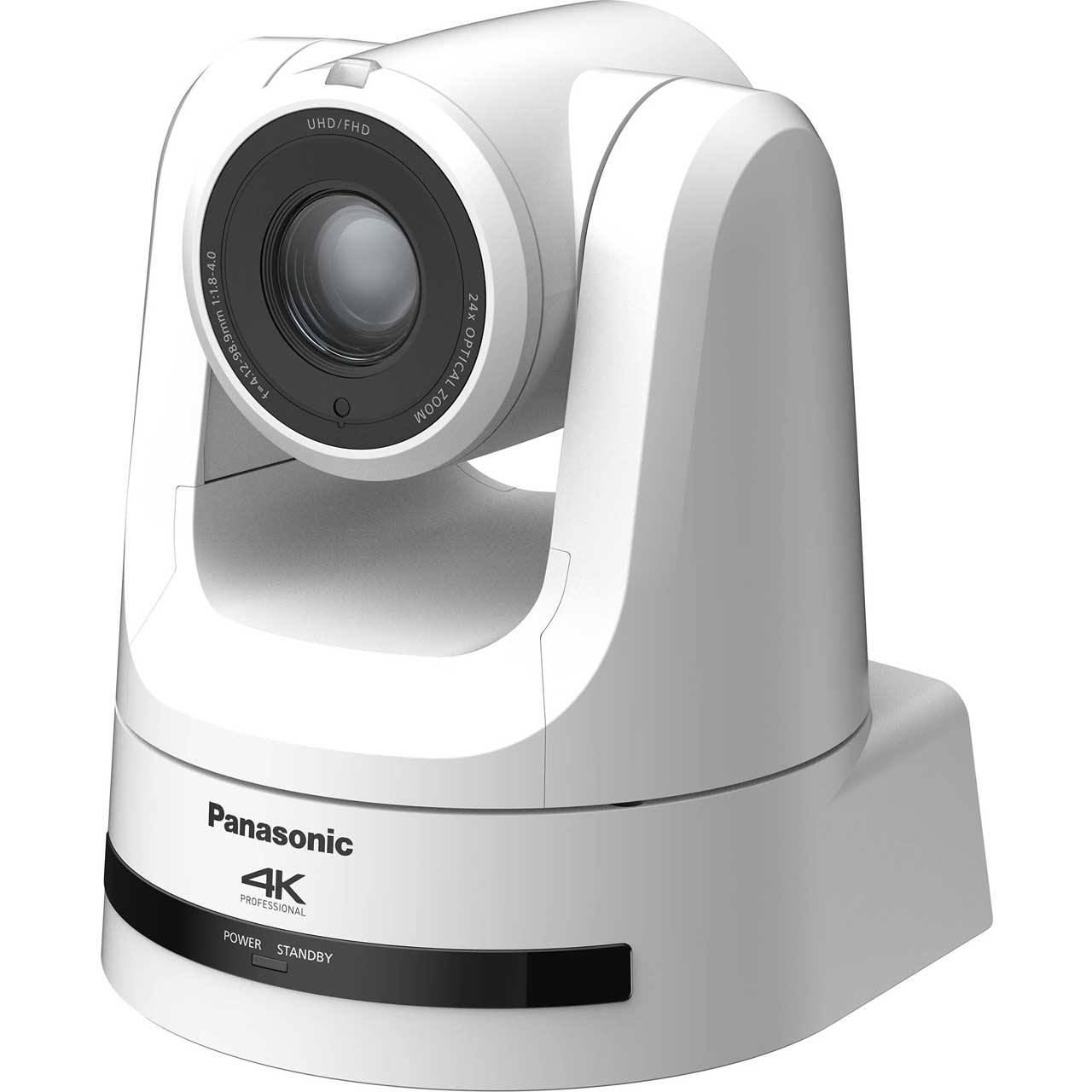

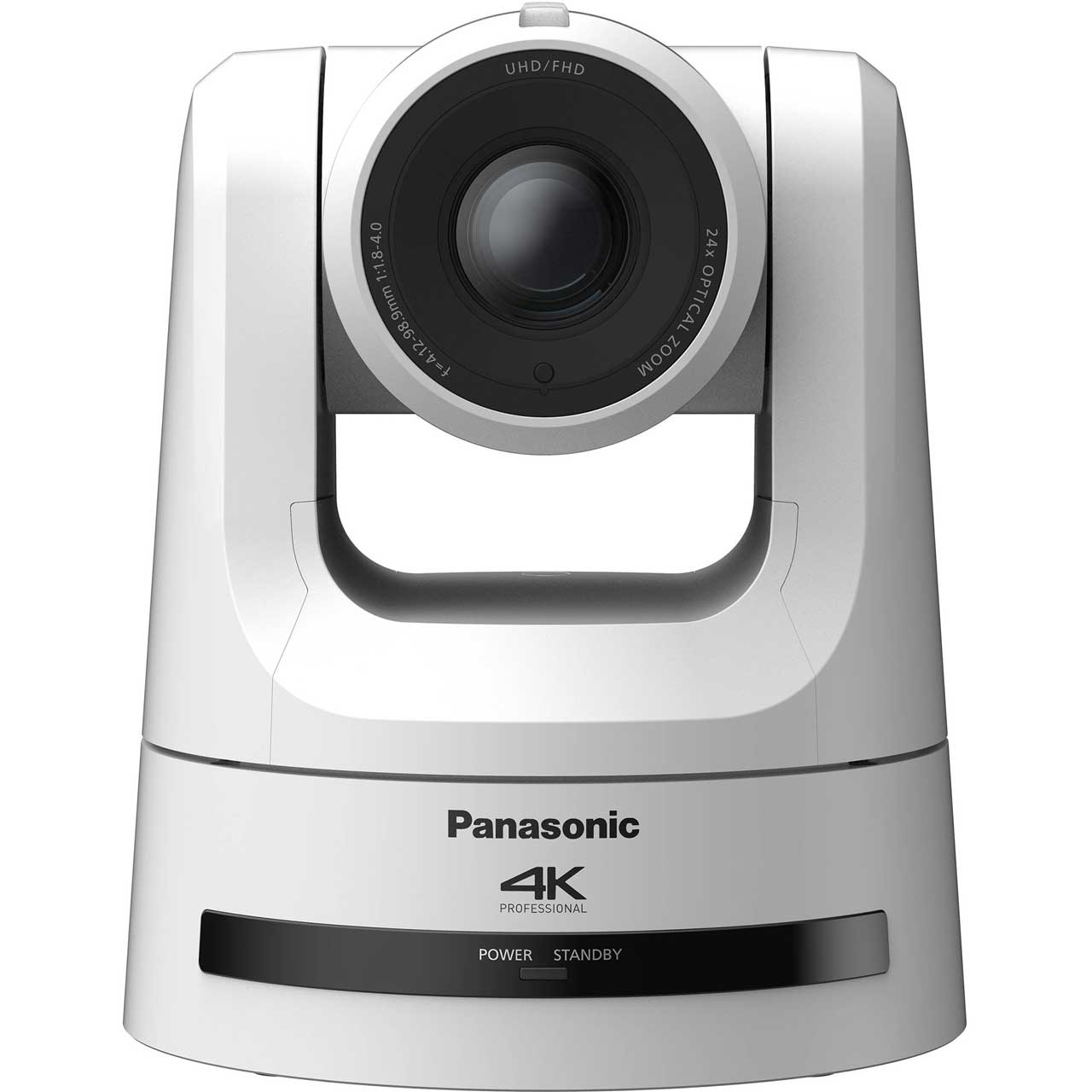

Panasonic AW-UE100WPJ 4K NDI Professional PTZ Camera - White

AW-UE100WPJ - Overview

• Features:

  • Supports a wide variety of IP transmission protocols, including NDI, NDI|HX, and SRT
  • Supports 4K 60p shooting and 12G-SDI output
  • Includes a wide-angle lens with a 74.1° field of view and 24x optical zoom
  • Supports FreeD for building AR/VR systems
  • Adopts new mechanical pan/tilt for improved responsiveness and quietness


• Specifications:

  • General
  • Power Requirements:
    Main Unit: DC 12 V±10% (10.8V to 13.2V)
    AC Adapter: AC 100 V to 240 V
  • PoE++: Complies with IEEE802.3bt: DC 42 V to 57 V (camera end) (supports software authentication (LLDP communication))
  • Current Consumption:
    Main unit: 3.0 A (DC jack input), 1.2 A (PoE++ power supply)
    AC Adapter (included): 3.0 A
  • Weight:
    Approx. 2.2kg (4.85lbs) (excluding cable cover, direct ceiling mount bracket)
    Approx. 2.3kg (5.07lbs) (excluding direct ceiling mount bracket)
  • Dimensions: 169.2 x 170.6 x 204.6mm (6.66 x 6.72 x 8.06") (excluding protrusions, cable cover, and direct ceiling mount bracket)

    Camera Unit
  • Image Sensor: 1/2.5-type 4K MOS x 1
  • Lens: Electric powered 24x optical zoom F1.8 to F4.0 (f = 4.12 mm to 98.9 mm, converted to 35 mm: 25.0 mm to 600.0 mm; i.Zoom (UHD: 28x, FHD: 36x) (*switches from optical 24x i.Zoom digital zoom)
  • Field of View Range: Horizontal field of view: 74.1° (wide) to 3.3° (tele), vertical field of view: 46.0° (wide) to 1.9° (tele), diagonal field of view: 81.8° (wide) to 3.8° (tele)
  • Horizontal Resolution: 1,400 TV lines Typ (center area
  • Output Formats:
    4K Formats: 2160/59.94p, 2160/50p, 2160/29.97p (native), 2160/25p (native), 2160/24p (native), 2160/23.98p (native)
    HD Formats: 1080/59.94p, 1080/50p, 1080/29.97p (native), 1080/29.97PsF, 1080/25p (native), 1080/25PsF, 1080/23.98p over 59.94i, 1080/24p (native), 1080/23.98p (native), 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p

    Output
  • HDMI: HDMI 2.0 Connector; 4:2:2/10 bit
  • 12G-SDI OUT: SMPTE2082-1, SMPTE292 compliant/75 Ω (BNC x 1)
  • 3G-SDI OUT: SMPTE292/75 Ω (BNC x 1)

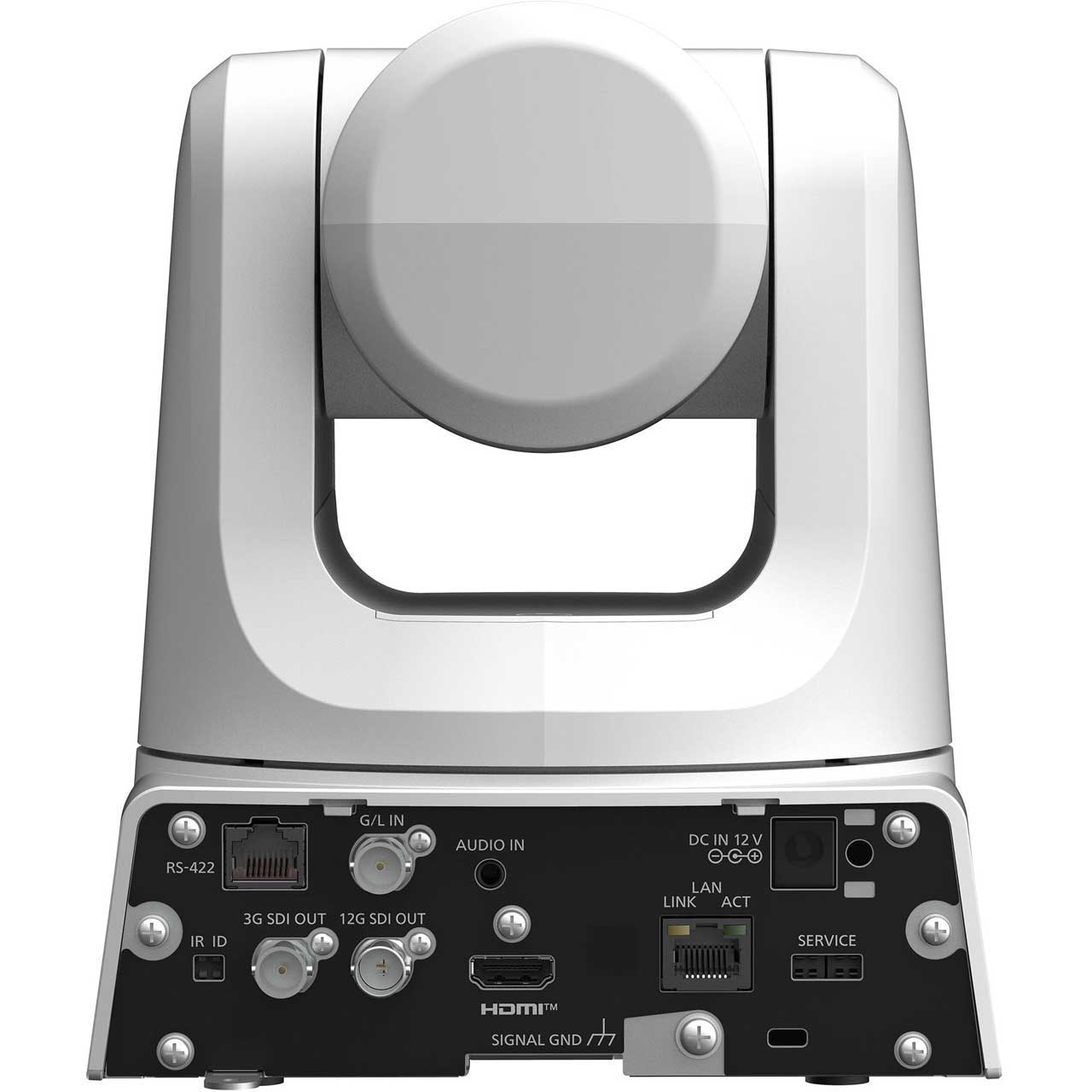

    Input/Output
  • LAN: LAN for IP control and video transmission/PoE++ terminal (RJ-45)
  • RS-422: CONTROL IN RS422A (RJ-45)
  • Mic/Line Input:
    Supported (SDI/HDMI/IP), AAC compatible (IP only) Ø3.5 mm stereo mini jack
    For Mic Input, Input Level: -40 dBV (0 dB = 1 V/Pa, 1 kHz) plug-in power compatible, supply voltage: 2.5 V ±0.5 V
    For Line Input, Input Level: -10 dBV
    Input Volume Variable Range: -36 dB to 12 dB (3 dB step)
    embedded Audio Output Level: -12 dBFS
    Sampling Frequency: 48 kHz
    Quantified Bit Count: 24bit (SDI, HDMI), 16bit (IP)

    Pan Tilt Head Unit
  • Panning Range: ±175°
  • Tilting range: -30° to 210°

    IP Streaming
  • Video Compression Format: JPEG (MJPEG), H.264, H.265, NDI|HX, High bandwidth NDI
  • Resolution: 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180

    New Functions
  • NDI Support: NDI, NDI|HX: Included as standard
  • Mechanical Pan/Tilt: Direct Drive system


• GTIN:

  0885170373402
