The top-of-the-line Phabrix Rx 2000A offers up to 4 channels of 2K/3G/HD/SD-SDI video/audio analysis and monitoring (dual inputs per analyzer), and can also provide signal generation. Up to 16 instruments can be displayed per channel for video analysis and physical layer testing via an external monitor. Monitoring of the instruments and video can also be performed using dual built-in screens and audio speakers. With all these advanced capabilities, Rx 2000 is ideal for broadcast QC, whether it's in the studio, MCR or live production trucks.
Rx 2000 enables faster, intermittent fault finding using video and audio capture to help diagnose problems. The capture can be triggered automatically when faults are identified by the analyzer, according to user-defined criteria. Fault diagnosis is also quickened by the Rx 2000's remote access capability, which allows engineers to monitor and analyze video via a web browser from any location.

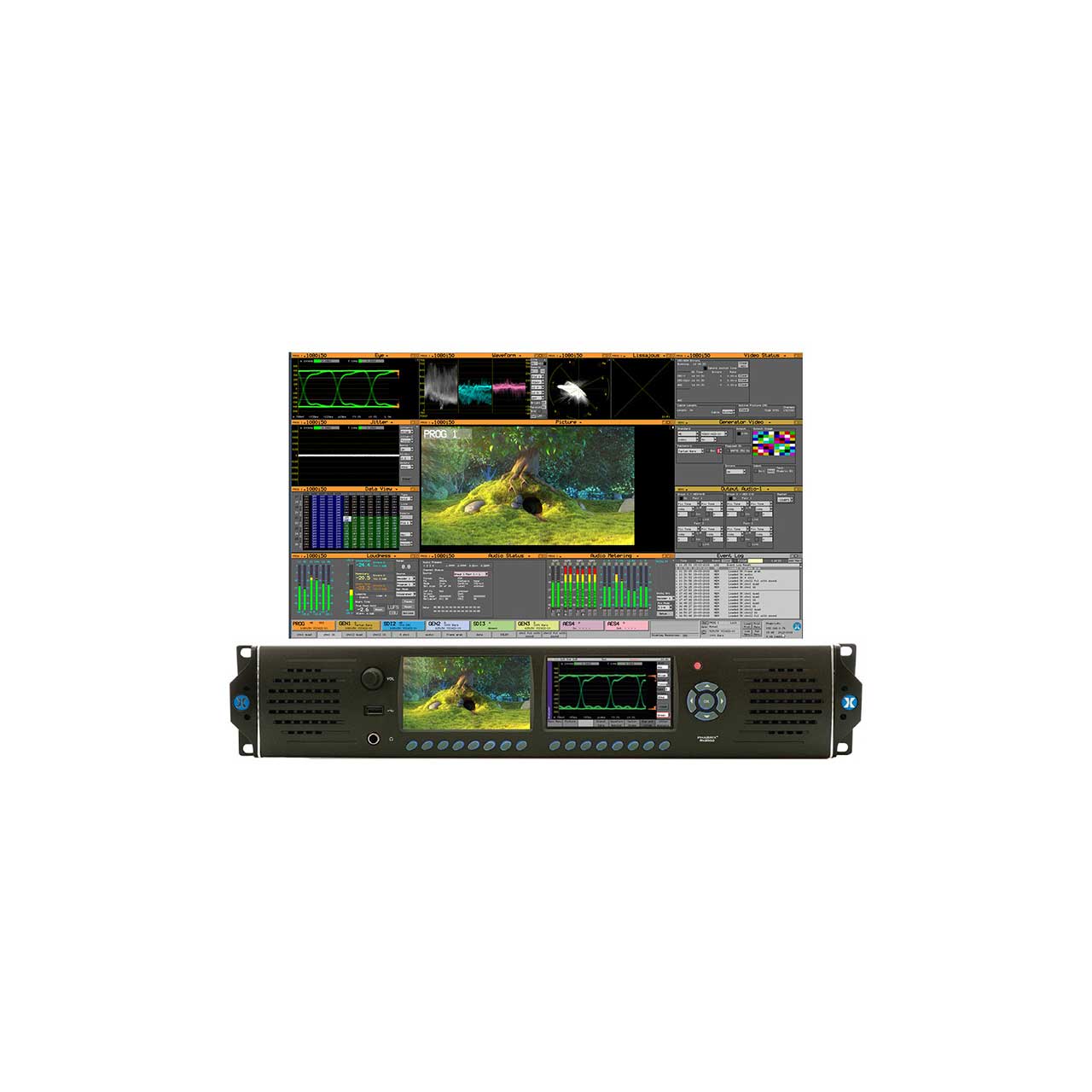

Workflows are optimized with ultra-flexible, user-defined instrument display layouts. Up to 16 instruments can be displayed simultaneously, at sizes ranging from full screen down to 1/16 screen. In multichannel monitoring environments, channel identification is simplified with a dedicated window color per channel. Monitoring configurations can be built to suit individual operators and key applications, with rapid recall of layout pre-sets for fast turnarounds. Up to 99 presets are available to suit even the largest facility.
With advanced diagnostics tools, including up to four simultaneous Real-time Eye and Jitter physical layer analysis instruments plus closed caption, loudness and Dolby monitoring, Rx 2000 is ideal for OB trucks, broadcast facilities and video technology manufacturers.

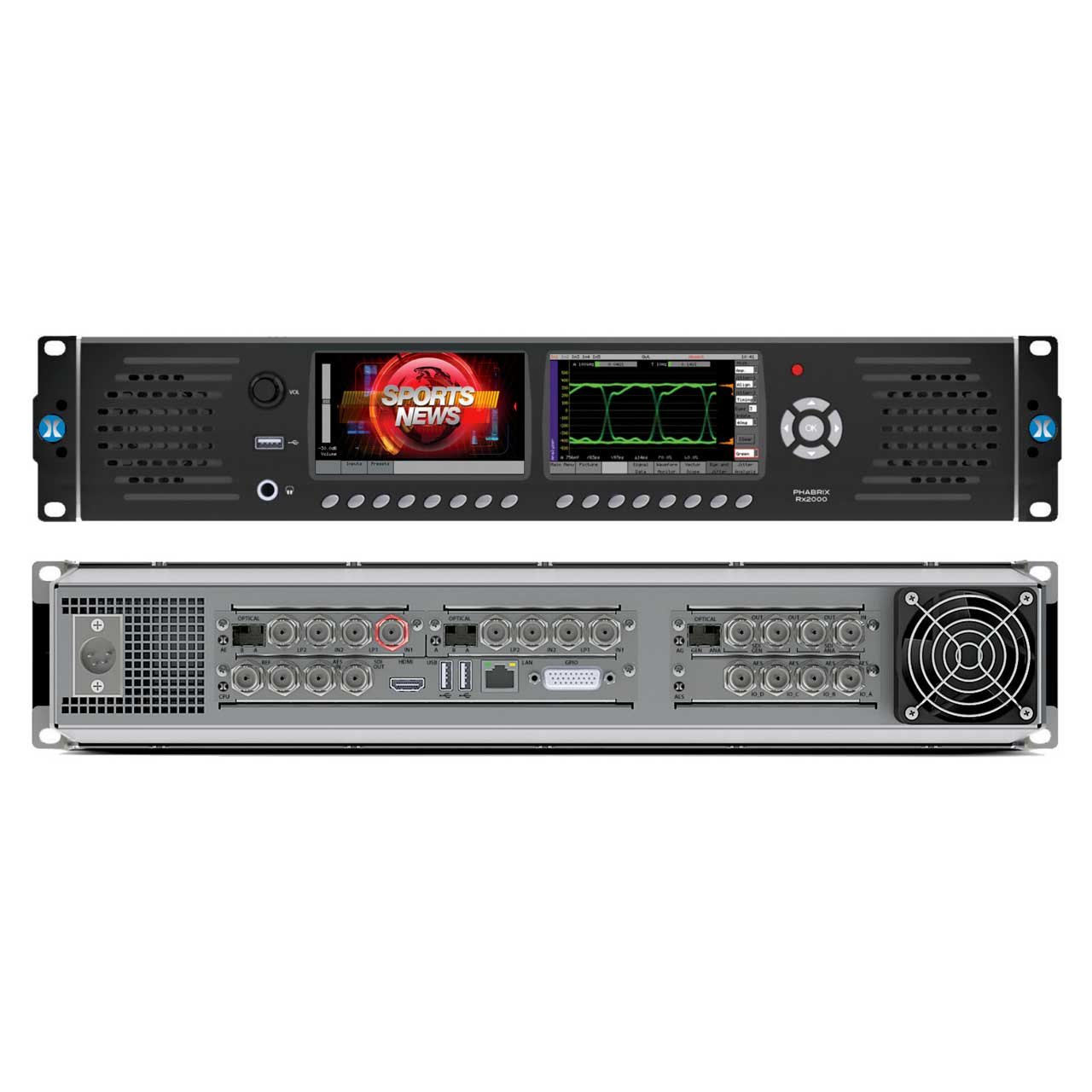

Please note: Image for reference only. PHRXM-A Analyzer Module is Included. All other modules sold separately.
