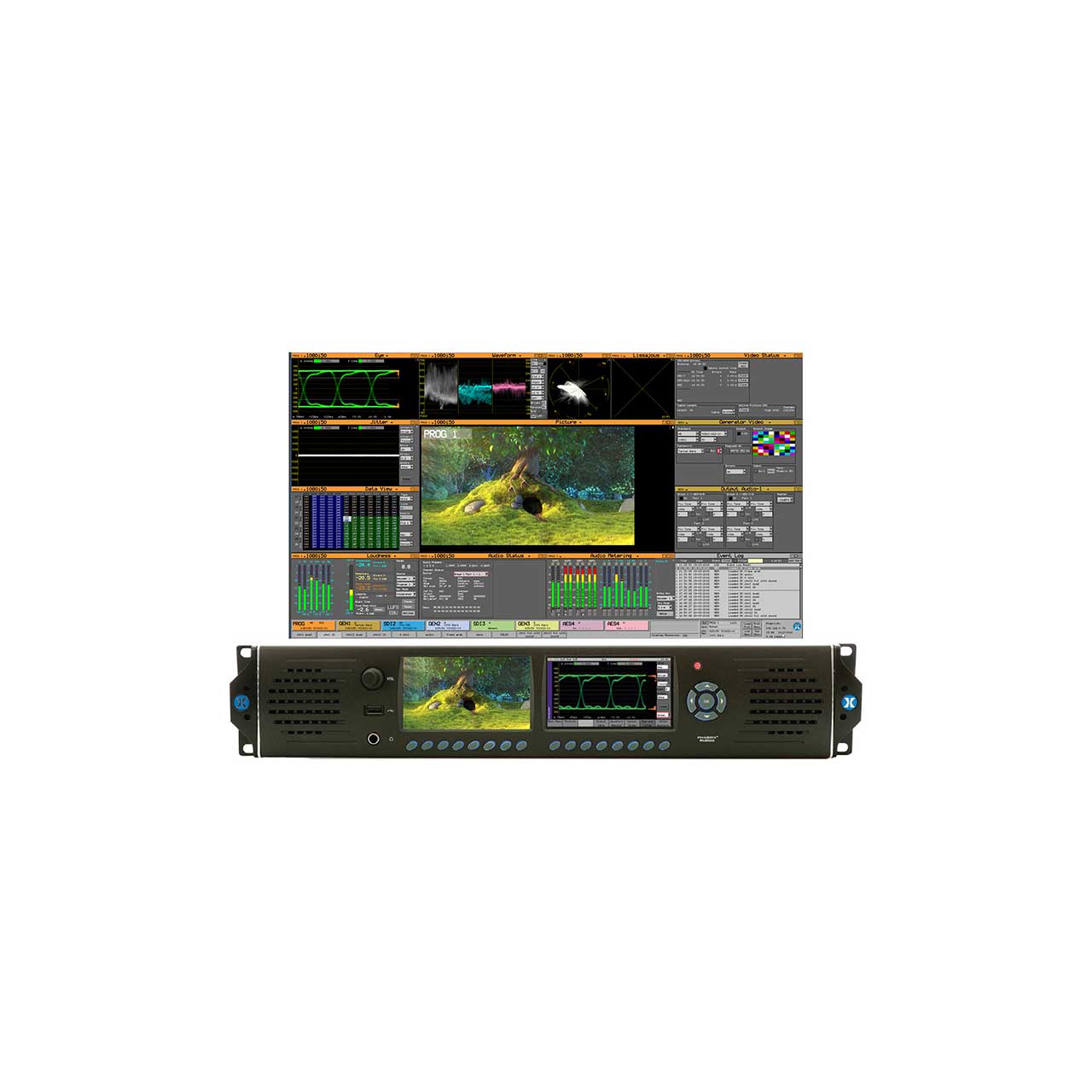

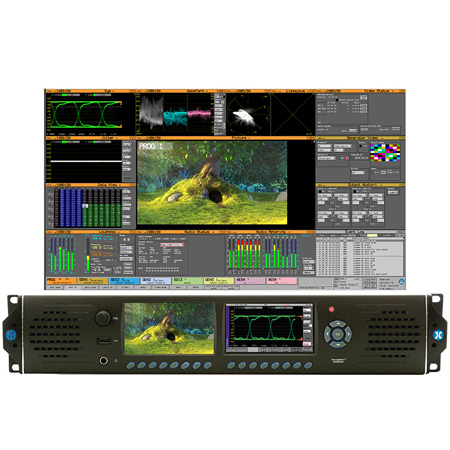

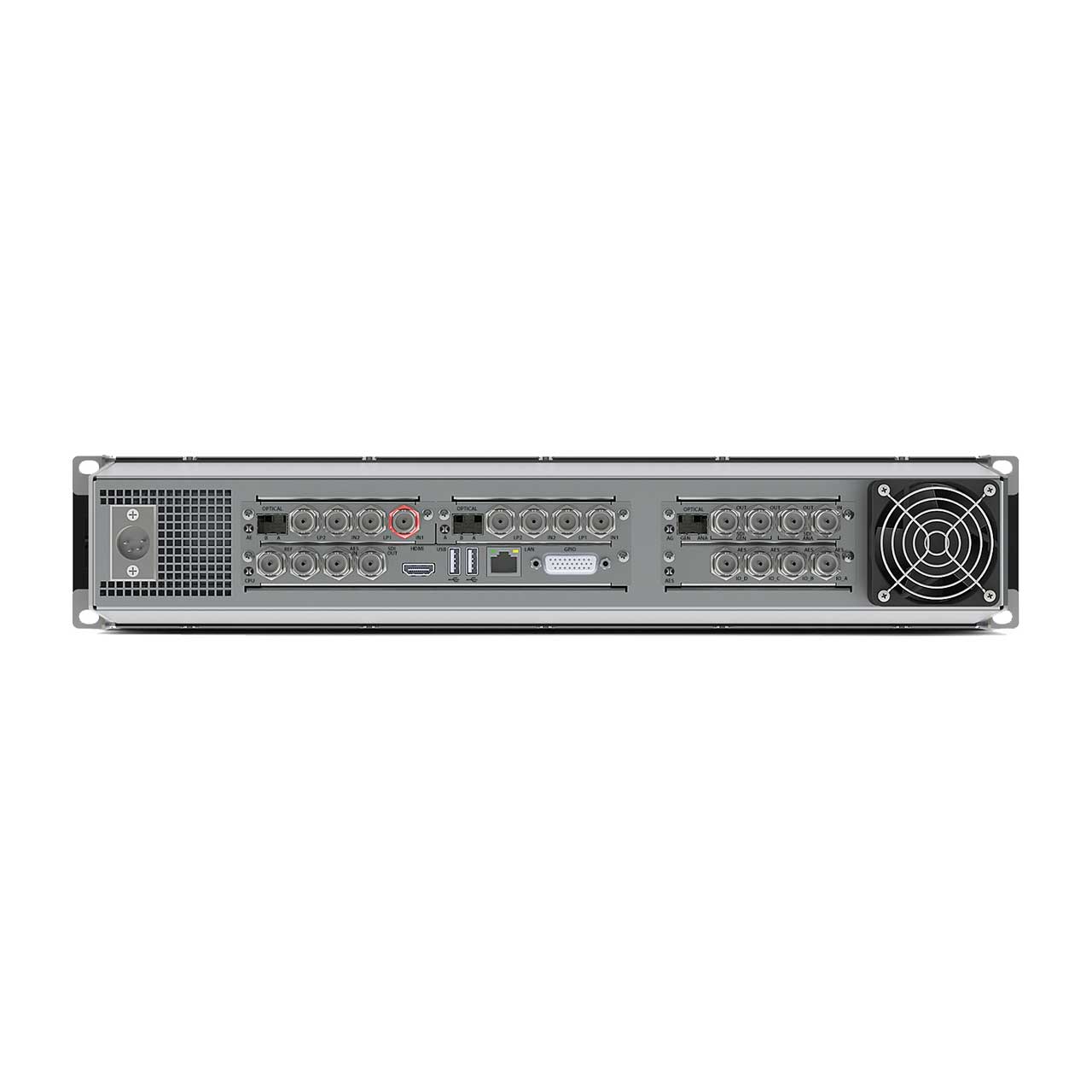

Phabrix PHRX2000AE Rx 2U 19 Inch Rack Mount Chassis HD/SD-SDI Base Unit w/ CPU Module Analyzer with Eye/Jitter Included

PHRX2000AE - Overview

• Features:

  • 2K/3G/HD/SD-SDI generation, analysis & monitoring
  • Up four channels of video and audio analysis (dual inputs per analyzer)
  • Signal generator option for video and audio
  • 2K/3G/HD/SD-SDI and Optical support with looping I/O
  • 12-bit YRGB/YUV waveform monitor with H,V zoom
  • Vectorscope for checking color bias / conformity
  • Generation of 32 test patterns, including Pathological and moving patterns
  • REF locking and timing analysis

    Flexible layouts
  • Fast recall of up to 99 configuration presets
  • Flexible layouts with instruments sized from 1/16 to full screen
  • Color coding for up to four channels for easier monitoring

    Automated video capture
  • Faster intermittent fault diagnosis with video and audio capture (13 frames HD, 60 frames SD) with automated triggering

    Physical layer testing (option)
  • SD/HD/3G/2K-SDI RTET (Real-Time Eye) option for testing SMPTE compliance issues, including under/overshoot
  • Jitter analysis in five specified frequency bands

    Advanced analysis toolset
  • Up to 4 channels of closed captions can be displayed, with support for WTS/OP42/OP47, EIA 608 and EIA 708 formats
  • Ancillary data analyzer with support for ANC Timecode, reference VITC and LTC support

    Form factor
  • Compact 2RU design, just 15cm deep and weighing 2.3kg
  • Viewing angle tilt mechanism
  • Low power consumption (27W typical, 80W max) for cool operation

    Multi-channel audio monitoring
  • Up to 4 channels of loudness metering and monitoring, using a selected stereo pair or 5.1 surround audio. Supports ITU or EBU Recommendation 128. Loudness logs stored automatically
  • 16 channels embedded audio monitoring with level meters, phase meters, and Dolby E / AES support

    Control
  • TCP/IP interface for remote control and automated testing

    Form factor
  • Compact 2RU design, just 15cm deep and weighing 2.3kg
  • Viewing angle tilt mechanism
  • Low power consumption (27W typical, 80W max) for cool operation


• Specifications:

  • Formats Supported (generation, analysis & monitoring)
  • SD-SDI, HD-SDI, 3G-SDI, 2K-SDI
  • 3G-SDI license (optional)

    Video Inputs/Outputs
  • 4 - 8 x SDI for 2K/3G/HD/SD, 75 Ohm terminated BNC Inputs
  • 1 - 4 RTET Real-Time Eye inputs (2K/3G/HD/SD-SDI)
  • SFP+ MSA/NON-MSA optical transceiver 3G/HD/SD-SDI

    Audio Inputs/Outputs
  • 8 channel 48kHz PCM audio on HDMI and SDI Instrument outputs
  • AES input AES 3-ID, SMPTE 276M-1995, 75 Ohm BNC
  • Stereo analog audio output, (via 26 pin high density `D' Type socket)
  • Calibrated stereo balanced analog audio output (option module)
  • LTC input (via 26 pin high density `D' Type socket)

    User Interface
  • HDMI instrument output, 1920 x 1080, 4:4:4 RGB, Type A
  • SDI instrument output, 1920 x 1080, 4:2:2 YUV, BNC 75 Ohm

    Reference
  • Reference/VITC input, passive loop through, BNC 75 Ohm compensated

    Networking & Control
  • Ethernet remote control via browser, RJ45 connector, 10/100Base-T
  • IP sockets based remote control as standard
  • 8 x GPI I/O (via 26 pin high density `D' Type socket)
  • Front panel USB 2.0 host port type A socket + 2 rear panel USB 2.0 ports
  • FPGA firmware/software upgrade via Ethernet/USB

    Monitoring
  • Dual 16:9, 24 bit, 4.3? TFT, 480 x 272 pixels OLED display
  • Front panel headphone connector 6.3mm (1/4 inch) stereo jack
  • Internal loudspeakers (2 x 7W wide range)
  • Front panel volume/gain control

    Form Factor
  • Dimensions 440 x 88 x 150 mm (width x height x depth) excluding ears & projections
  • Weight 2.3 kg
  • 2RU 19? rack mount
  • Viewing angle tilt mechanism

    Electrical
  • Power consumption 27W typical 70W max (variable on modules inserted)
  • 4 Pin XLR power connector, 12V nominal (9V-18V)
  • AC Power adaptor (included), 90-264VAC, 120W
  • Whisper quiet temperature controlled fan (1 x 60mm external)

    Warranty
  • 1 year standard increased to 3 or 5 years with Extended Warranty package


• Warranty:

  • 1 year standard increased to 3 or 5 years with Extended Warranty Package
