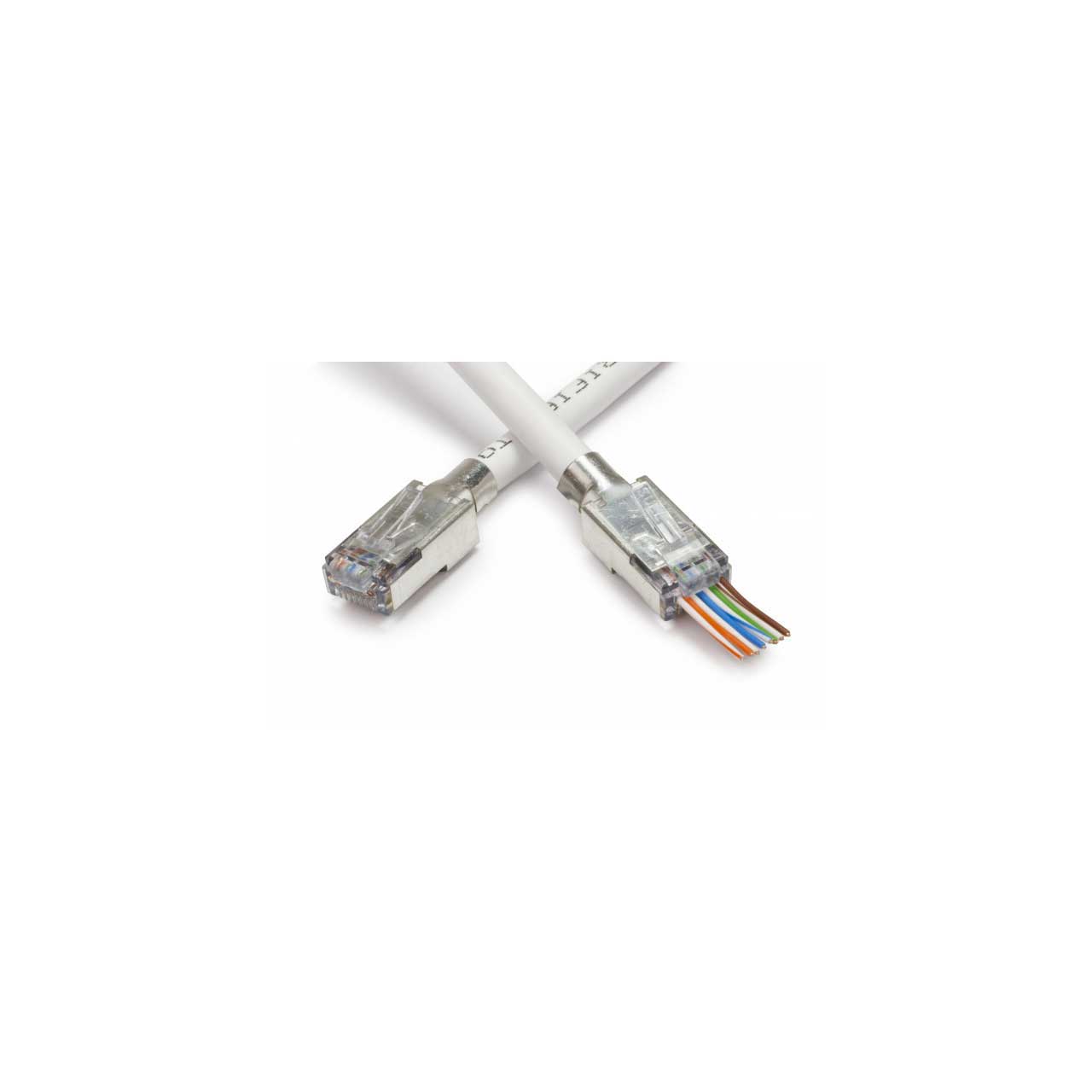

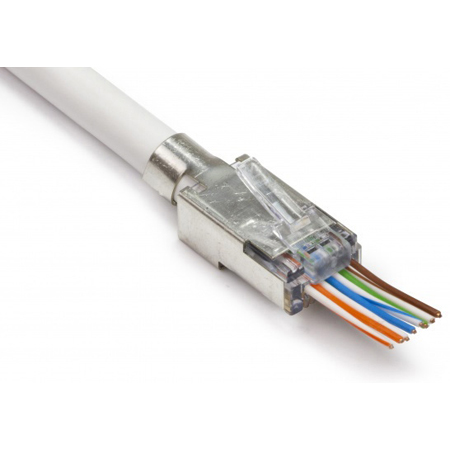

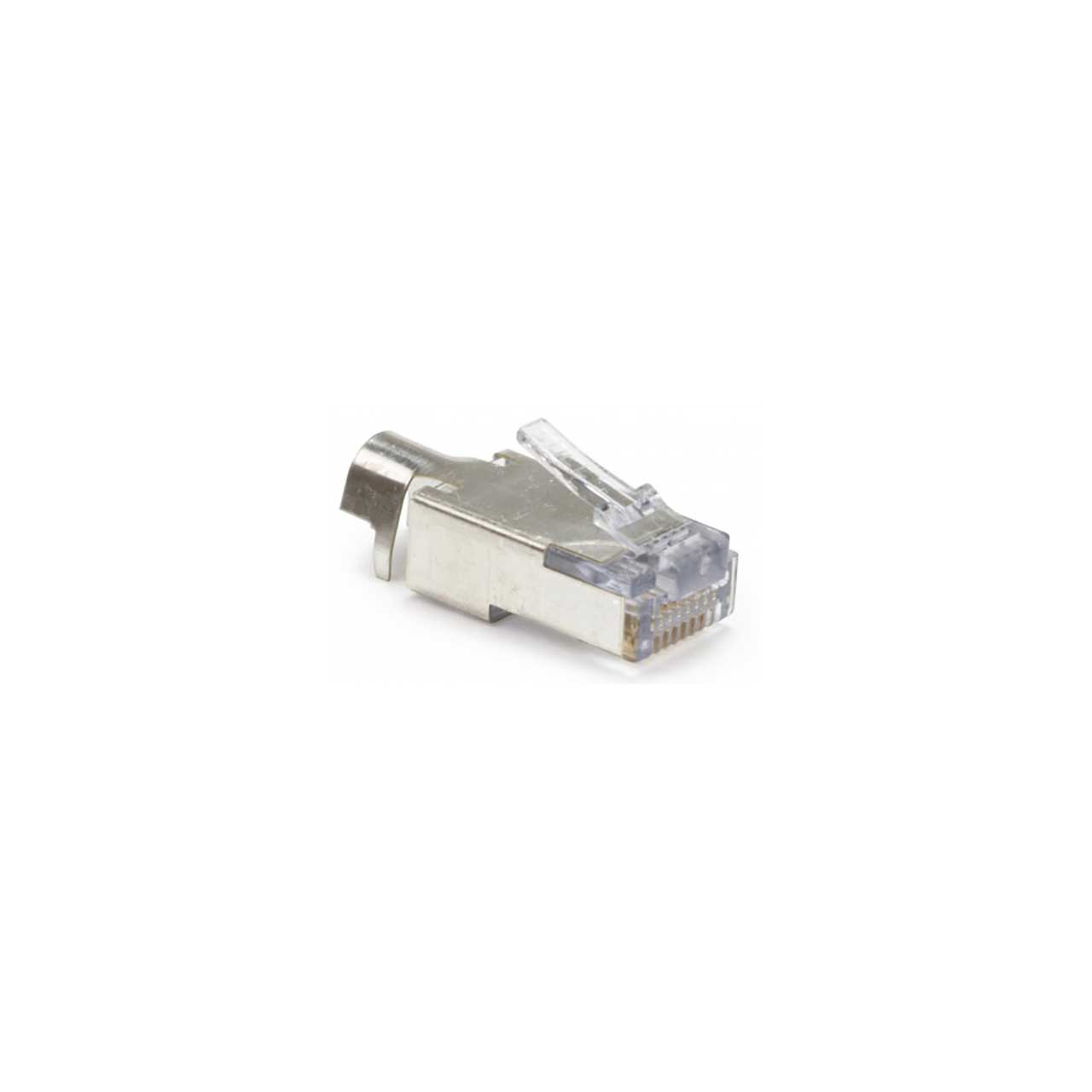

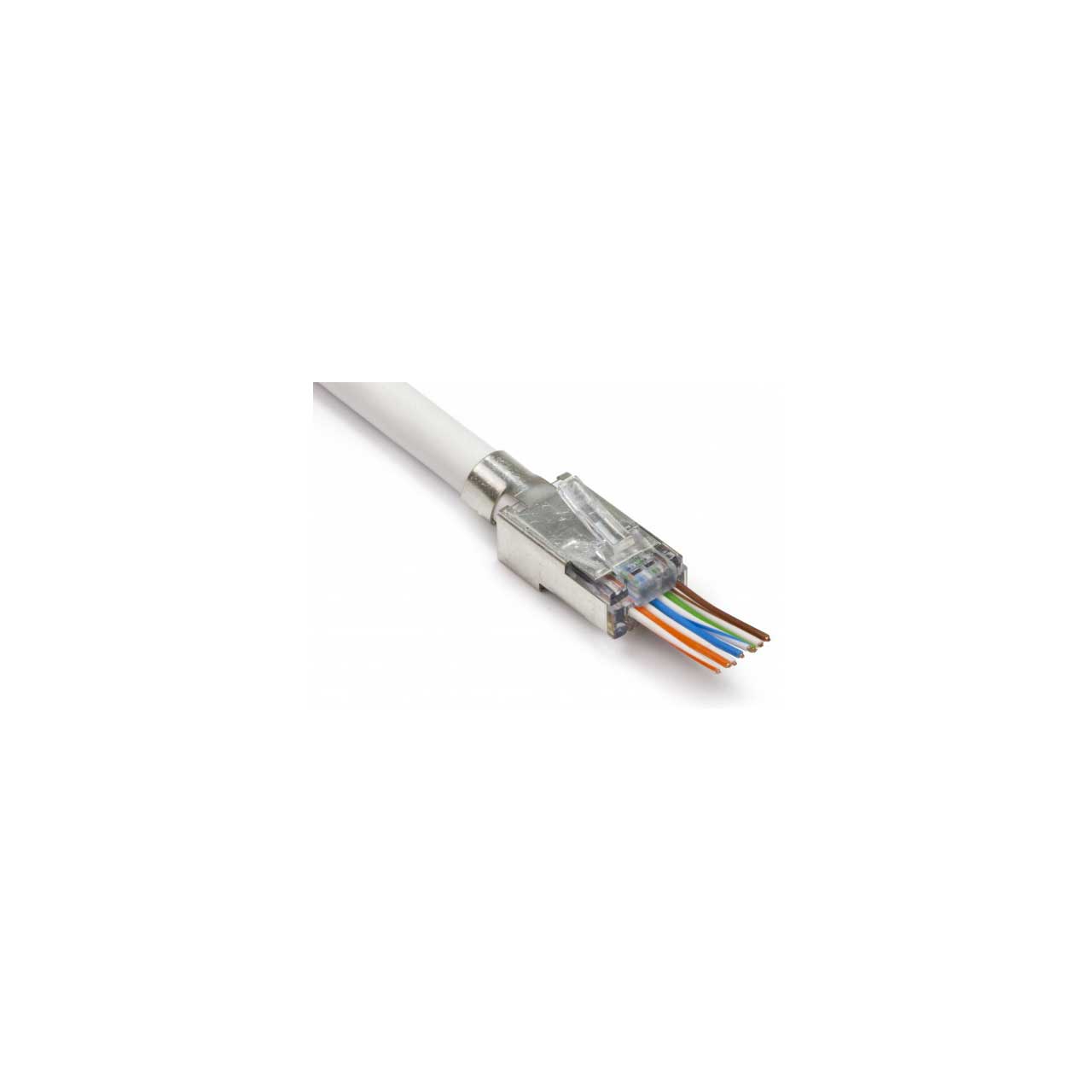

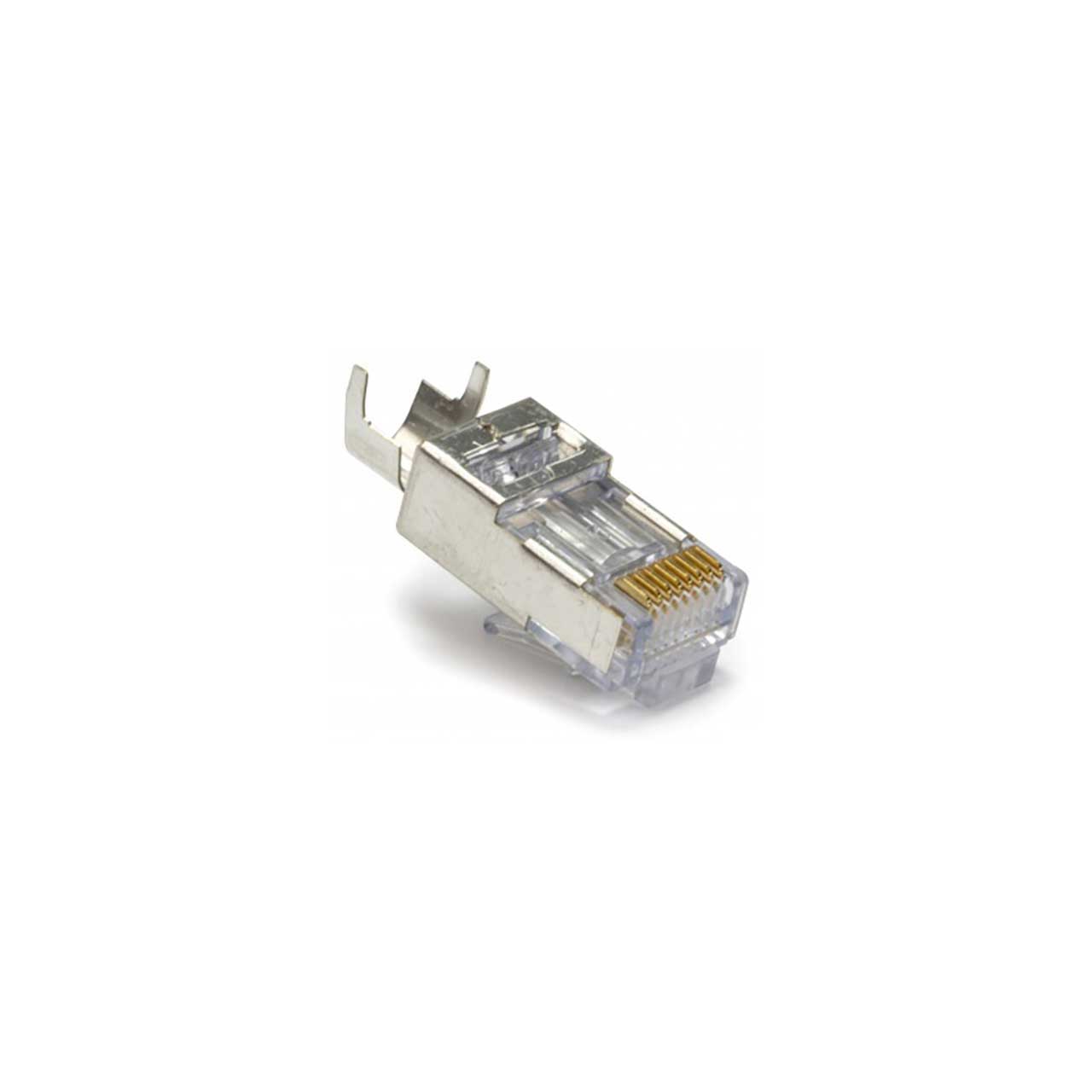

Platinum Tools 202022J EZ-RJ45 Shielded External Ground Connectors - 50/Jar

202022J - Overview

• Features:

  • For use with CAT5e/6+ shielded cable
  • For solid round or stranded wire cables.
  • Max Cable OD: 7.11mm (0.280")
  • Max Insulated wire OD: 1.016mm (0.040")
  • UL Rated, FCC compliant
  • TAA Compliant
  • Patent 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2
  • 50 micro inch gold plated


• Specifications:

  • Internal Ground
  • Maximum cable OD: 0.260"
  • Maximum conductor OD: 0.041"

    External Ground
  • Maximum cable OD: 0.280+"
  • Maximum conductor OD: 0.041"


• Item Includes:

  • 1x 202022J EZ-RJ45 Shielded External Ground Connectors - 50/Jar


• GTIN:

  0849160004400
