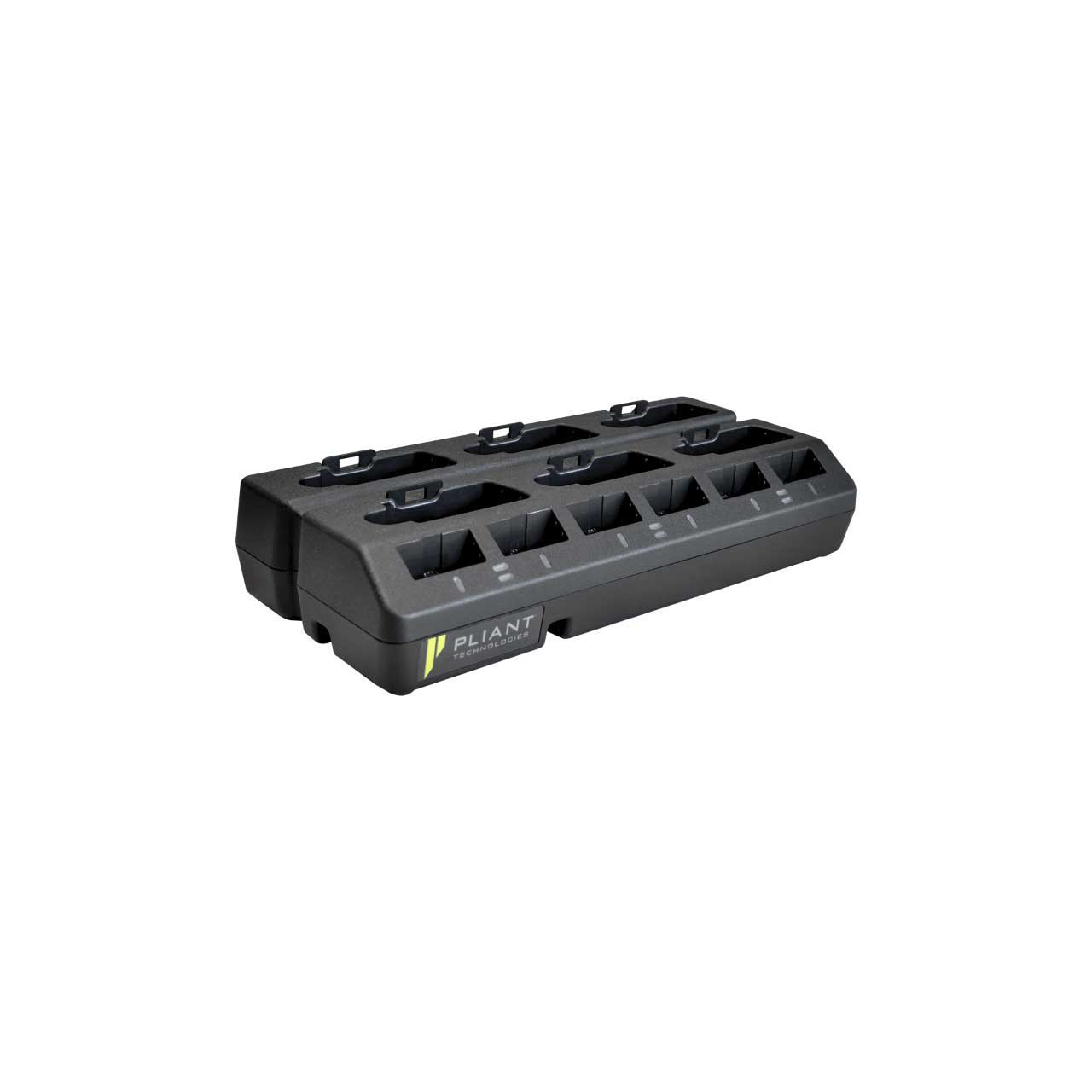

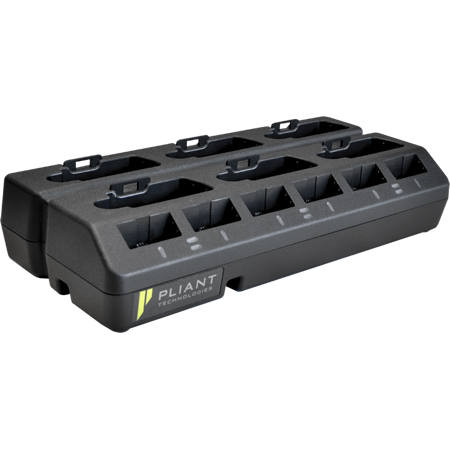

Pliant PBT-RPC-66PK 6-Bay Drop-In Charger with Li-Ion Battery 6-Pack

PBT-RPC-66PK - Overview

• Features:

  • Charge up to six CrewCom Radio Packs and six batteries simultaneously
  • Recharge batteries from empty in less than 4 hours
  • LED indicators provide real-time charge status
  • Radio Pack charging bays compatible with Pliant FleXLR adapter
  • Charger bottom designed for cable management
  • Region-specific power cable (included)
  • Non-Reflective, textured matte finish
  • Optional mounting bracket available (not included)
  • Full One-Year Parts and Labor Warranty


• Specifications:

  • Input
  • Voltage Range: 90-264 VAC
  • Frequency Range: 47-63 Hz
  • Input Current: 1.3 A max
  • Standby Power: 1.6 W max
  • Input Fuse: N/A

    Output
  • Voltage: 0-4.2 V 0-5.35 V
  • Current: 0-1 A 0-1.5 A
  • Power: 4.2 W Maximum 8 W Maximum
  • Voltage Tolerance: +/- 1% +/- 1%
  • Current Tolerance: +/- 5% N/A (controlled by RP)
  • Leakage Current: <1 mA <1 mA
  • Ripple & Noise (3): <120 mV pk-pk <120 mV pk-pk
  • Protection: Over current, Over temperature, Reverse polarity

    Environmental
  • Cooling: Convection cooled
  • Operating Temperature: Supply: -30°C to 70°C (-22°F to 158°F);
  • Battery Charging: 0°C to 45°C (32°F to 113°F)
  • Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Altitude: -382 m to 2000 m (-1,253 ft. to 6,562 ft.)


• Item Includes:

  • 1x PBT-RPC-66 6+6 Drop-In Radio Pack and Battery Charger
  • 1x Power Supply
  • 1x PC-PWR-XX (Region Specific) AC Power Cord
  • 1x Operating Guide
  • 1x Warranty Extension Registration Card


• Warranty:

  • Full One-Year Parts and Labor
