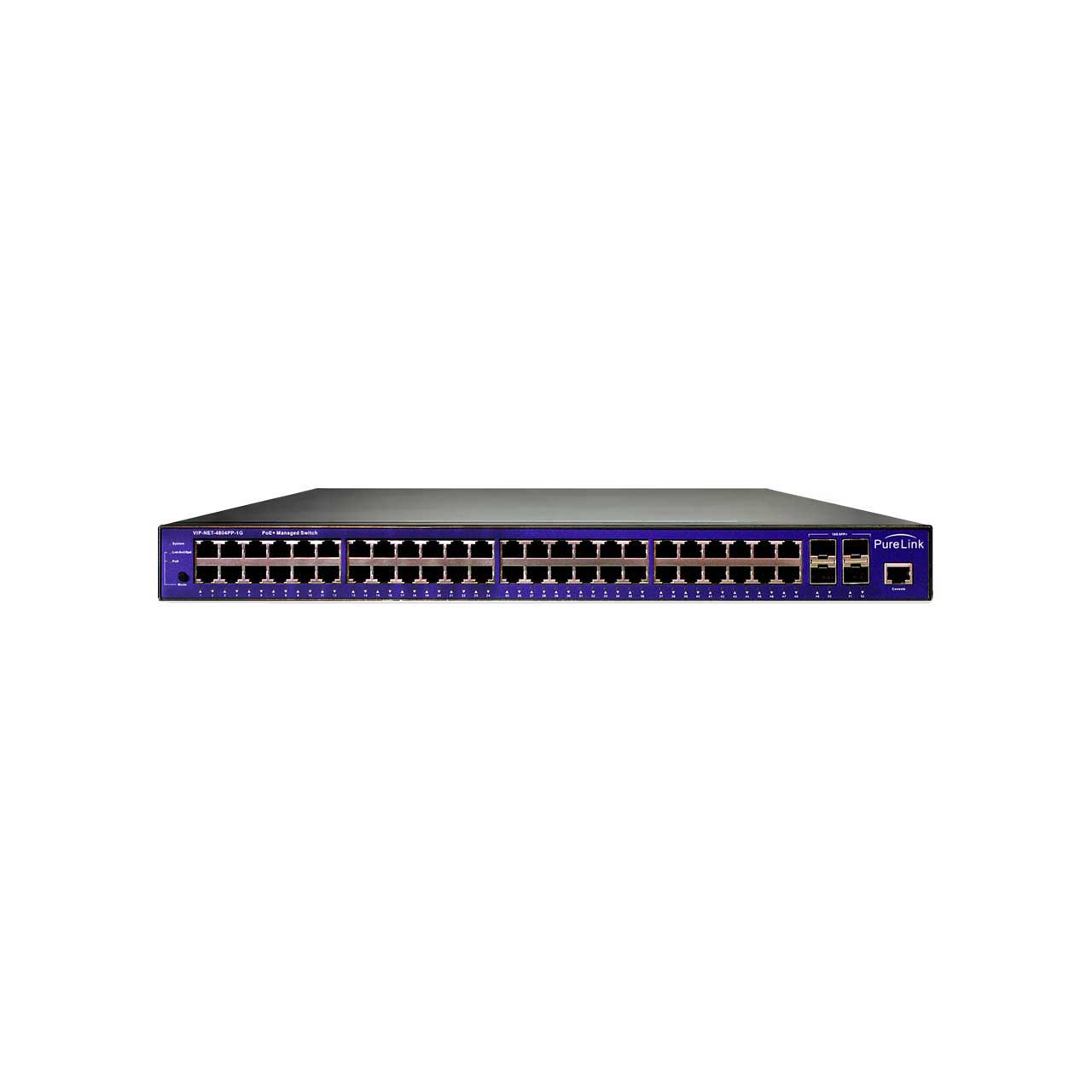

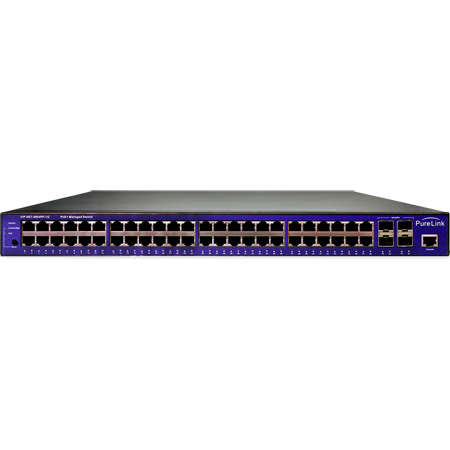

PureLink VIP-NET-4804PP-1G 1G Media Hub - 48-Port 1000Base-T- 4-Port 1000Base-X SFP w/POE+ - TAA-Compliant

ITEM #: PLK-VIPN4804PP1G MFG #: VIP-NET-4804PP-1G

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the PLK-VIPN4804PP1G

VIP-NET-4804PP-1G - Overview

The PureLink VIP-NET-4804PP-1G Managed PoE Network Switch provides flexible CAT/Fiber connectivity based on a new generation of PureStream IP Video solutions. Designed to work reliably with PureLink’s various VIP transmitters (encoders) and receivers (decoders), the VIP-NET 1G Series is purpose-built to enhance performance and simplify the management of IP video matrix switching systems.

  • Features:

    • IGMP Snooping and Jumbo Frame support
    • L2+ Managed Features for Ease of Use, Robust Security and QoS
    • Built in Device Management System (DMS)
    • IPv4/IPv6 Management
    • PoE Port Configuration and Scheduling
    • (4) SPF+ Slots for 20G or 40G Interlink
    • 802.3at High Power, PoE+
    • IEEE 802.3az EEE Energy Efficient Ethernet


  • Specifications:

    • PoE Functions: IEEE802.3at (PoE+ 30W), IEEE802.3ad (PoE+ 15.4W)
    • PoE Power: 370W
    • Switching Capacity: 128Gbps
    • Packet Forwarding Capacity: 96Mpps
    • Operating Temperature: 32° to 122°F (0° to 50°C)
    • Relative Humidity: 5 to 95% (non-condensing)
    • Product Dimensions: 17.3 x 11.2 x 1.7"
    • Product Weight: 8.0Lbs


  • Warranty:

    • 3-Year Limited Warranty
