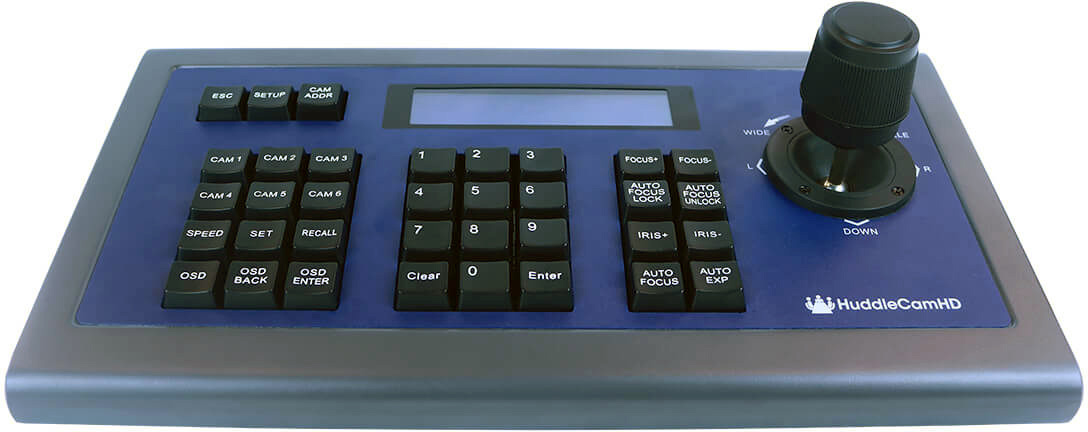

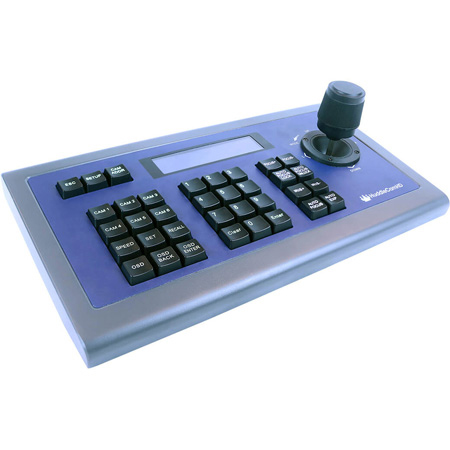

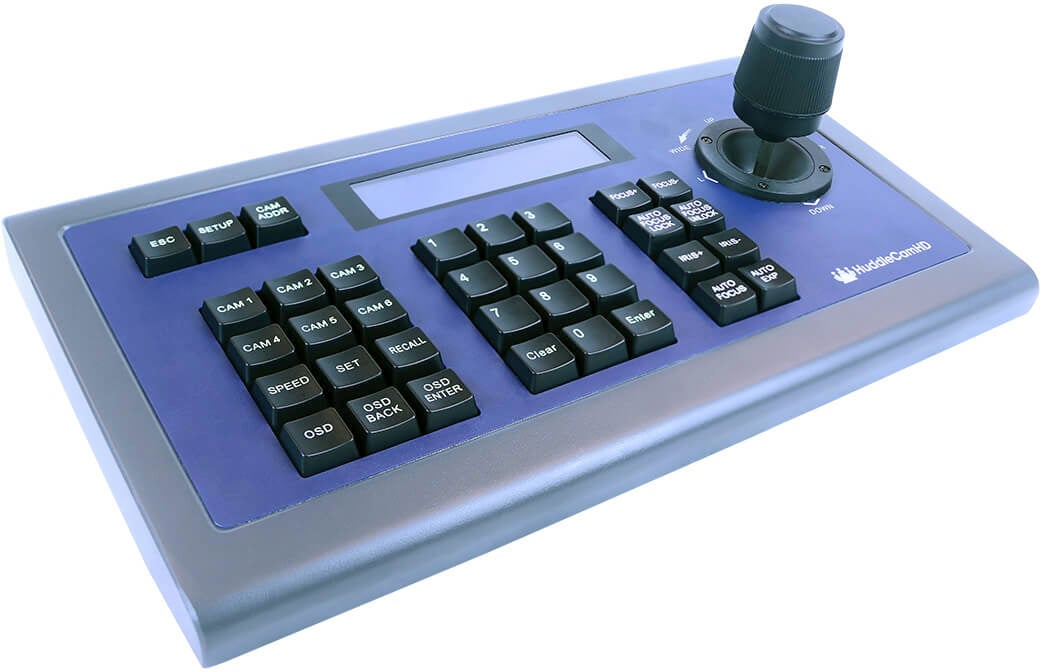

PTZOptics HC-JOY-G3 HC-JOY-G3 3rd Generation Serial PTZ Joystick

HC-JOY-G3 - Overview

• Features:

  • All Metal housing
  • VISCA, PELCO-D and PELCO-P protocol support
  • Large LCD Menu display
  • Key-press "BEEP" confirmation (optional - set on or off)
  • Pan, tilt, zoom, iris and focus control
  • Variable speed control of pan, tilt and zoom
  • Auto/Manual Focus and Iris
  • Backlight Compensation control
  • Cameras #1-4 ‘Quick Key’ Select buttons
  • Preset Save, Call and Clear
  • Real time display of the current status
  • Short circuit and overcurrent protection
  • Automatic recovery program for the communication port(s)
  • Control up to 255 Cameras
  • Camera Switching Hot Keys
  • Industry Standard Protocols
  • Durable Metal Housing
  • RS-232 Camera Control
  • Works w/ every PTZOptics Camera!
  • 6 Camera Quick Swap Keys (+2)
  • Auto Focus Lock
  • Quick Preset Set & Call
  • OSD Control
  • Preset Speed Control
  • 2-year warranty
  • Features


• Specifications:

  • Connections: RS-232, RS-485, RS-422
  • Baud Rate: 1200-19200 bps

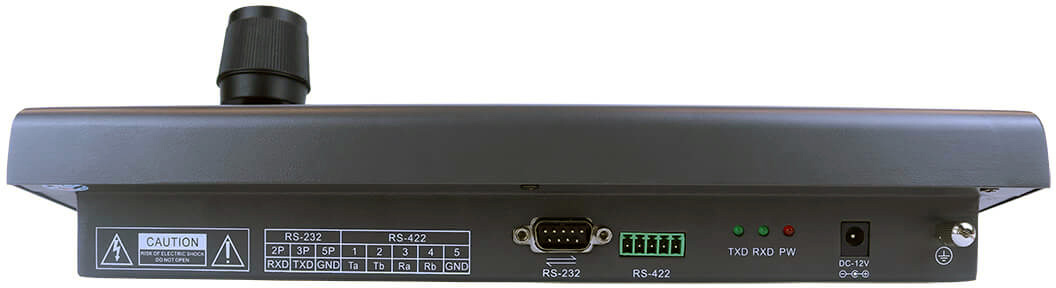

  • Interfaces: DB9 RS-232; 5SCT RS-485/RS-422
  • Maximum Cameras: Control up to 255 Cameras
  • Maximum Presets: Up to 255 Presets
  • Maximum Distance: 3,937? (1200m) using 24 gauge twisted pair cabling
  • Power: 6W (12VDC)
  • Working Temp: 14°F - 122°F
  • Weight: 3.4 lbs
  • Dimensions (WxDxH): 12.6" x 7.1" x 4.3"


• Warranty:

  • 2 Years
