PTZOptics PT30X-SDI-GY-G2 2x PTZ Camera Kit with JOY-G4 PTZ Joystick Controller - 30x Zoom/SDI-HDMI/CVBS/IP Streaming

ITEM #: PTZ-PT30XSDI-KIT MFG #: PTZ-PT30XSDI-KIT

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order


Availability: Sold Out
iAvailability Description Popup


PTZ-PT30XSDI-KIT - Overview

The PTZOptics PT30X-SDI-GY-G2 is a 1080p camera with 30X optical zoom for capturing HD images at long distances. With support for 3G-SDI, HDMI, and IP streaming (H.264, H.265, & MJPEG), this camera is ideal for broadcasting high definition video signals for broadcast, recording, or video conferencing applications.

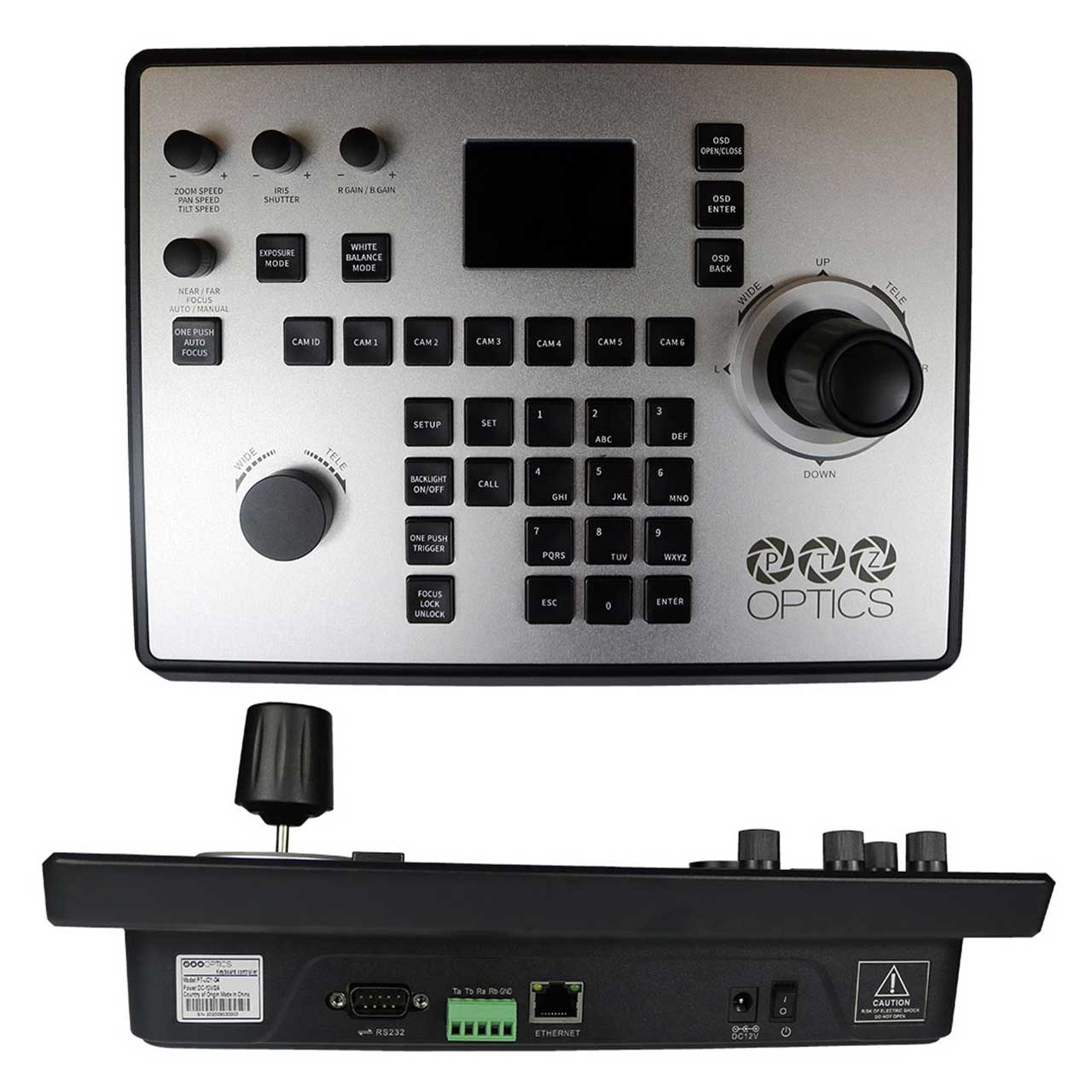

The PTZOptics PT-JOY-G4 is the 4th Generation IP Joystick Controller that is compatible with most PTZ cameras operating serial or IP protocol, including Sony. It's a legacy-friendly controller designed to easily integrate into a wide array of existing production systems, and even allows users to switch between protocols with the touch of a button.

A newly added web user interface will decrease your set up time, allowing you to get multiple cameras up and running in as little as five minutes! If you're using the PT-JOY-G4 for different productions or sets, we've got you covered. Import and export settings for specific use cases or production environments. For network setup, the PT-JOY-G4 will dynamically obtain an IP address upon connection to your LAN. If your network is not able to supply DHCP addresses, you can assign a static IP address to the controller.

  • Features:

    • PT30X-SDI-GY-G2
    • 60.7° wide-angle lens
    • High performance in low light scenarios with Wide Dynamic Range
    • Full 1920x1080p HD Resolutions up to 60fps
    • 2D and 3D noise reduction with our latest "low noise CMOS sensor"
    • RS232 & RS485 (Serial), and IP (LAN/WAN) control
    • H.264, H.265, & MJPEG streaming over RJ-45 LAN port
    • HDMI, 3G-SDI, & IP streaming (all 3 simultaneously)
    • PoE (Power over Ethernet) or 12VDC
    • RTMP & RTSP IP streaming
      PT-JOY-G4
    • VISCA over IP or Serial Control
    • Full Pan, Tilt, Zoom camera control
    • Fine tune focus control
    • Focus Lock and Unlock
    • Larger LCD screen with controller status
    • Direct exposure
    • White Balance
    • Red & Blue gain control

  • Specifications:

    • PT30X-SDI-GY-G2
    • Camera & Lens
    • Video Sensor: 1/2.7 inch CMOS, 2.07 Mega Pixels
    • Frame Rates: 1080p/60, 50, 30 & 25, 1080i/60 & 50, 720p/60, 50, 30 & 25
    • Frame Rates: (CVBS) 576i/30, 480i/30
    • Focal Length: 30x, F4.42mm-132.6mm, F1.8-F2.8
    • Lens Zoom: 30x
    • Field of View: 60.7°
    • Min Lux: 0.5 Lux at F1.8, AGC ON
    • Shutter Speed: 1/30s - 1/10000s
    • SNR: =55dB
    • Horizontal Angle of View: 2.28° (tele) to 60.7° (wide)
    • Vertical Angle of View: 1.28° (tele) to 34.1°(wide)
    • Working Environment Specifications: Indoor
    • Pan Movement: ±170°
    • Tilt Rotation Up: 90°, Down: 30°
    • Presets: 10 via IR (255 via Serial or IP)
      Rear Board
    • Video Output: HDMI, 3G-SDI, IP, CVBS
    • Network Interface: RJ45
    • Audio Interface: Line In, 3.5mm (HDMI & IP Stream Only)
    • Communication: RS-232, RS485, PELCO-D/P, NDI
    • Baud Rate: 2400/4800/9600 bits
    • Power Supply: JEITA type Power Adapter (DC IN 12V)
    • 3G-SDI Interface: BNC - 75 Ohm, Female
    • USB 2.0 Interface: Future Use
      Physical
    • Power Supply: 12W (Max)
    • Input Voltage: 12V DC (10.8 - 13.0V DC) or PoE 802.3af
    • Dimension (in.): 5.6 W x 6.5 H x 6.7 D (7.8H max w/ Tilt)
    • Dimensions (mm): 142 W x 164 H x 169 D (198H max w/ Tilt)
    • Box Dimensions: 9 inch x 9 inch x 10 inch (229 mm x 254 mm x 229 mm)
    • Camera Weight: 3.10lbs (1.41kg)
    • Boxed Weight: 5.4lbs (2.45kg)
      PT-JOY-G4
    • Connections: RS-232, RS-485, RS-422, RJ-45
    • Max Cameras: 255 cameras via network, 7 cameras via serial VISCA
    • Recommended Max Distance: RS-232/RS-422: 50ft (15m), RS-485: 3,937ft (1200m), Ethernet: 328ft (100m)
    • Baud Rate: 1200 - 19200bps
    • Power: 6W (12VDC)/PoE (802.3af)
    • Working Temp: 14°F - 122°F (-10°C - 50°C)
    • Working Humidity: 10% - 90% (non-condensation)
    • Weight: 4.45lbs (2.02kg)
    • Dimensions (WxDxH): 11.94" x 9.25" x 4.25" (303mm x 235mm x 108mm)

  • Item Includes:

    • 2x PTZOptics PT30X-SDI-GY-G2 PTZ Camera
    • 1x PTZOptics PT-JOY-G4 Joystick Keyboard
    • 2x Power Adapter & Cord (camera)
    • 2x IR Remote Control (camera)
    • 2x RS-232C Cable (camera)
    • 2x User Manual (camera)
    • 1x 12V 2A DC International Power Supply (keyboard)
    • 1x RS-232C Cable 8ft (2.4m) (keyboard)
    • 1x PT-JOY-G4 Quick Start Guide (keyboard)

  • Warranty:

    • PT30X-SDI-GY-G2: 5 Year Warranty
    • PT-JOY-G4: 2 Year Warranty

  • GTIN:

    0737993161059
