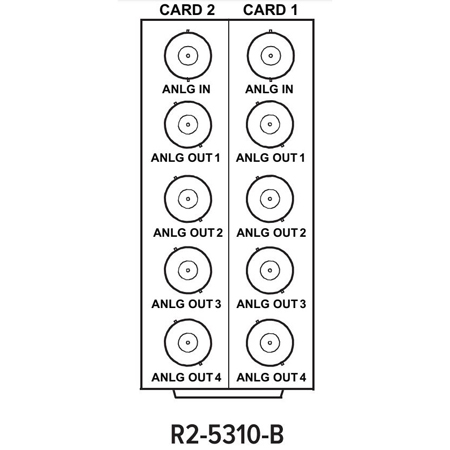

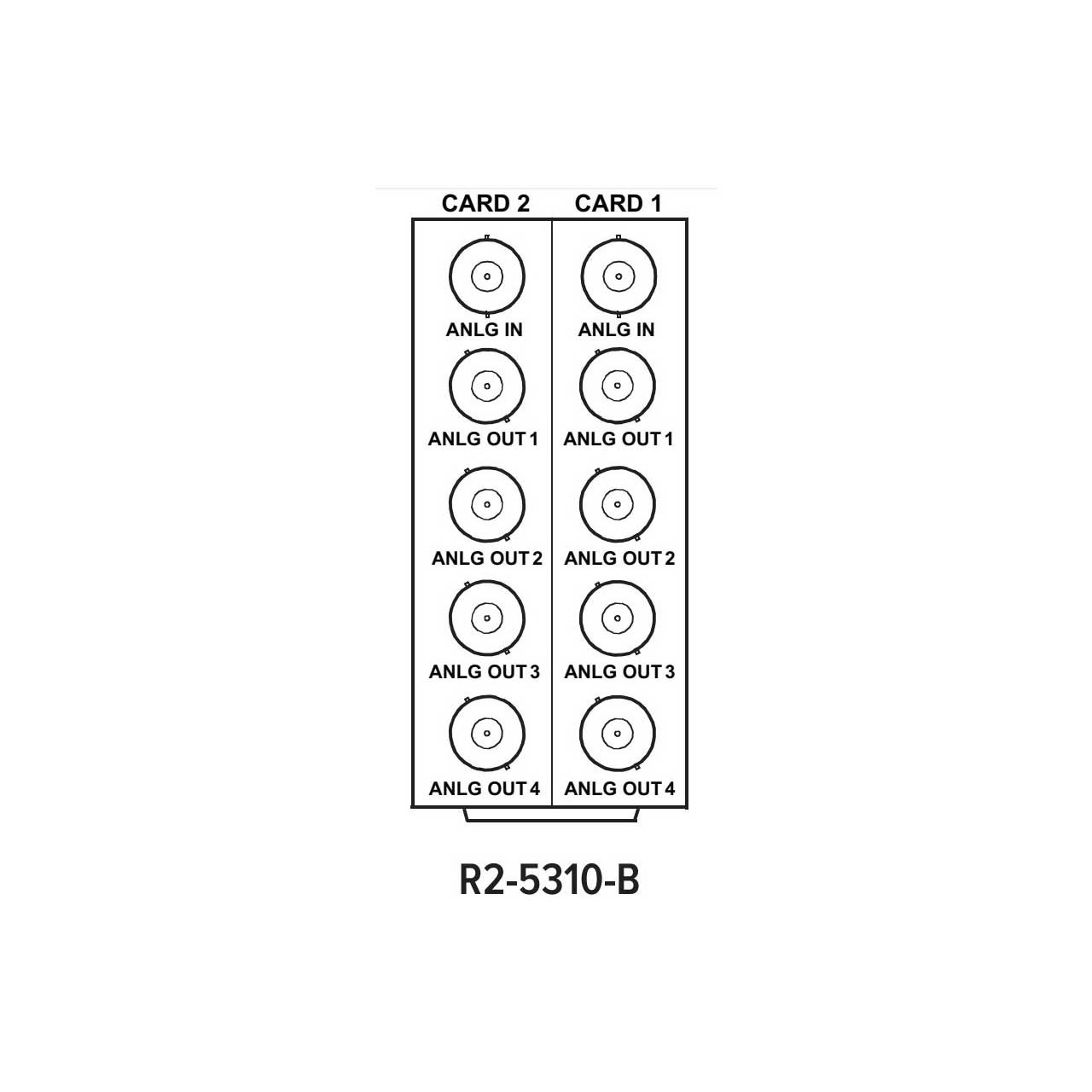

Multidyne R2-5310-B is an openGear 20-Slot Frame Rear I/O Module, split and supports 2 cards with one Analog Video Input BNC, and four Analog DA Output BNCs. These input/output connections are per card.
Applications include the following...
*Bi/Tri-Level Sync Distribution
*LTC Timecode Distribution
*Fly Packs
*Houses of Worship
*Mobile Trucks
Multi-mode input provides differential or single-ended input and hi-Z looping or card-terminated operation.
Remote control monitoring via DashBoard software.
Note: R2-5310-B allows only typical single-ended input operation (shield conductor of input BNC tied to GND). Also, this rear module can only be used when input termination (nonlooping) is selected using the card jumper.
Please Note: This is a dual card split module. This module requires 2 of the OG-5310-ADA-1X8 cards to function as intended.
