Rean NYS224L Jumbo 1/4 Inch 2-Pole Plug

ITEM #: RN-NYS224L MFG #: NYS224L

Primary Image
Rean
Free Shipping with $49 Minimum Order

List Price:

$2.75

Our Price:

$1.65

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NYS224L - Overview

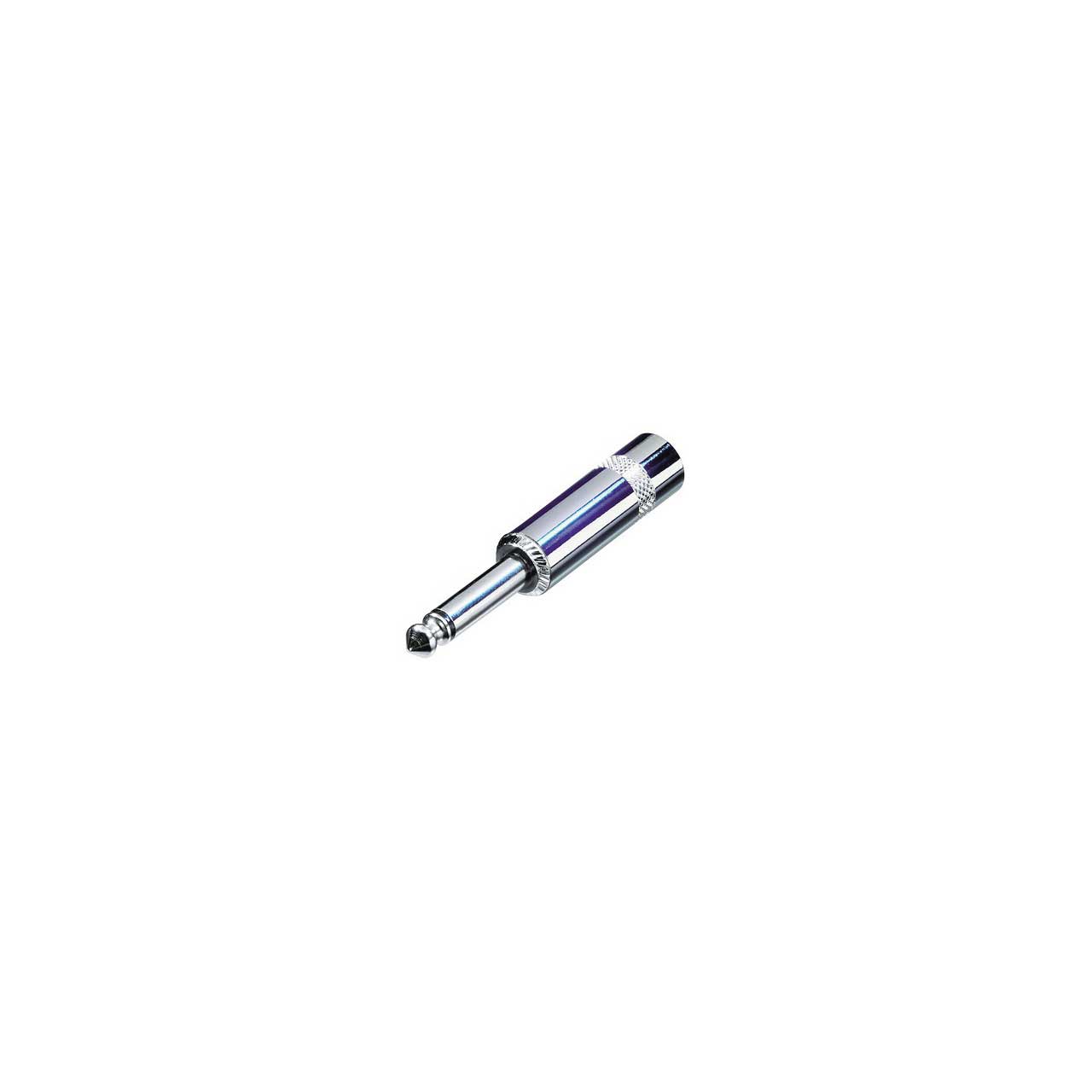

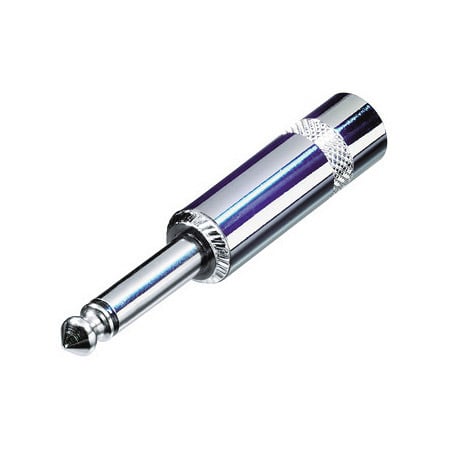

The Rean NYS224L is a Jumbo 1/4 Inch 2-Pole Plug with a long turned brass handle, no rivet and a large cable outlet of 8 mm.

  • Specifications:

    • Product
    • Connector Type: Plug
    • Gender: male

      Electrical
    • Contact resistance: < 10 m Ohm
    • Dielectric strength: 0,5 kVdc
    • Rated current per contact: depends on mated connector A

      Mechanical
    • Cable O.D.: < 8 mm
    • Lifetime: 1000 mating cycles
    • RW / Straight: no

      Material
    • Contact plating: 2 Ým Ni
    • Contacts: Brass (CuZn39Pb3)
    • Insert: Polyamide (PA 6.6 30 % GR)
    • Shell: Zinc diecast (ZnAl4Cu1), gal Ni plated
    • Strain relief: CRIMP type snce plated

      Environmental
    • Solderability Complies with IEC 68-2-20
    • Temperature range -20 ÝC to +70 ÝC
