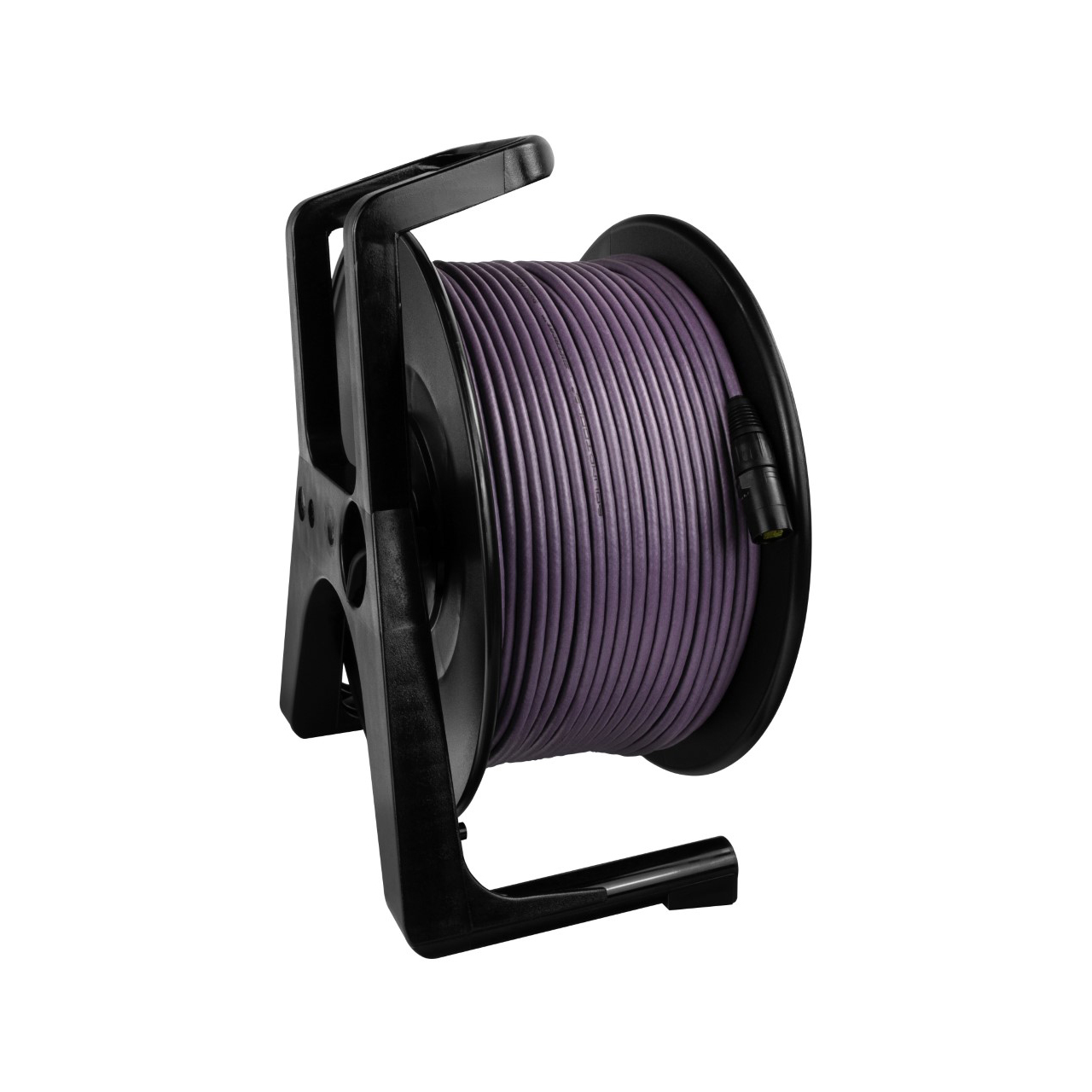

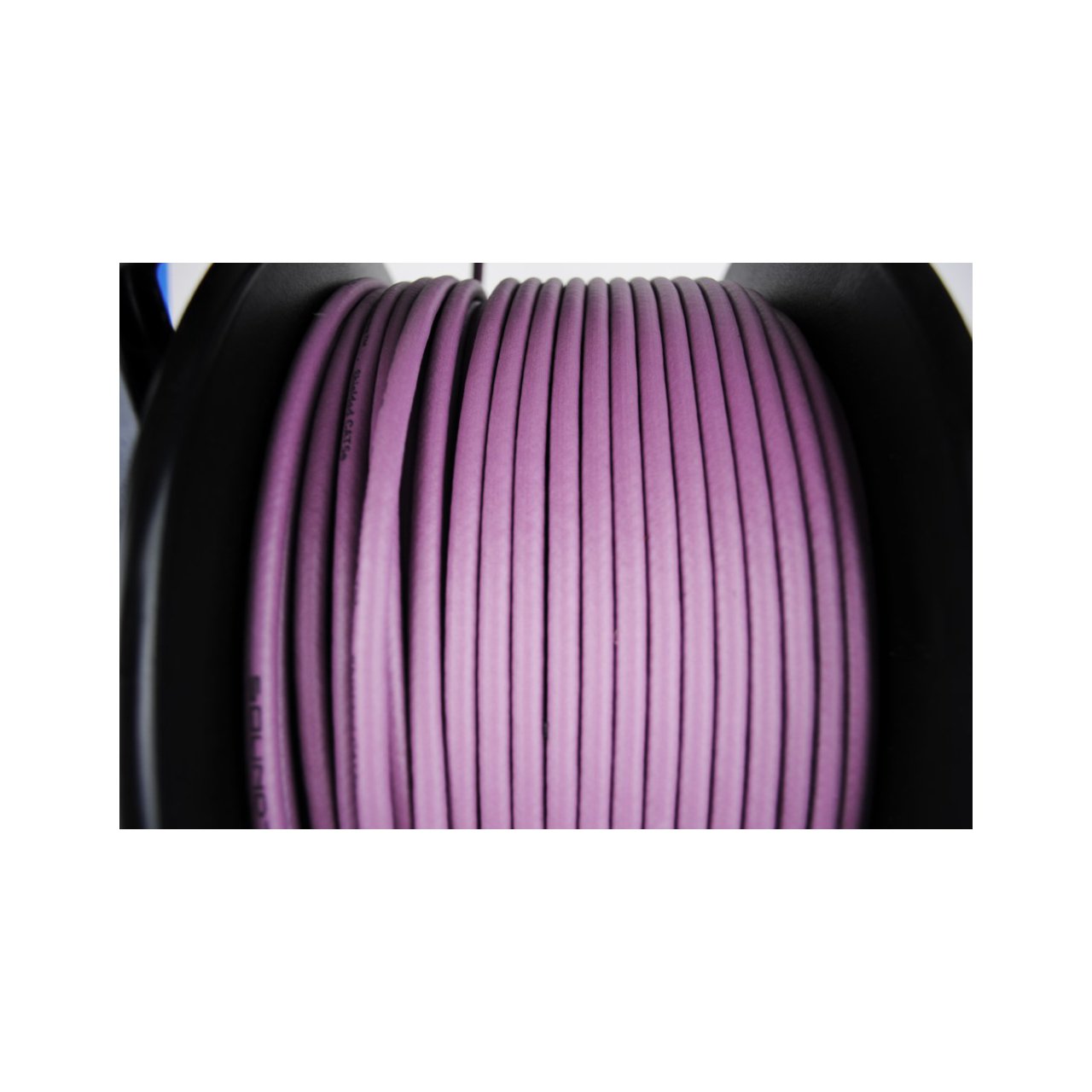

SoundTools SCS122-100 SuperCat EtherCON to EtherCON Cat5e Cable Drum - Purple - 100 Meter/330 Foot

ITEM #: RSS-SC122-100 MFG #: SC122-100

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$640.00

Our Price:

$614.40

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    SC122-100 - Overview

    Built to withstand the rigors of the touring world, SoundTools SuperCAT cables are designed for superior reliability, easy coiling, and superior signal transmission. SuperCAT cables are jacketed in rugged polyurethane that remains flexible and durable even in extreme temperatures, making this a solid choice for shielded Cat5e cable for audio pros and touring professionals.

    The Perfect Cable
    What's the number one thing you need to keep your next gig running smoothly? Most people won't think to say cables, but we at SoundTools know that well-functioning and reliable cables are one of the most important parts of a quality snake run, a great tour rig, or a well-working installation. We field-tested over 20 different brands and connections in order to build what we consider the perfect cable.

    Feels Like a Mic Cable

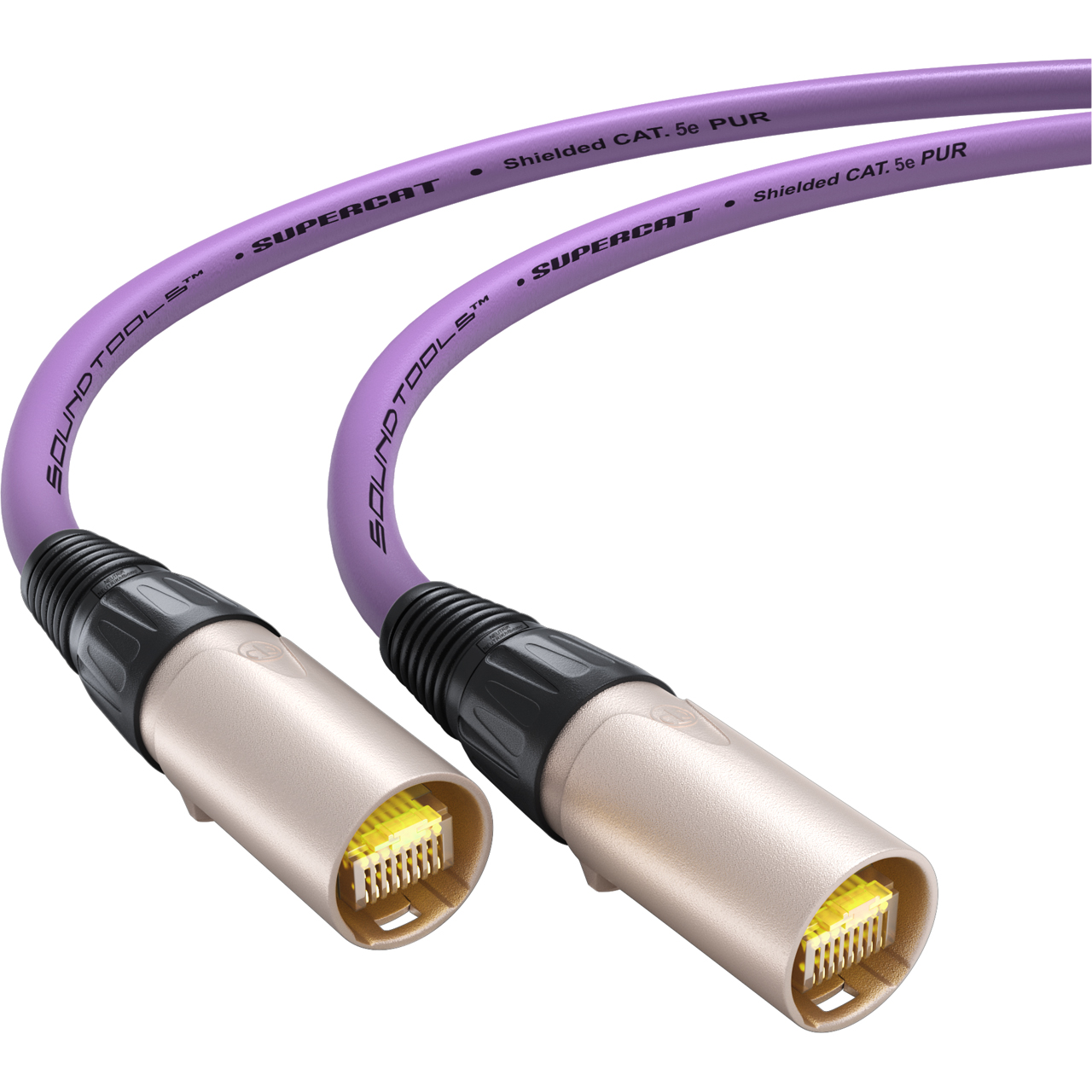

    SuperCAT cables embrace the tactile properties of a professional mic and audio cable, coil easily, lay flat and offer a high quality feel. We terminate our cables with genuine Neutrik etherCON connectors that are crimped to a braided grounding for superior durability on the road.

    Durable
    SuperCAT cables consist of four twisted pairs of 26 AWG wiring surrounded by a braided shield and flame-retardant polyurethane jacket. We chose the PUR jacket (made from the same material as skateboard wheels) for several great properties: it remains flexible even at extreme temperatures, lays flat, and coils easily. Our cables are covered by our Happy Human Warranty. If you need a replacement during your lifetime, give our team a shout.

    Works with All SoundTools Audio Over CAT Products
    When combined with our other SoundTools products, such as the CAT Box or CAT Tails, our SuperCAT cable acts as a 4-in-1 line to carry up to 4 channels of clear audio and phantom power over long distances. Light, efficient, and cost-effective -- one SuperCAT cable can take the place of four other audio cables.

    • Features:

      • Certified for use with the SoundTools RATCAT family including CAT Tails, CAT Box and CAT Rack in addition to standard CAT5e applications.
      • Capable of carrying 48-volt phantom power, COM, and DMX.
      • Short twist pitch and high-quality insulation make for safe data transfer.
      • 12 wire cable consisting of: four foil-shielded twisted pairs, each with a dedicated ground drain wire

    • Specifications:

      • Conductor: 26/19
      • Jacket: Halogen free polyurethane
      • Capacitance: 50 pF/m
      • Impedance: 100Ω
      • Prop Velocity: 74%
      • Prop Delay: 5.2 ns/m
      • Delay Skew: 20 ns/100m
      • Operating Temperature: -40°C to +80°C
      • Max Pull: 130 N
      • Return Loss @ 100 MHz: 28dB/100m

    • Warranty:

      • One Year Warranty / Lifetime Exchange
