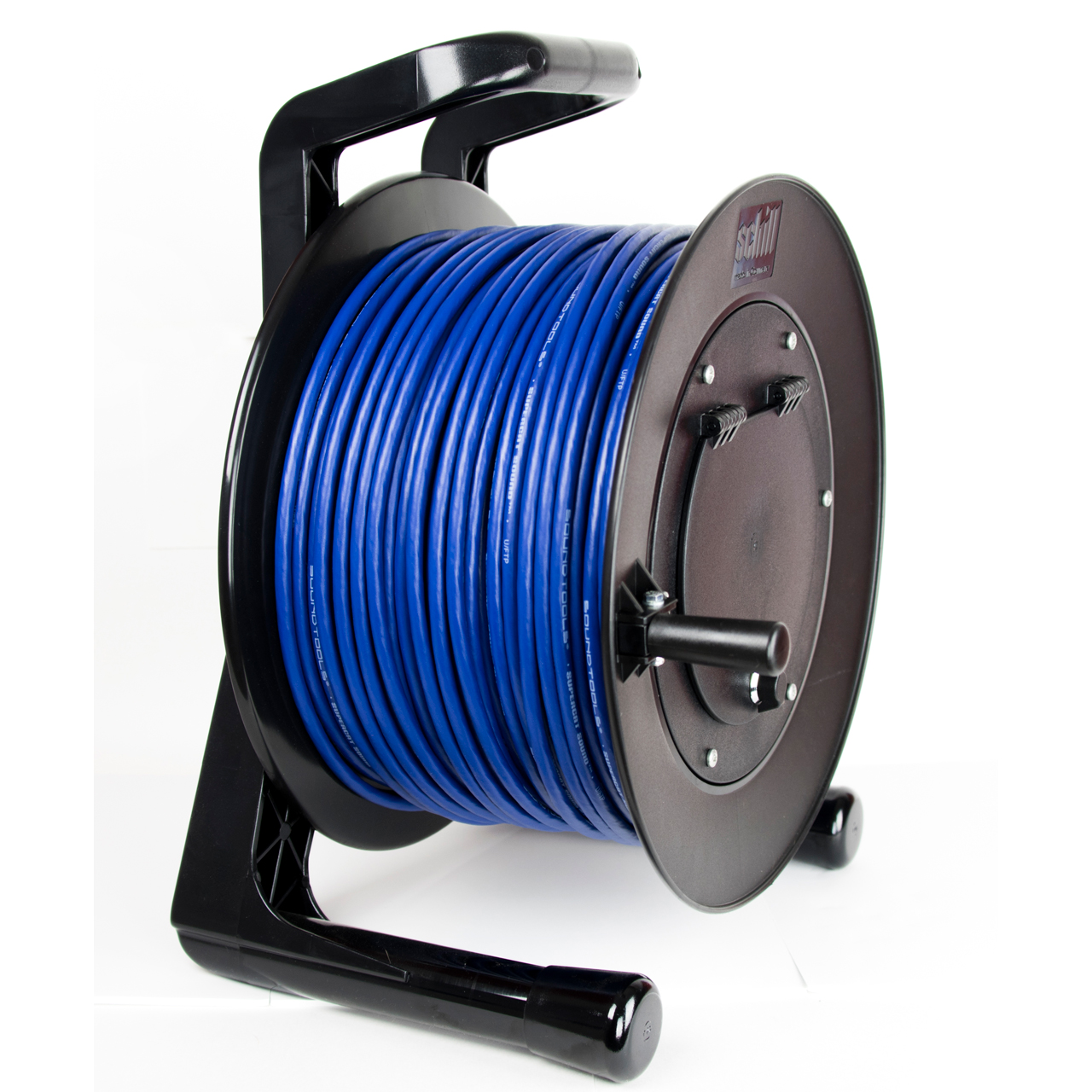

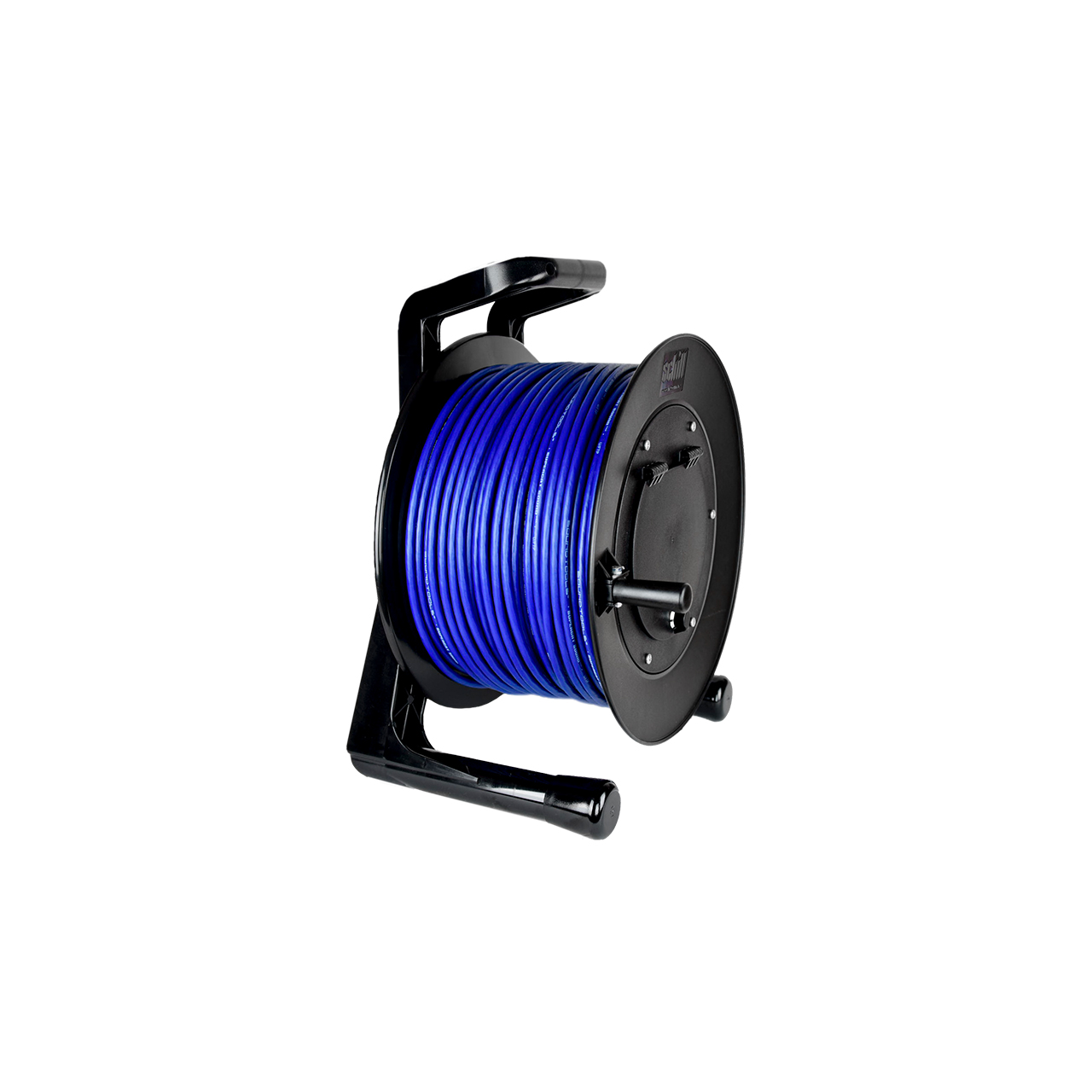

SoundTools SCS221-100 SuperCat EtherCON to EtherCON Cat5e Cable Drum - Blue - 100 Meter/330 Foot

ITEM #: RSS-SCS221-100 MFG #: SCS221-100

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$970.00

Our Price:

$931.20

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    SCS221-100 - Overview

    SoundTools SuperCAT Sound cable is the best of the best in Entertainment Grade CAT cable for live tours and festivals. Optimized for maximum durability and reliability on the road and in harsh environments.

    Made By Pros For Pros
    Designed by Dave Rat to be the most versatile and reliable CAT cable on the market, the SuperCAT Sound cable combines high performance data cable with the best in pro audio. We took 12 conductor cable, added a non-woven wrap for increased flexibility, and jacketed it all in extremely durable polyurethane. What you get is an easy-to-handle CAT cable that can withstand the rigors of pro audio use, night-after-night, no matter the environment.

    Unique Termination Options

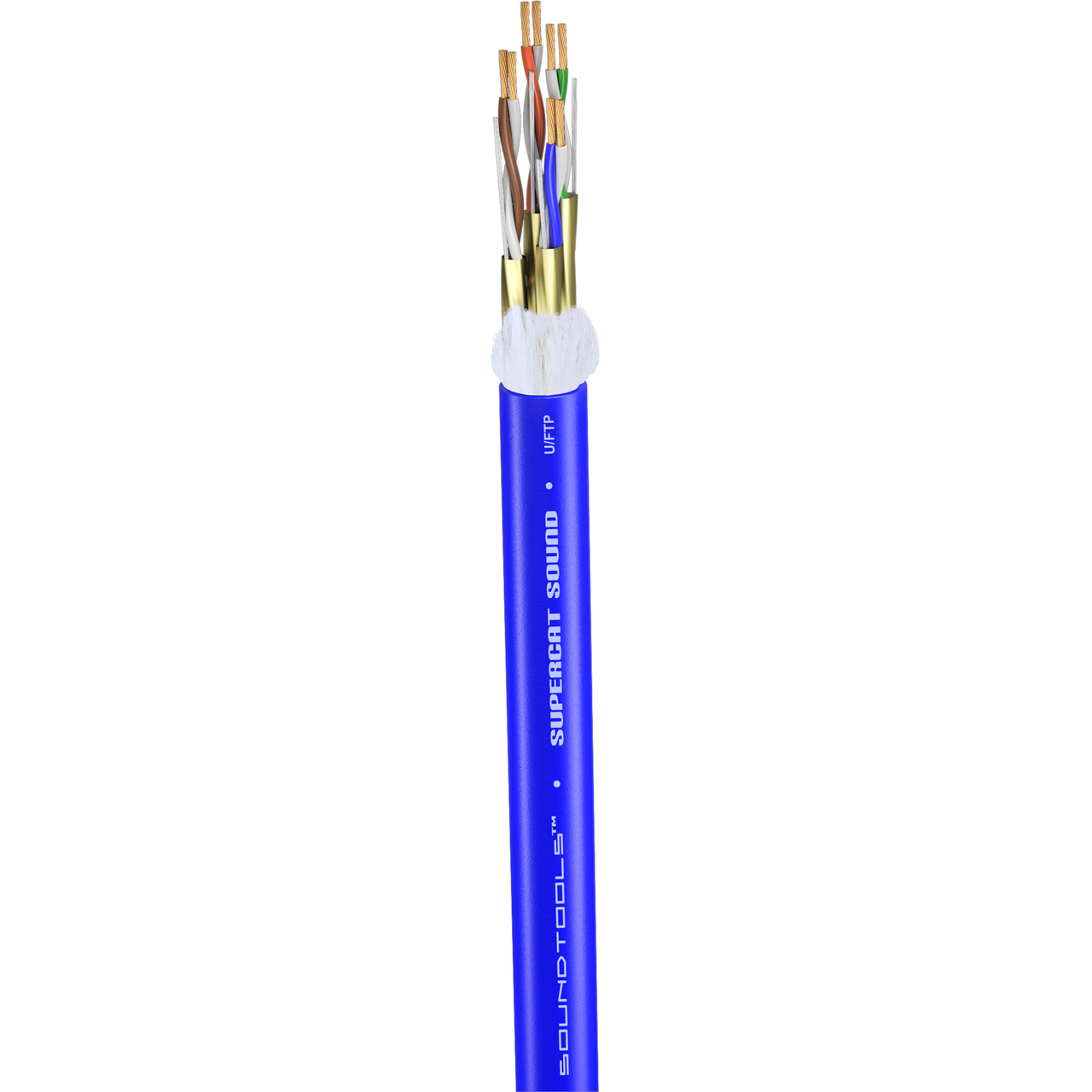

    One of the things that makes SuperCAT Sound so special is that each twisted pair has its own drain wire and shield, meaning that it can be terminated directly to tails (4 XLR, DMX, ¬" TRS, or mini plug connections) or with high-quality RJ45/etherCON connectors. Each pair is precisely twisted to eliminate crosstalk, reject outside noise, and allow for higher frequency response. These cables are built with touring in mind.

    • Features:

      • Exceeds standards for CAT5e
      • Precisely twisted, individually shielded pairs allow for both audio and data transmissions
      • Rugged polyurethane (PUR) jacket for maximum protection, flexibility, and pull strength
      • Can be terminated to tails, standard EtherCON ends, or RJ45

    • Specifications:

      • Conductor: 26/19
      • Jacket: Halogen free polyurethane
      • Capacitance: 48 pF/m
      • Impedance: 100Ω
      • Prop Velocity: 68%
      • Prop Delay: 4.85 ns/m
      • Delay Skew: 15 ns/100m
      • Operating Temperature: -40°C to +80°C
      • Max Pull: 300 N
      • Return Loss @ 100 MHz: 28dB/100m

    • Item Includes:

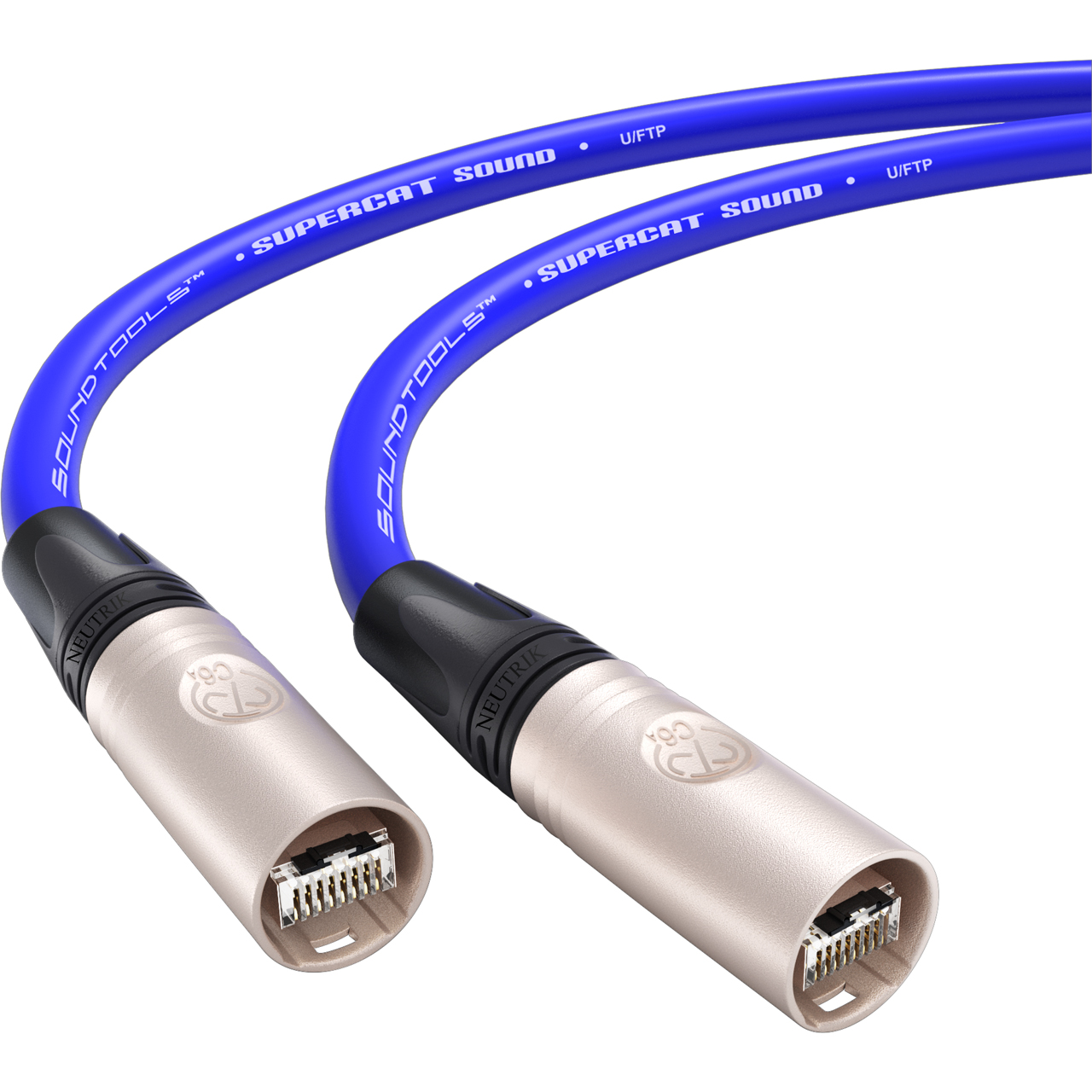

      • 1x CAT5e cable terminated with genuine Neutrik NE8MC-B-1 connectors

    • Warranty:

      • One Year Warranty / Lifetime Exchange
