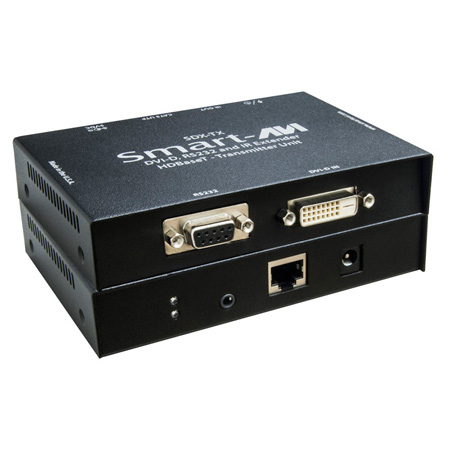

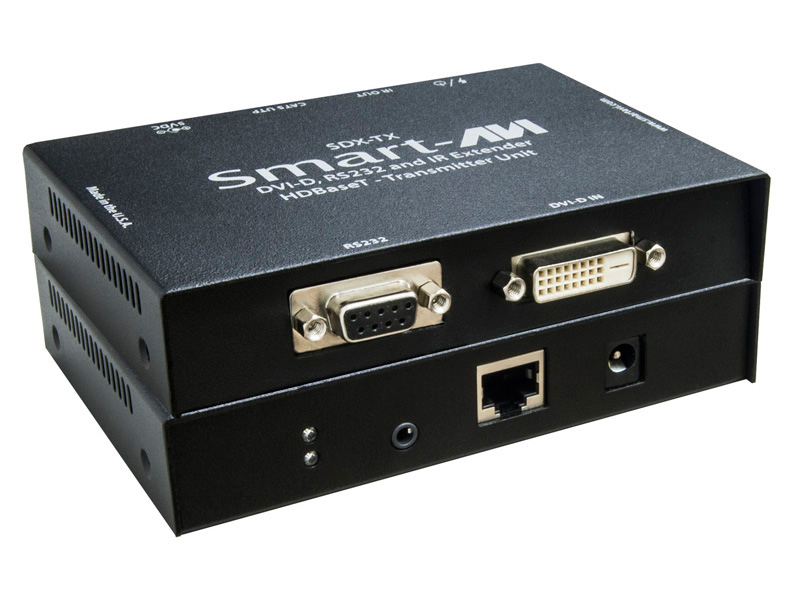

Smart-AVI SDX-S DVI-D / RS232 / IR Over a Single CAT5 Extender

SDX-S - Overview

• Features:

  • Extends DVI-D up to 330 feet (100m) from the source
  • Data recovery for digital video
  • Supports up to 1920x1200 digital video resolution
  • Automatic DDC Learning
  • Uncompressed Video HDBaseT
  • IR and RS232 extension allows for remote control of displays
  • External power adapter for transmitter and receiver unit
  • Plug and play


• Specifications:

  • VIDEO
  • Format DVI-D Single Line
  • Maximum Pixel Clock 165 MHz
  • Input Interface (TX) (1) DVI-D 29-pin female
  • Output Interface (RX) (1) DVI-D 29-pin female
  • Resolution Up to 1920 x 1200 @60Hz
  • DDC 5 volts p-p (TTL)
  • Input Equalization Automatic
  • Input Cable Length Up to 20 ft.
  • Output Cable Length Up to 20 ft.
  • RS232
  • Input Interface (TX) DB9 (Female)
  • Output Interface (RX) DB9 (Female)
  • Speed @ 115 Kbps
  • IR
  • Frequency Response 30KHz to 80KHz
  • Input Interface (TX) (1) 3.5 mm (Female)
  • Output Interface (RX) (1) 3.5 mm (Female)
  • OTHER
  • Power External 100-240 VAC/5VDC4A @20W
  • Dimensions 5.125 in W x 1 in H x 3.625 in D
  • Weight 0.5 lb
  • Operating Temp. 0-55 °C (32-131°F)
  • Storage Temp. -20-85 °C (-4-185 °F)
  • Humidity Up to 95%


• Item Includes:

  • [SDX-TX, SDX-RX, 2 X (PS5VDC4A)]


• GTIN:

  0813280019316
