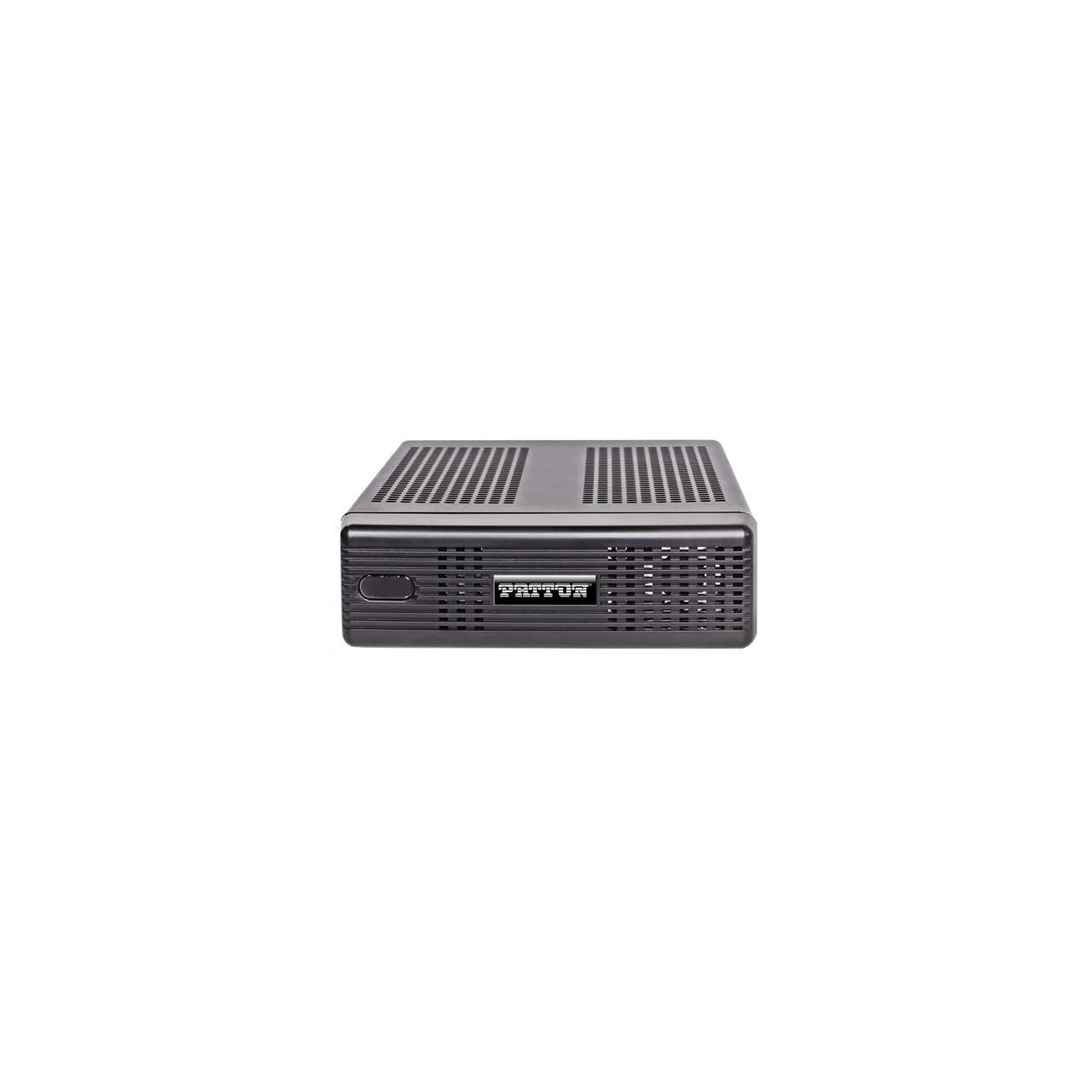

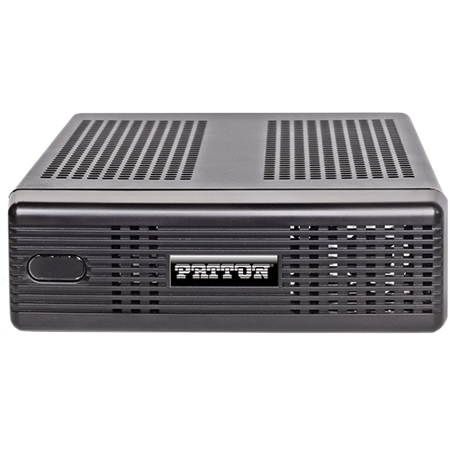

Patton SN5600/4B/EUI SmartNode SN5600 Session Border Controller - 2 Ethernet Ports for up to 1000 SIP to SIP Calls

SN5600/4B/EUI - Overview

• Features:

  • VoIP Security
  • Network separation with SIP back-to-back UA, intrusion protection, DoS prevention, trust peer, signaling encryption (SIP-TLS), Stateful Firewall

    Session Control
  • Dynamic SIP Session allocation for a high number of calls. SessionRouter allows flexible call routing and numbering plan adaptations, CLIP/CLIR, hold, transfer, and much more.

    SIP Normalization

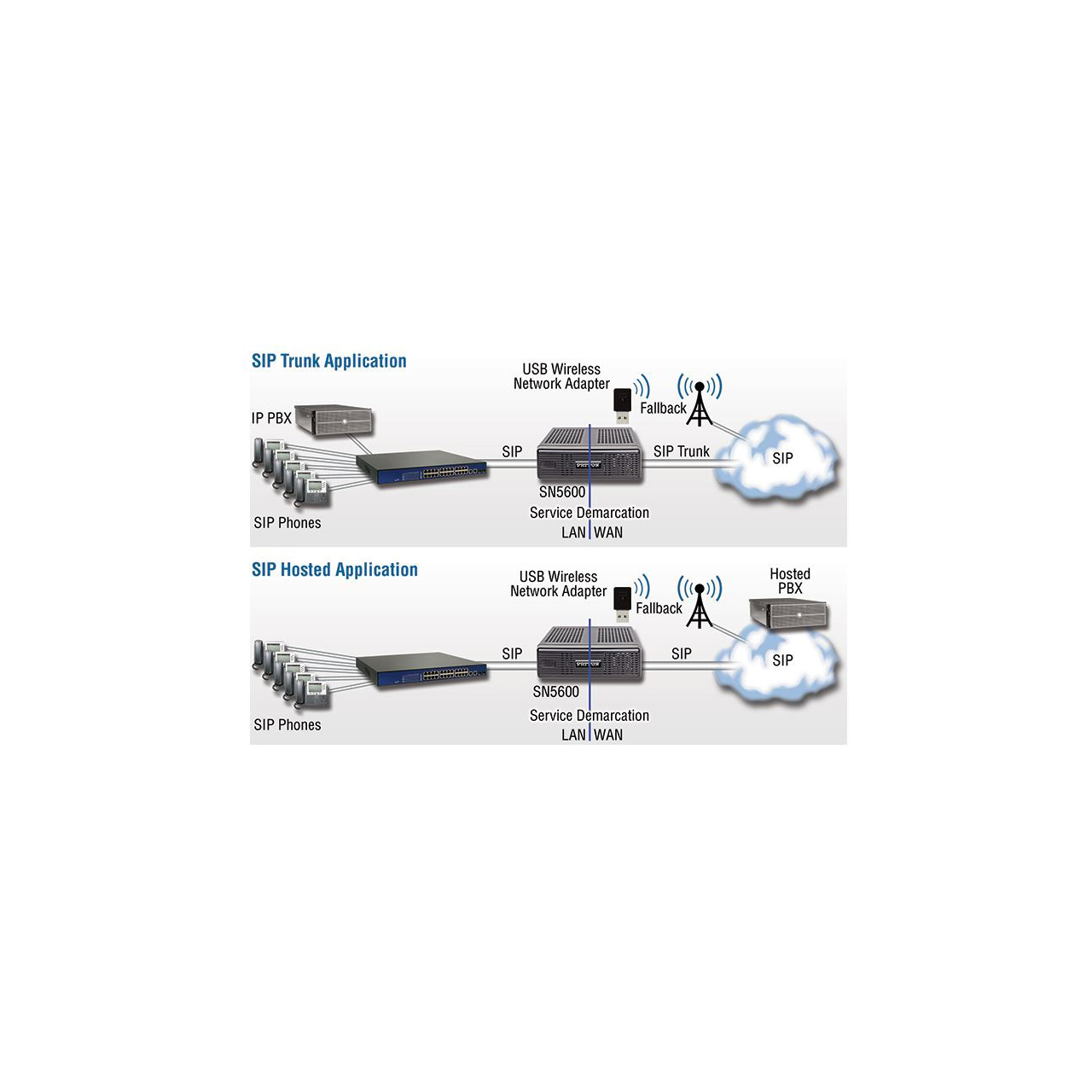

  • SIP-to-SIP Interworking - Normalizing different vendor-specific SIP implementations or "dialects". Demarcation point, separation between networks

    Network Monitoring & Assessment
  • Network monitoring probe for QoS measurements and proactive alerting to minimize problems. SLA assurance at demarcation point.

    Load Balancing
  • Call load distribution across multiple network links.

    IP Routing & Networking
  • IP Routing Protocol support; GRE, VRRP, RIP, L2TP, etc.

    High Availability
  • Stateful call failover incl. proactive dead call detection. SBC redundancy and failover to secondary, virtual instances.

    Easy Management & Provisioning
  • Patton Cloud Orchestrated, HTTPS zero-touch provisioning, TR-069, WebWizard, SNMP, command line interface. Automated mass provisioning with dual software image for efficient large-scale deployments.

    Survivability
  • Access Link Redundancy through USB port, using 3G/4G Cellular Modem module (coming soon)

    Proprietary Software
  • Utilizes proprietary Trinity™ Software for added security.


• Specifications:

  • Voice Signaling:
  • Call Capacity: Up to 1000 SIP to SIP Calls
  • SIPv2 & SIPv2 over TLS
  • SIP over IPv4 & IPv6
  • SIP call transfer, redirect
  • SIP overlap dialing
  • DTMF in-band, out-of-band
  • G.722
  • G.711m/A-law
  • G.723.1 (6.4 kbps)
  • G.729, 729a, 729ab (8 kbps)
  • G.726 (16 ,24, 32, 40 Kbps)
  • Transparent Clearchannel (RFC 4040)
  • iLBC 13.33k
  • AMR-NB (4.75, 5.15, 5.9, 6.7, 7.4, 7.95, 10.2, 12.2 kbps)

    VoIP Security:
  • Network separation
  • SIP back-to-back UA
  • SIP TLS & SIP message flood prevention
  • Open VPN/IPsec/L2TP
  • DoS detection & prevention
  • Intelligent ACL
  • Trusted peer

    Quality of Service:
  • Patton Cloud network monitoring
  • Voice priority, DownStreamQoS™
  • Traffic Management, shaping policing
  • IEEE 802.1p, IEEE 802.1Q, 4096 VLANs (Tag insertion/deletion), TOS, DiffServ Labeling

    Connectivity
  • 2 10/100/1000Base-T Ethernet ports
  • 1 HDMI port
  • 1 VGA port
  • 3 USB ports (2 USB 2.0, 1 USB 3.0)

    IP Networking
  • Routing Protocol support GRE, VRRP, BGP, RIPv1&v2
  • Policy, Packet and packet length Based Routing
  • IP Multi-Netting, VLAN, Secondary IP
  • Network Address and Port translation (NAT/NAPT)
  • IPv4 & IPv6 DHCP Client & Server
  • Auto-MDIX
  • PPPoE Client (multi-session)
  • IPv4, IPv6 Dual Stack
  • ICMP
  • Intelligent ACL, Stateful Firewall
  • DNS, DynDNS
  • SNTP Client

    Management
  • Patton Cloud Orchestrated with dynamic resource licensing model (leased/floated)
  • Web/HTTPs, CLI with Telnet and SSH access
  • WebWizard
  • Fully Documented CLI
  • Telnet and HTTPs access
  • TR-069, TFTP, HTTP, HTTPS configuration up- and download TR-069, TFTP, HTTP, HTTPS firmware
    upgrade
  • SNMPv1-3 agent
  • RADIUS, TACACS+
  • Separate config domain (LAN side config and WAN side config)
  • MIB II and private MIB
  • Built-in diagnostic tools
  • Secure auto-provisioning with built-in root CA

    Packaging
  • Metal Chassis
  • Desktop or wall mountable
  • Rackmount option: Roadmap

    Safety and Compliance
  • EMC compliance: EN55022 and EN55024
  • Safety compliance: EN 60950
  • CE compliance
  • FCC Part 15 Class A
  • RoHS
