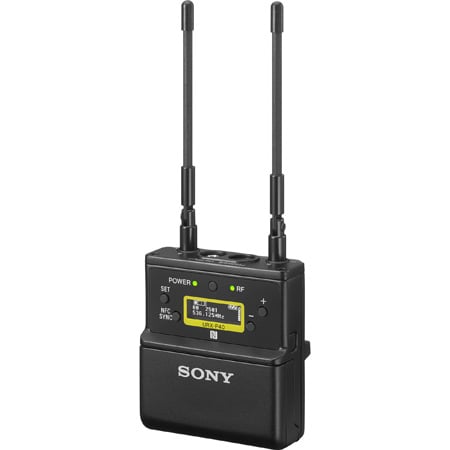

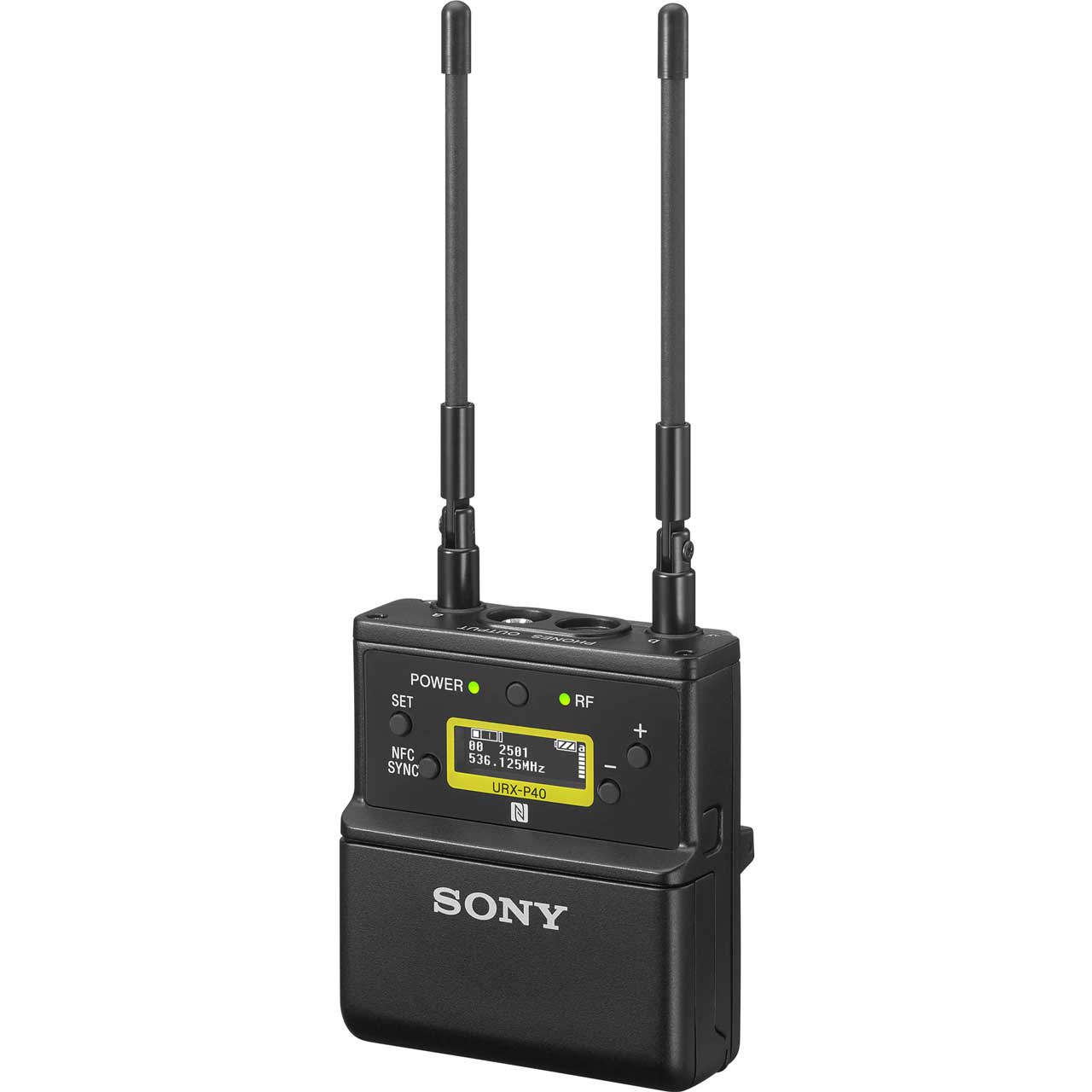

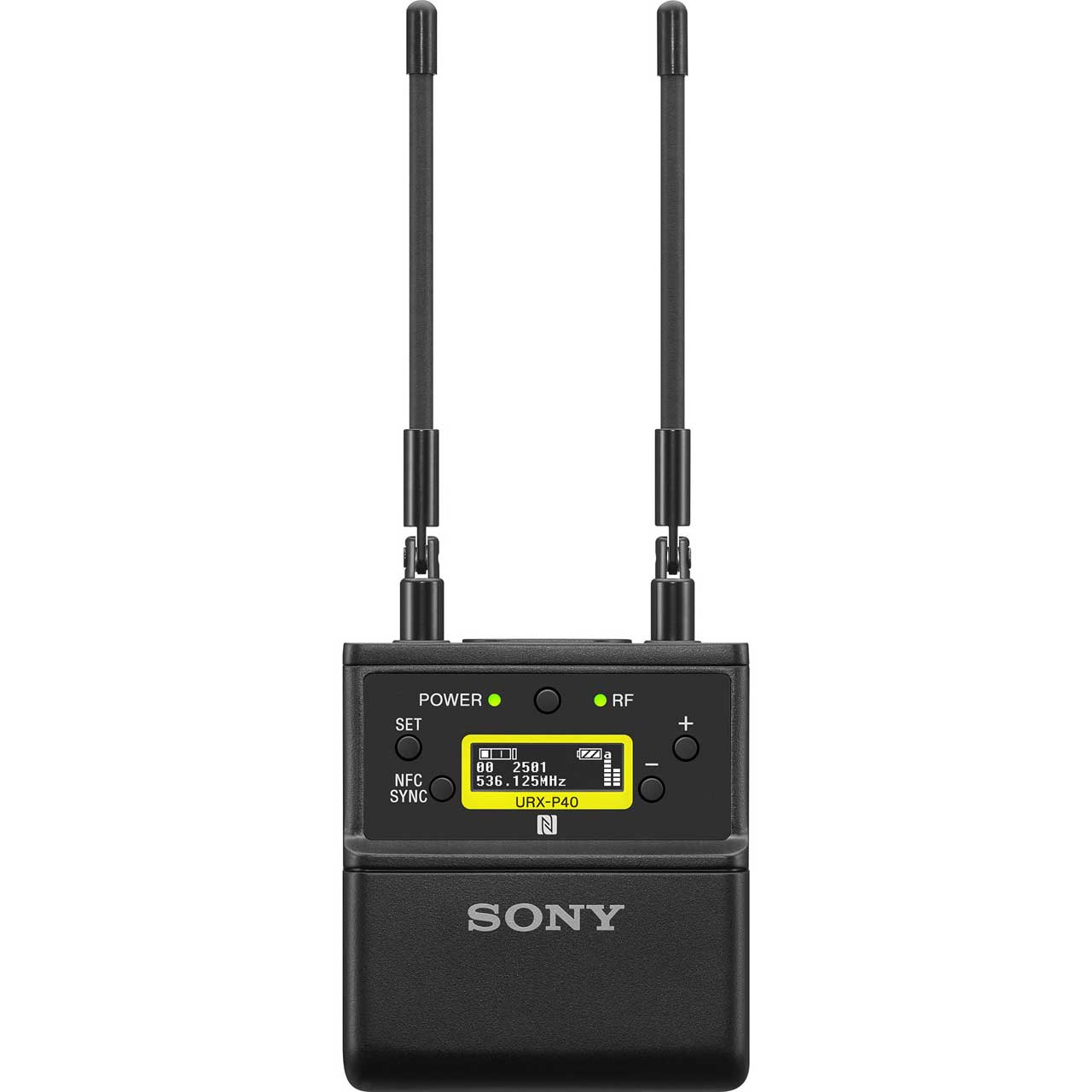

Sony URXP40/14 UWP-D WLS Portable Receiver - 470.125 MHz to 541.875 MHz

URXP40/14 - Overview

• Features:

  • High quality sound with Sony digital audio processing
  • NFC SYNC function for quick and easy secure channel setting
  • True double tuner diversity for stable signal reception
  • Channel memory for fast switching between two receiver frequencies
  • Headphone output for monitoring
  • Monitor mode for using a receiver as an ear monitor
  • Compatibility with Sony WL-800/UWP series
  • Output level control for receiver
  • High visibility OLED display, ideal for indoor/outdoor use
  • USB connector for power supply
  • Digital audio interface support with SMAD-P5 Multi Interface (MI) Shoe Adapter (option)*
  • Note: *For details on cameras that support this function, visit the Sony website.


• Specifications:

  • Oscillator Type: Crystal-controlled PLL synthesizer
  • Reception Type:True diversity method
  • Antenna Type: 1/4 λ wavelength wire antenna (angle-adjustable)
  • Carrier Frequencies: 25UC: 536.125 MHz to 607.875 MHz (UHF-TV Ch 25 to 36)
  • Frequency Response:
    23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
    40 Hz to 15 kHz (Typical) (J model)
  • Signal-to-Noise Ratio: 60dB (1kHz sine wave, 5kHz modulation)
  • Distortion (T.H.D): 0.9% or less (1kHz sine wave, 5kHz modulation)
  • Audio Delay: Approx. 0.35 ms (analog output) Approx. 0.24 ms (digital output)
  • Audio Output Connector: 3.5mm diameter 3-pole locking mini jack, external connection
  • Audio Output Level:
    -60 dBV (3.5mm diameter 3-pole locking mini jack, analog output, 0dB audio output level)
    -20 dBFS (external connection, digital output, 0dB audio output level)
    -50 dBFS (external connection, analog output, 0dB audio output level)
  • Analog Audio Output Adjustment Range: -12dB - +12dB (3dB step)
  • Headphone Output Connector: 3.5mm diameter mini jack
  • Headphone Output Level: Max. 10mW (16-ohm)
  • Tone Signal Frequency:
    In UWP-D compander mode: 32.382 kHz
    In UWP Compander Mode: 32 kHz
    In WL800 Compander Mode: 32.768 kHz
  • Display: OLED
  • Power Requirements:
    DC 3.0 V (two LR6/AA size alkaline batteries)
    DC 5.0 V (supplied from USB Type-C connector)
  • Battery Life:
    *Approx. six hours
    *Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25°C (77°F) DISPLAY MODE set to AUTO OFF.
  • Operating Temp: 0° to 50°C (32° to 122°F)
  • Storage/Transport Temp: -20° to 55°C (-4°F to 131°F)
  • Dimensions (WxHxD): 2.48 x 2.75 x 1.22" (63 × 70 × 31mm) (excluding antenna)
  • Mass: Approx. 0.29Lbs (131g) (excluding batteries)


• GTIN:

  0027242918702
