AVN-AI16 - Overview

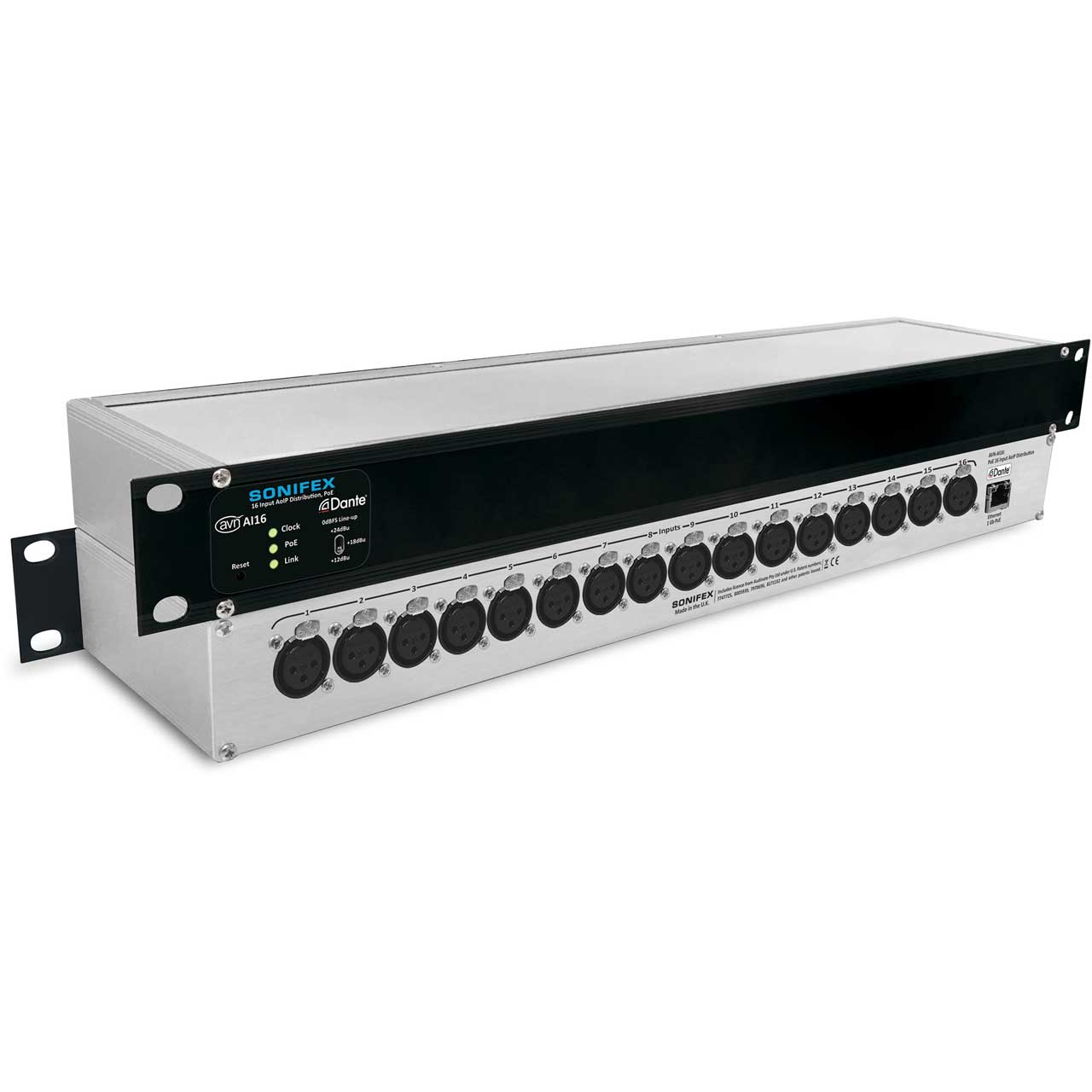

The AVN-AI16 audio converter and interface converts up to sixteen analogue inputs to the Dante Audio-over-IP networking standard. This cost effective 1U rack-mount unit offers an easy solution for AV professionals and system integrator. It is simple to configure and operate, with all set-up, except line-up levels, done via the standard Dante Controller software and power via PoE (Power Over Ethernet).

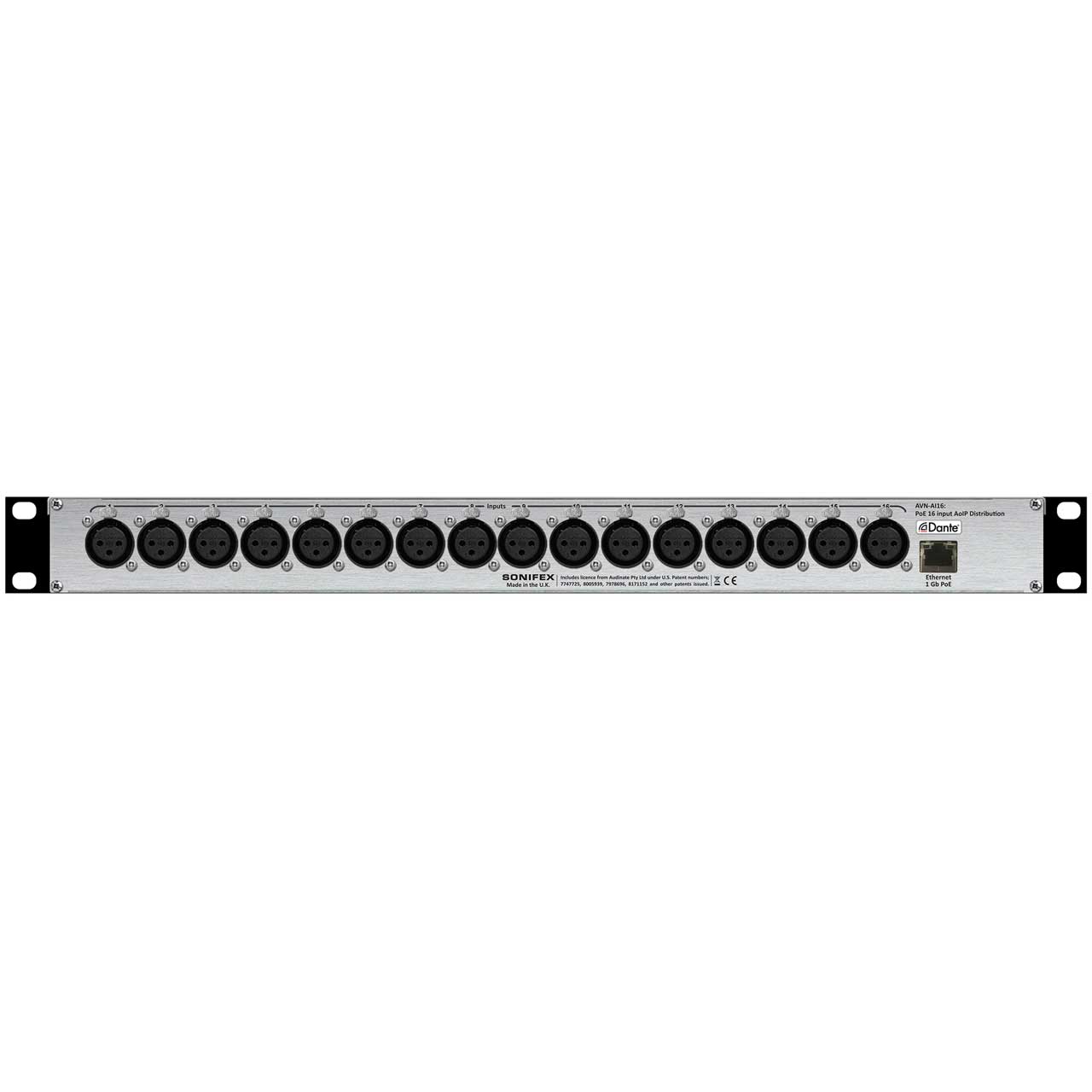

All analogue inputs are on high-quality Neutrik XLR connectors and there are front panel status/confidence LEDs for PoE, Link, and Clock. Global 0dBFS line-up can be set to +12dBu, +18dBu or +24dBu to meet your specific requirement via the front panel recessed toggle switch.

  • Features:

    • 16 x balanced analogue inputs on XLR
    • Adjustable global 0dBFS line up selection (+12dBu/+18dBu/+24dBu)
    • 1 x RJ45 Dante connector (1 Gb/s Ethernet Port)
    • PoE, Link, and Clock LED status indicators
    • Configuration using Dante Controller
    • AES67 operation & Dante Domain Manager compliant
    • Powered by PoE
    • 1U 19" rack-mount form factor
    • (The AVN-AI16R is available with dual redundant Ethernet ports)


  • Specifications:

    • Network and AoIP
    • AoIP Standard: Dante
    • Number of Channels: 16 transmit
    • Number of Streams: 16 transmit
    • Sample Rate: 44.1kHz, 48 kHz, 88.2kHz, 96kHz, 176.4kHz or 192kHz
    • Format: Linear PCM, 16, 24 or 32 bit
    • AES67 Support: Yes
    • Connectivity: 1 x RJ45
    • Speed: 1Gbps or 100Mbps
    • Dante Domain Manager Ready: Yes

      Audio Input Performance
    • Input Impedance: >20kΩ balanced
    • 0dBFS line-up: User Selectable +12dBu/+18dBu/+24dBu balanced
    • Frequency Response: 20Hz to 20kHz, ±0.2dB
    • THD+N: <-110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
    • Noise: -110dBFS, 20kHz BW, Rs=200Ω
    • Crosstalk: <-100 dB
    • Common Mode Rejection: >60dB @ 1kHz

      Balanced Line Input XLR Pinout
    • Pin 1: Chassis Ground/Screen
    • Pin 2: Input Phase/Positive
    • Pin 3: Input Non-Phase/Negative

      PoE Power
    • Standard: 802.3at Type 1
    • Class: 0
    • PD Power Range: 0.44 W to 12.94W
    • Typical PSE Power Usage: 6W
    • Max PSE Power Usage: 15.4W

      Physical Specification
    • Dimensions (WxDxH): 19 x 4.3 x 1.7" (48 x 11 x 4.3cm (1U))
    • Weight: 3.5Lbs (1.6kg)
