Sonifex AVN-AIO4 1RU Dante to 4 Mono Channel Analog Input & Output Interface

ITEM #: SON-AVNAIO4DANTE MFG #: AVN-AI04

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Sonifex Ltd.
Free Shipping with $49 Minimum Order

Our Price:

$1,267.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

AVN-AI04 - Overview

The Sonifex AVN-AIO4 audio converter and interface converts up to four analogue inputs and four analogue outputs to and from the Dante Audio-over-IP networking standard. This cost effective 1U rack-mount unit offers an easy solution for AV professionals and system integrators. It is simple to configure and operate, with all set-up done via the standard Dante Controller software and power via POE (Power Over Ethernet).

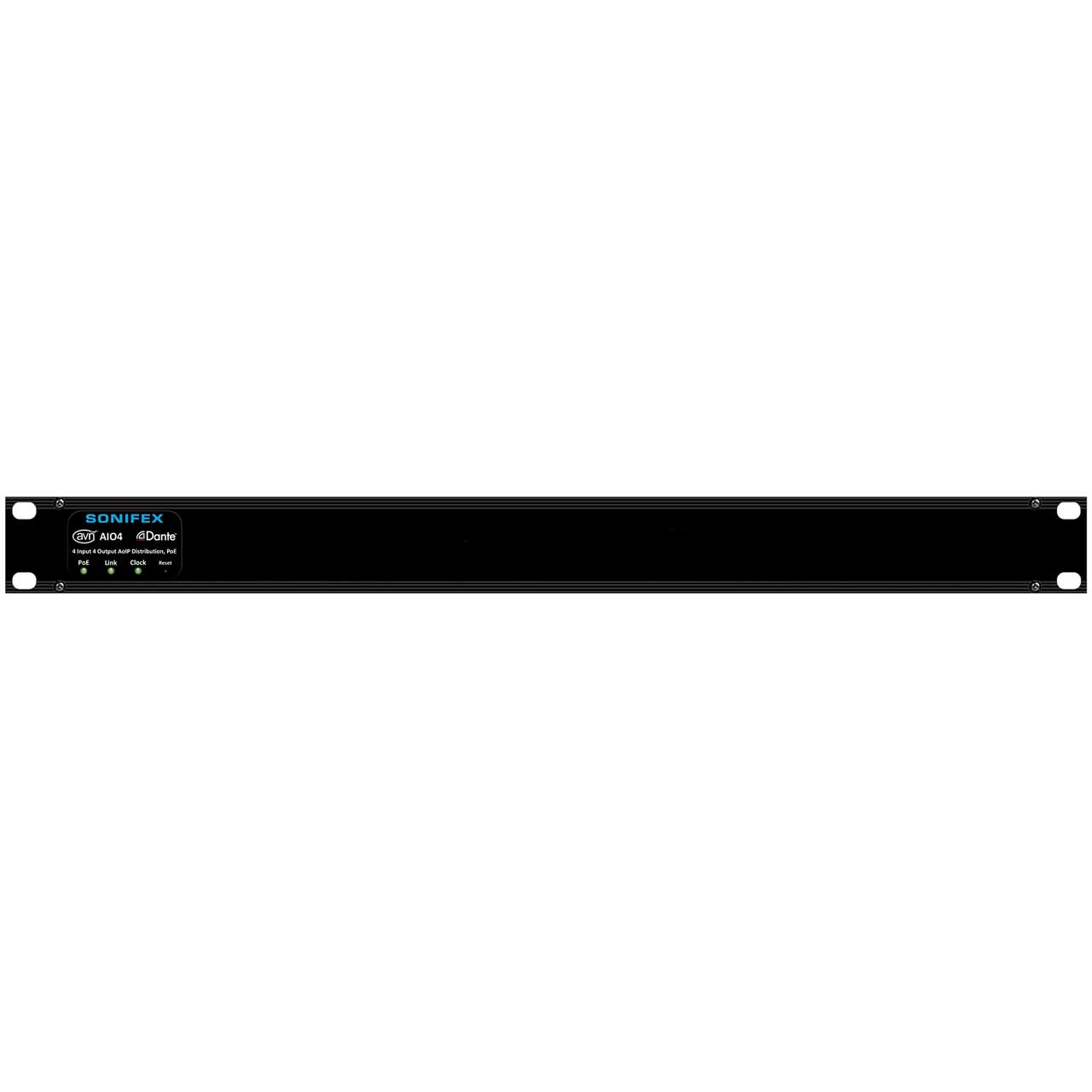

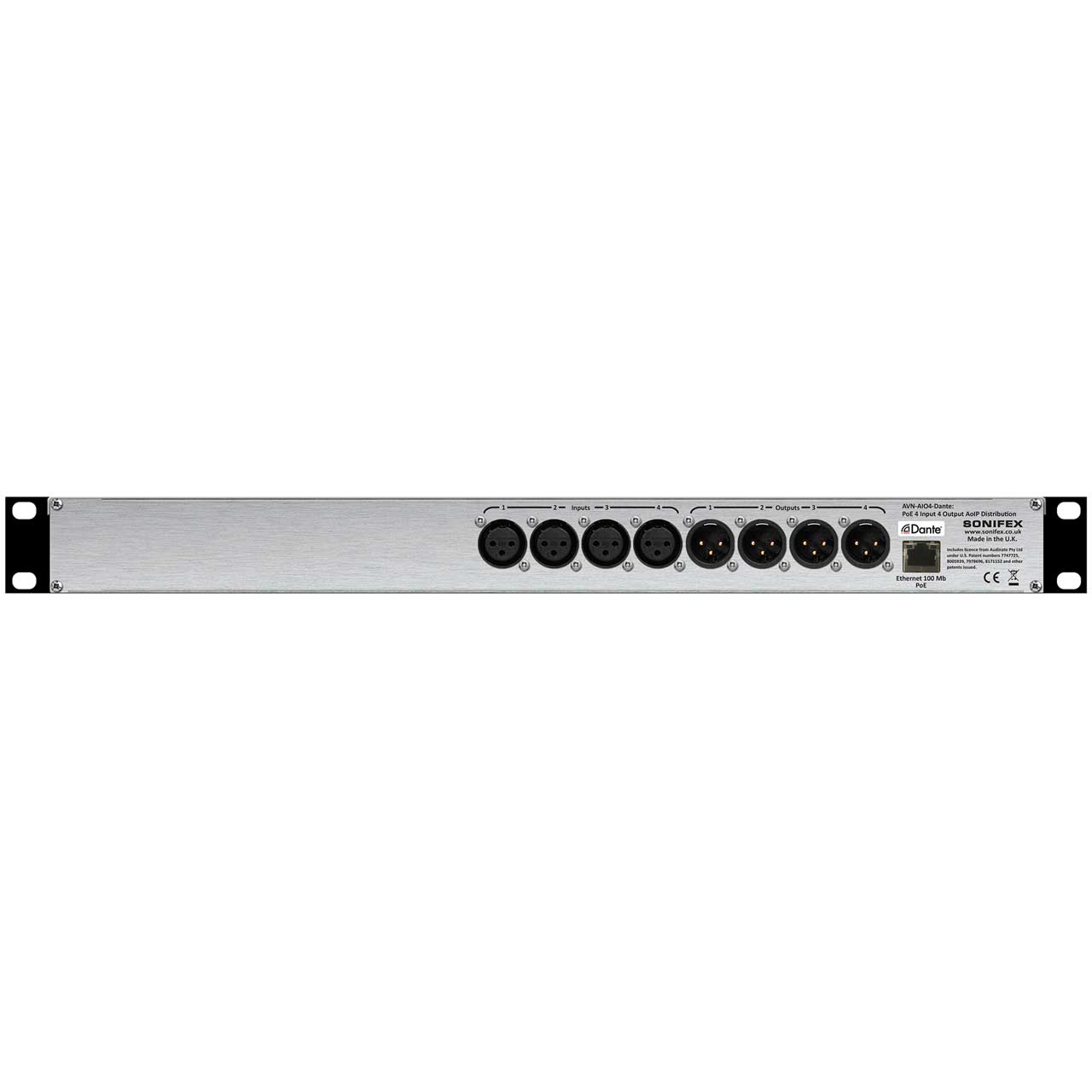

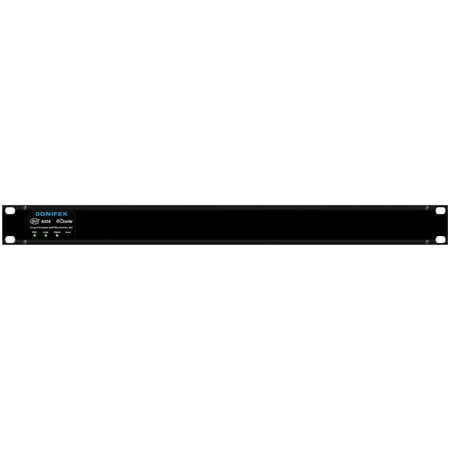

All analogue inputs and outputs are on high-quality Neutrik XLR connectors and there are front panel status/confidence LEDs for PoE, Link, and Clock.

  • Features:

    • 4 x balanced analogue inputs on XLR.
    • 4 x balanced analogue outputs on XLR.
    • 1 x RJ45 Dante connector (100Mb/s Ethernet Port).
    • POE, Link, and Clock LED status indicators.
    • Configuration using Dante Controller.
    • AES67 operation & Dante Domain Manager compliant.
    • Powered by PoE.
    • 1U 19 Inch 1/2 rack-mount form factor.


  • Specifications:

    • Audio Input Performance Specifications
    • Parameter: Line Input
    • Input Impedance: >20kΩ balanced
    • 0dBFS line-up: +18dBu balanced
    • Frequency Response: 20Hz to 20kHz, +0/-0.2dB (600Ω load, ref 1kHz)
    • THD+N: <-110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
    • Noise: -110dBFS, 20kHz BW, Rs=200Ω
    • Crosstalk: <-100 dB
    • Common Mode Rejection: >60dB @ 1kHz

      Audio Output Performance Specifications
    • Parameter: Line Output
    • Output Impedance: <50Ω balanced
    • 0dBFS line-up: +18dBu balanced
    • Frequency Response: 20Hz to 20kHz, +0/-0.5dB (600Ω load, ref 1kHz)
    • THD+N: <-110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
    • Noise (Mic=EIN): -100dBFS, 20kHz BW
    • Crosstalk: <100dB

      Balanced Line Input XLR Pinout
    • 1: Chassis Ground
    • 2: Input Positive
    • 3: Input Negative

      Balanced Line Output XLR Pinout
    • 1: Chassis Ground
    • 2: Output Positive
    • 3: Output Negative

      Dante
    • Parameter: Description
    • Sample Rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz
      (Note: 2 channels I/O only when >48kHz. Either 4 inputs or 4 outputs at 96kHz, can be configured on request with a separate firmware download).
    • Encoding: PCM 16, PCM 24, PCM 32

      PoE Power
    • Standard: 802.3at Type 1
    • Class: 0
    • PD Power Range: 0.44 W to 12.94 W
    • Typical PSE Power Usage: 4 W
    • Max PSE Power Usage: 15.4 W

      Equipment Type
    • AVN-AIO4: 4 Input, 4 Output Dante® Interface, PoE

      Physical Specification
    • Dimensions (Raw): 48cm (W) x 11cm (D) x 4.3cm (H)(1U) / 19" (W) x 4.3" (D) x 1.7" (H)
    • Weight: Nett: 0.9kg / Nett: 1.9lbs
