ST121UTPDVI - Overview

The StarTech ST121UTPDVI DVI Video Extender over Cat 5 UTP lets you extend a DVI Digital (DVI-D) video signal over Category 5 (or better) cable at distances of up to 150-feet (45-meters) from the video source to the intended display, without sacrificing video quality.

This cost-effective video extender is simple to use and offers a compact form factor, helping to save valuable work space.

With support for resolutions up to 1600x1200, this DVI extender can be easily integrated using existing Ethernet infrastructure wiring, and offers a completely hardware-based solution with no software or drivers required - perfect for any small scale point-to-point digital signage application that requires high quality DVI video.

Backed by a StarTech 2-year warranty and free lifetime technical support.

Applications
Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
Ideal for digital signage applications in financial, educational, business and retail/POS sectors

  • Features:

    • Consists of 1 local unit, and 1 remote unit for an all-in-one solution
    • Extends video signal over standard Category 5 UTP cable
    • Supports resolutions up to 1600x1200 @ 60Hz
    • Supports DVI-D interface


  • Specifications:

    • Connector(s)

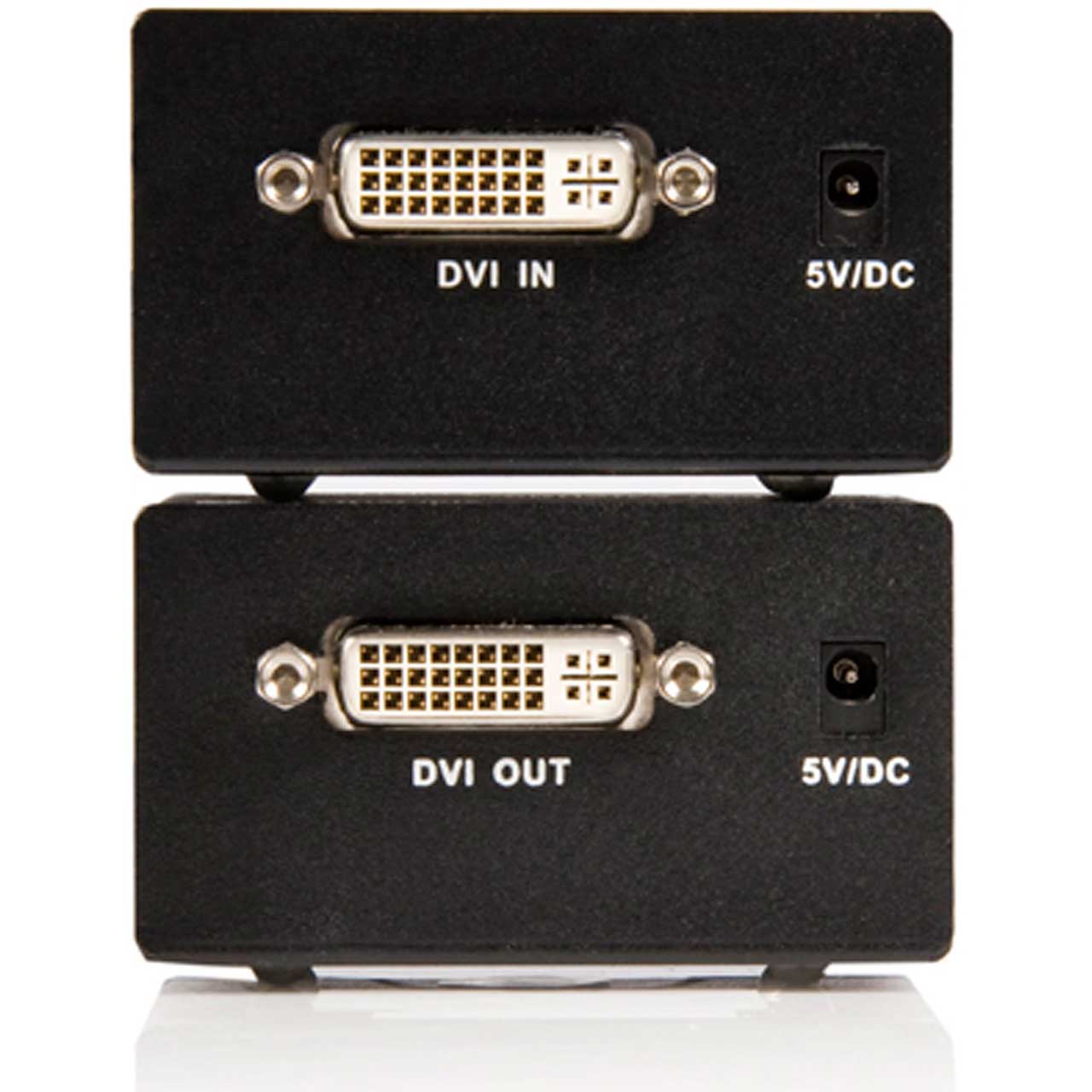

    • 1 - Local Unit Connectors: DVI-I (29 pin), RJ-45
    • 1 - Remote Unit Connectors: DVI-I (29 pin), RJ-45

      Environmental
    • Operating Temperature: 32° to 122° F (0° to 50° C)
    • Storage Temperature: -4° to 158° F (-20 to 70° C)
    • Humidity: 15 to 90% relative humidity, non-condensing

      Hardware
    • Ports: 1
    • Cabling: Cat 5 UTP or better
    • Audio: No
    • Daisy-Chain: No

      Packaging Information
    • Shipping (Package) Weight: 1.4 lb [0.6 kg]
    • Package Length: 9.6 in [24.4 cm]
    • Package Width: 2.6 in [6.7 cm]
    • Package Height: 6.1 in [15.5 cm]

      Performance
    • Max Distance: 45 m / 150 ft
    • Maximum Digital Resolutions: 1600x1200 @ 60Hz
    • MTBF: 180,102 hours

      Physical Characteristics
    • Weight of Product: 10.1 oz [285.5 g]
    • Color: Black
    • Material: Steel
    • Product Length: 2.6 in [6.7 cm]
    • Product Width: 2.0 in [5.2 cm]
    • Product Height: 1.5 in [3.8 cm]

      Power
    • Power Source: 2 AC Adapters Included
    • Input Voltage: 100 - 240 AC
    • Input Current: 0.2A
    • Output Voltage: 5 DC
    • Output Current: 1A
    • Center Tip Polarity: Positive
    • Plug Type: H
    • Power Consumption (In Watts): 5

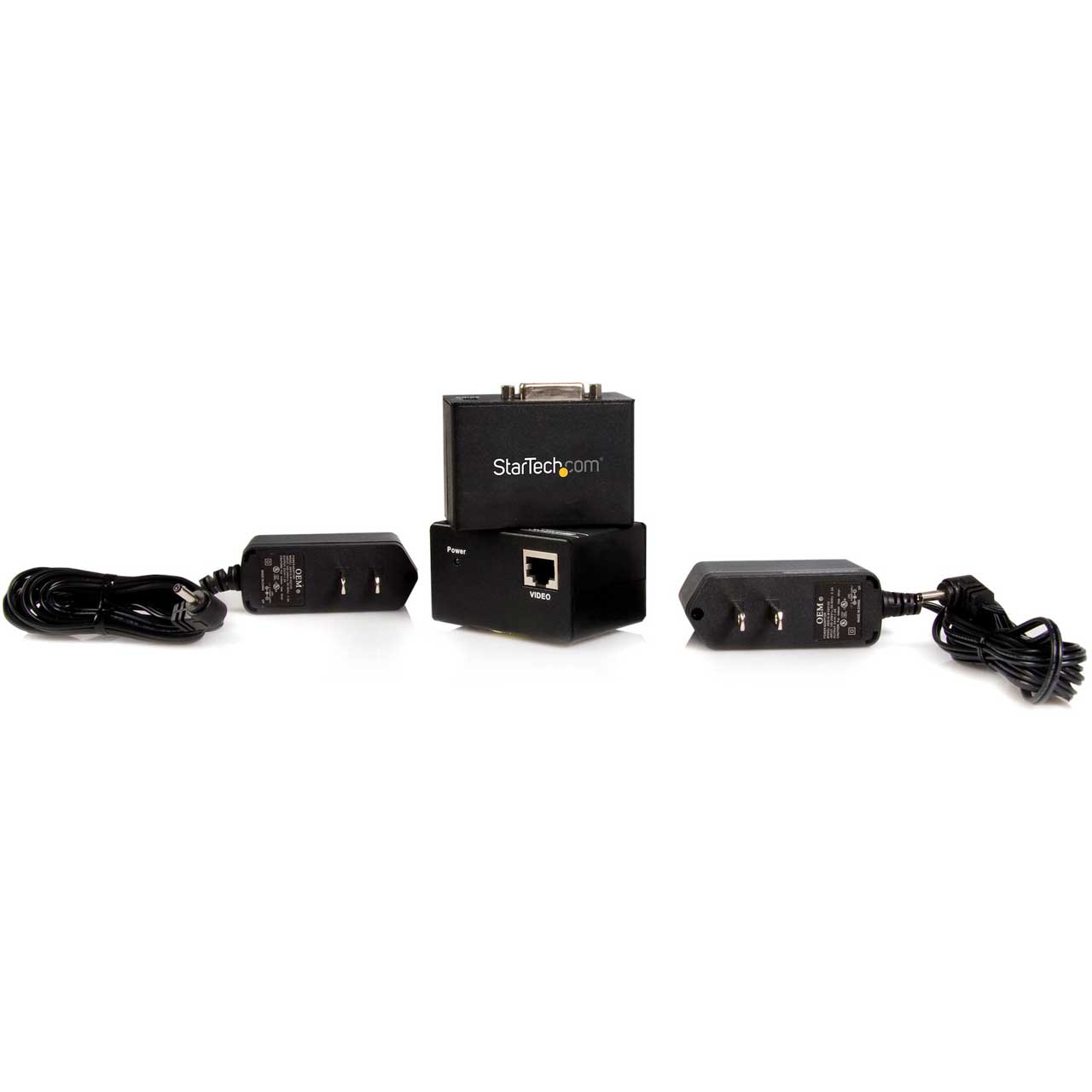

  • Item Includes:

    • 1x DVI Local Unit Extender
    • 1x DVI Remote Unit Extender
    • 1x Instruction Manual
    • 2x Power Adapters


  • GTIN:

    0065030819848
