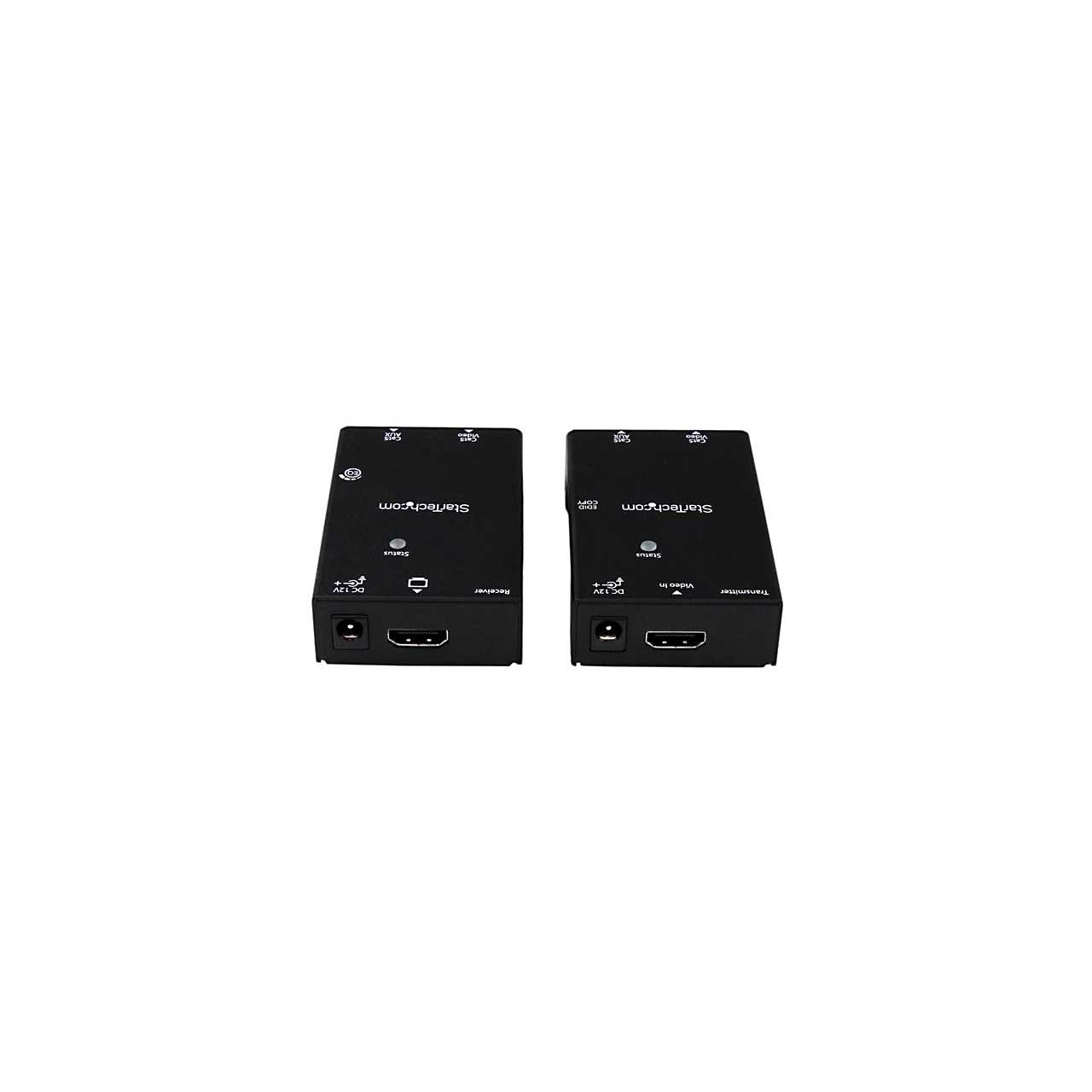

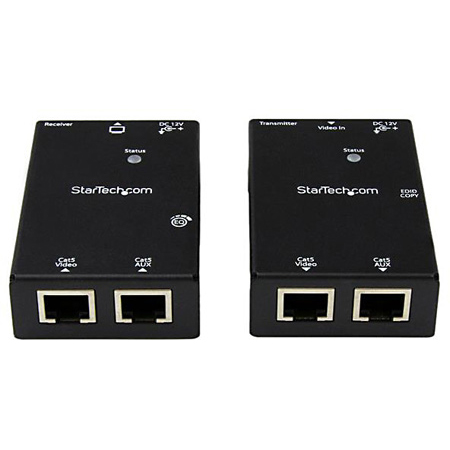

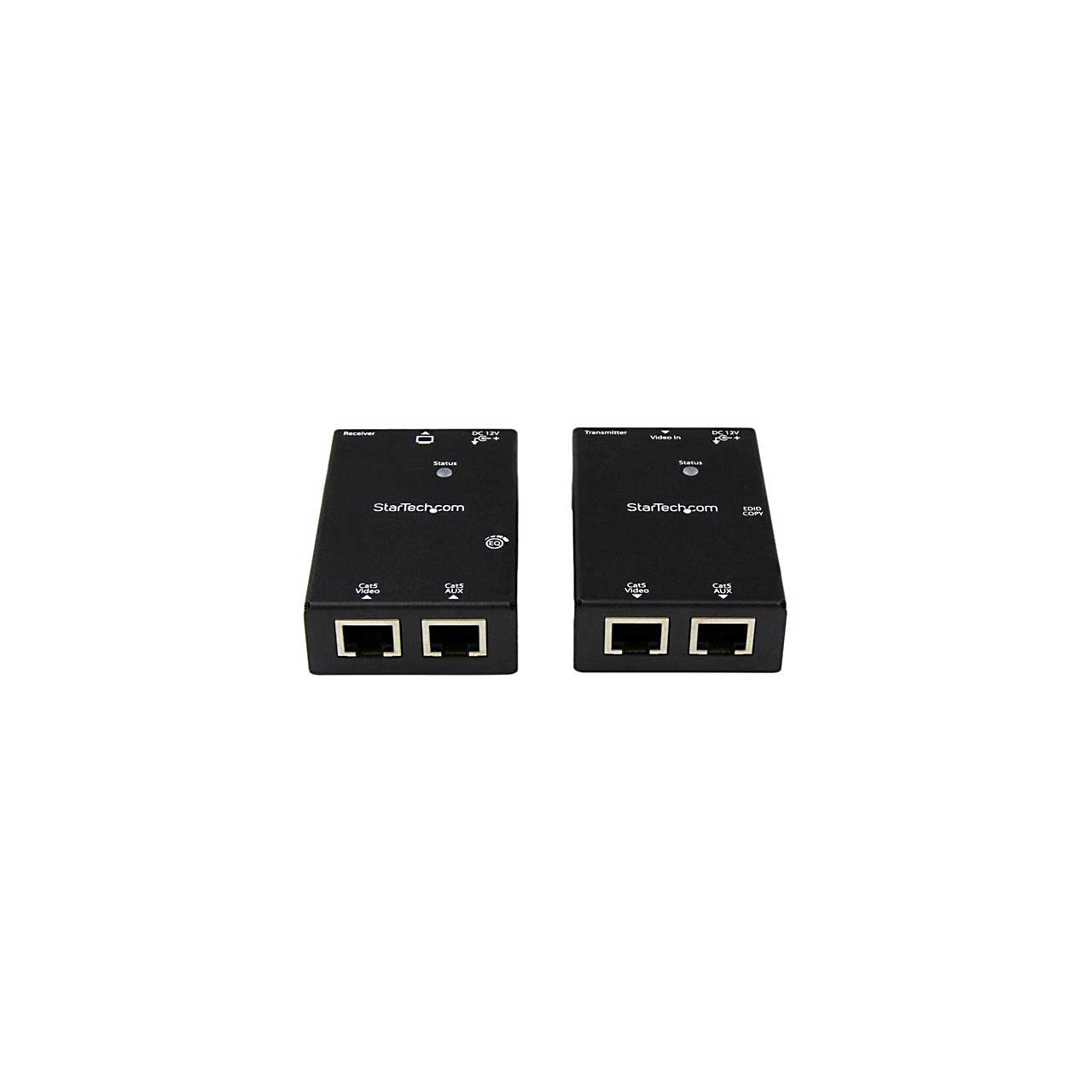

StarTech ST121SHD50 HDMI Over CAT5/CAT6 Extender with Power Over Cable - 165 Feet

ITEM #: ST-ST121SHD50 MFG #: ST121SHD50

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$126.99

Our Price:

$119.00

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ST121SHD50 - Overview

The ST121SHD50 HDMI® over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables or dual Cat6 cables. For added versatility the kit features Power Over Cable and only requires a single power adapter that can be connected to either the Transmitter or Receiver.

With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector. For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances.

The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed. Plus, with Power Over Cable, you can easily extend an HDMI signal in areas where access to power outlets is limited.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
Requires only a single power adapter that can be connected to either the Transmitter or Receiver
Cost-effective HDMI extension through non-proprietary network cabling
Clean, professional installation, using optional mounting hardware (included)

  • Features:

    • Power Over Cable allows a single power source to operate the Transmitter and Receiver
    • Supports Cat5e or Cat6 Ethernet cabling (50m)
    • No software/drivers required
    • Supports HD resolutions up to 1080p (1920x1080)
    • Includes transmitter (local) and receiver (remote) units

  • Specifications:

    • Hardware
    • Audio: Yes
    • Cabling: Cat 5 UTP or better
    • Daisy-Chain: No
    • Ports: 1
    • Rack-Mountable: Yes

      General Specifications
    • Maximum Distances - (1080i only)
    • CAT5E (stranded) - 40m (130 ft)
    • CAT5E (solid) - 50m (165 ft)
    • CAT6 (stranded or solid) - 50m (165 ft)
    • Max Distance: 50 m / 165 ft
    • Maximum Digital Resolutions: 1080p / 1920x1080

      Supported Resolutions
    • 1080i
    • - Cat6 (stranded or solid) - up to 50m
    • - Cat5e (solid) - up to 50m
    • - Cat5e (stranded) - up to 40m
    • 1080p
    • - Cat6 (solid or stranded) - up to 40m
    • - Cat5 (solid) - up to 20m
    • - Cat5 (stranded) - up to 16m
    • Wide Screen Supported: Yes

      Indicators
    • LED Indicators: 1 - Power

      Power
    • Center Tip Polarity: Positive
    • Input Current: 0.5 A
    • Input Voltage: 100 ~240 AC
    • Output Current: 1.5 A
    • Output Voltage: 12 DC
    • Plug Type: M
    • Power Consumption (In Watts): 18
    • Power Source: AC Adapter Included

      Environmental
    • Humidity: 0% - 80 %
    • Operating Temperature: 0°C to 40°C (32°F to 104°F)
    • Storage Temperature: -10°C to 60°C (14°F to 115°F)

      Physical Characteristics
    • Color: Black
    • Enclosure Type: Aluminum
    • Product Height 0.8 in
    • Product Length 3.1 in
    • Product Weight: 5.5 oz
    • Product Width: 2 in

      Packaging Information
    • Shipping (Package) Weight: 1.5 lbs

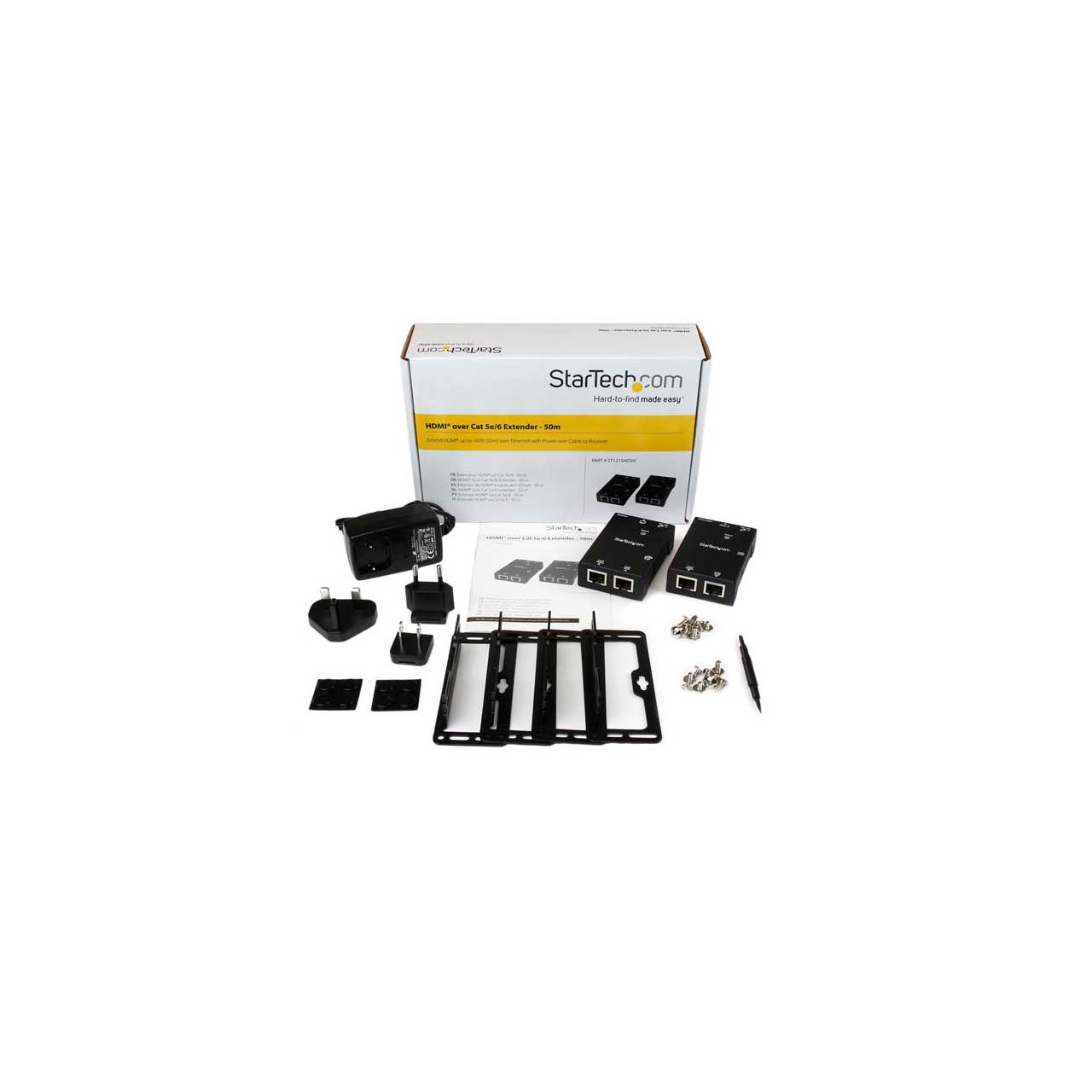

  • Item Includes:

    • 1 - HDMI over CAT5e/6 UTP transmitter
    • 1 - HDMI over CAT5e/6 UTP receiver
    • 1 - universal power adapter (NA / EU / UK / AU)
    • 2 - mounting brackets
    • 2 - foot pad set
    • 1 - instruction manual

  • Warranty:

    • 2 Years

  • GTIN:

    0065030851404
