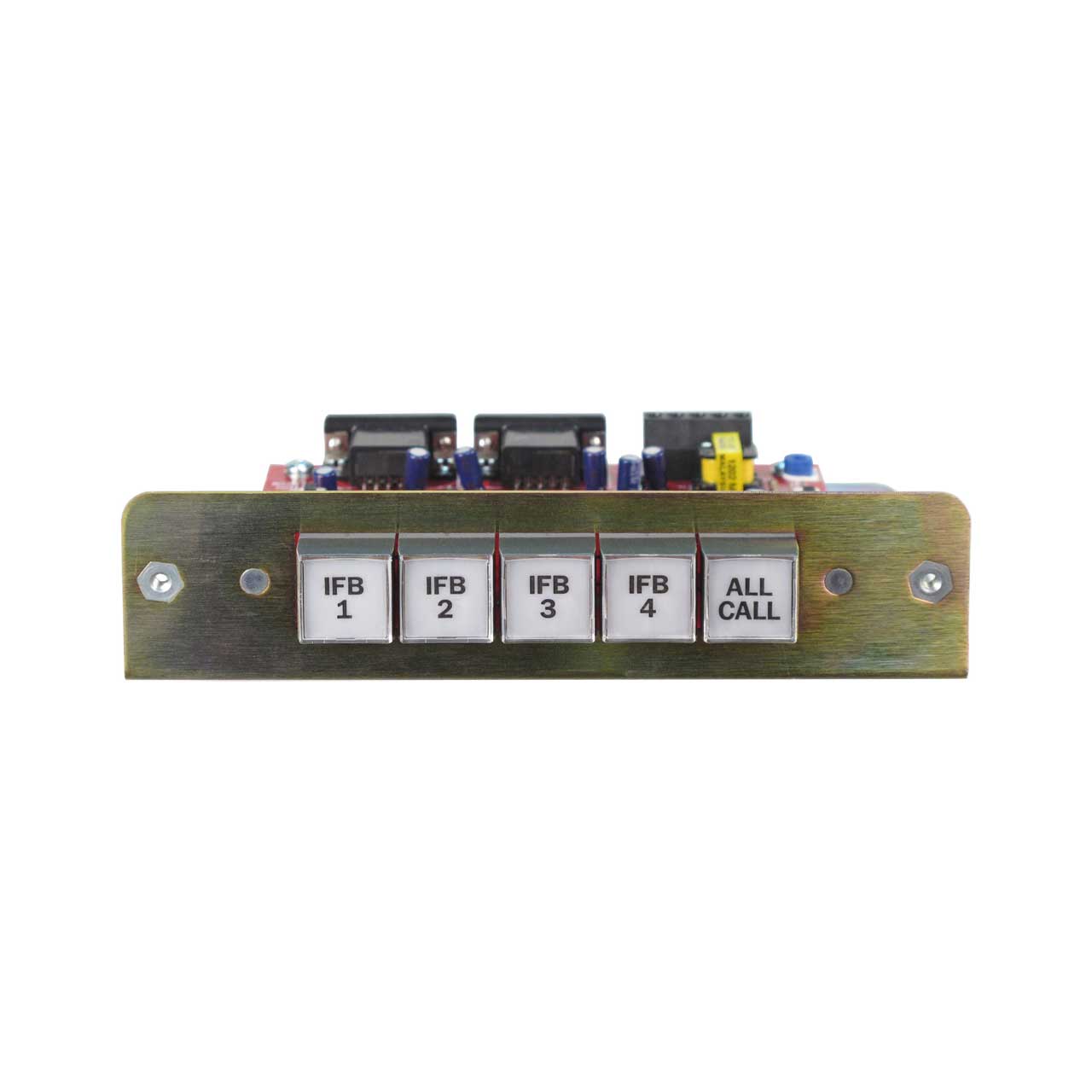

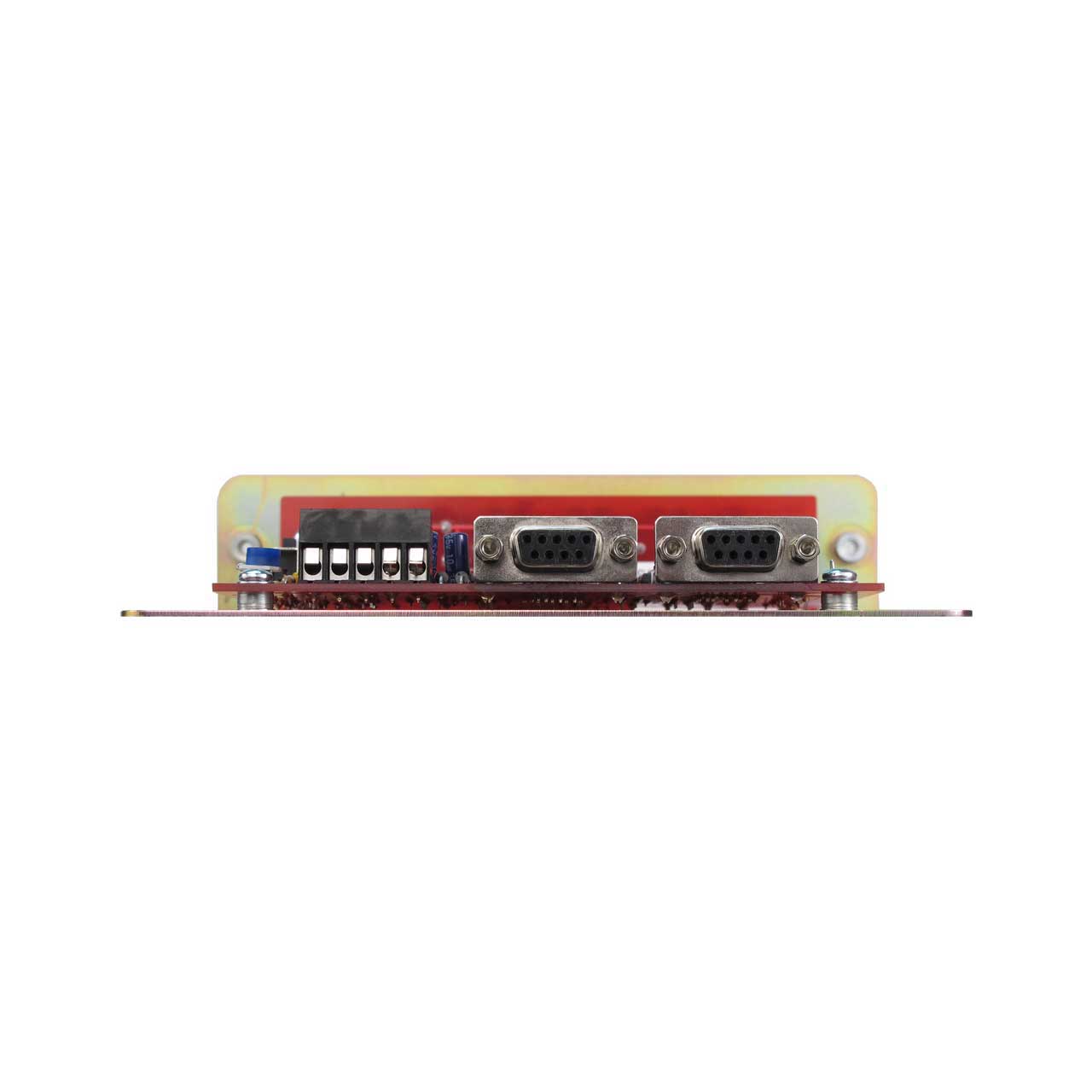

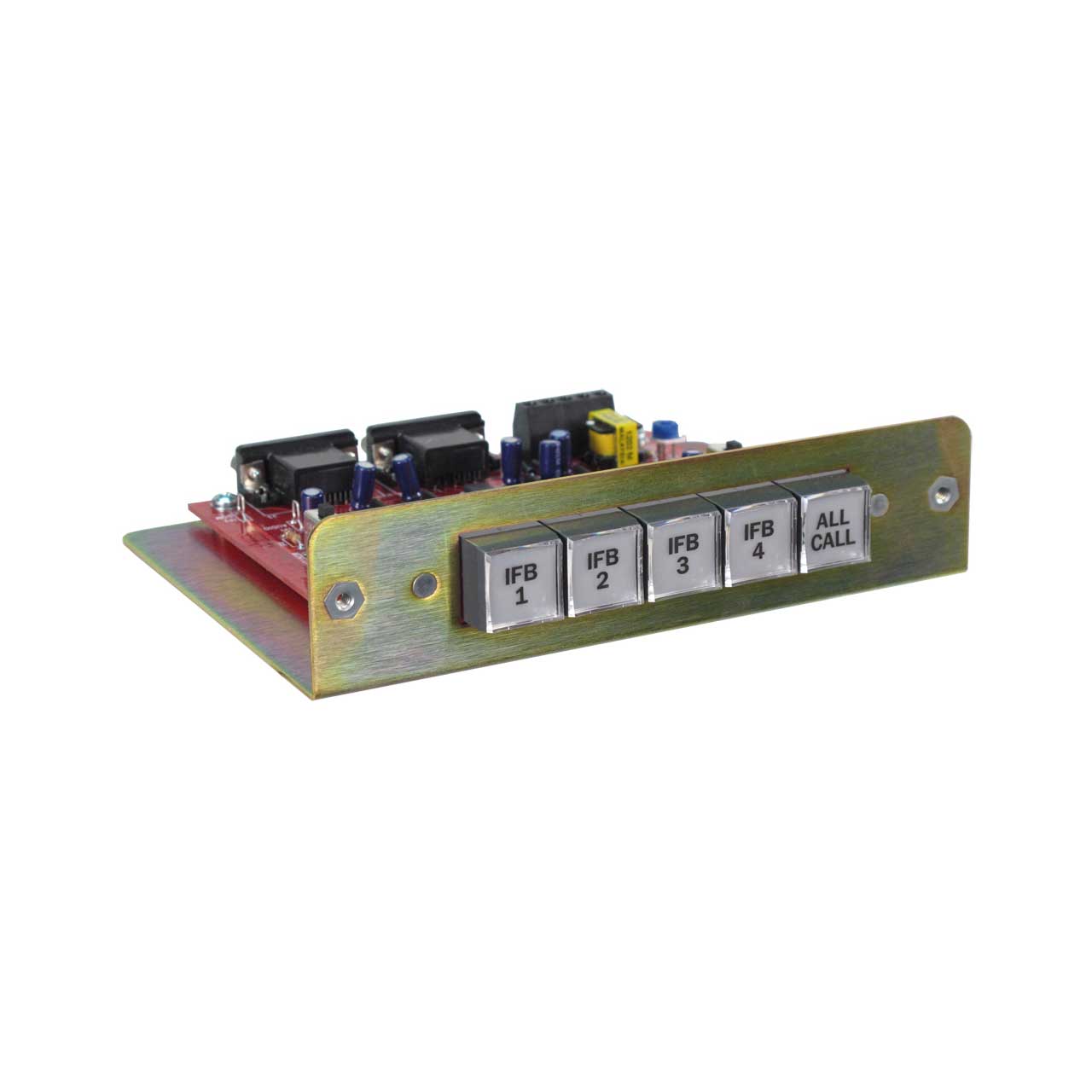

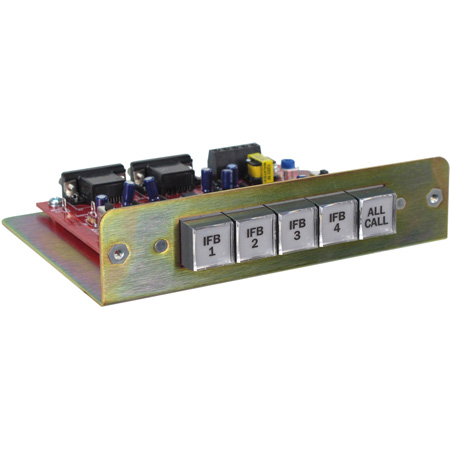

The Model 24 Access Station works in conjunction with a Studio Technologies' Model 2A Central Controller to provide a 4-channel IFB origination ("talk") location. Five pushbutton switches allow direct access to each of the IFB channels, as well as providing an "all call" function. The switches are backlit for visibility in locations with low ambient light conditions. Each switch also provides a "tally" indication, lighting brightly when their associated IFB channel is active. The carefully optimized circuitry is capable of providing "high-fidelity" IFB audio performance. This is unique in the often-ignored yet critical talent cueing function. Model 24s are typically installed at positions convenient to producers, directors, or other personnel who need to cue on-air talent. Up to four Model 24 units can be connected to, and powered by, two Model 2A Central Controllers.
Application:
Provides remote 4-channel interrupt (talk) location for IFB system based on two Model 2A Central Controller units, up to four Model 24 units can be connected to the two Model 2A Central Controllers
