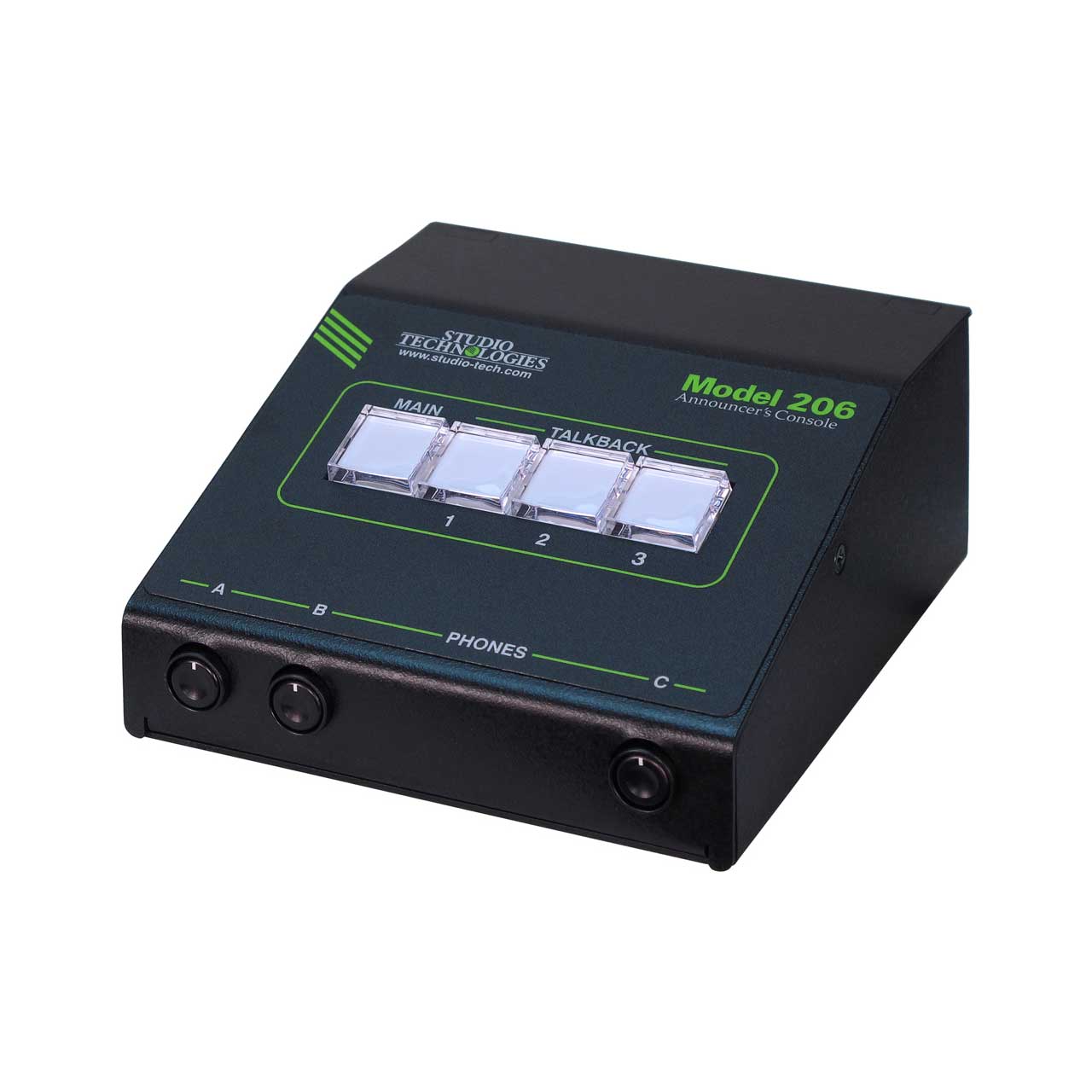

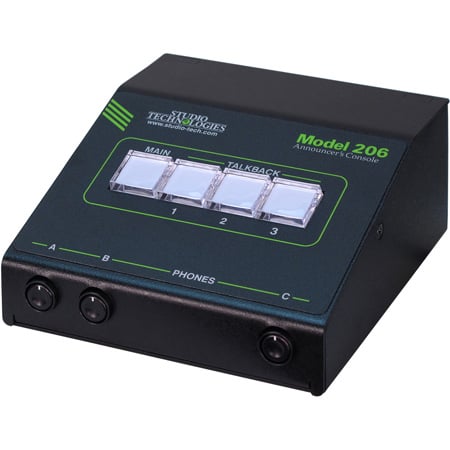

Studio Technologies MODEL 206 Dante Compatible Announcers Console with 3 Dante Talkback Outputs

ITEM #: STCH-MODEL-206 MFG #: MODEL 206

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$1,095.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


MODEL 206 - Overview

The Model 206 Announcer's Console offers a unique combination of analog and digital audio resources for use in broadcast sports, eSports, live event, entertainment, and streaming broadcast applications. The unit is housed in a compact, rugged steel enclosure that's intended for table-top use. Calling the Model 206 "cute" or "cool" would be accurate; its nicely proportioned but diminutive size makes it ideal for use in space-constrained locations. The Model 206 supports Dante® audio-over-Ethernet digital media technology with AES67 compatibility for integration into contemporary applications. The unit is extremely simple to deploy, is "pro" quality throughout, and provides an intuitive user experience. The Model 206's audio quality is excellent, with low distortion, low noise, and ample headroom. Careful circuit design and rugged components ensure long, reliable operation.

Please Note! Model 4, Model 5 & Model 6 Announcers Consoles are all identical in their functionality with the exception of the additional Dante outputs per unit. Model 4 sports 1 Dante output, Model 5 sports 2 Dante outputs & Model 6 sports 3 Dante outputs.

  • Features:

    • Dante audio-over-Ethernet technology
    • Digital audio and direct-microphone outputs
    • One main and three talkback output channels
    • Highly-flexible 2-channel headphone output
    • Compact unit supports one on-air location
    • Excellent audio quality
    • Uses STcontroller for configuration
    • Power-over-Ethernet (PoE) powered

  • Specifications:

    • Power Source:
    • Power-over-Ethernet (PoE): class 2 (low power, <6.49 watts)

      Network Audio Technology:
    • Type: Dante audio-over-Ethernet
    • AES67-2013 Support: yes
    • Dante Domain Manager (DDM) Support: yes
    • Bit Depth: up to 24
    • Sample Rate: 44.1 and 48 kHz
    • Number of Transmitter (Output) Channels: 4 (main, talkback 1, talkback 2, talkback 3)
    • Number of Receiver (Input) Channels: 4 (Headphone Ch1, Headphone Ch2, Headphone Ch3, Headphone Ch4)
    • Dante Audio Flows: 4; 2 transmitter, 2 receiver

      Network Interface:
    • Type: 100BASE-TX, twisted-pair Ethernet, Power-over-Ethernet (PoE) supported
    • Data Rate: 100 Mb/s (10 Mb/s and 1000 Mb/s "GigE" Ethernet not supported)

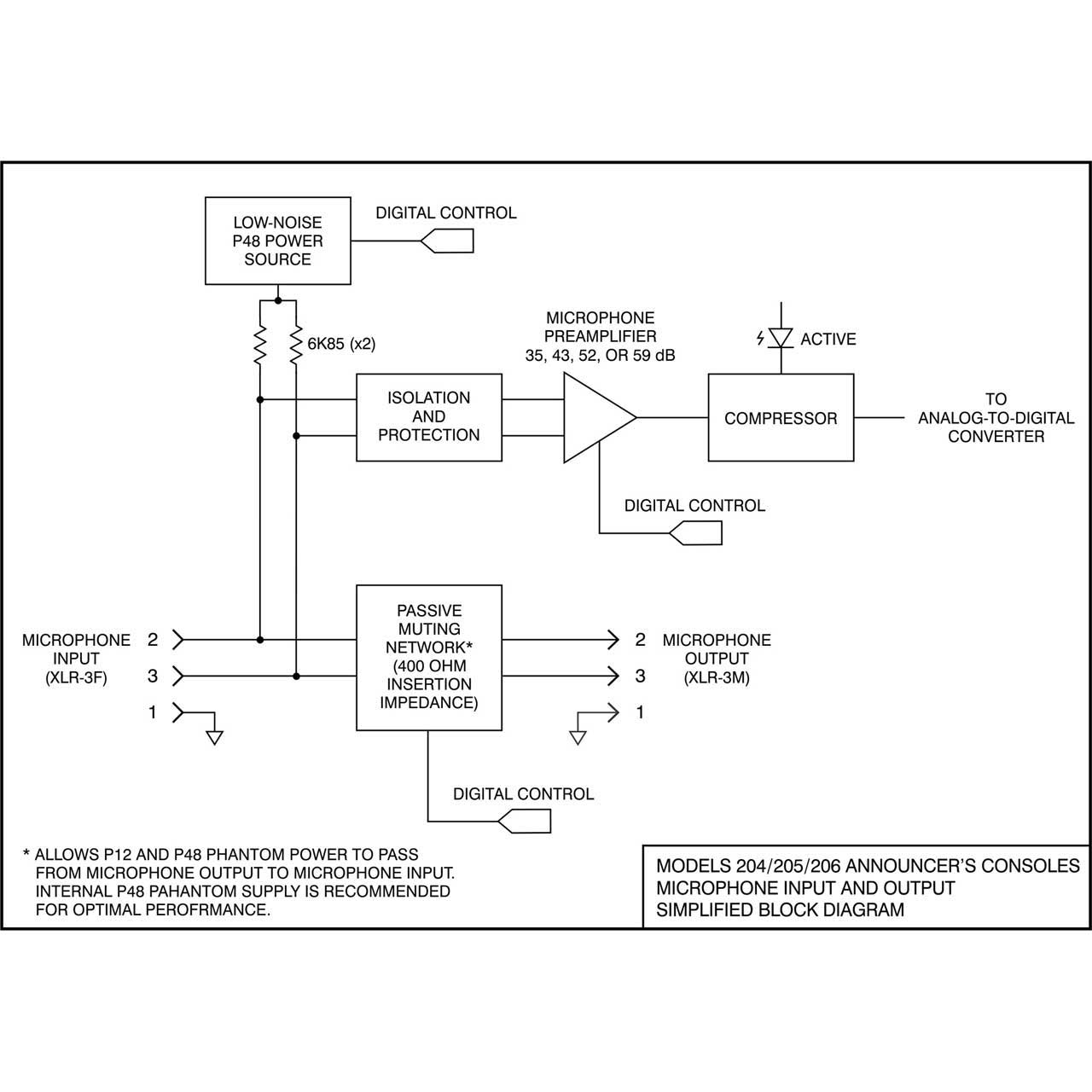

      Microphone Input:
    • Compatibility: dynamic or phantom-powered microphones
    • Type: balanced, capacitive coupled
    • Impedance: 1.8 k ohms, nominal
    • Gain: 35, 43, 52, 59 dB, selectable
    • Frequency Response: 25 Hz to 20 kHz, -3 dB
    • Distortion (THD+N): <0.018%, measured at 35 dB of gain
    • Dynamic Range: 98 dB, A-weighted
    • Phantom Power: P48 per IEC 61938 standard, on/off selectable with status LED

      Compressor:
    • Application: applies to Dante main and talkback transmitter (output) channels
    • Threshold: 1 dB above nominal level (-19 dBFS)
    • Slope: 2:1
    • Status LED: compressor active

      Microphone Output:
    • Type: passive via two 200 ohm resistors from
    • microphone input (will pass phantom power in either direction)
    • Muting: solid-state relay contacts, 60 dB attenuation @ 1 kHz

      Headphone Output:
    • Type: 2-channel (stereo)
    • Compatibility: intended for connection to stereo (dual-channel) or monaural (single-channel) headphones, headsets, or earpieces with nominal impedance of 50 ohms or greater
    • Maximum Output Voltage: 3.0 Vrms, 1 kHz, 150 ohm load
    • Frequency Response: 20 Hz to 20 kHz, +0/-1 dB
    • Distortion (THD+N): <0.008%
    • Dynamic Range: >102 dB

      Remote Control Inputs: 2
    • Functions: configurable to mimic the action of the main, talkback 1, talkback 2, or talkback 3 button
      functions
    • Type: active low, 1 mA maximum, inputs pull up to 3.3 volts DC

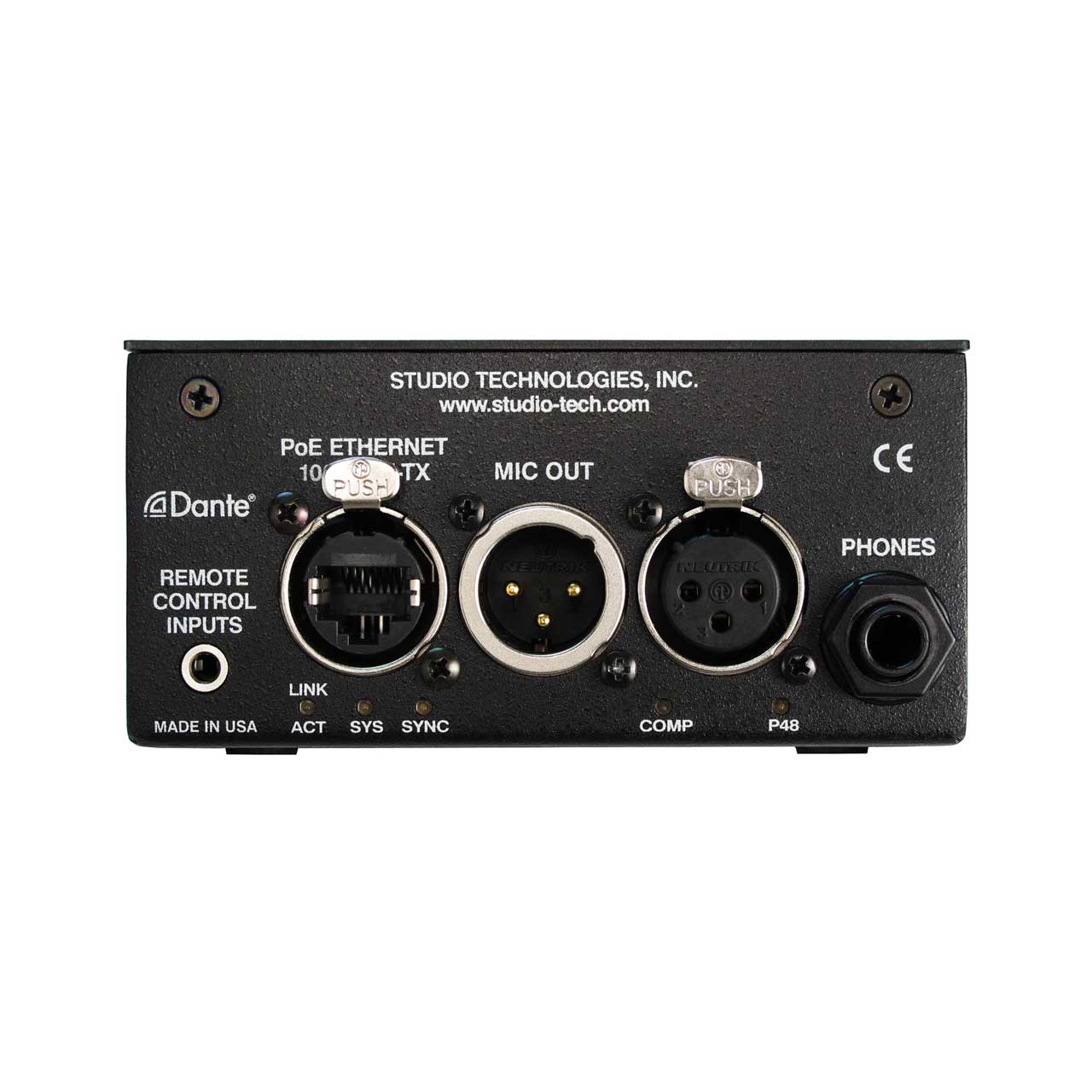

      Connectors:
    • Microphone Input: 3-pin female XLR
    • Microphone Output: 3-pin male XLR
    • Headphone Output: 3-conductor 1/4-inch jack
    • Remote Control Inputs: 3-conductor 3.5 mm jack
    • Ethernet: Neutrik etherCON RJ45
    • USB: type A receptacle (located inside Model 206's enclosure and used only for updating firmware)

    • Configuration: requires Studio Technologies STcontroller personal computer
      application, version 1.05.00 and later (STcontroller compatible with Windows® version 7 and later)
