Studio Technologies Model 71 Control Console

ITEM #: STCH-MODEL-71 MFG #: MODEL 71

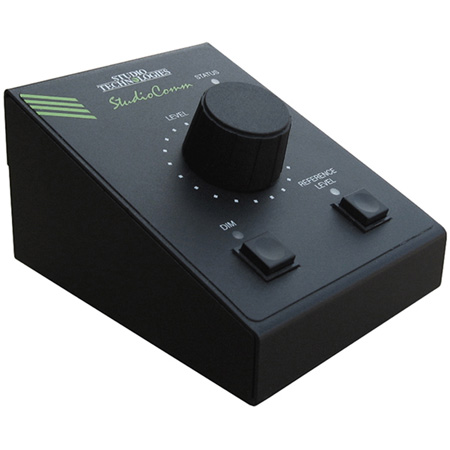

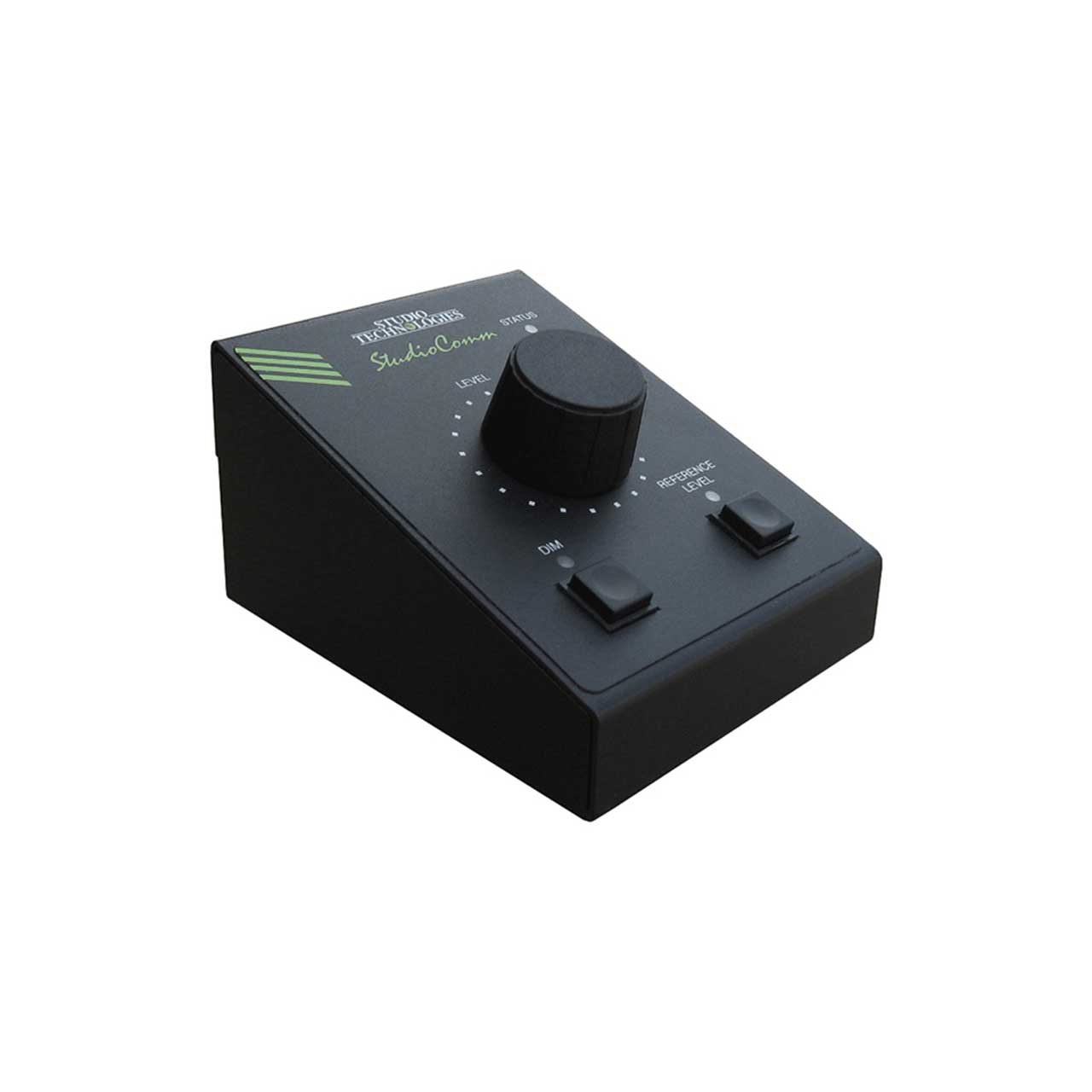

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$340.00

Special Price:

$305.00

Availability: In Stock
iAvailability Description Popup


MODEL 71 - Overview

The Studio Technologies Model 71 is a compact "command center" for use with Model 76D, Model 76DA, Model 760-01, Model 760-02, Model 760-03, Model 780-01, Model 780-02, or Model 780-03 Central Controllers. Provides additional user locations with the most frequently desired functions: level adjustment, reference level, and dim. Up to three Model 71s can be connected to, and powered by, a central controller.

  • Specifications:

    • Application
    • Up to three Model 71 Control Consoles can be connected to a Model 76D, Model 76DA, Model 760-01, Model 760-02, Model 760-03, Model 780-01, Model 780-02, or Model 780-03

      Power
    • 12 Vdc, maximum current 35 mA, provided by central controller

      Control Data
    • Type: RS-485
    • Data Rate/ Format: 115.2 kbit/s, 8-N-1

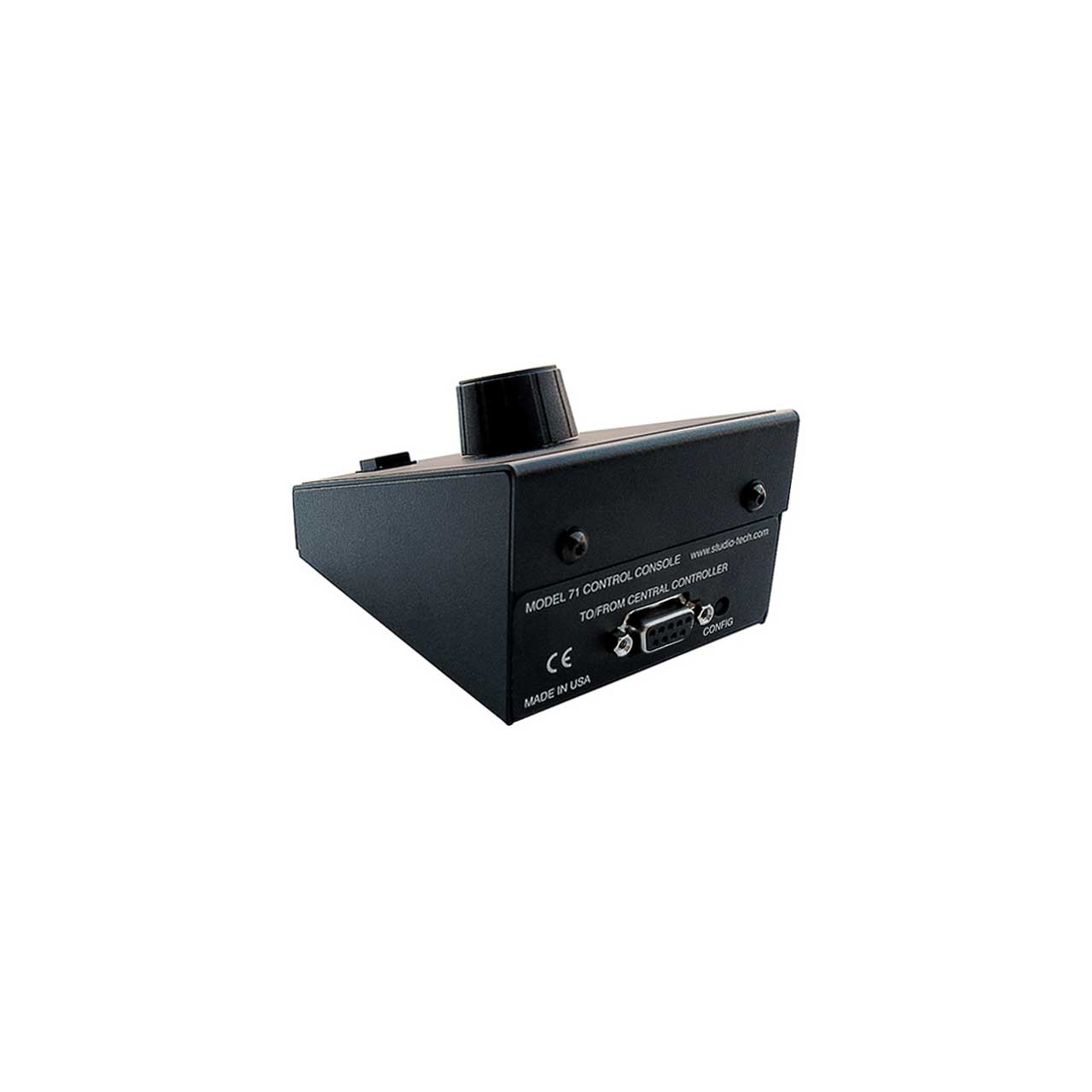

    • Connector: 9-pin D-subminiature female

      Physical
    • Dimensions (Overall): 3.2 inches wide (8.1 cm), 2.2 inches high (5.6 cm), 4.1 inches deep (10.4 cm)
    • Weight: 0.8 pounds (0.4 kg)

  • Item Includes:

    • 1x Studio Technologies Model 71 Control Console
