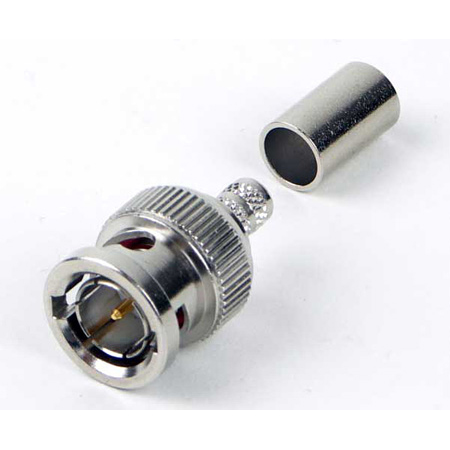

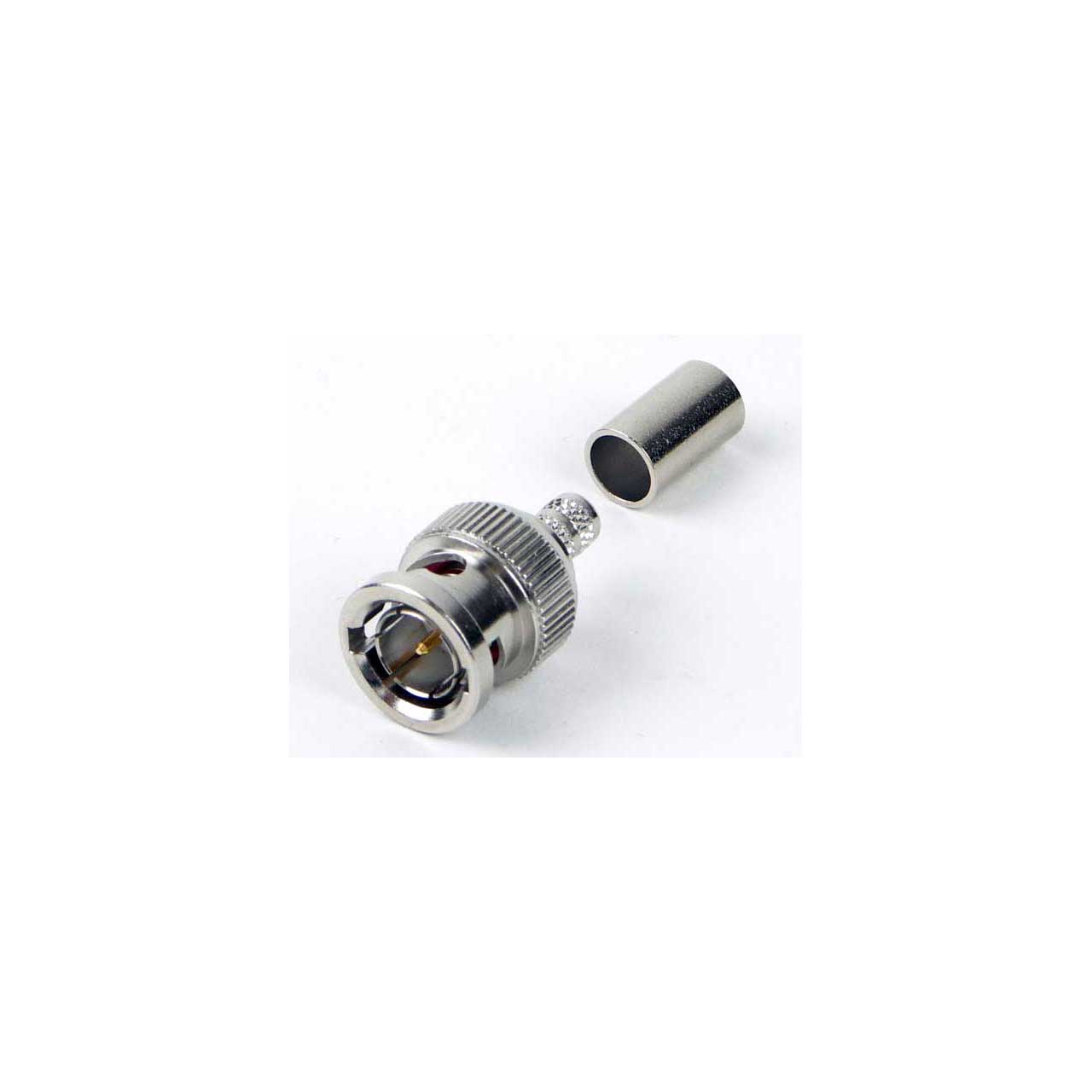

Switchcraft HP75BNC9x True 75 Ohm BNC 3 pcs Crimp for Belden 1505A 1506A

ITEM #: SW-HP75BNC9X MFG #: HP75BNC9X

Primary Image
Switchcraft
Free Shipping with $49 Minimum Order

List Price:

$7.00

Our Price:

$6.36

Quantity Pricing

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

HP75BNC9X - Overview

True 75 OHM HD Cable Mount BNC Connector

  • Specifications:

    • Electrical:
    • Characteristic Impedance: 75 Ohms
    • Voltage Rating: 500 Volts RMS
    • Return Loss: Less than -25 db at 3 GHz
    • Insulation Resistance: 5000 Megohms min.

    • Mechanical:
    • Lifecycles: 500 min.
    • Center Contact Retention: 6 lbs. min.
    • Coupling Mechanism: 100 lbs. min.
    • Force to Engage: 2.5 lbs. max.

      Environmental:
    • Thermal Shock: -65°C to 165°C
    • Moisture Resistance: Mil Std 202
    • Corrosion: Mil Std 202
    • Flammability: UL 94-VO
    • Vibration: Mil Std 202
    • Solvent Resistance: Mil Std 202

    • Finish:
    • Body/Bayonet: Nickel-plated copper alloy
    • Center Conductor: 50 mi gold-plated copper alloy


  • Warranty:

    • Limited Lifetime
