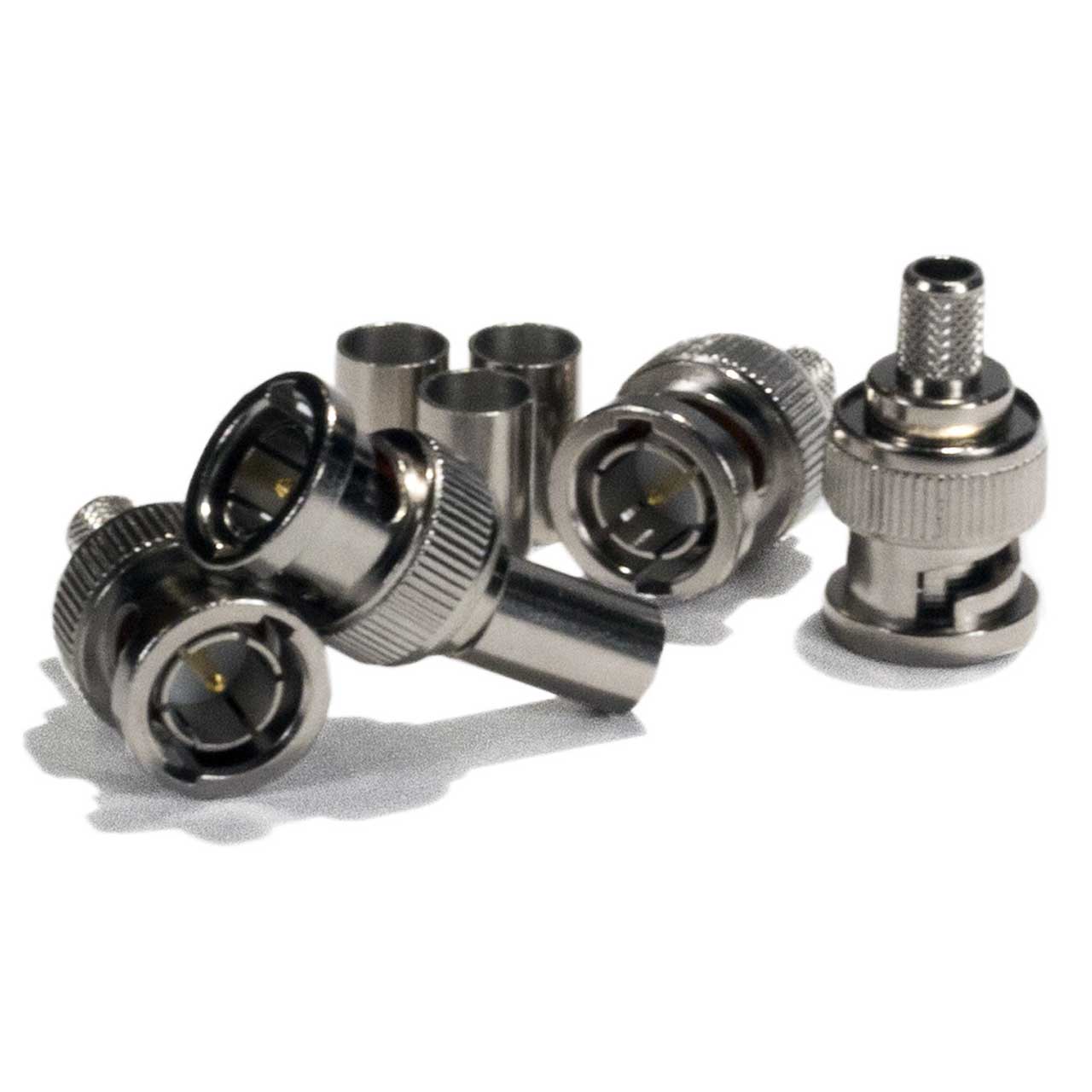

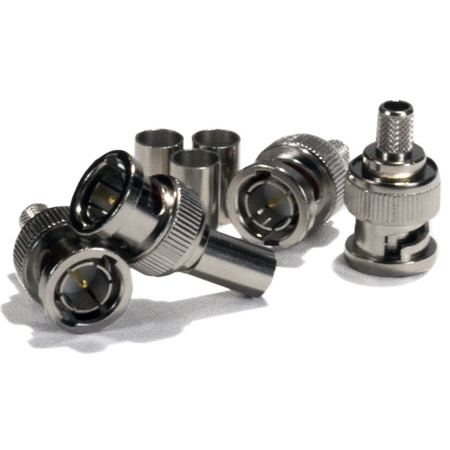

Switchcraft UHDBNC05 UHD 12G BNC Connector for Belden 1505A Cable

Name: Switchcraft UHDBNC05 UHD 12G BNC Connector for Belden 1505A Cable
Brand: Switchcraft
SKU: SW-UHDBNC05
Price: 10.23 USD
Availability: PreSale

ITEM #: SW-UHDBNC05 MFG #: UHDBNC05

Switchcraft

List Price:

$11.00

Our Price:

$10.23

Quantity Pricing

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

UHDBNC05 - Overview

The Switchcraft UHD Series UHDBNC05 is a true 75-Ohm BNC connector with ultra-wide 18GHz bandwidth making it ideal for use in single-link 12G-SDI applications. It is designed for Belden 1505A cable.

Features:
- Meets SMPTE ST 2082-1 Specifications thru 18 GHz
- Single-Link 12G-SDI / 4K Capability
- Excellent VSWR & Return Loss up to 18GHz
- SMPTE 3G-SDI, 6G-SDI & 12G-SDI Compatible
- Use with Belden 1505A
