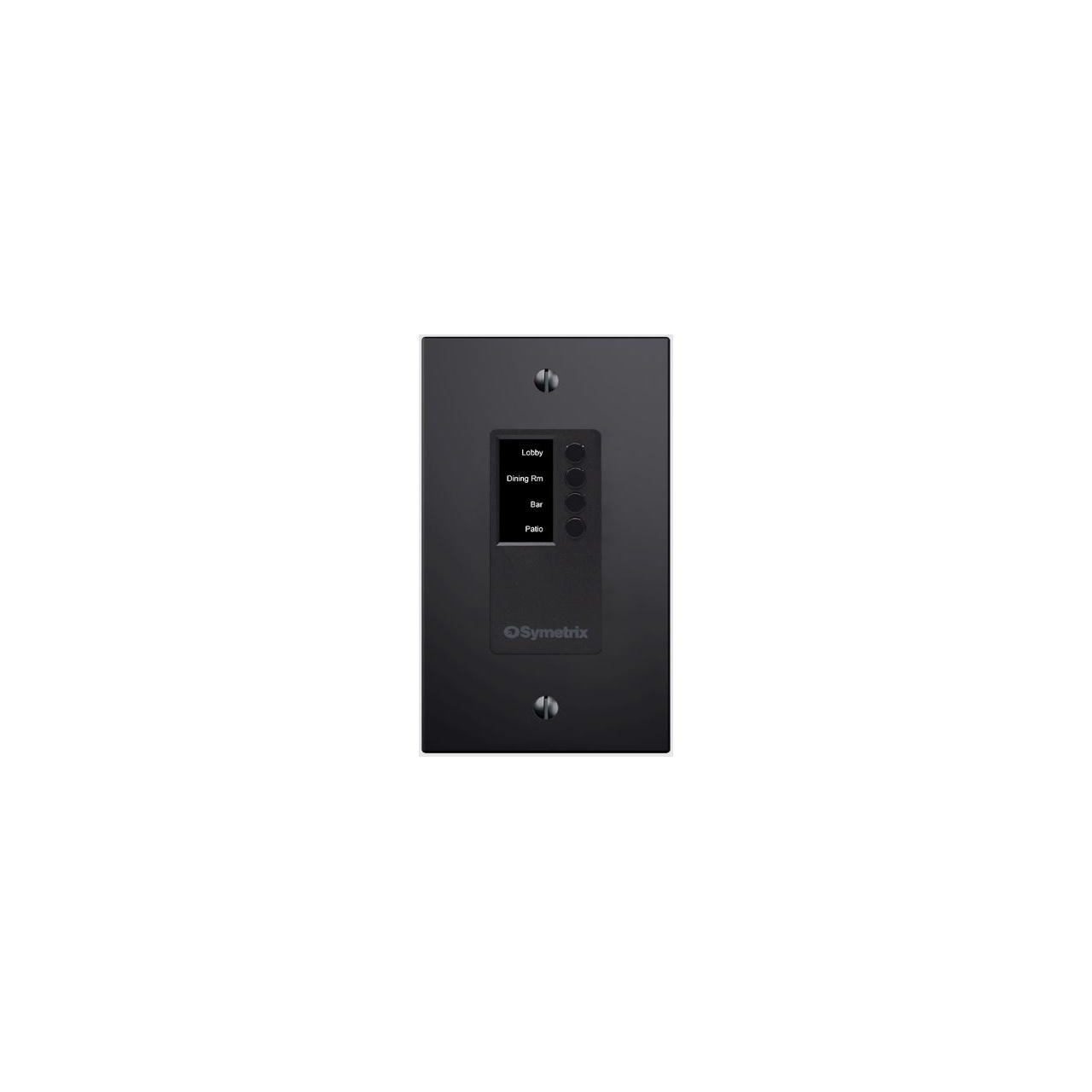

Symetrix W2 STANDARD IP Remote with 4 Buttons and OLED Display - PoE - Decora Single Gang - Black

ITEM #: SYX-W2BKSTANDARD MFG #: 80-0172

Primary Image
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


80-0172 - Overview

With an OLED display and dedicated knobs and buttons, the Symetrix W-Series provide standard IP communication over Ethernet creating a single standardized infrastructure.

Available in four configurations, the controls of the W Series may be used for source selection, volume, mute, and preset recalls for any Composer™ based Symetrix DSP.

Series Features:
-IP and PoE based controllers
-User-programmable displays for labeling and feedback
-Configurations available in US and EU form factors
-Simple and easy end-user control of the business audio system
-Ideal for Houses of Worship, Hospitality, Education, Performance/Live Sound, and Conferencing Spaces
-W-Series remotes have set a new standard for IP controllers in terms of both functionality and overall construction quality.
-W1 Features a push button encoder and display. The encoder can operate in a continuous (as in a volume control) fashion. The push button can toggle a binary or momentary action (as in a mute or preset recall) or toggle between two encoder assignments.

  • Features:

    • Simple deployment with standard PoE switch
    • Features four momentary buttons and display
    • Available in US or EU single gang form factors and black or white finishes
    • Supports standard single gang Decora faceplates

  • Specifications:

    • W2
    • User Interface: 4 push-button switches
    • Form Factor: 1 or 2-gang US or EU wall mount.
    • Device Width (US): 1.78" Single Gang Decora
    • Device Depth (US): 1.34"
    • Device Height (US): 4.25"

      Display
    • Type: High Contrast OLED
    • Viewable Area: 1.3" (33.02mm) Diagonal
    • Orientation: Vertical

      System
    • Physical Network Layer: Ethernet
    • Ethernet Cable Standard: CAT5e/6, maximum device-to-device length = 100 meters
    • Compatibility: Symetrix Composer-managed products
    • Maximum Devices: 128 units per site file

  • Item Includes:

    • W Series device.
    • A single or dual-gang black or white
    • Decora® wall plate (as applicable).
    • Two or four #6-32 x 5/8" screws or two
    • M3x0.5x30mm slotted screws (as applicable).
    • Quick Start Guide.

  • Warranty:

    • 5 years
