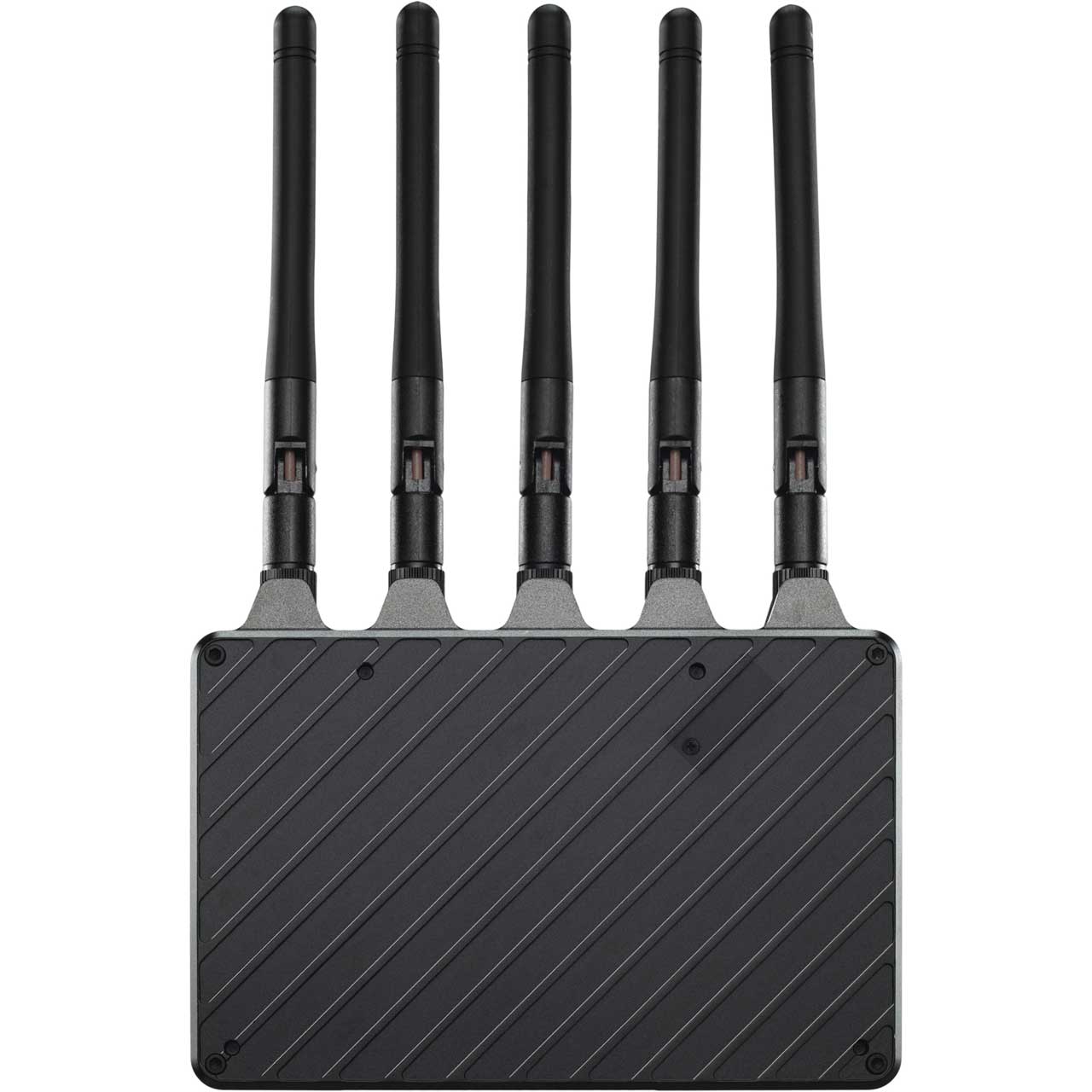

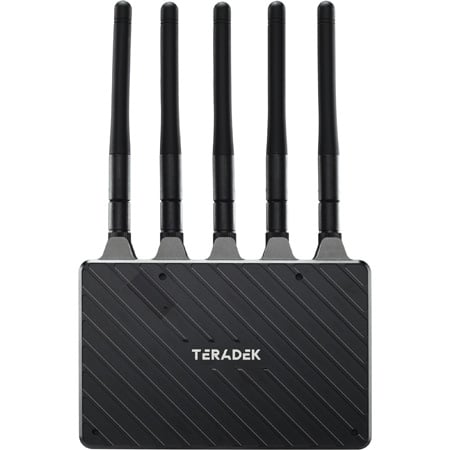

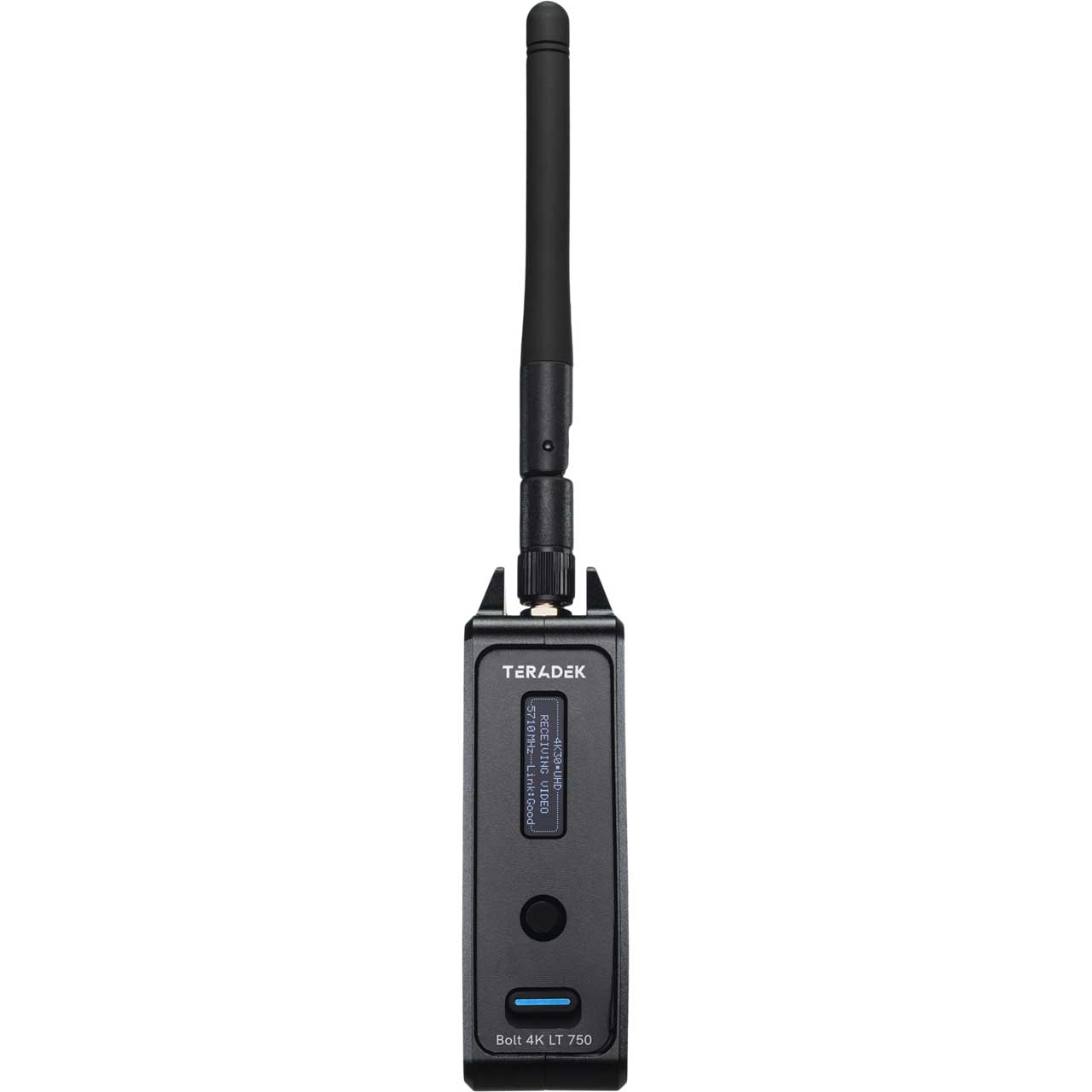

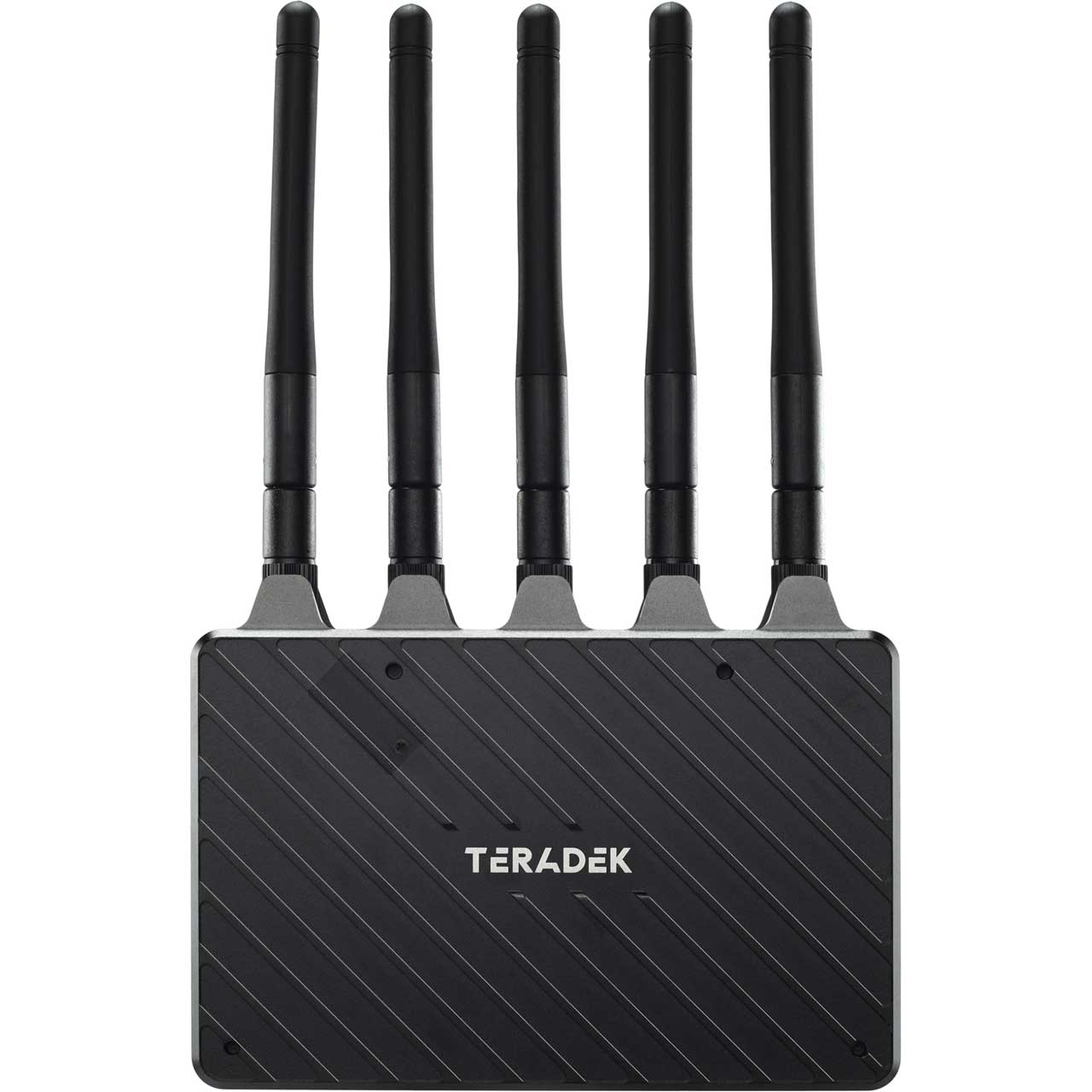

Teradek 10-2202 Bolt 4K LT 750 3G-SDI/HDMI Wireless Receiver

ITEM #: TER-10-2202 MFG #: 10-2202

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the TER-10-2202

10-2202 - Overview

The Teradek Bolt 10-2202 4K LT 750 RX is a real time wireless video receiver that supports video signals up to 4Kp30 over HDMI at a line-of-sight distance of up to 750ft (228m) with no image latency. Key features include increased range, faster reconnection times, easier setup with Bluetooth App for iOS or Android, and more stable connectivity. These devices are cross-compatible with the entire Bolt 4K Family.

Zero-Delay 4K Wireless Video
Receive images up to 4Kp30 via HDMI at a line-of-sight distance of up to 750ft (228m) with no image latency (>0.001sec).

Output: 1x HDMI 2.0 (up to 4Kp30), 2x 3G-SDI (up to 1080p60)

True HDR
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut. Receive Log-enabled camera signals with wide dynamic range in order to monitor and achieve balanced highlight and lowlight regions with accurate color reproduction.

Improved Wireless Performance
Reliable signal reception over 13x 40MHz frequencies, with upgraded hardware and less image break-up than previous Bolt generations. Faster reconnection times, automatic signal quality switching, and a more robust frequency hopping algorithm. An additional 5GHz radio frequency link is available for high-traffic locations with excessive interference from other wireless devices.

Send Signal up to 6 Receivers
Link up to 6 RX receivers to any 1 TX transmitter to enable multiple points of viewing.

Lightweight Body with Versatile Mounting
RX Mounting: M3 / 1/4"-20 / 3/8" x16

Universal Cross-Compatibility between all Bolt 4K Devices
Receive signal from any Bolt 4K series TX device for expanding workflow requirements.

Camera Metadata
Transmit metadata, timecode, and start/stop flags from most camera manufacturers.

Bolt App for Android and Apple iOS
Remotely pair any TX/RX devices, manually designate specific 5GHz channels, and monitor interference with the 5GHz Spectrum Analyzer and Wireless Health analysis tools.

  • Features:

    • Includes: 1 RX
    • Video: Up to 4Kp30 / 1080p60
    • Range: 750 ft.
    • Outputs: HDMI 2.0, 3G-SDI
    • Compatibility: All Bolt 4K Series TX Devices

  • Specifications:

    • Video Outputs: 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1), 1 x HDMI 1.4b Type-A receptacle
    • SDI Ancillary Data Support: Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
    • Color Sampling: SDI - YCbCr 4:2:2, 10-bit/ HDMI - RGB 4:4:4, 8-bit
    • Delay Tx To Rx: <0.001sec
    • Supported Resolutions: 4Kp23.98/24/25/29.97/30 (HDMI only) - 1080p23.98/24/25/29.97/30/50/59.94/60, 1080psf23.98/24/25/29.97/30, 1080i50/59.94/60, 720p50/59.94/60, 480p50 576p59.94/60, 480i(NTSC)/576i(PAL)
    • Video Compression: Visually Lossless
    • Video Format Conversion Support: No (4Kp30 signals are output on HDMI, but scaled to 1080p30 and output over SDI. 4Kp60 signals received from Bolt 4K XT devices are scaled to 1080p60 and output over both HDMI and SDI outputs)
    • Color Correction: None
    • Audio Format: 48kHz 24-bit PCM
    • Audio Output: Embedded SDI/HDMI Audio Output (2 Channel)
    • Dimensions: 122mm x 94mm x 27mm
    • Weight: 292g (10.3oz)
    • Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
    • Mountability: Multiple mounting options with 1/4"x20 and M3 holes
    • Configuration Interfaces: OSD with Menu, Joystick Navigation
    • Switches: On/Off Switch
    • Mobile App: Bolt App
    • Desktop App: Bolt Manager application for OSX & Windows
    • USB Interface Functionality: Upgrade via Micro-USB
    • External Control: Via Bolt App
    • Bluetooth: 2.4 GHz
    • Antennas: 5 External 2 dBi antennas (included)
    • Non-DFS Frequencies: 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz
    • DFS Frequencies: 5.270 ~ 5.670 GHz
    • Number Of20 Mhz Channels: 25 (region dependent)
    • Number Of40 Mhz Channels: 13 (region dependent)
    • Channel Bandwidth: 20MHz, 40MHz
    • RF Channel Selection: Auto, Manual
    • Encryption: AES-256, RSA-1024 key exchange
    • RF Power: 17 dbm EIRP (one external 2dBi antenna) (<51mW transmit power)
    • RF Sensitivity: 5 External 2 dBi antennas (included)
    • Range: Up to 750 ft, line of sight
    • Unicast Multicast: Each Receiver can register up to 6 Transmitters
    • Noise Rejection: Can coexist with WiFi and 5GHz cordless phones, Can operate up to 6 sets in same location.
    • Power Input: 2-Pin Circular locking Connector 6-28 VDC
    • Battery: None, optional Gold or V mount battery plate
    • Nominal Power Consumption: 11 Watts
    • Operating Temperature: 0-40°C

  • Item Includes:

    • 1x Bolt 4K LT RX 750
    • 1x 2pin Connector to PowerTap Cable (P-Tap/D-Tap) - 18in
    • 1x 3G-SDI (BNC to BNC) Cable - 10in
    • 1x Micro-USB (5pin) to USB Cable (Firmware Cable) - 36in
    • 1x Ultra Thin HDMI Male Type A (Full) to HDMI Male Type A (Full) Cable - 18in
    • 1x 18 Watt AC Adapter Cable (2-Pin Connector) - 6ft
    • 5x TX/RX Antenna (2dBi WIFI 2.4/5.8GHz, Small)

  • GTIN:

    0818264026670
