Thor H-ASI-AMP 1x16 DVB-ASI Distribution Amplifier with PID Modification

ITEM #: THR-ASI-AMP MFG #: H-ASI-AMP

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Thor Fiber
Free Shipping with $49 Minimum Order

List Price:

$2,394.00

Our Price:

$1,995.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

H-ASI-AMP - Overview

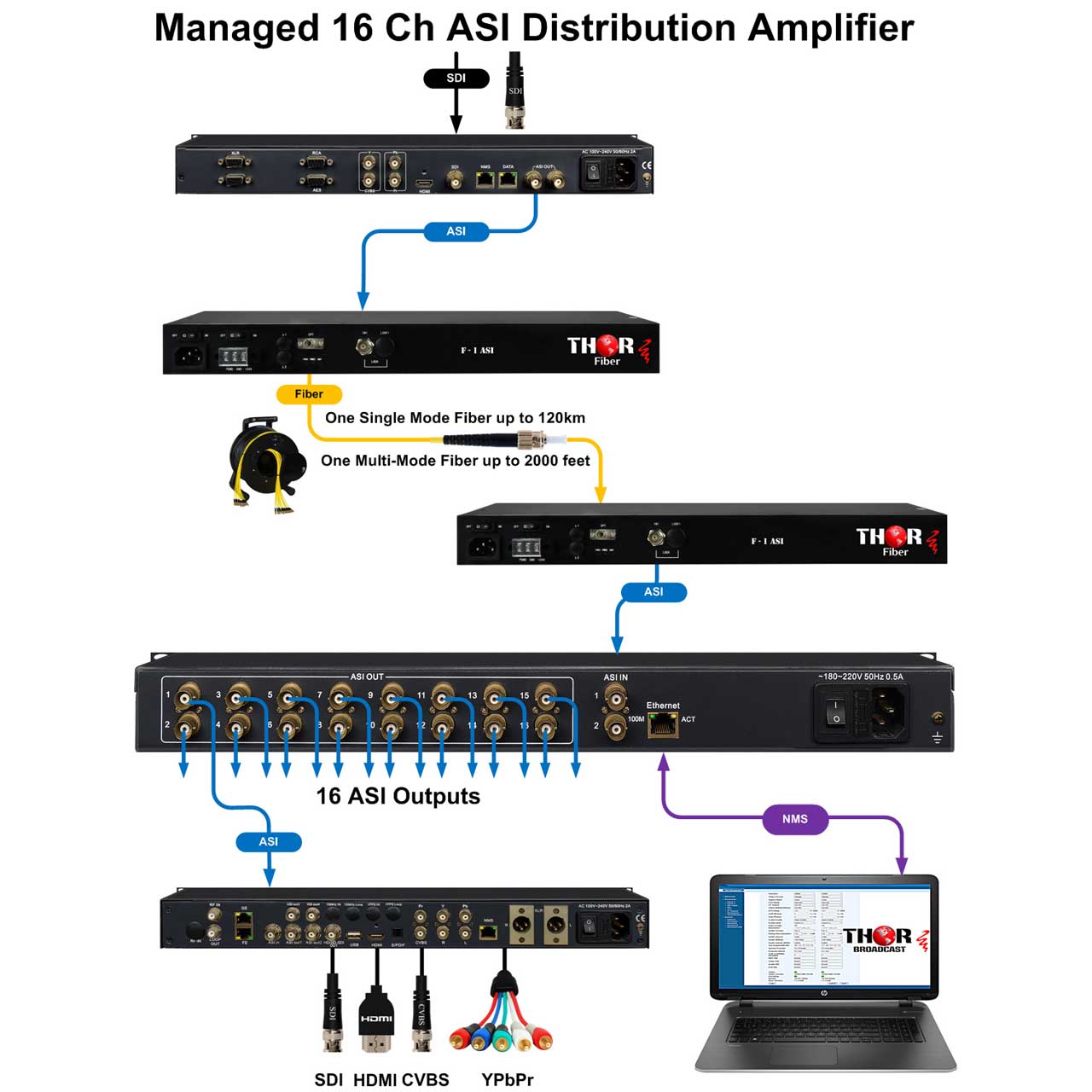

High quality rack mount 16 output DVB-ASI distribution amplifier for broadcast. This is a high output platform designed for large scale distribution of ASI programming in broadcast environments. Based on application specific relocking circuitry designed for multi rate ASI signals to ensure very clean outputs. This platform also includes SNMP for remote alarm notification if input is not detected.

  • Features:

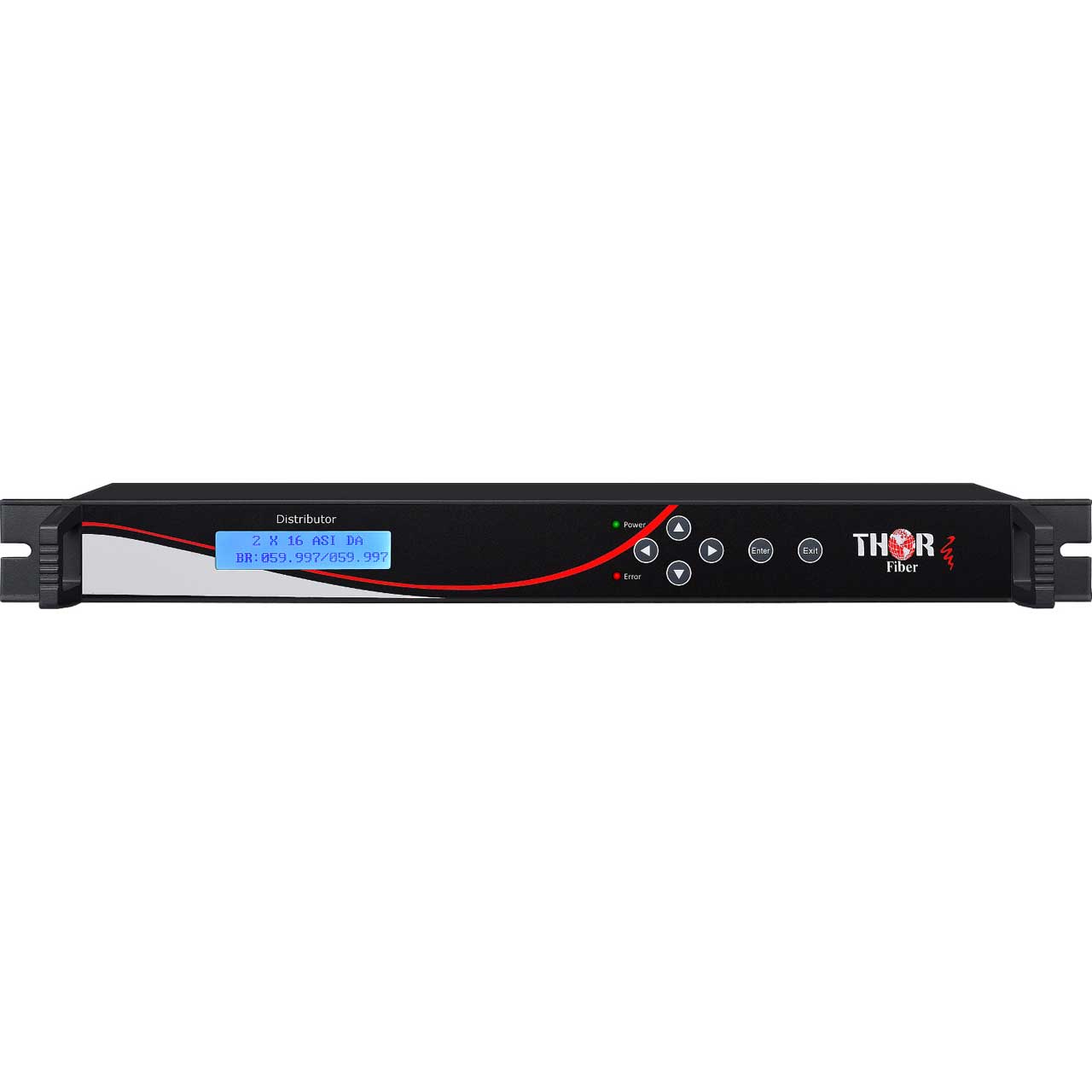

    • Intelligent managed 2x16 ASI Distribution Amplifier
    • Fully network managed with program information
    • Compatible with any DVB-ASI input streams
    • Outputs two independent stream configurations


  • Specifications:

    • ASI Input
    • Input Connector 1x ASI input, BNC(75)
    • According with EN50083-9 AS Connector
    • standard, SMPTE259M standard, SDI Video signal
    • Reflect impedance: <15dB@270MHz

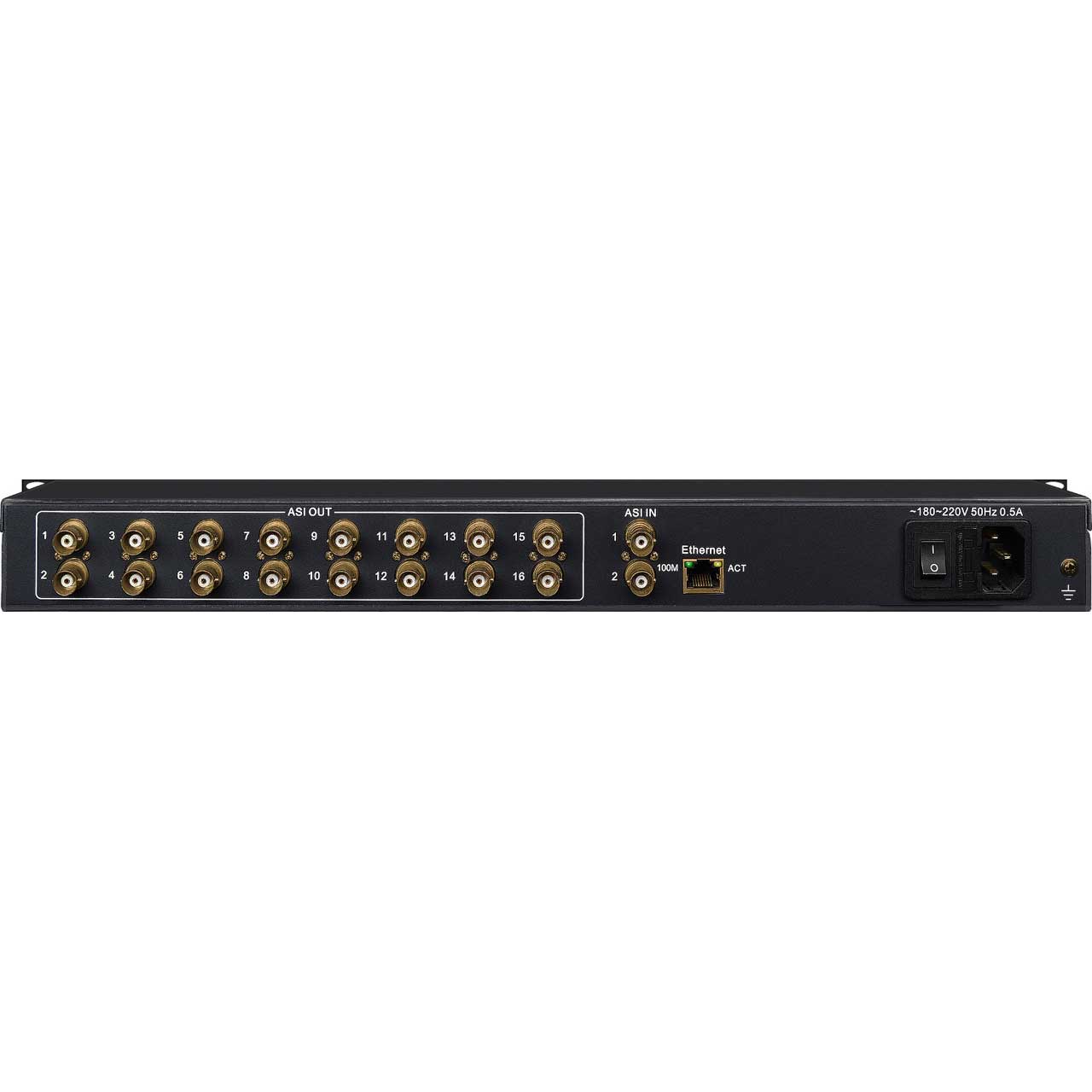

    • ASI Output Connector 8(ASI5108)or 16(ASI5116) ASI
    • Outputs, BNC(75)
    • According with EN50083-9 ASI Connector
    • standard, SMPTE259M standard, SDI Video signal
    • Reflect impedance <15dB@270MHz
    • Lower residual jitter 180PSpp@270MHz Equalizer
    • Re-clocked 130pbs
    • Output Level 800mVÝ10%
    • Environmental
    • Power Supply AC 90-250V 50/60Hz
    • Power consumption 20W
    • Operating temperature -10-50ÝC
    • Storage temperature -10-75ÝC
    • Dimensions 318mm( L)X 483mm(W)X 44mm(H)(1RU)
    • Weight 3.5kg


  • Item Includes:

    • Distribution Amplifier
    • US Power Cable
    • User Manual


  • GTIN:

    0799599222374
