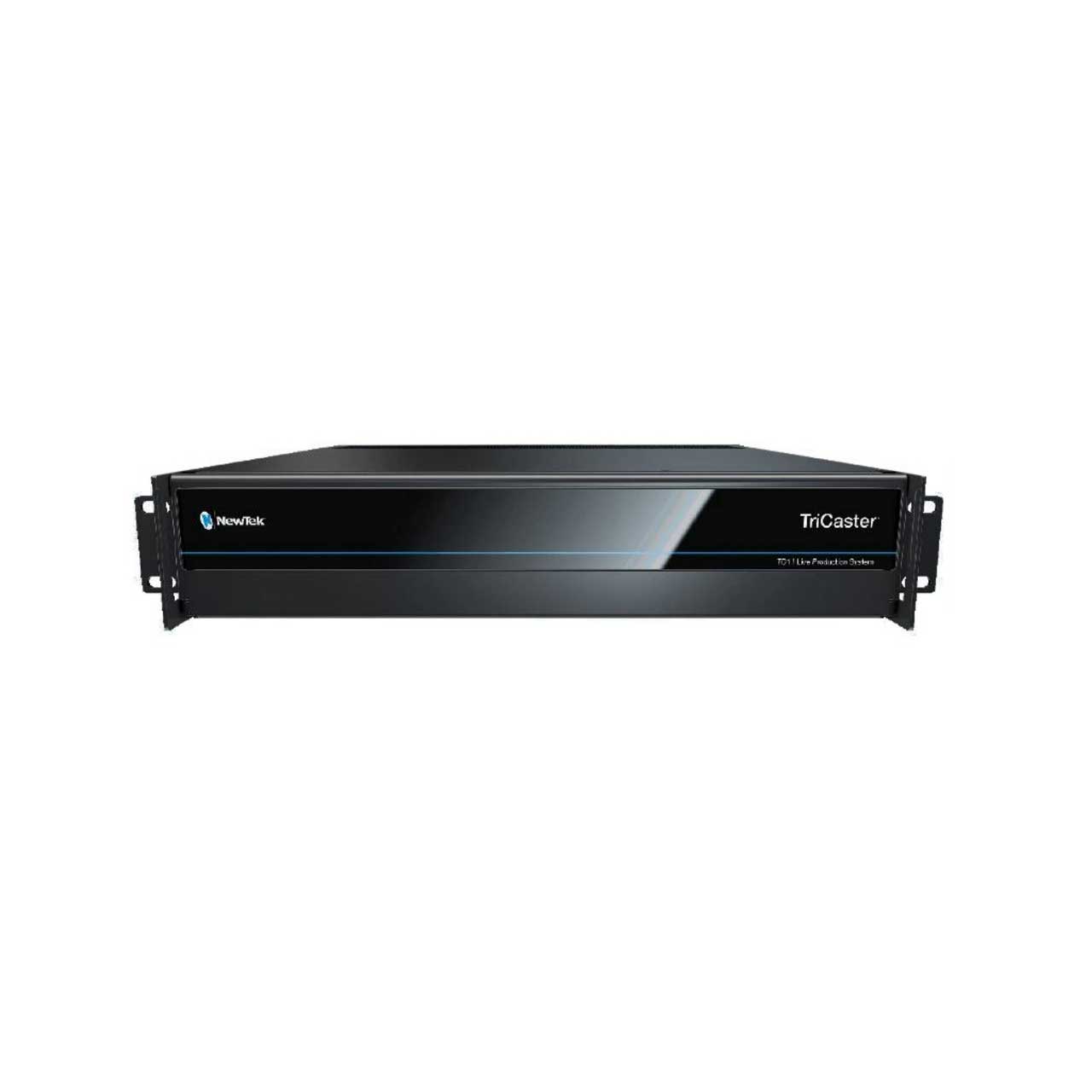

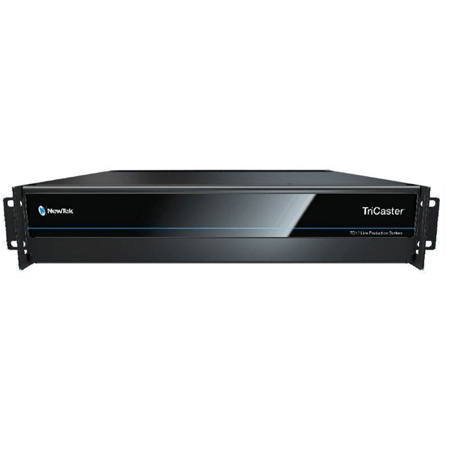

VIZRT TriCaster TC1 4x4 HD/SD-SDI Video Production Switch

ITEM #: TRI-TC1 MFG #: TC1

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$15,995.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


TC1 - Overview

The most complete production system available today, VIZRT TriCaster TC1 represents the continued innovation of the iconic product that defined an industry. Designed with the way you work in mind and equipped with hundreds of advanced production capabilities, it has everything you need to do video your way today-and tomorrow. Present your audience with an immersive viewing experience defined by amazing clarity and incredible detail. Produce programs, performances, events and live sports in true 4K UHD (Ultra High Definition) resolution with support for native 2160p video at 60 frames per second. Unlike other products that promise 4K UHD, only TriCaster TC1 allows you to switch, stream and record 4K UHD video without compromising the frame rate or the number of available inputs.

No decks needed-just add your files with two built-in video servers for on-demand and automated playback, including auto-advancing playlists, on-cue instant replay, live-edited highlight reels, and much more. With responsive player controls, presets, real-time editing tools, selectable transitions, and playlist effects, you have everything needed to make magic from your stored media. Stream live to your choice of new media platforms, including user-friendly presets for Facebook Live, Microsoft Azure, Periscope, Twitch, YouTube Live, and more. With two streaming encoders included, you can easily deliver platform-specific content, while opening up new sponsorship and revenue opportunities.

Save on studio and set expenses without sacrificing production value. With integrated LiveSet technology, TriCaster TC1 can transport your talent into professionally-designed virtual environments, complete with multiple angles, virtual camera movements, real-time reflections, specular highlights, animated lens flares and stunning augmented reality effects that blur the line between virtual and reality. Select from more than 30 included virtual sets, purchase your choice of premium ready-made sets, or create endless custom environments with the optional Virtual Set Editor software (sold separately). The most complete production system on the planet - for the modern producer, publisher, and content creator.

Please note! Control surfaces and monitors sold separately!

Adder Products have been recognized by VIZRT as Certified KVM Extenders for Tricasters.

  • Features:

    • Switching, streaming, recording in HD, 3G, and 4K UHD 60p
    • Native software driven processing for maximum production power and flexibility
    • Comprehensive camera coverage and compelling multi-source video mixing, including 16 external inputs and 4 M/Es
    • Studio-grade Skype video calling with multi-channel Skype TX software integration
    • Integrated video servers allowing playback, replay, and live editing without any additional hardware
    • Multi-channel ISO recording to full-resolution QuickTime and H.264 files for VOD, post-production, and archive
    • Dual-channel live streaming to Facebook Live, Microsoft Azure, Periscope, Twitch, YouTubeT Live, and more
    • Real-time social media sharing to Facebook, Imgur, LinkedIn, Twitter, Vimeo, YouTube, and more
    • Powerful production automation with custom macro commands, sophisticated full-motion compositing, and flexible control options
    • Advanced audio mixing with multi-source configuration and control, professional DSPs, and 4 x 4 x 4 channel routing
    • Premier creative capabilities, including multi-bus mix effects, animated titles and transitions, advanced chromakeying, spectacular live virtual sets, and more

  • Specifications:

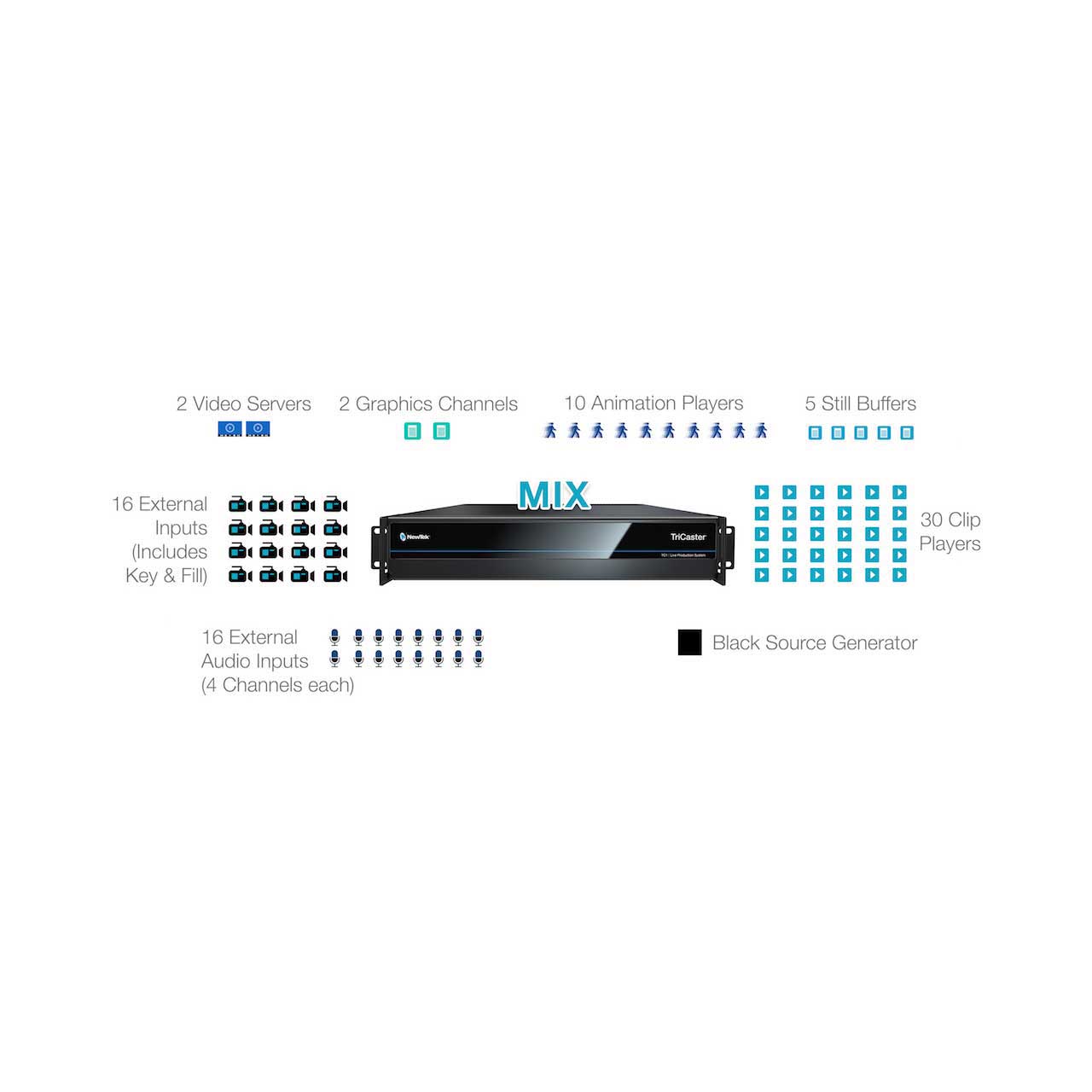

    • Video Input: 16 x simultaneous external video inputs, supporting any combination of compatible sources in resolutions up to 4K UHD at frame rates up to 60fps (2160p 59.94)
    • Video Output: Configurable for up to 4 independent video mix outputs, with simultaneous delivery via IP and SDI
    • SDI Video Input: 4 x 3G/HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates
    • Media: 5 x media players, 2 x DDR, 2 x GFX, 1 x Sound, 15 x media buffers, 10 x animation buffers, 5 x graphic buffers, 30 x clip players
    • PTZ: Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422 and IP, with integrated controls and preset system
    • Skype TX: Native support for up to 2 simultaneous Skype video call inputs via Skype TX software integration
    • Apple AirPlay: Native support for input of compatible iOS mobile devices via Apple AirPlay
    • Virtual Sets: Integrated LiveSet technology with 30+ live virtual sets and box effects included
    • Grab: Grab full-resolution, deinterlaced still images from external video sources and outputs
    • Export: Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
    • Audio Mixer: Integrated multi-channel audio mixer with support for quad-channel audio, DSPs and 4x4x4 audio input routing
    • Monitoring: Support for up to 3 multiviewer displays with configurable workspaces and viewports
    • Signal Monitoring: Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
    • Processing: Video: Floating Point YCbCr +A 4:4:4:4; Audio: Floating Point, 96 kHz
    • Throughput Latency: ~1.0-1.5 frames
    • Tally: Support for hardware tally via HD15 GPI connector, network tally via NDI, and Blackmagic Design SDI tally standard
    • Genlock: Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals
    • GPI: Supports GPI signals via JLCooper Electronics eBox GPI interface
    • MIDI: Support for standard MIDI protocol enabling third-party device control
    • Internal Storage:
      4TB Internal Media Storage
      2 x 2TB solid-state drives configured in RAID 0
    • USB:
      1 x USB 3.2 Gen2x2 Type-C interface
      7 x USB 3.2 Gen1
    • Type-A interface
    • Network: 1 x 10GbE interface and 1 x Gigabit interface
    • Dimensions: 19.0 x 3.5 x 19.57 Inches
