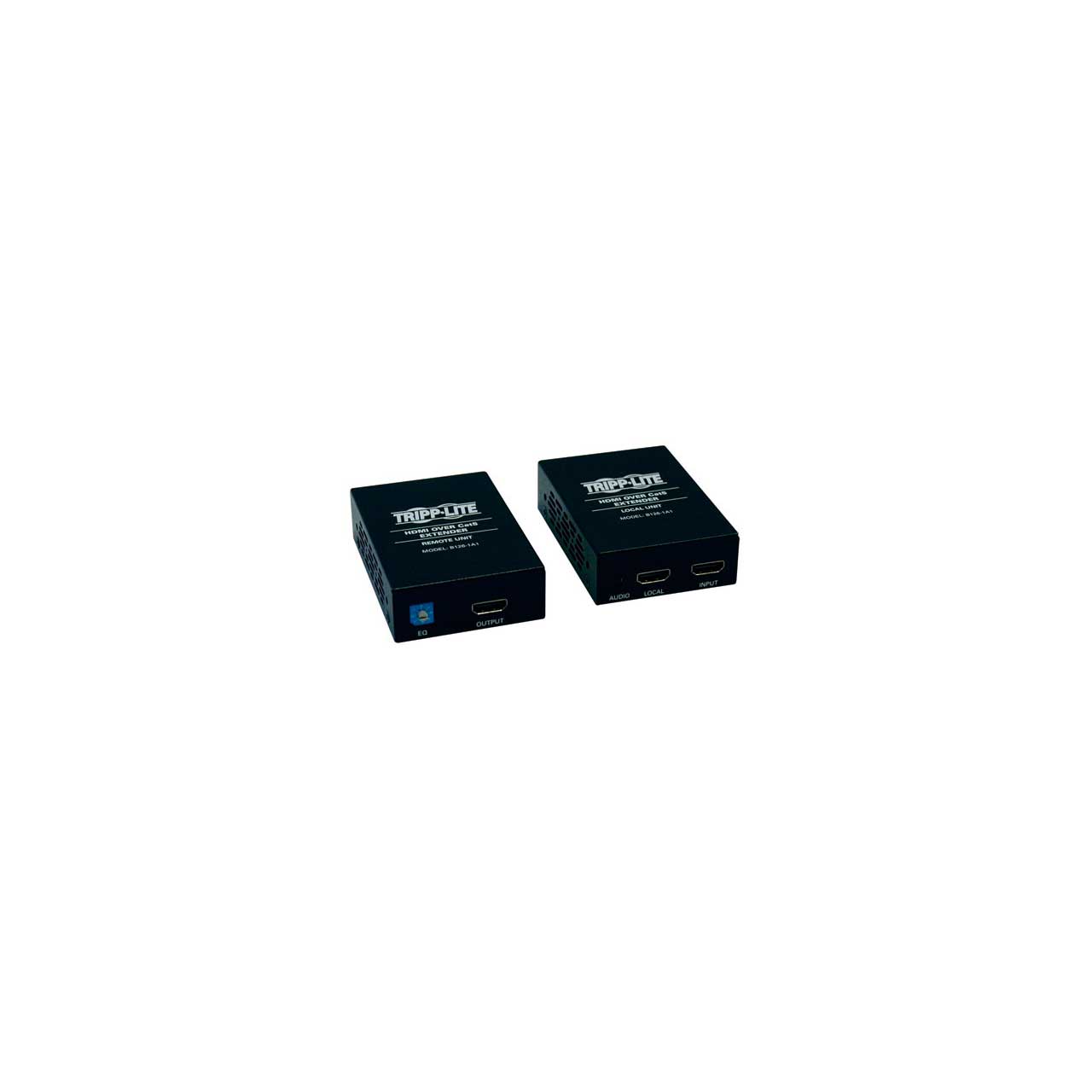

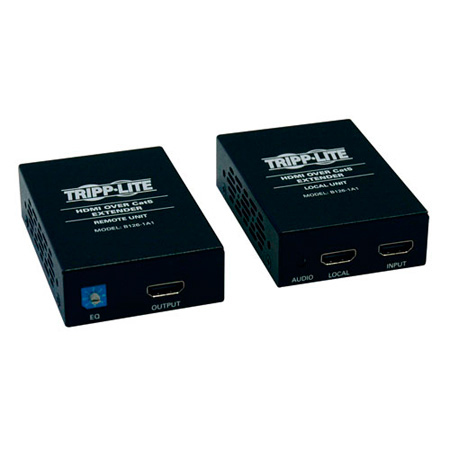

Tripp Lite B126-1A1 HDMI Over Single Cat5 Active Extender Kit

B126-1A1 - Overview

• Features:

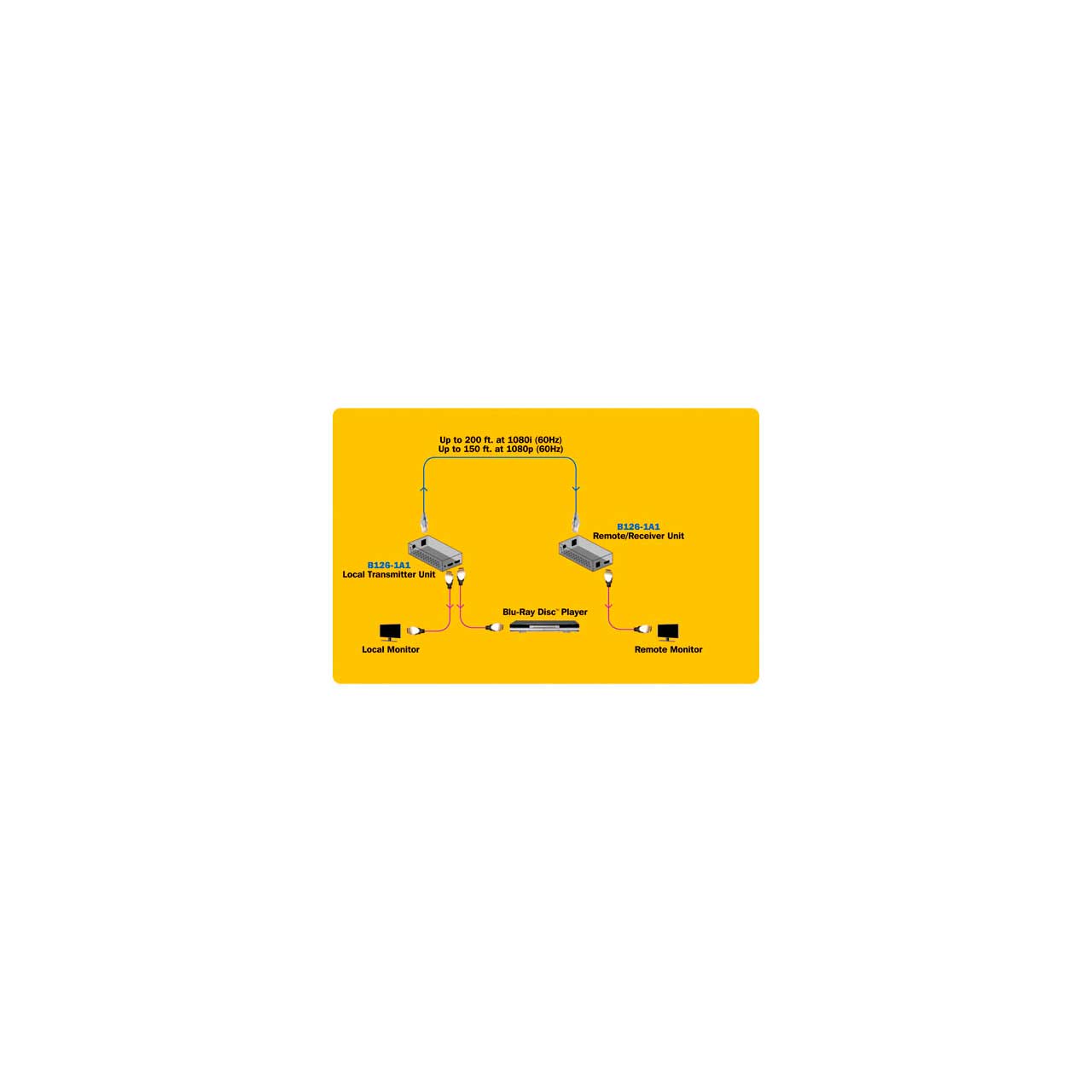

  • Extends a 1080i (60 Hz) signal up to 200 ft., a 1080p (60 Hz) signal up to 150 ft. and a 3D signal up to 125 ft.
  • Connect up to 3 B126-110 remote repeaters in between the transmitter and receiver for maximum signal range of 700 feet (1080i), 500 feet (1080p) and 400 feet (3D)
  • Transmitter and receiver connect with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series)
  • Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio
  • Supports 24-bit True Color (8 bits per channel) and HDCP
  • Built-in equalization control lets you adjust the image on the local monitor
  • Plug-and-play engineering-no software or drivers to download and install
  • Works with all operating systems and HDMI video sources
  • Units connect quickly to monitors with HDMI cable, such as Tripp Lite's P568-Series
  • LEDs indicate at a glance when the unit is receiving power and a signal from the previous link in the chain
  • Included mounting hardware lets you install the units on a wall, rack or pole


• Specifications:

  • Physical
  • Shipping Dimensions (hwd / in.): 2.20 x 6.20 x 8.30
  • Shipping Weight (lbs.): 1.70
  • Included Mounting Accessories: Yes
  • Color: Black

    Environmental
  • Operating Temperature Range: 0 to 40 C (32 to 104 F)
  • Storage Temperature Range: -20 to 60 C (-4 to 140 F)
  • Relative Humidity: 20 to 90%

    Communications
  • Max 1024 x 768 Range (ft): 200
  • Max 480P Range (ft): 200
  • Max 1440 x 900 Range (ft): 200
  • Max 1080i Range (ft): 200
  • Max 1080P Range (ft): 150
  • Max 480i Range (ft): 200
  • Max 640 x 480 Range (ft): 200
  • Max 800 x 600 Range (ft): 200
  • Max 1600 x 1200 Range (ft): 200
  • Max 720P Range (ft): 200

    Connections
  • Ports: 1
  • Side A - Connector 1: (2) HDMI (female)
  • Side A - Connector 2: RJ45 (female)
  • Side B - Connector 1: HDMI (female)
  • Side B - Connector 2: RJ45 (female)

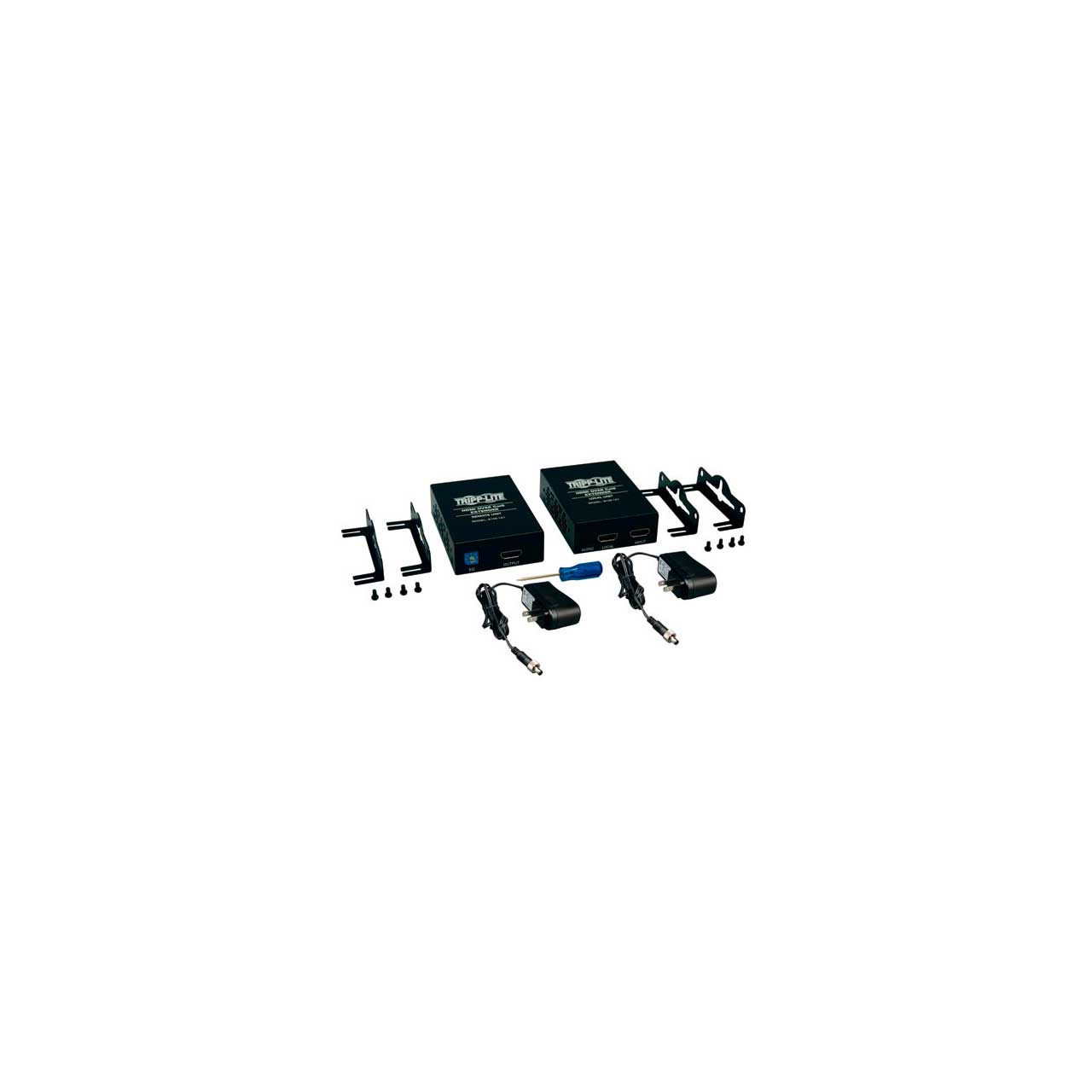

• Item Includes:

  • Transmitter unit
  • Receiver unit
  • Screwdriver for adjusting equalization
  • (2) External Power Supplies with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.)
  • Mounting hardware
  • Owner's Manual


• GTIN:

  0037332158925
