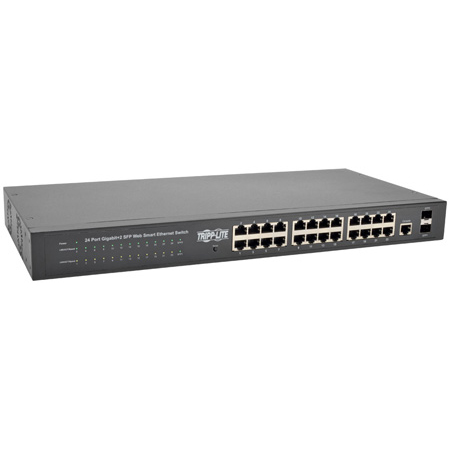

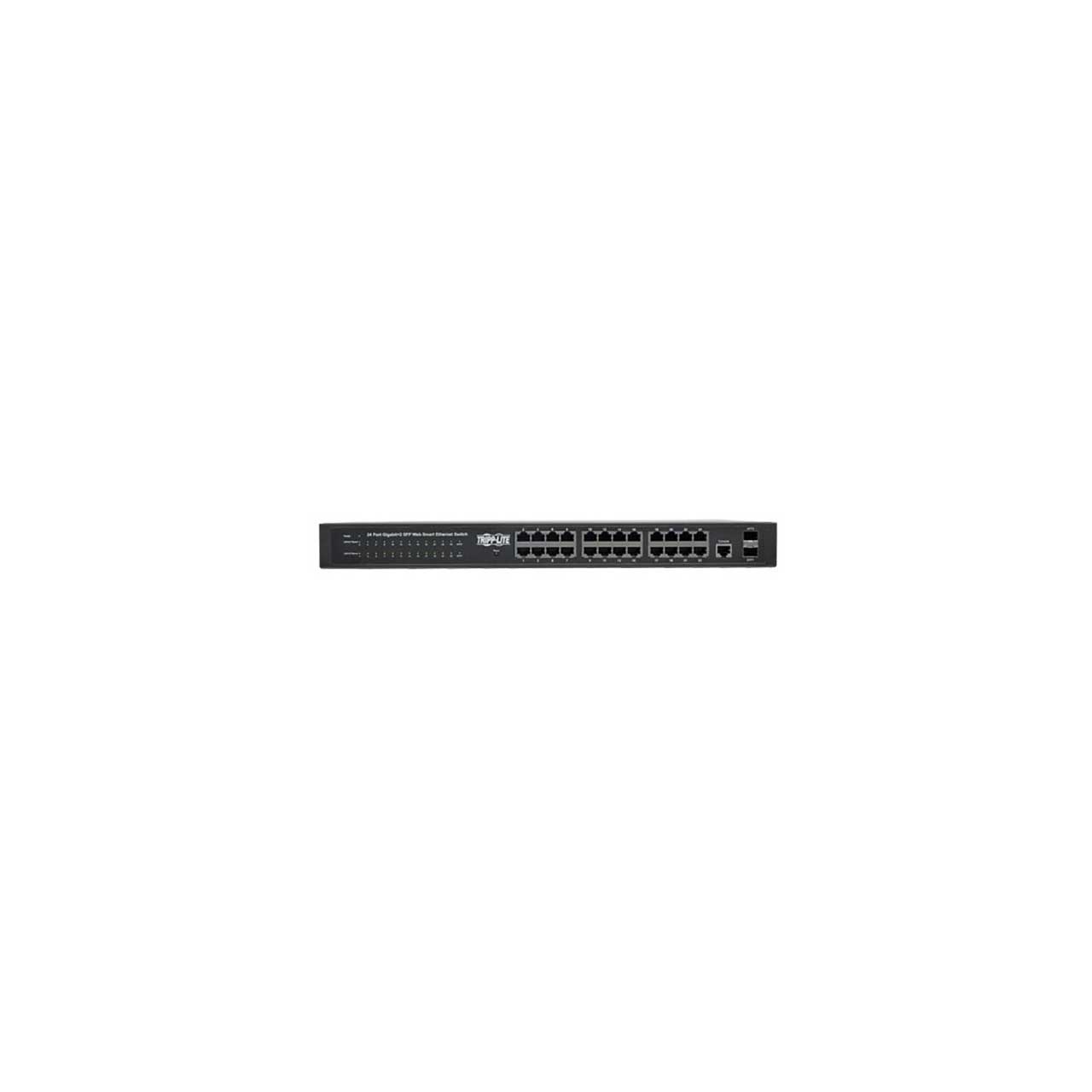

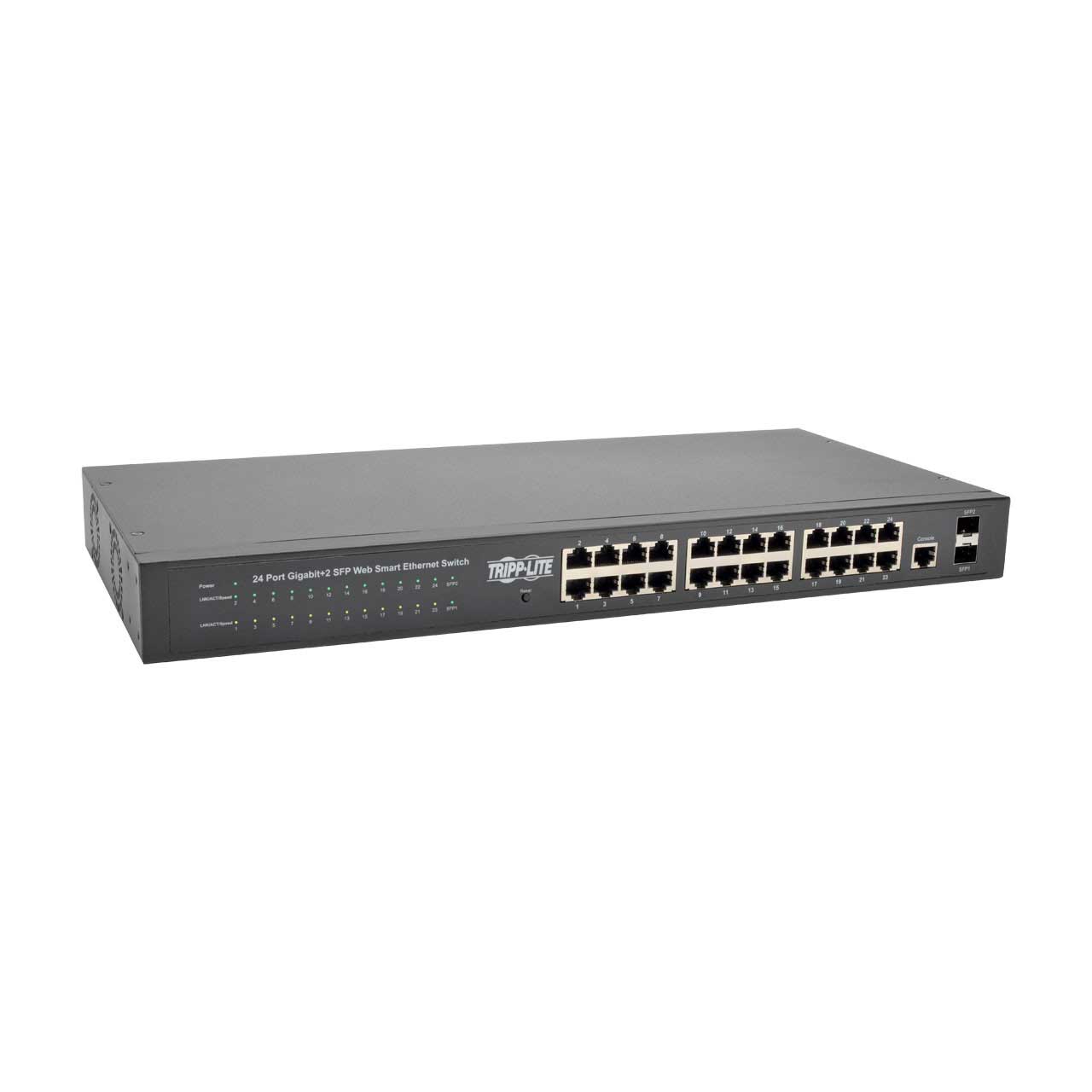

Tripp Lite NGS24C2 24 10/100/1000Mbps Port Gigabit L2 Web-Smart Managed Switch - 2 Dedicated Gigabit SFP Slots - 52 Gbps

NGS24C2 - Overview

• Features:

  • Enterprise Managed Network Switch
  • 24 twisted-pair RJ45 Gigabit Ethernet ports
  • Auto-negotiable 10/100/1000 Mbps
  • Automatic MDI/MDIX cross-over detection
  • 52 Gbps switching capacity (2 Gbps per port with full duplex)
  • Easy-to-read LEDs indicate connection and activity status for each port
  • Supports 9k jumbo frames
  • Supports MAC address auto-learning and auto-aging up to 8,000 addresses
  • Advanced Enterprise-level and L2 management features

    Built-In Web-Smart Management Software
  • Monitors and controls connected equipment via simple Web interface
  • VLAN, trunking, VPN, port monitoring and other features improve network efficiency and performance

    Dual Dedicated Mini-GBIC SFP Ports
  • Connect to Mini-GBIC SFP modules for uplinking to other switches via optical fiber or copper
  • LEDs indicate interface traffic

    Compliant with Energy Efficient Ethernet standards
  • Automatically shifts unused ports to low power state without interrupting network connection
  • Meets IEEE 802.3ab, 802.3i, 802.3u, 802.3x, 802.3, 802.1q, 802.1d, 802.1w and 802.3ad standards

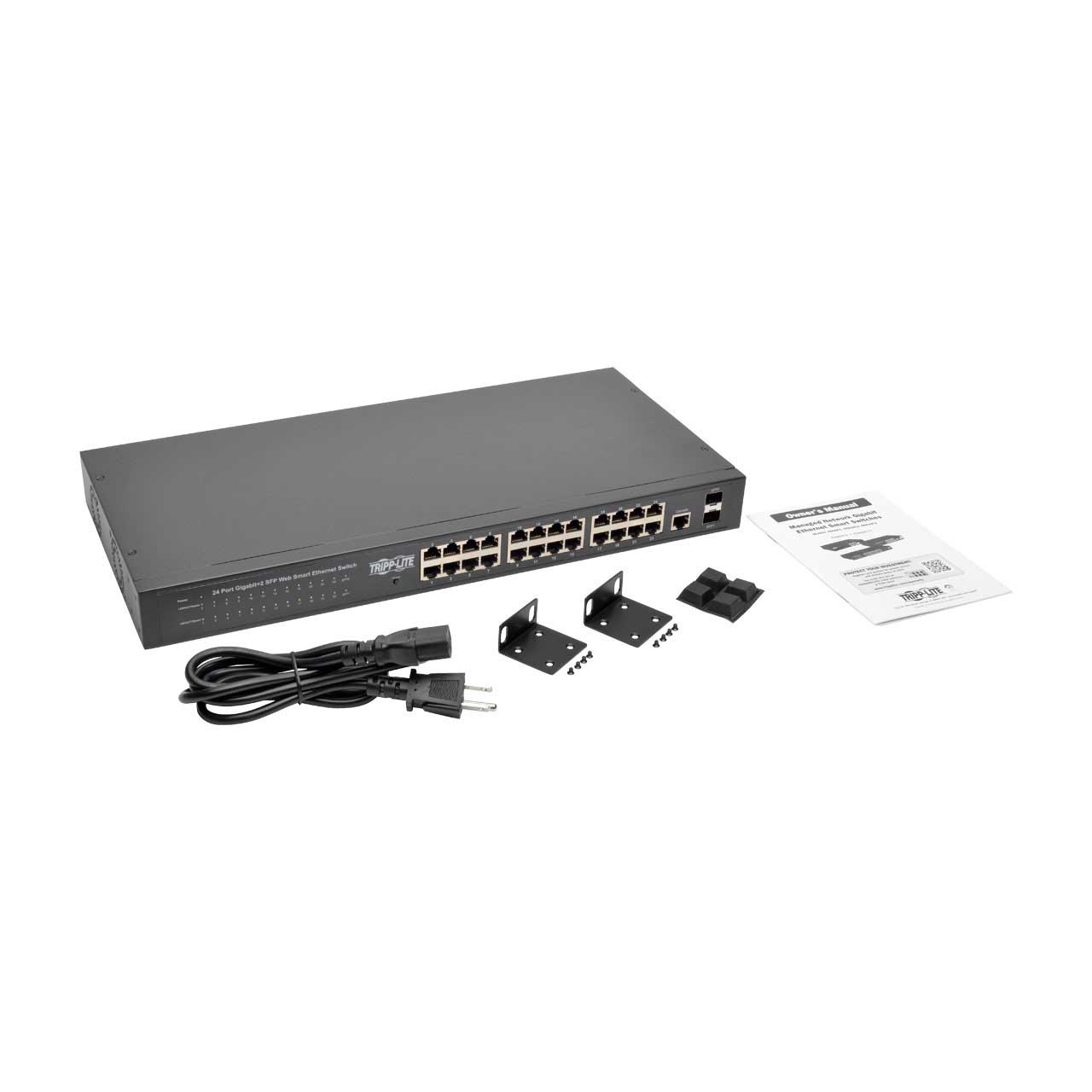

    Versatile Installation Options
  • Fanless metal housing mounts in 1U of EIA-standard 19 in. racks
  • Supports desktop installation using included rubber feet on flat surface
  • 5 ft. power cord with NEMA 5-15P plug connects to compatible AC power source


• Specifications:

  • Input
  • Electrical Consumption: 80 watts max.

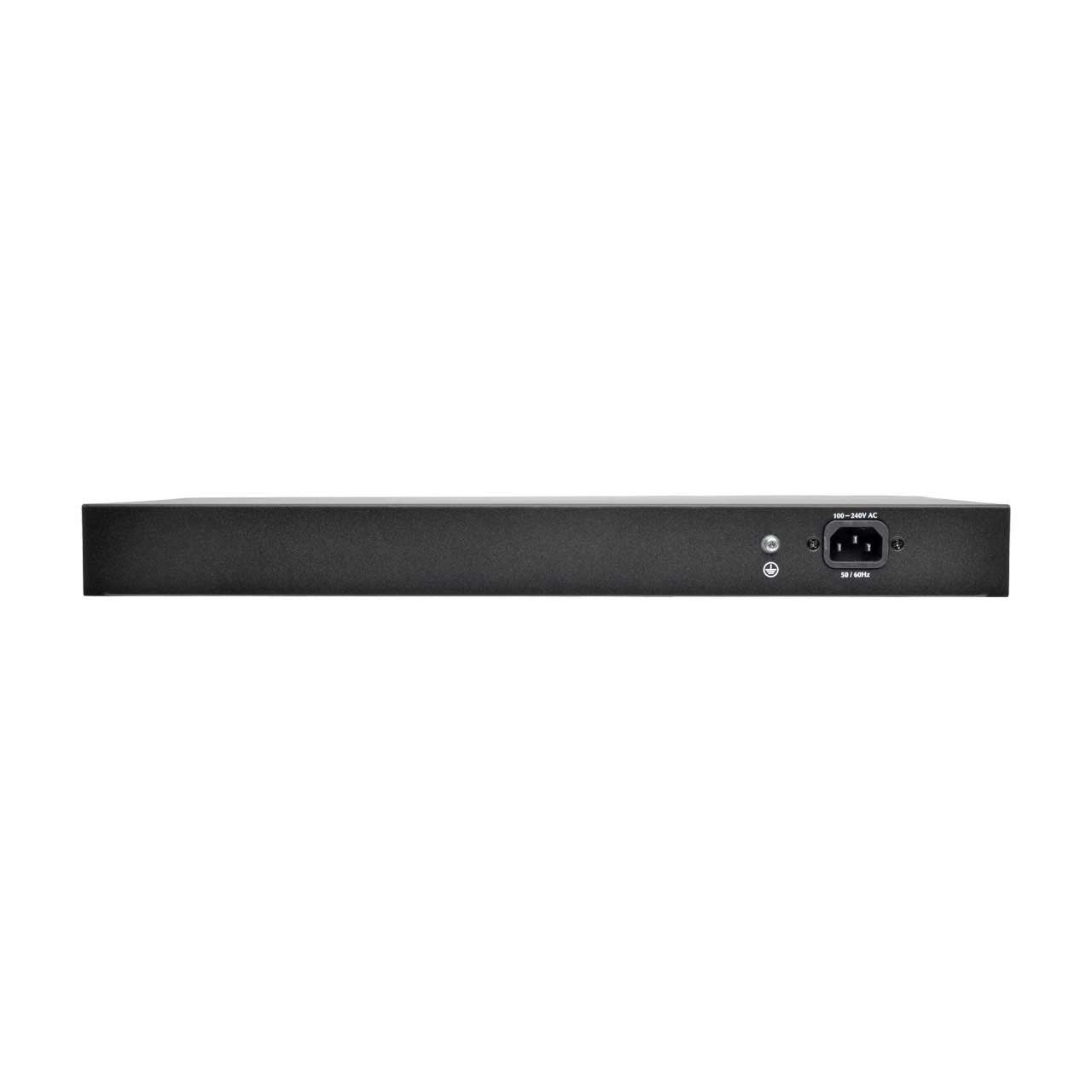

  • Input Plug Features: Detachable NEMA 5-15P to C13 input cable can be replaced with a wide variety of 100 to 240V international
  • cordsets that terminate to a C13 connector on the output side
  • Input Cord Length (ft.): 5
  • Input Cord Length (m): 1.52
  • Voltage Compatibility (VAC): 100; 110; 120; 127; 200; 208/240
  • Input Phase: Single-Phase
  • Input Plug Type NEMA 5-15P

    User Interface, Alerts & Controls
  • Switches: 1 included switch enables factory reset
  • LED Indicators: Power LED (Green for Power On); One LED per RJ-45 port (Amber indicates 10/100Mbps link; Green indicates 1000Mbps link; LEDs flash to indicate port activity); Two LEDs indicate SFP connection (Green)

    Physical
  • Primary Form Factor: Desktop; Rackmount
  • Minimum Required Rack Depth (inches): 8.1
  • Minimum Required Rack Depth (cm): 20.57
  • Shipping Weight (lbs.): 7.06
  • Shipping Weight (kg): 3.21
  • Unit Dimensions (hwd / in.): 1.73 x 17.32 x 8.07
  • Unit Dimensions (hwd / cm): 4.39 x 43.99 x 20.5
  • Unit Weight (lbs.): 5.4
  • Unit Weight (kg): 2.45
  • Color: Black
  • Minimum Required Rack Depth (mm): 206

    Environmental
  • Storage Temperature Range: -40 to 158° F (-40 to 70° C)
  • Relative Humidity: 10 to 90% (Non-condensing)
  • Operating Elevation (ft.): 10,000
  • Operating Temperature: 32 to 104° F (0 to 40° C)
  • Operating Elevation (m): 3,000

    Connection
  • Network Switch Ports: 26; (24) 10/100/1000 (RJ45); (2) Dedicated SFP


• Warranty:

  • 5-year limited warranty


• GTIN:

  0037332194831
