TSL Products MPA1-MIX-NET-V-R 1RU 64-Ch 1G AoIP Audio Monitor w/ Optional MADI Input - ST2110-30/ST2022-7/AES67/Ravenna

ITEM #: TSL-MPA1MIXNETVR MFG #: MPA1-MIX-NET-V-R

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the TSL-MPA1MIXNETVR

MPA1-MIX-NET-V-R - Overview

The MPA1 range of audio monitors is trusted by operators and engineers worldwide. The MPA1-MIX-NET provides simultaneous audio monitoring of 64 AoIP audio channels with dual 1GbE network connectivity for operational security.

Built on years of global broadcast audio expertise, the powerful and intuitive MPA1-MIX-NET provides 64 channels of 1GbE AoIP (audio over IP) connectivity with with a simple and intuitive way to monitor multiple audio sources by using it's 8 dedicated rotary controls to quickly configure and create the required monitoring mix.

Natively supporting ST 2110-30, AES67 and Ravenna AoIP formats, along with ST 2022-7 and NMOS discovery and control, provides full integration with today's Broadcast IP networks allowing operators to easily access any audio sources for monitoring.

With a total of 128 audio channels available, up to 16 different monitoring mixes can be created and instantly recalled with the unique 'scroll to select' function.

As a member of the MPA1 range of audio monitors, the MPA1-MIX-NET comes complete with a comprehensive webpage and SNMP support, allowing remote configuration and control.

  • Features:

    • 8 dedicated rotary controls for source level adjustment
    • Up to 8 independent mixes provide instant recall of routing configurations, providing maximum coverage of input sources when required

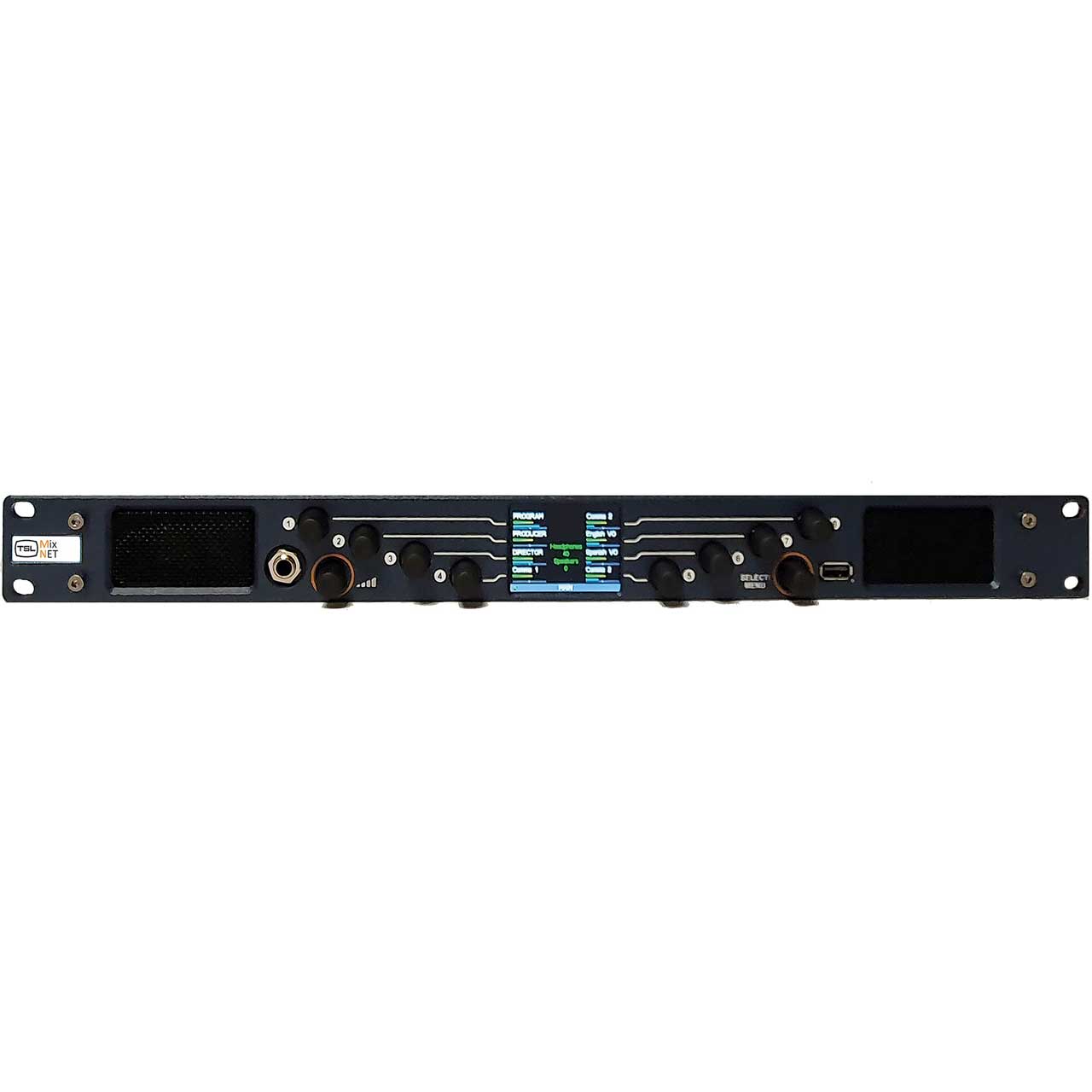

    • Front panel display of audio levels, complete with pan/balance information

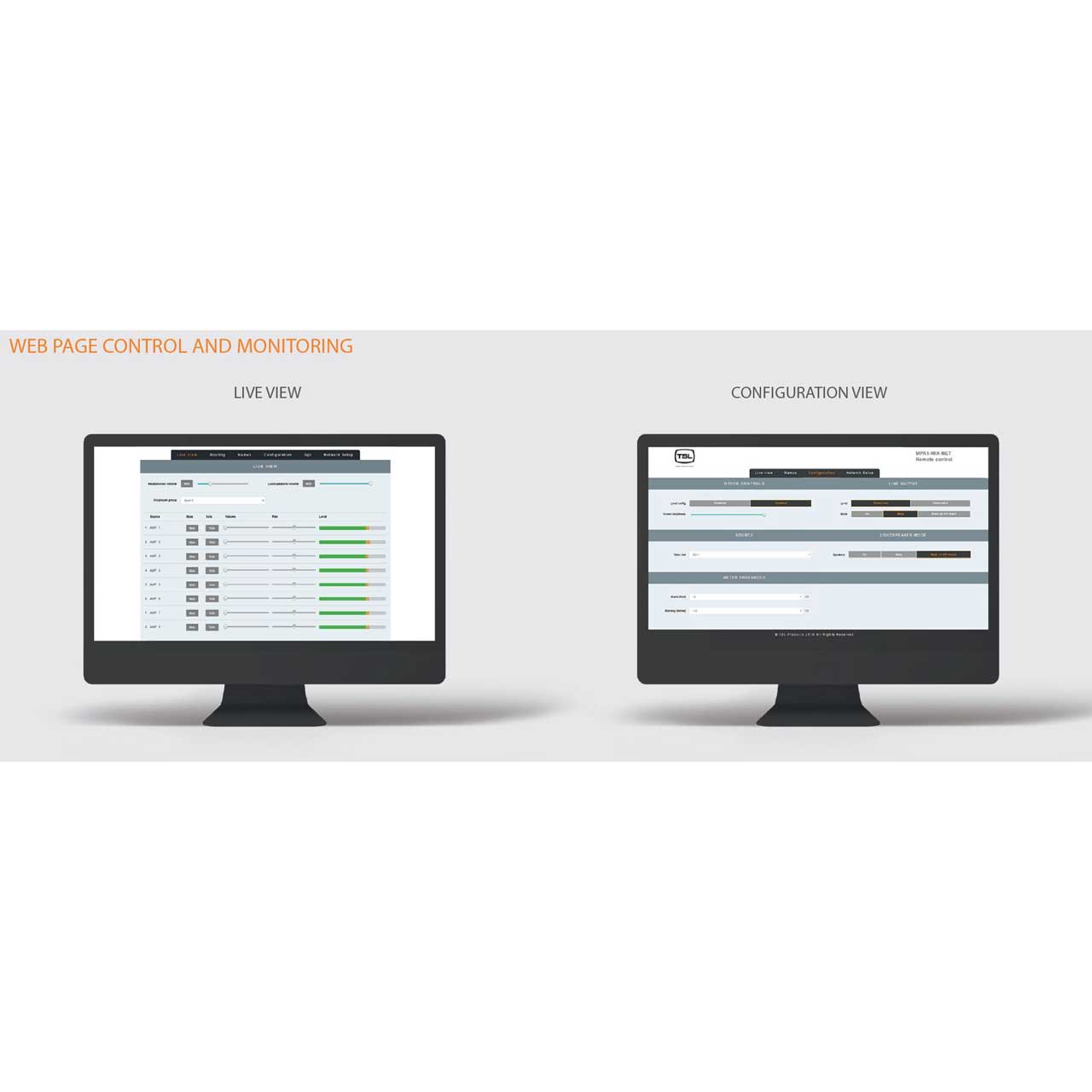

    • Web interface provides quick and simple control and configuration of all key parameters from any remote location
    • Simultaneously monitor multiple signal formats in hybrid environments
    • Acoustically tuned internal loudspeakers
    • 64 channels of AoIP connectivity through dual 1G Ethernet connections supporting ST 2022-7 class B
    • Support for AES67, Ravenna and ST 2110-30 Level A, B and C (1ms and 125µs packet time, stream size up to 64 channels)
    • Support for NMOS IS-04, IS-05 (in-band) and SNMP control (out-of-band) for integration with TSL control and leading third party systems

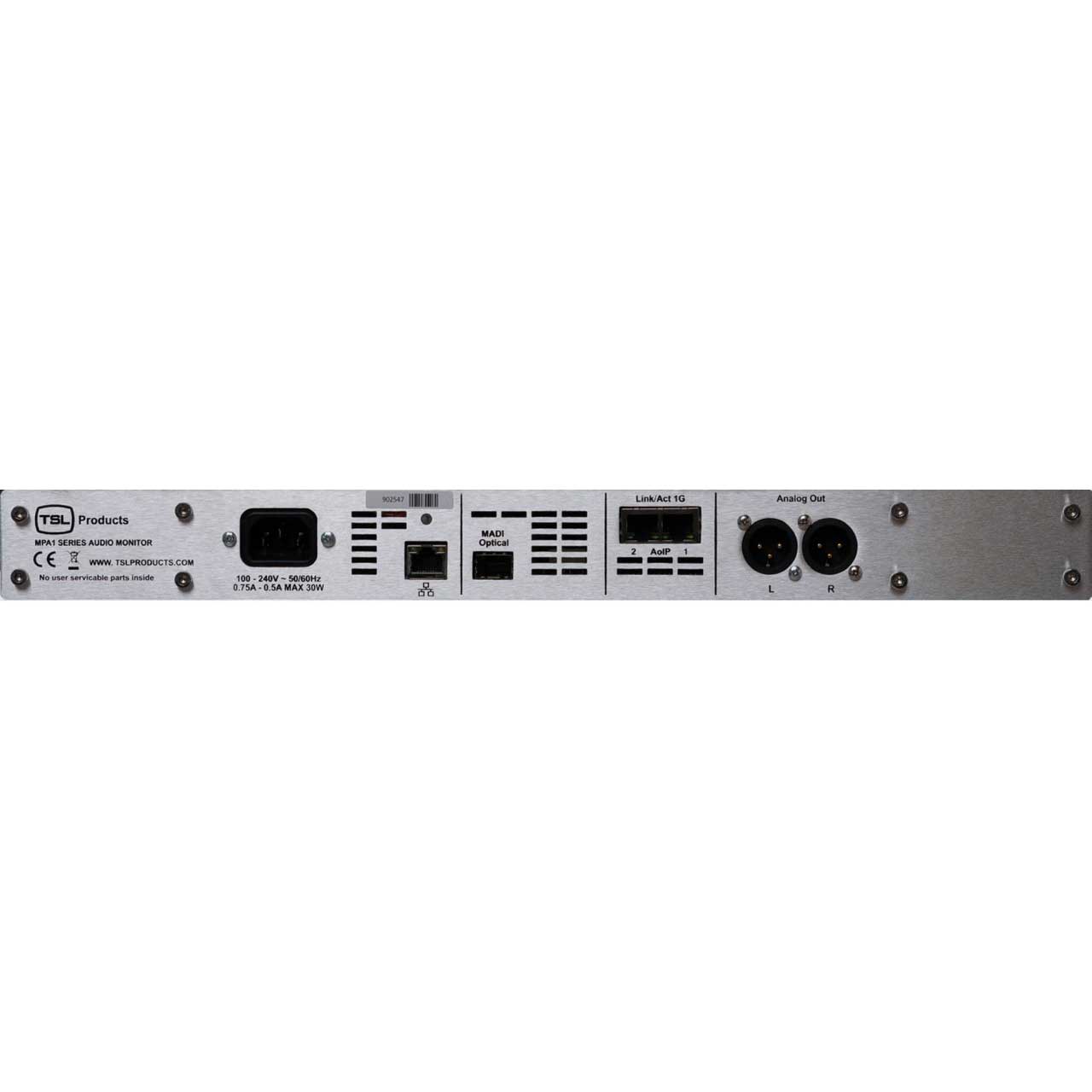

    • SFP slot for optional MADI input (fibre or copper based)
    • 2 line level balanced analog outputs
    • Unit depth of only 100mm


  • Specifications:

    • Height: 1RU
    • Aoip Input: ST2110-30 with ST2022-7, AES67, Ravenna
    • Aoip Input Channels: 64
    • Power: 85-264V ~ 50/60Hz, 0.75A - 0.5A (Max. 30W)
    • AoIP Stream Capacity: 31
    • MADI Input: 64 channels via SFP (optical or coaxial)
    • Display: Single 2.4"
    • NMOS Compatibility: IS-04 and IS-05
    • Simultaneous Audio Channel Display: 16
    • Analog Outputs: Stereo, Balanced Fixed or Variable Level
    • Control Interfaces: SNMP, Web UI, REST
    • API Signal To Noise Ratio: 72dB (+4dBu input level, THD+NA weighted)
    • Peak Acoustic Output: 90dB @ 1foot
    • Dimensions: 19 x 1.77 x 4"
    • Weight: 3.08lb


  • Item Includes:

    • 1x 1RU AoIP audio monitor supporting ST2022-7 IP network topologies. Front panel display with 16 level meters, custom source names, adjustable gain control. 2 x ST2110-30/AES67/Ravenna AoIP input ports via 1Gbit ethernet, and 1 x optional MADI SFP input. 1 x balanced stereo output. Internal loudspeakers, headphone output, internal PSU, web interface and SNMP control.
