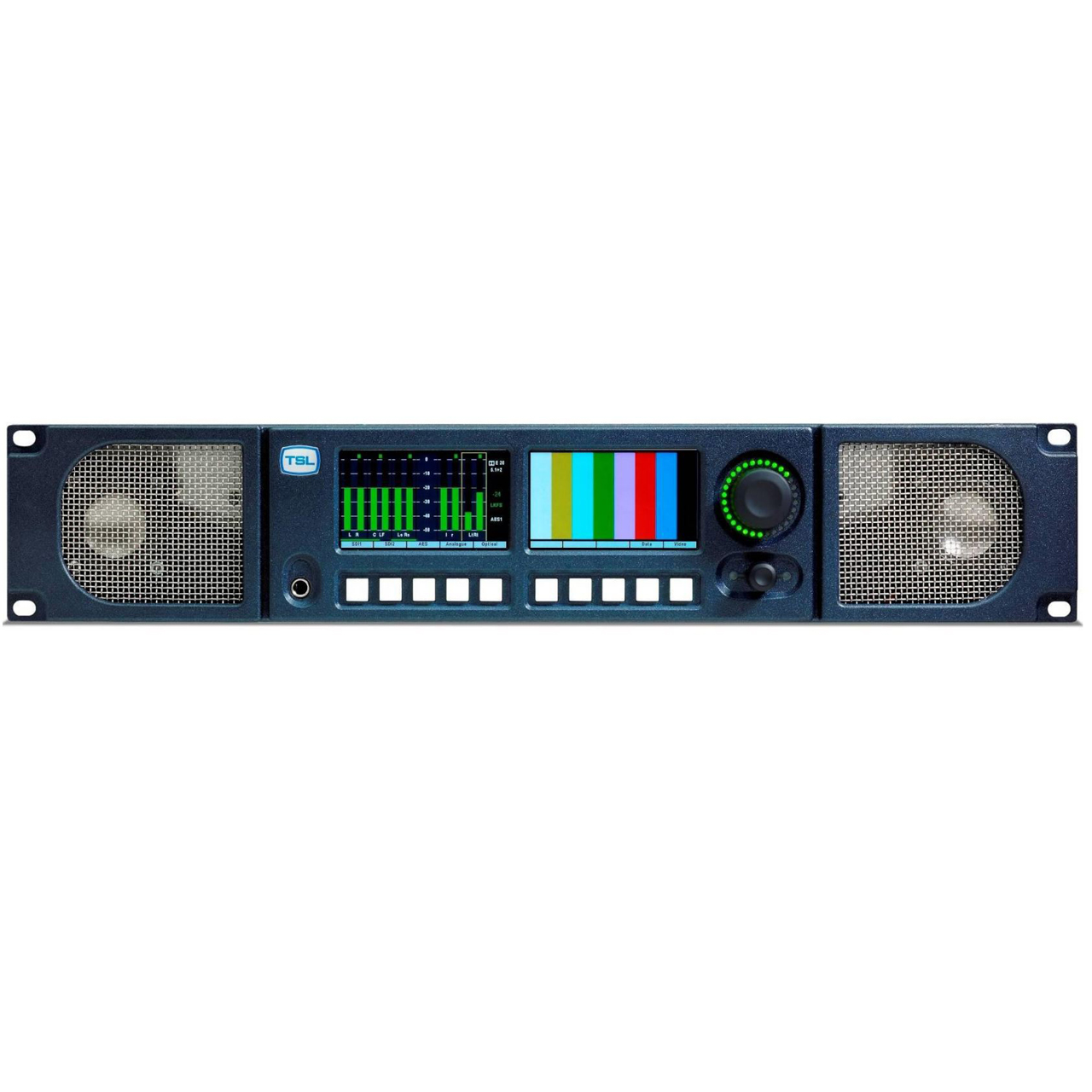

TSL Products PAM2-3G16-3ND 2RU 16-Ch Audio Monitor w/ Internal Loudspeaker System and Dual 3.5 Inch TFT LCDs - Non Dolby

PAM2-3G16-3ND - Overview

Non-Dolby, 3rd Gen Version!

• Features:

  • Dual auto-sensing, 1080p (60, 59, 94 and 50Hz), HD/SDI video inputs
  • De-embedded audio monitoring from video (HD/SDI) with intuitive selection from up to sixteen channels (four groups)
  • 8 AES (8 Pairs/16 Channel) Inputs - 110Ohm Balanced or 75Ohm unbalanced via optional CAB-D25-
  • BNC cable
  • SPDIF Optical Input
  • 6 Analog Stereo Inputs
  • 'Scroll To Hear'- top level bargraph navigation using rotary encoder
  • Downmix of discreet multichannel audio to stereo for compatibility monitoring

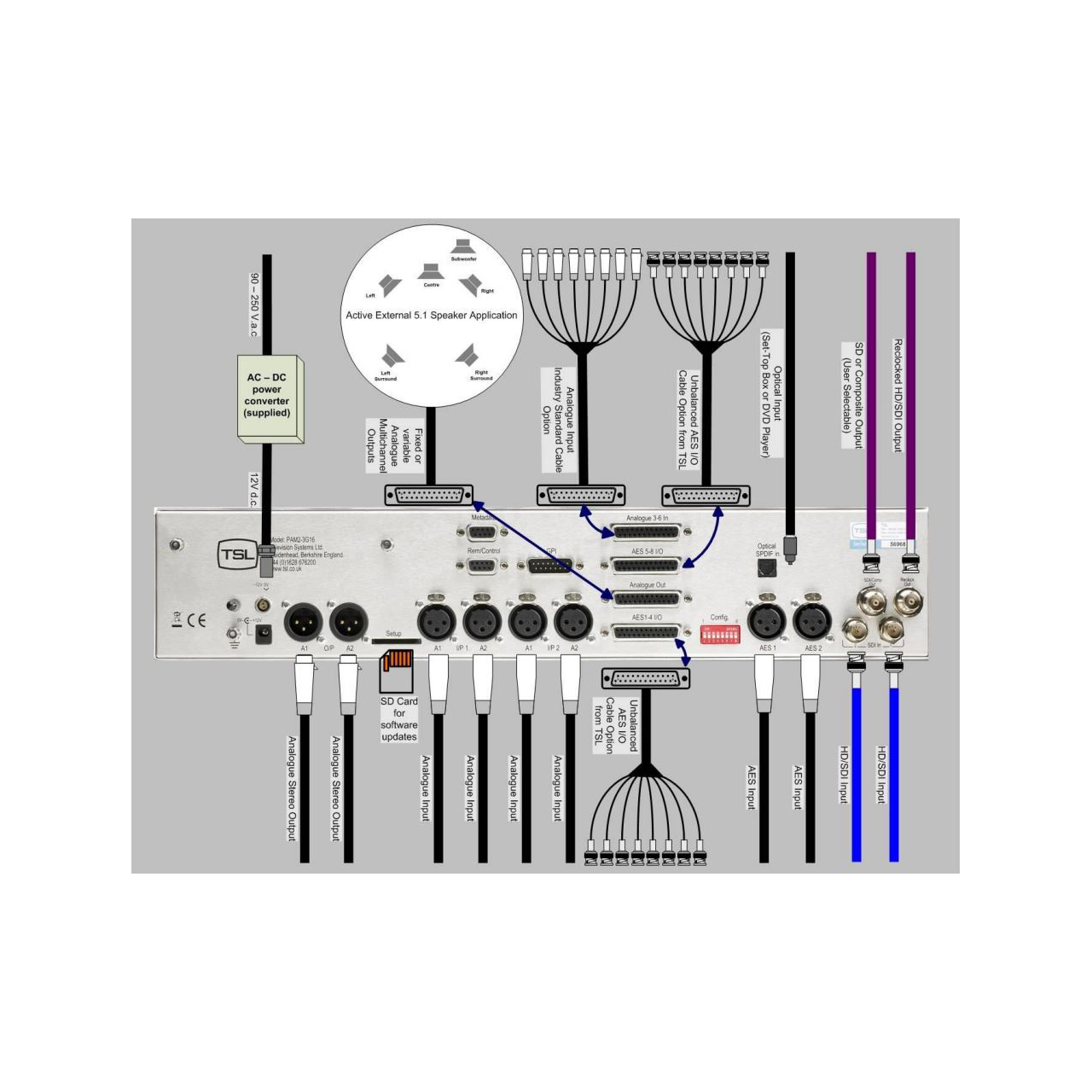

  • Multichannel audio outputs for external stereo or 5.1 loudspeaker system integration
  • ITU BS1770/71 loudness measurement and Histogram
  • User Programmable 'Assign Matrix'
  • Audio Output Delay
  • Automatic mode switching - depending on signal type
  • Energy Saver Screen Mode
  • Dolby E, Dolby Digital and Dolby Digital Plus decoding from HD.SDI and AES signal sources
  • Lt Rt and Lo Ro Downmixing of Dolby Signals
  • Hi Resolution Video confidence monitoring
  • Re-clocked HD/SDI with down converted SDI or composite (PAL.NTSC) video outputs selected via rear panel Config.
  • Dual high resolution OLED screens for 16 bargraphs, setup and metadata display.
  • Choice of user selectable bargraph scales (BBC PPM, EBU PPM, EBU Digital, Nordic,VU and DIN)
  • User programmable presets. 8 by hardware buttons, GPI and 24 internal, accessible by high level menu selection
  • Factory preset recall - 5 presets selecting SDI1, SDI2, AES, Analog and Optical Inputs
  • Fixed or variable analog multichannel outputs (8 mono)
  • Fixed or variable AES multichannel outputs (8 pairs/16 Channels)
  • Variable stereo analog outputs
  • High quality internal full range loudspeaker system
  • Variable LED brightness control
  • Dual 12V DC inputs
  • Serial remote control
  • Headphone output with LS muting
  • Compact, lightweight (5.1Kg) 2RU case, 320mm deep


• Specifications:

  • For full list of Specifications, please see the User Manual in the Attachments tab.
