Theatrixx XVVRM-FIBER2SDI12G Reversible Module - Fiber to 12G-SDI

ITEM #: TTX-XVVRMFBRSDIG MFG #: XVVRM-FIBER2SDI12G**

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

This item is custom made. Ordering this product requires written authorization. Please contact a sales engineer at 1-800-522-2025 for details.

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


XVVRM-FIBER2SDI12G** - Overview

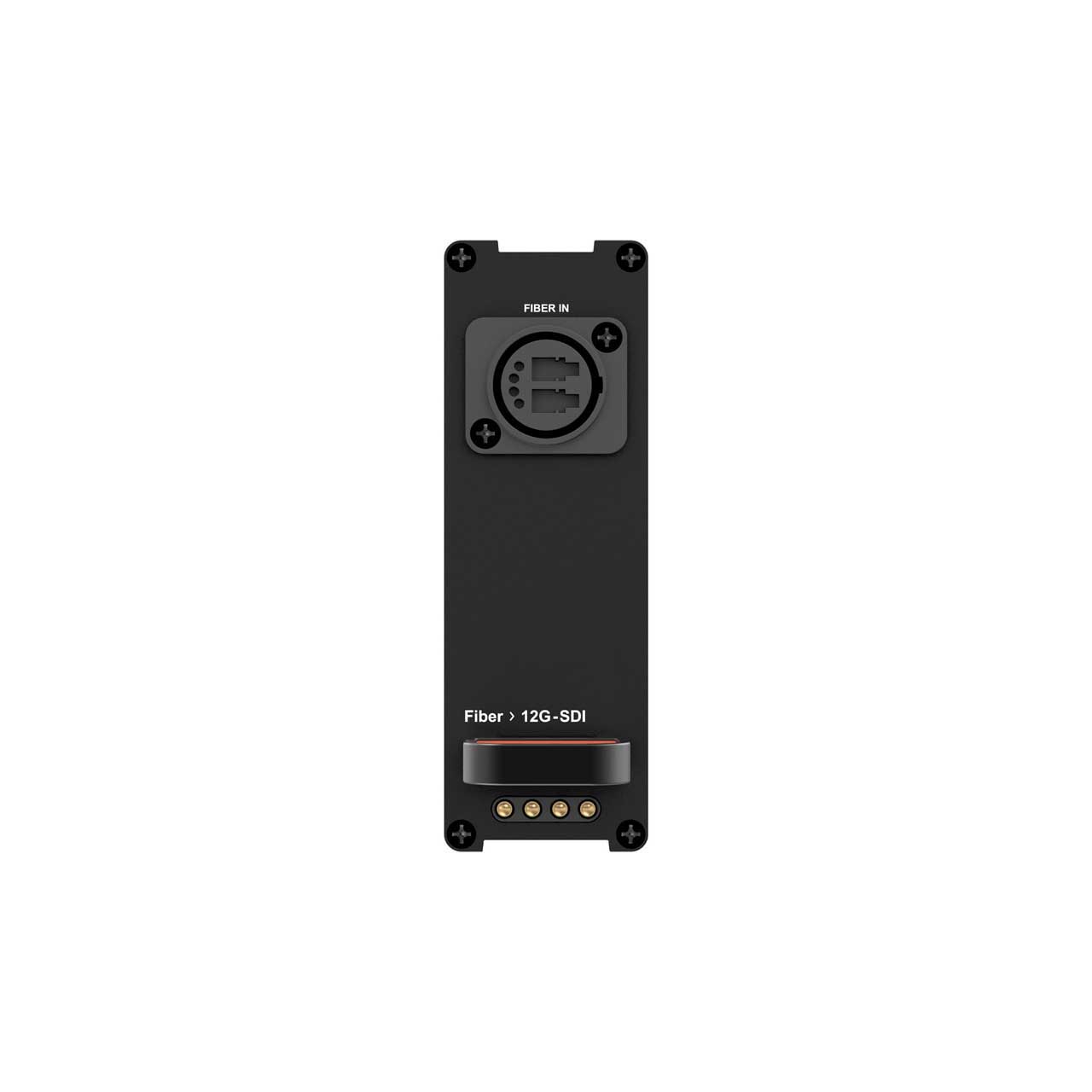

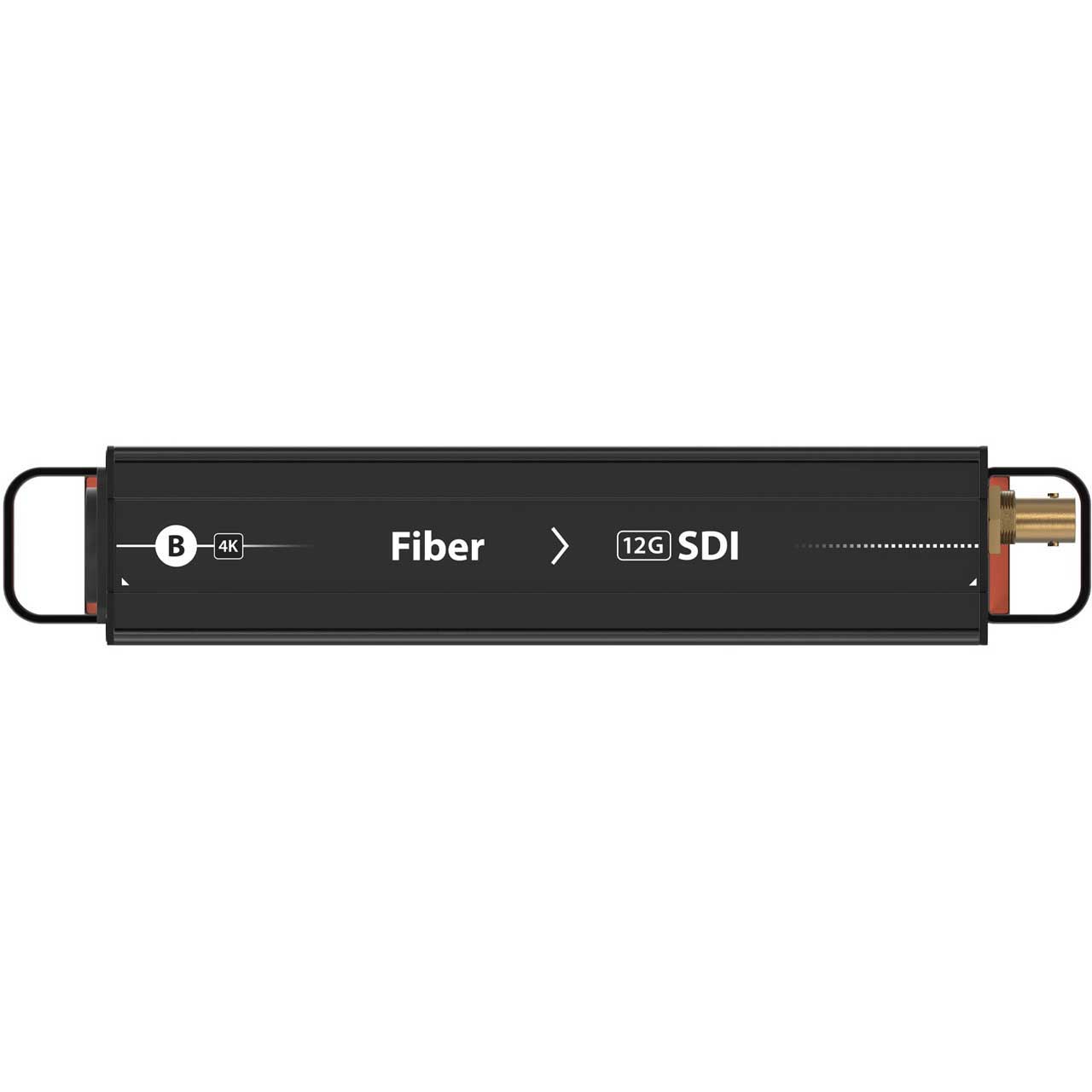

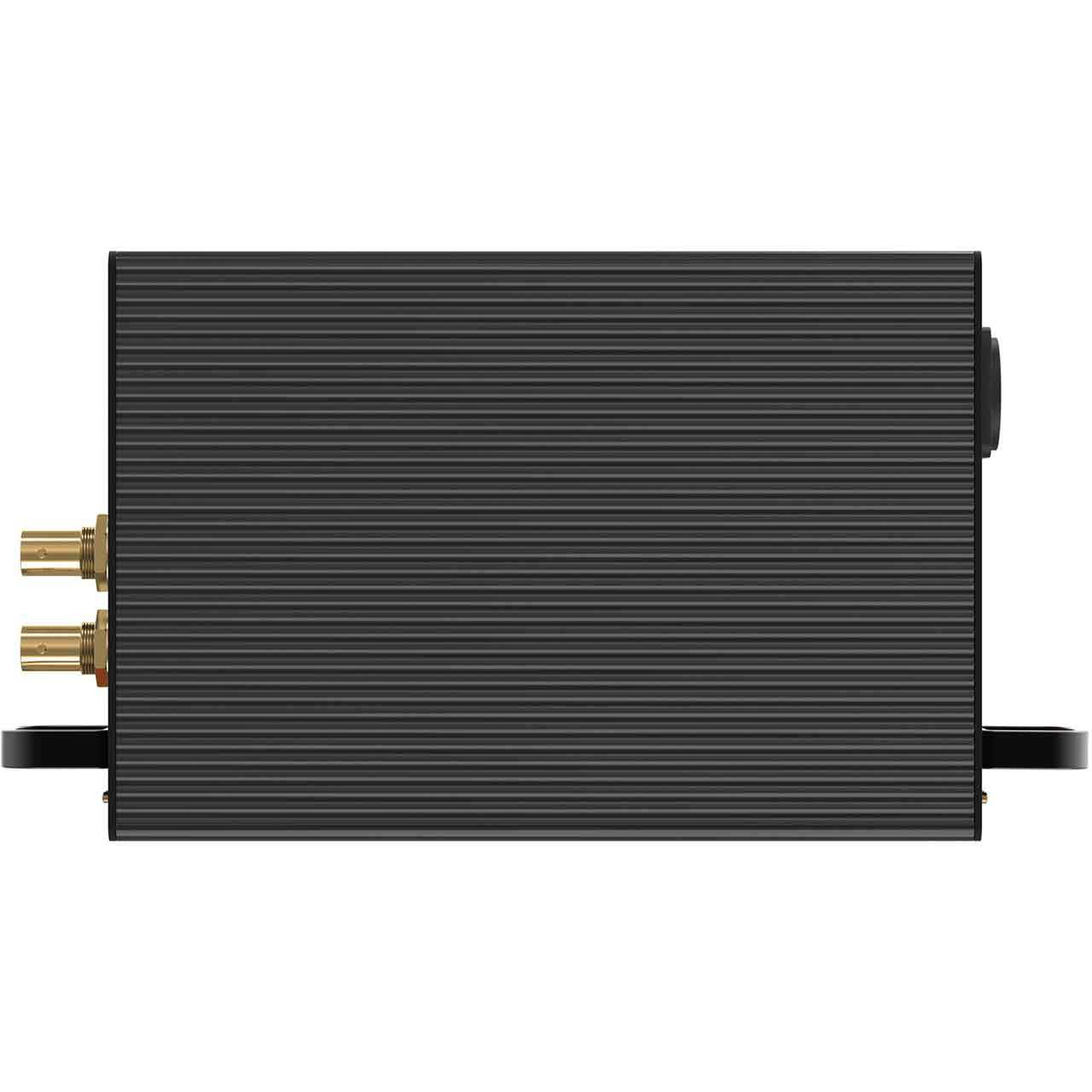

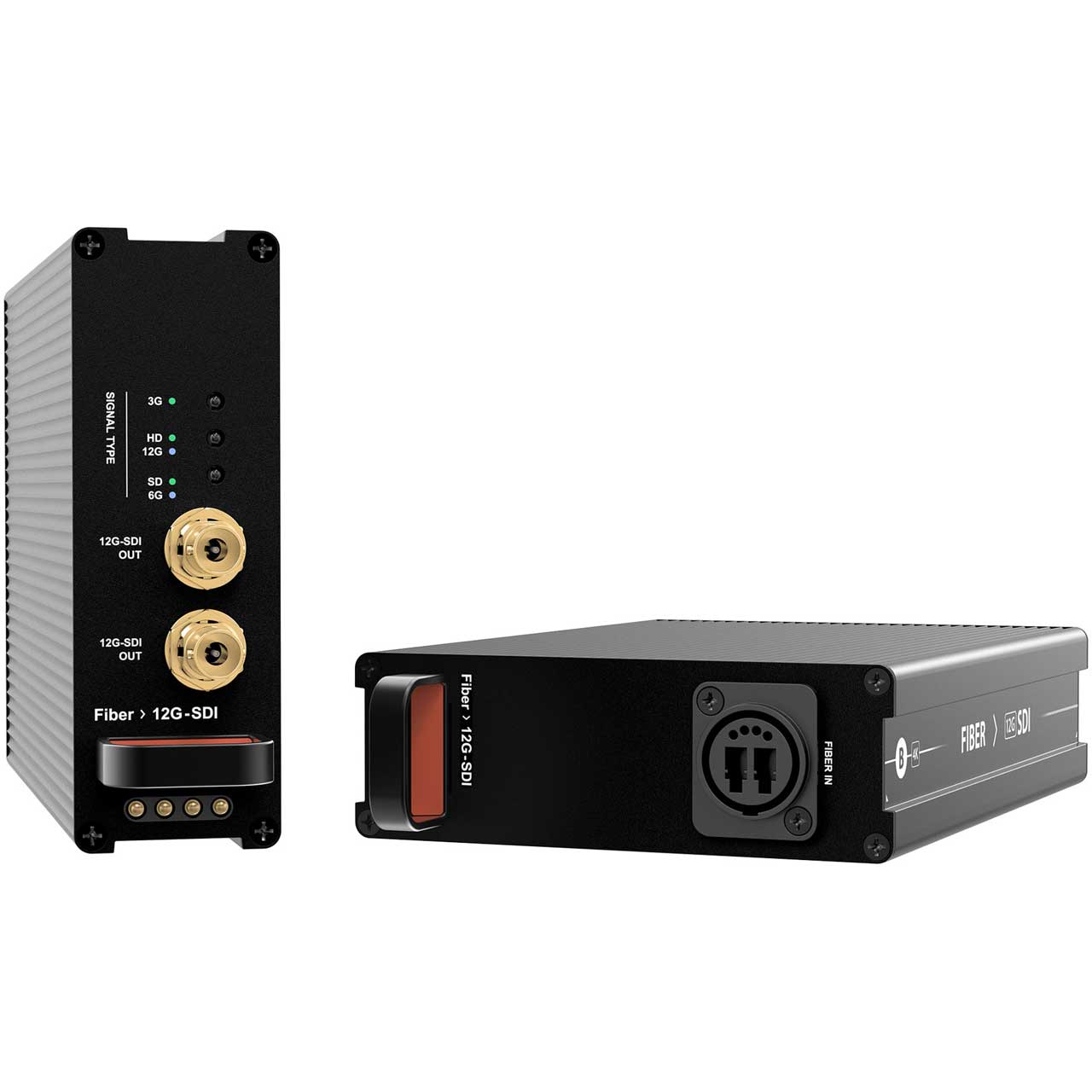

The Theatrixx XVVRM-FIBER2SDI12G** is a Fiber to 12G-SDI Reversible Module that fits in the 8-Bay Reversible Rackmount Converter system.

The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

  • Specifications:

    • Connections
    • Video Input
      Choice of Multimode or Singlemode
      Choice of Optical SDI on ST, OpticalCON DUO or OpticalCON QUAD
    • Video Output: 2x 12G/6G/3G/HD/SD SDI BNC

      Supported Signals
    • Video Format Support: 12G/6G/3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
    • SMPTE Standards: 2082-1, 2082-10, 425 M Level A & B, 424 M, 292 M, 259 M

      Physical
    • Dimensions (HxDxW): 4.78 x 8.85 x 1.61" (121.5 x 225 x 41mm)
    • Weight: 1.56Lbs (710g)
    • Alternate Form Factor: Also available as a standalone converter

      Environmental
    • Relative Humidity: 0% to 90% non-condensing
    • Operating Temperature: 32° to 104°F (0° to 40°C)

      Power Requirements
    • Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
    • Power Consumption: 20W
    • Voltage Range: 12VDC

  • Item Includes:

    • 1x Theatrixx Reversible Module Fiber to 12G-SDI
