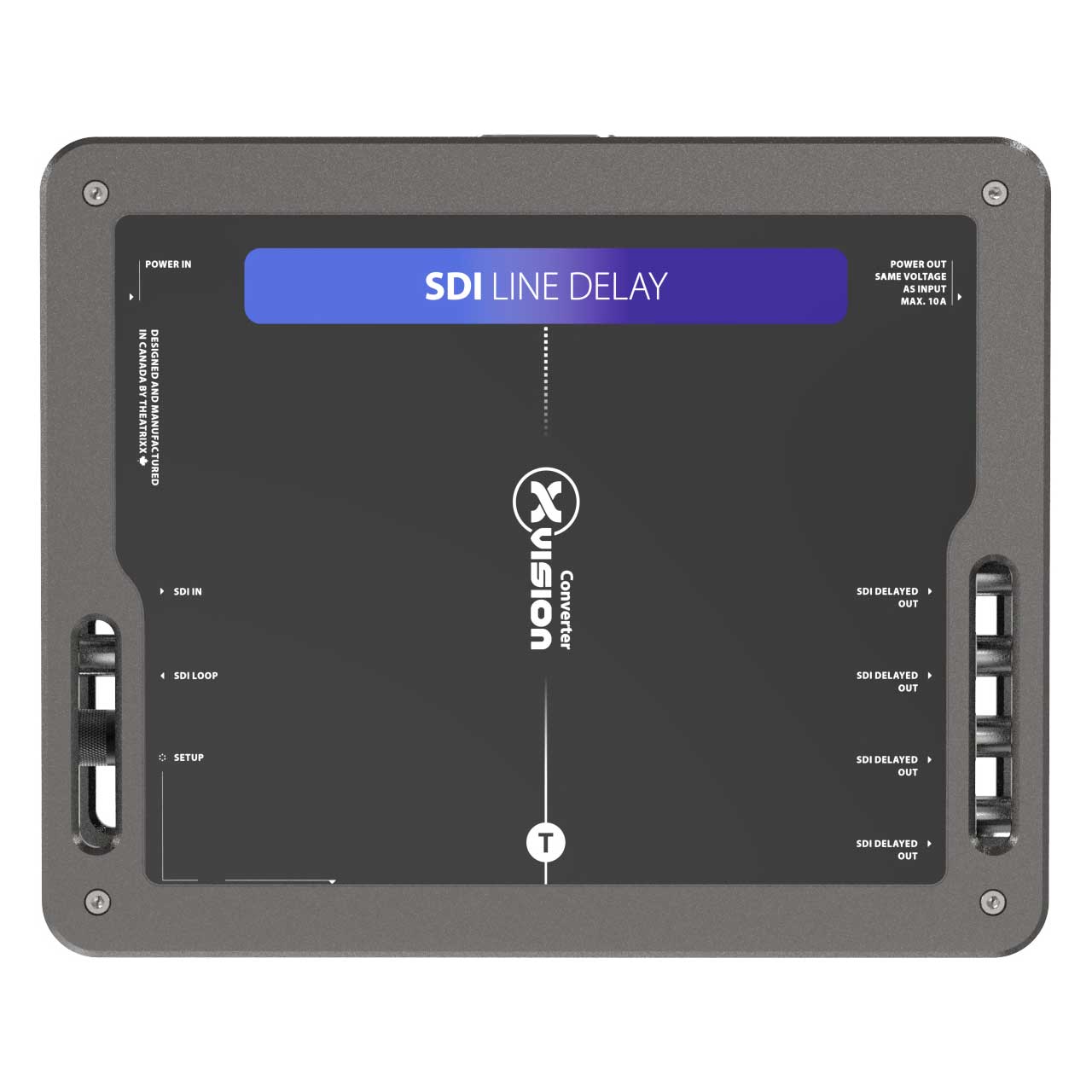

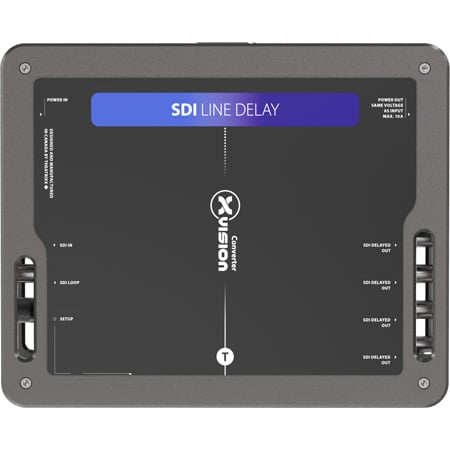

Theatrixx XVVSDIDLY xVision Video Converter - 3G-SDI Line Delay - True1 B-Sized

ITEM #: TTX-XVVSDIDLY MFG #: XVVSDIDLY

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,999.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


XVVSDIDLY - Overview

Professional equipment in mission-critical applications is all about reliability and confidence. So Theatrixx started with a clean sheet, and built what may soon become your most trustworthy piece of equipment.

Introducing the world's first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows and tours and often have a critical role.

Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. Theatrixx wanted to change that, so they designed the Theatrixx XVVSDIDLY xVision Video Converter.

  • Features:

    • Integrated power supply with locking PowerCON connector. Never rely on a cluster of wall-warts again.
    • Built-in convenience 120V outlet to power nearby projector, TV, laptop, small video projector. Power bar to power both the converter and device not required anymore.

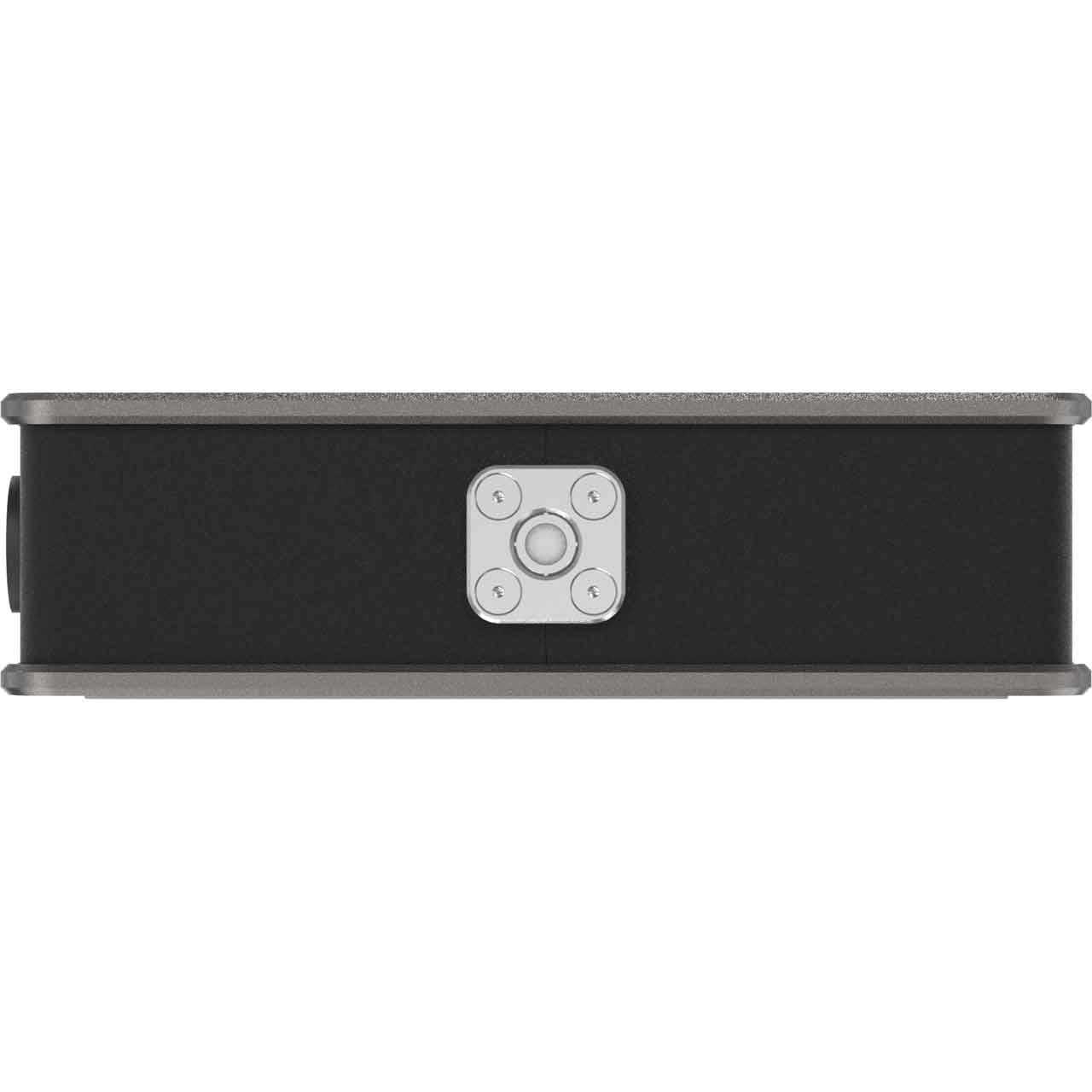

    • Magnetic stacking system and non-skid rubber pad. Saves at least 10 gaffer tape rolls a year.
    • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adapter.
    • Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
    • Plug-n-play operation; One-button operation with no training required. It just works!
    • Clear and ample status LED indicators for quick troubleshooting.
    • Easy on-the-field identification with unique color and alphabetic coding system.
    • Proudly designed and assembled in Canada.

  • Specifications:

    • Processing
    • Maximum Delay
    • 160 frames (2690 ms @ 60 Hz)
    • Delayed elements
    • Entire SDI payload, including audio & meta

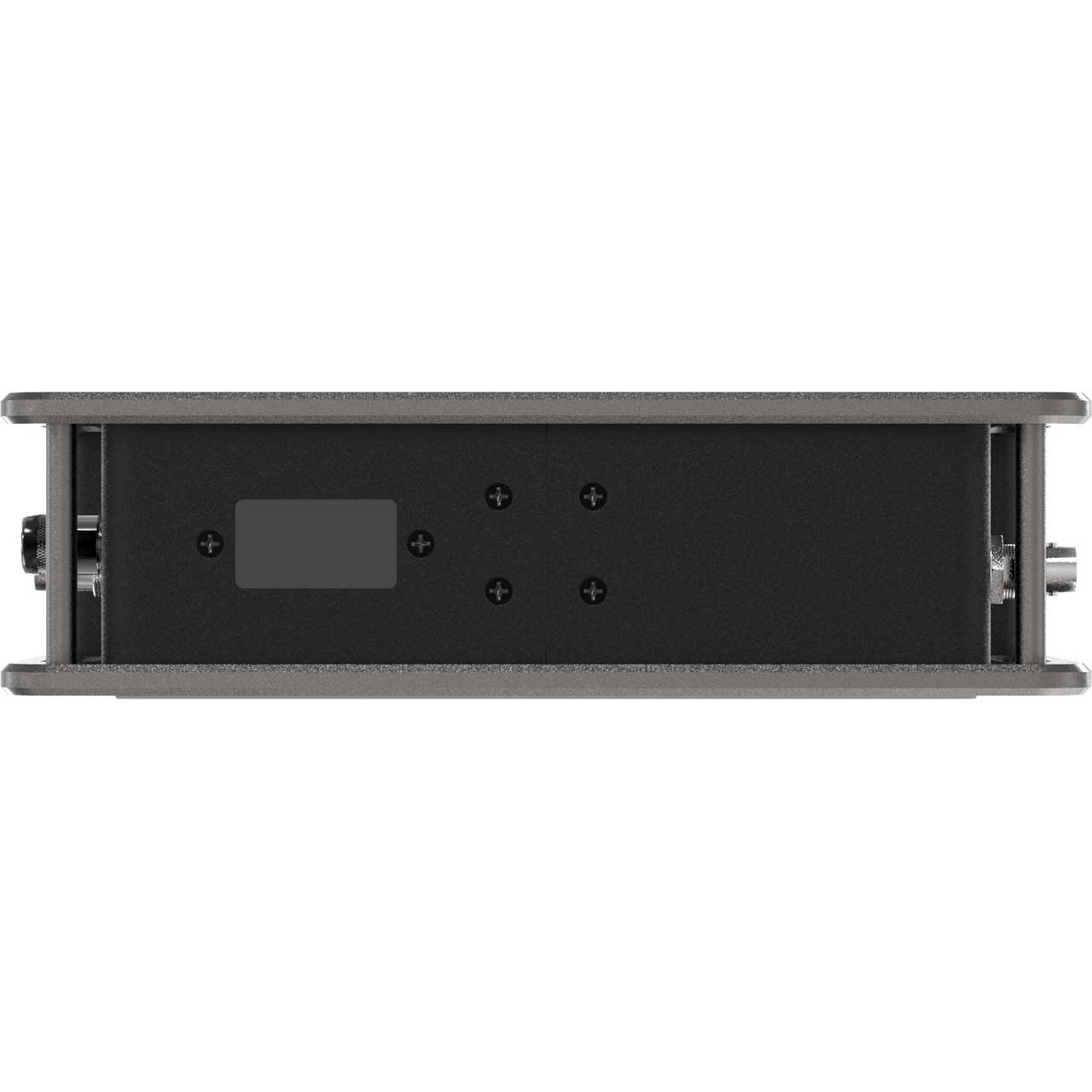

    • Adjustment: By the frame of millisecond using onboard OLED display and rotary wheel

      Connections

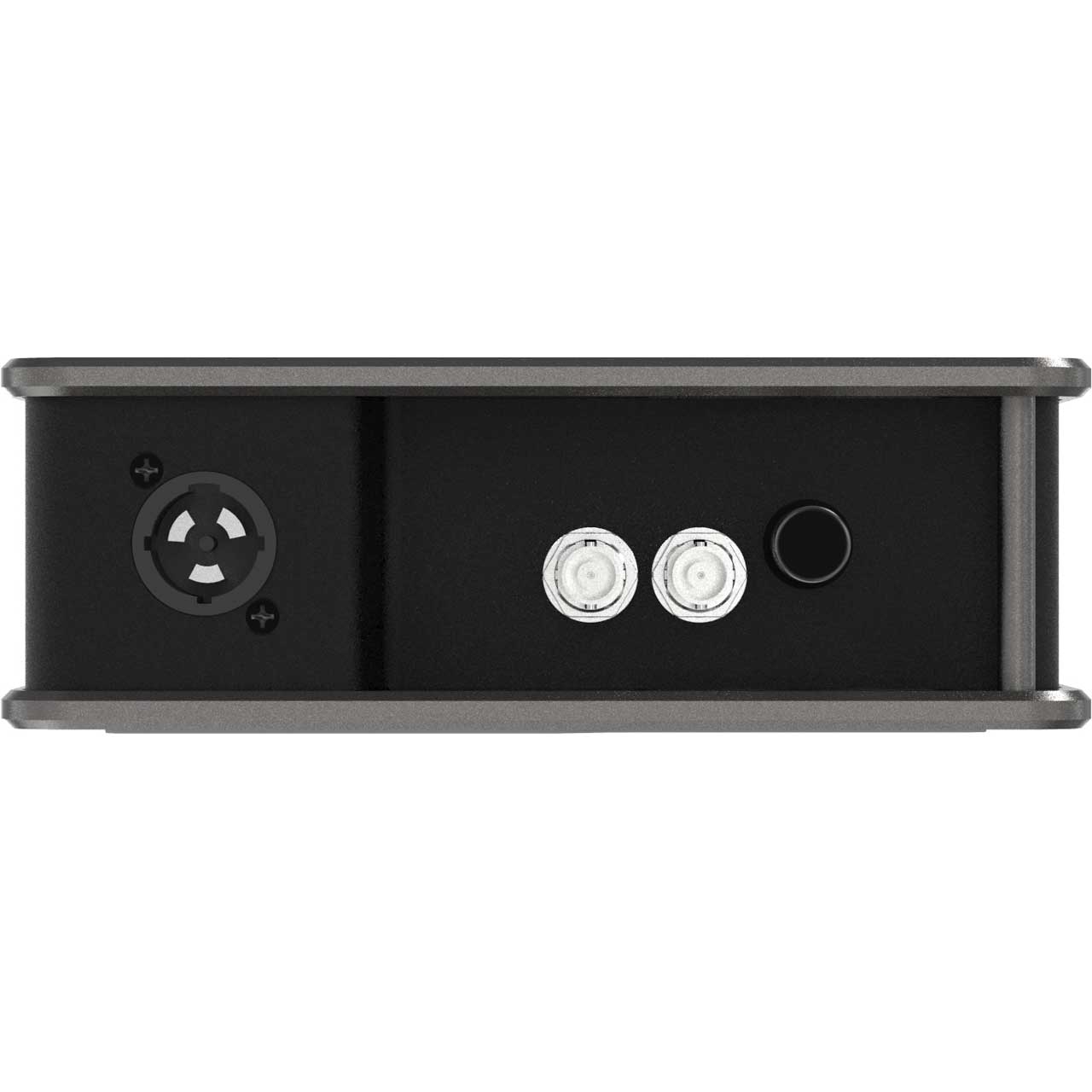

    • Video Input: 1 x 3G-SDI BNC
    • Video Loop-thru: 1 x 3G-SDI BNC (no delay)

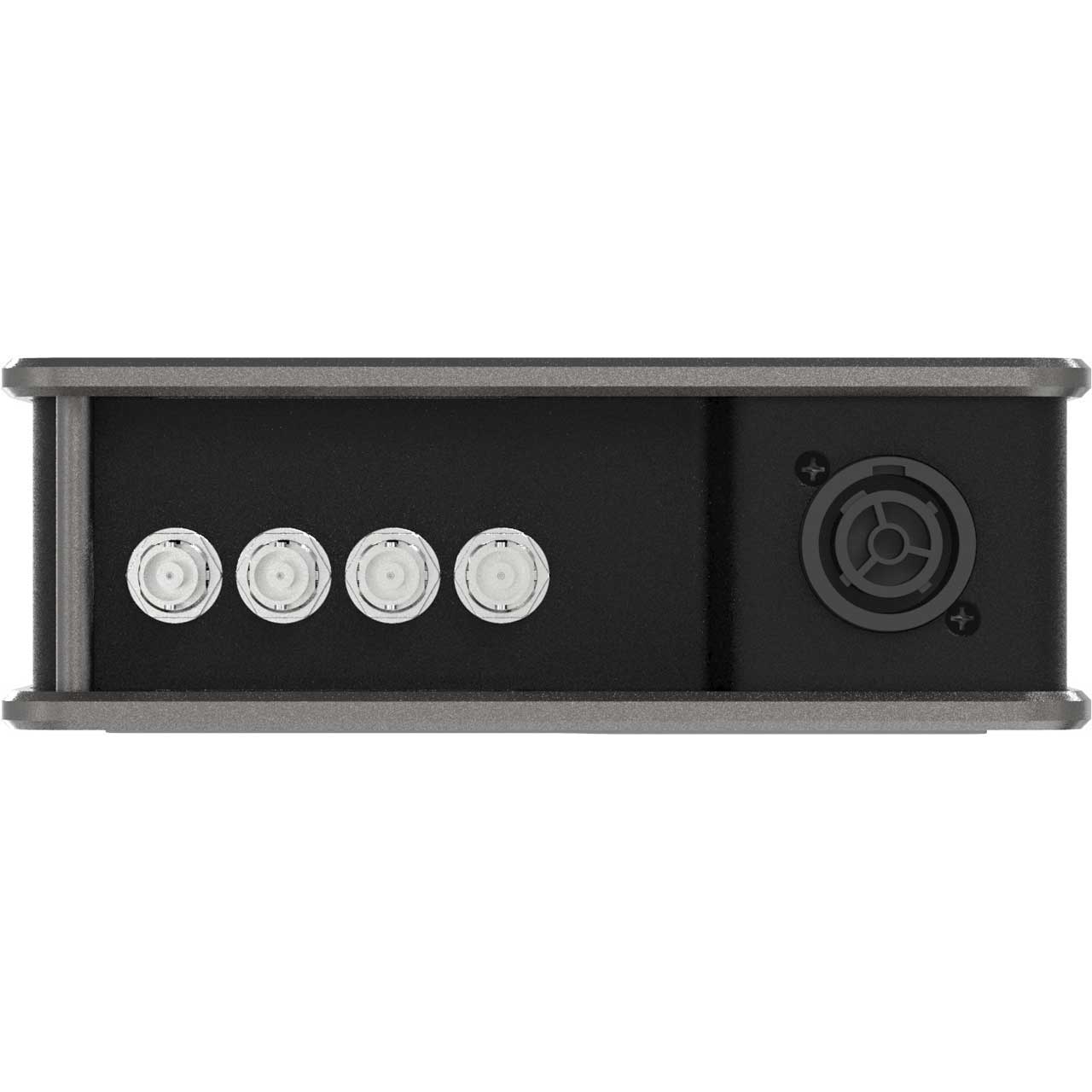

    • Video Output: 4 x 3G-SDI BNC (delayed & mirrored)

      Supported Signals
    • 3G Formats
    • 1920x1080 p @ 60/50 fps

      HD Formats
    • 1920x1080p @ 30/25/24 fps
    • 1920x1080i @ 60/50 fps
    • 1280x720p @ 60/50 fps

      SD Formats
    • 720x480i @ 60 fps, 720x576i @ 50 fps

      Embedded Audio
    • Up to 16 channels, 24 bit, 48 kHz

      SMPTE Standards
    • ST425M Level A & B, ST424M, ST292M, ST259M

      Physical
    • Height: 62 mm (2.44 in)
    • Depth: 180 mm (7.08 in)
    • Width: 221 mm (8.7 in)
    • Weight: 2 kg (4.4 lbs)

      Environmental
    • Operating temp.: 0-40° C
    • Relative Humidity: 0 % to 90 % RH non-condensing

      Power Requirements
    • Power Supply
    • Built-in power supply
    • PowerCON True1 in/loop thru
    • Power Consumption: 60W max.
    • Operational Voltage Range: 100-240V / 50-60 Hz

  • Item Includes:

    • 1x xVision SDI Line Delay (True1)
    • 1x Power Cable (1.5 m)
